PREPARING FOR INSTALLATION

3 Preparing for installation
3.1

Installation position

• The installation location can be derived from the position suggested by the ventilation planning.
The exact positioning of the individual devices and control devices must be checked on site
and, if necessary, adjusted. Consult the responsible planner about this!
For optimum function, it is recommended that the ventilation device is installed at the appropri-
ate point in the upper wall area (e.g. 1.80 m from the upper edge of the finished floor (UEFF)).
• Do not place the ventilation device near radiators, indoor air thermostats, sensitive furniture or
above pictures.
• Do not install the device in places where direct contact with water spray is possible.
Observe the specifications of VDE 0100 when choosing the installation location.

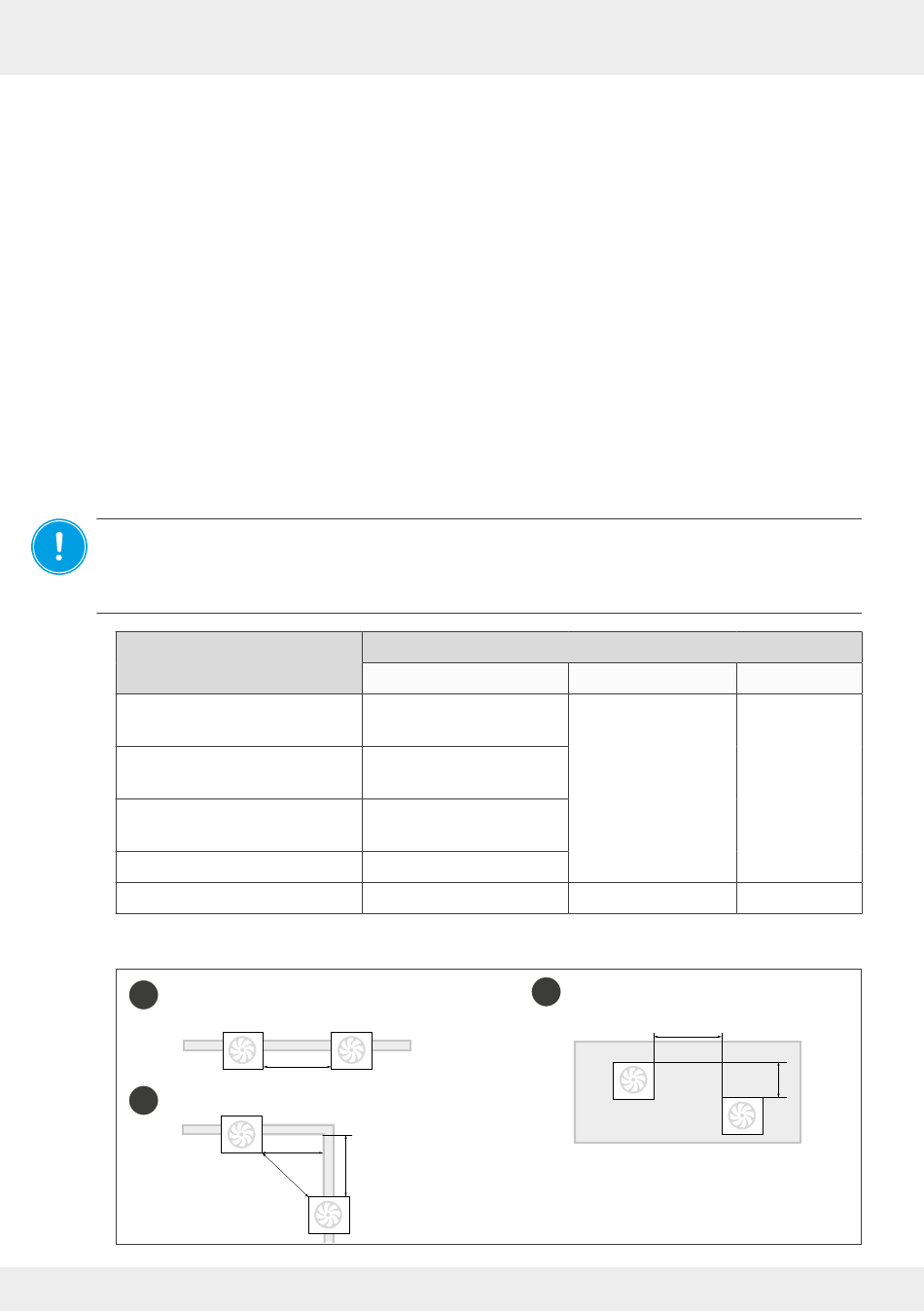

Minimum distances of the wall opening for the ventilation device:
• Minimum distances to components / building elements on the internal and external wall:
NOTICE:
Malfunction due to incorrect positioning of the ventilation device.
• Note insulation thickness and possibly shutters!
• Do not install near radiators!
• Observe minimum distance of 1.2 m to adjacent air openings!
Termination component
Smart weather protection
hood
Flex weather protection hood
Corner external termination
Nordic external termination
Flair inner cover
• between two ventilation devices (pair of devices) operating in push-pull mode in a room
A
Horizontal or vertical on the same wall
B
Installation over corner
14
14
Distance from centre of hole on the
External wall [mm]
250 circumferential
450 (top)
250 (side, bottom)
250 ... 385 to the reveal
250 (top, bottom, side)
250 circumferential
–
1,2 m
1,2 m
1,0 m
1,0 m
1,0 m
1,0 m
1,4 m
1,4 m
1,2 m – 0,75 y
1,2 m – 0,75 y
Internal wall [mm]
–
1,2 m
1,0 m
250 circumferential
1,4 m
C
Installation with height offset
1,2 m – 0,75 y
iV-Smart+ ventilation device | Installation instructions
frontal [mm]
–
300
1,0 m
y
