PREPARING FOR INSTALLATION
4.1 Electrical connection 230 V AC (Alternating Current)
Connection terminal Mains connection cable
Terminal assignment
1
2
3
3
Ls L N

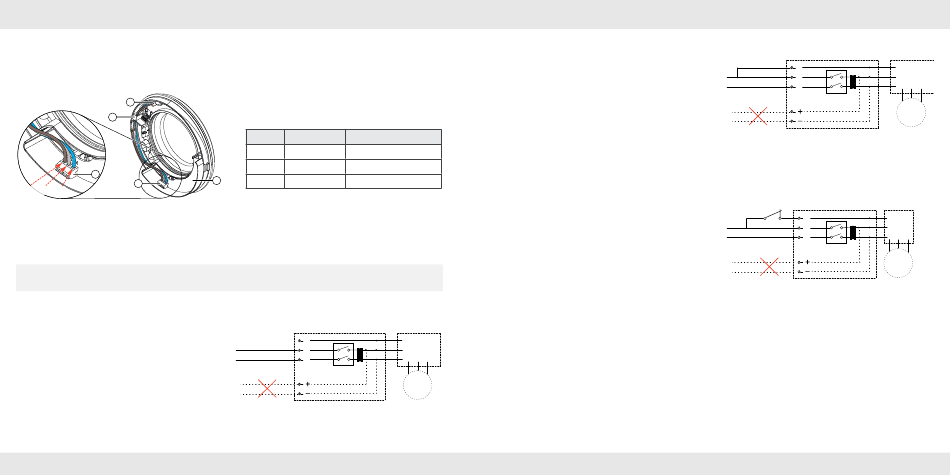

Abbildung 5: Circuit board - Connection terminal Mains connection cable 230 V AC
Wiring diagrams 230 V connection
The connection of the exhaust fan depends on the desired functions. Make sure you connect the exhaust fan properly
and select the correct presets for your functions during start-up.
Sensor controlled functions
Sensor controlled, with continuous ventilation:
• Continuous ventilation with an air flow rate of 30 m³/h.
• Sensors are enabled.
• Increase fan power in case of increased humidity
(110 m /h, no overrun) or under the influence of light
3
changes (60 m /h, overrun).
3
10
1 Cable input Mains connection cable
2 Cable bushing Mains connection cable
3 Connection terminal Mains connection cable,
230 V AC, 3-pole
Clamp Labeling Definition
N N Neutral conductor
L L Conductor, phase
4 LS T Phase, switched
4 Circuit board
T
L
N
AC 230 V
S1
DC 12 V
Abbildung 6: Pulsar Basic 230 V AC with overrun function
Exhaust fan Pulsar Basic | Installation and operating instructions
Sensor controlled, with out continuous ventilation:
• Controlled ventilation required.
• Sensors are enabled.
• Increase fan power in case of increased humidity
(110 m /h, no overrun) or under the influence of light
3
changes (60 m /h, overrun).
3
Switch controlled functions
Sensor controlled, with additional external on/off
switch:
• Controlled ventilation required.
• Sensors are enabled.
• Increase fan power in case of increased humidity
(110 m /h, no overrun) or under the influence of light
3
changes (60 m /h, overrun).
3
• It is possible to switch the Pulsar Basic on or off
manually at the external switch S.
The external switching element must have an NC
contact.
M
Exhaust fan Pulsar Basic | Installation and operating instructions
PREPARING FOR INSTALLATION
B
T
L
N
AC 230 V
S1
DC 12 V
Abbildung 7: Pulsar Basic 230 V AC without overrun
function
S
T
L
N
AC 230 V
S1
M
DC 12 V
Abbildung 8: Pulsar Basic 230 V AC with external swicht-
ing element S (NC contact)
M
