TECHNICAL DATA

2
NOTICE The fan of the ventilation unit must not
be immersed or sprayed directly with water.
► Clean the wall sleeve, the fan housing and the fan unit
with a damp cloth.
!
The fan is cleaned directly at the fan unit, it
must not be dismantled.
3
► Carefully place the fan unit into the
guides (red arrow) of the fan housing.
! Do not tilt the fan when inserting it so as not to
damage the contacts.
 An audible click confirms that the fan unit is correctly
inserted.
22

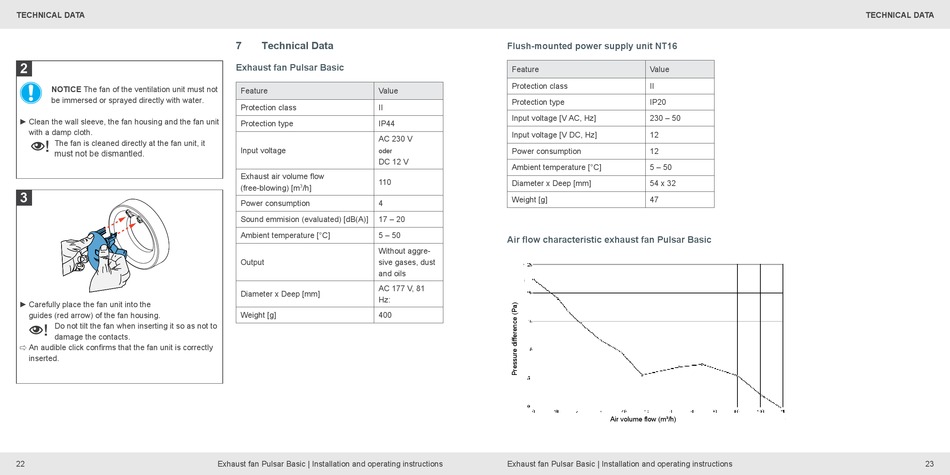

7 Technical Data
Exhaust fan Pulsar Basic
Feature Value
Protection class II
Protection type IP44
AC 230 V
Input voltage
oder
DC 12 V
Exhaust air volume flow
110
(free-blowing) [m /h]
3
Power consumption 4
Sound emmision (evaluated) [dB(A)] 17 – 20
Ambient temperature [°C] 5 – 50
Without aggre-
Output sive gases, dust
and oils
AC 177 V, 81
Diameter x Deep [mm]
Hz:
Weight [g] 400
Exhaust fan Pulsar Basic | Installation and operating instructions
Flush-mounted power supply unit NT16
Feature Value
Protection class II
Protection type IP20
Input voltage [V AC, Hz] 230 – 50
Input voltage [V DC, Hz] 12
Power consumption 12
Ambient temperature [°C] 5 – 50
Diameter x Deep [mm] 54 x 32
Weight [g] 47
Air flow characteristic exhaust fan Pulsar Basic
Air volume flow (m³/h)
Exhaust fan Pulsar Basic | Installation and operating instructions
TECHNICAL DATA
23
