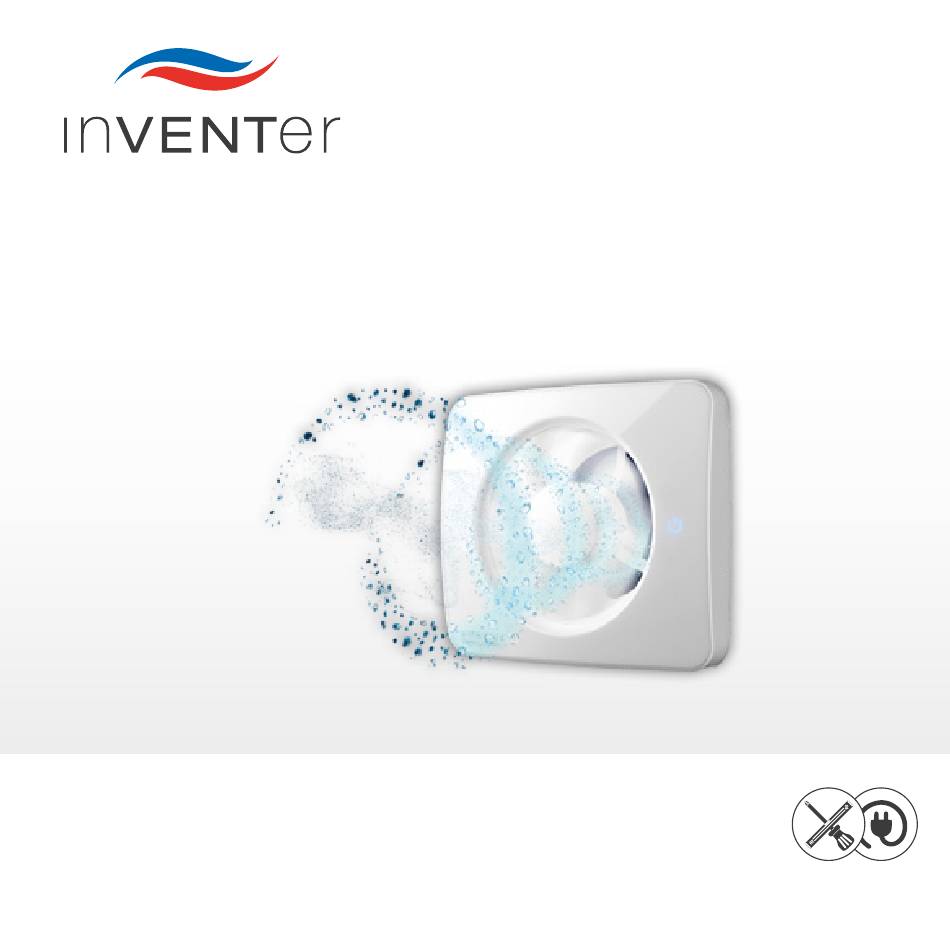

- Page 1 Installation instructions Aviant Extractor Fan www.inventer.eu...
- Page 2 Trademarks, copyrights and property rights Company Information inVENTer is a registered trademark of inVENTer GmbH. Publisher: ® The coyright to this document remains with the inVENTer GmbH Phone: +49 (0) 36427 211-0 manufacturer. Rights to all content and images: Ortsstraße 4a...
-
Page 3: Table Of Contents
6 Quick Start Instructions .......... 17 7 Technical Data ............18 8 Scope of Supply ............19 9 Accesories and spare parts ........19 10 Guarantee and warranty ........19 11 Service ..............19 Aviant extractor fan | Installation instructions... -
Page 4: User And Safety Instructions
USER AND SAFETY INSTRUCTIONS User and Safety instructions Thank you for purchasing this high quality product from inVENTer! This section provides an overview of the basic safety precautions for safe and proper operation of your ventilation system. User information Other symbols used in this documentation... - Page 5 ( Chapter 3.1, Page 8). taking into account the technical data and applications - Do not use the Aviant in places where direct contact with described in this manual, and only in conjunction with the splashing water is possible over a long period of time components recommended by inVENTer GmbH and which and/or where the unit is exposed to direct jets of water.
-
Page 6: System Overview
• Environment containing strong oils or lubricants. • Flammable, aggressive and corrosive gases, liquids or The Aviant can be used in combination with the aV100 wall vapours. mounting set, or installed in an alternative wall mounting • Ambient temperatures outside the range of 5 – 50 °C sleeve with diameter DN98-DN100 or DN118-DN125 and •... -
Page 7: Function
(permanent opeation). Note: The sensors are switched with priority. If the Aviant was • Light sensor: activated in the meantime by means of sensors, the basic ventila- Increase of the air flow volume when the lighting con- tion cycle is shifted back accordingly. -
Page 8: Preparing For Installation
Electrical protection areas according to 0100 Positioning of the Aviant DANGER • Install the Aviant extractor fan in the room‘s air flow to Infiltration of water into the Aviant extractor fan ensure optimum moisture removal and reliable readings or its power source. -
Page 9: Dimensions
Keep a minimum distance of 250 mm from components at the front and all around. • Installation is possible in ceilings and external walls. The Aviant exractor fan is inserted into a wall sleeve with Ø 98 DN100 (e.g. aV100 wall mounting set) or Ø... -
Page 10: Electrical Connection
ELECTRICAL CONNECTION Electrical connection Mains connection terminal The Aviant extractor fan is connected directly to the AC 230 V mains. The fan is double insulated and must not Terminal assignment be grounded. The fan is equipped with an all-pole disconnecting switch. -
Page 11: Wiring Diagrams
• Connection, see connection diagram 2. - Continuous to phase (L) and neutral conductor (N). - Connect the switched phase (SL) to the push-button. 230 V AC 50 Hz Aviant extractor fan | Installation instructions... -
Page 12: Installation
• Mount Aviant extractor fan outside the protection area 0 according to VDE 0100. • Only install the Aviant in areas of protection zone 1 where direct contact with splash water is not possible over a longer period of time and/or the unit is not exposed to direct jets of water. - Page 13 � 118 – 125 (optional) Ø127 Ø108 Ø133 ø 98 – 100 ø 118 – 125 aV100 wall mounting set Route cables Flush mounted cable (a) 230 V AC 230 V AC (max. 1,5 mm²) Aviant extractor fan | Installation instructions...
- Page 14 INSTALLATION Prepare the extractor fan for connection � 98 – 100 (aV100) Ø Ø � 118 – 125 Inserting the extractor fan and electrical connection (x4) 230 V AC (x4) Aviant extractor fan | Installation instructions...
- Page 15 INSTALLATION 230 V AC 230 V AC 50 Hz Aviant extractor fan | Installation instructions...
- Page 16 INSTALLATION Aviant extractor fan | Installation instructions...
-
Page 17: Quick Start Instructions
(Factory settings) 1. Press the button: 2. Press the button: Activate control panel Press repeatedly Connection error. Touch the Function and hold for 5 seconds. icon or start the “inVENTer mobile” application again. Download Aviant extractor fan | Installation instructions... -
Page 18: Technical Data
5 – 50 Material Diameter x Depth [mm] 185 x 160 x 40 Weight [g] Air flow characteristic extractor fan Aviant 125 [without inner panel, free blowing] Ø 100 [without inner panel, free blowing] Ø 125 [with inner panel, free blowing] Ø... -
Page 19: Scope Of Supply
Manufacturer guarantee inVENTer GmbH provides a five-year warranty on the Disposal Aviant extractor fan. This covers premature product wear. Dispose of the product in accordance with the applicable Information on the warranty conditions can be found at national regulations. Contact a disposal company for www.inventer.eu/guarantee. - Page 20 GmbH Ortsstraße 4a D-07751 Löberschütz Germany www.inventer.eu Subject to modifications. We accept no liability for printing errors. Item Number: 5010-0014 008753-C Version: 1.0 – 04/2022...
