INSTALLATION
5.3

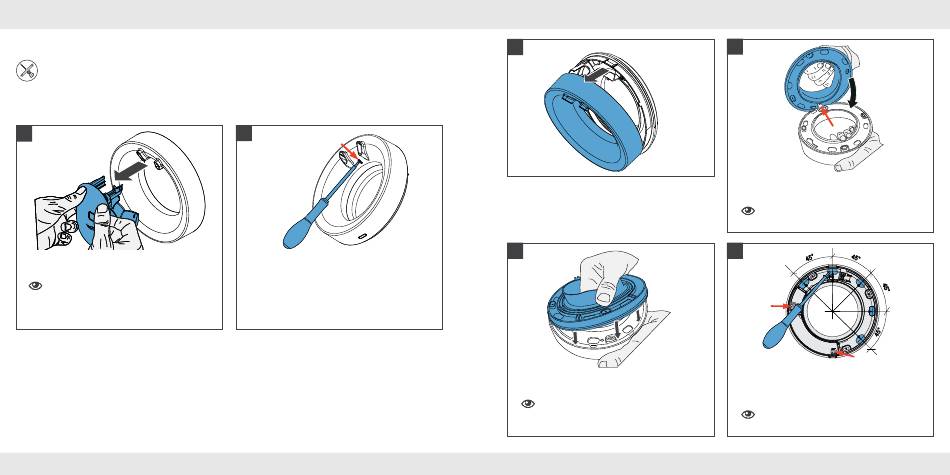

Inserting and connecting the Pulsar Basic

Screwdriver, drill, dowels, screws, spirit level, stripping tool
Requirements:
• The wall mouting set is installed. Styrofoam panes have been removed.
• The connection cable (AC 230 V, 50 Hz/ DC 12 V) has been laid.
1
► Reach behind the fan unit with both hands.
► Pull the fan unit forward off the fan housing.
!
Hold the fan unit firmily so tha it does not fall to
the floor when removed.
16
2
► Use a screwdriver to press in the locking button (red
arrow) on the fan housing.
► Loosen the cover of the fan housing.
Exhaust fan Pulsar Basic | Installation and operating instructions
3
► Lift the cover of the fan housing from the top to the
front.
5
► Press the rubber seal firmly onto the base plate of the
fan housing.
!
Press firmly on the side of the integrated switch
beginning and end on the opposite side.
Exhaust fan Pulsar Basic | Installation and operating instructions
INSTALLATION
4
► Fit the rubber seal (from the accesory pack) to the
back of the fan housing.
!
First carefully place the switch (red arrow) in the
opening provided.
6
AC 230 V
DC 12 V
► Create a lead-through for the connection cable in
the rubber seal at one of the 5 cable inlets using a
suitable tool.
!
Near the respective connection terminal.
