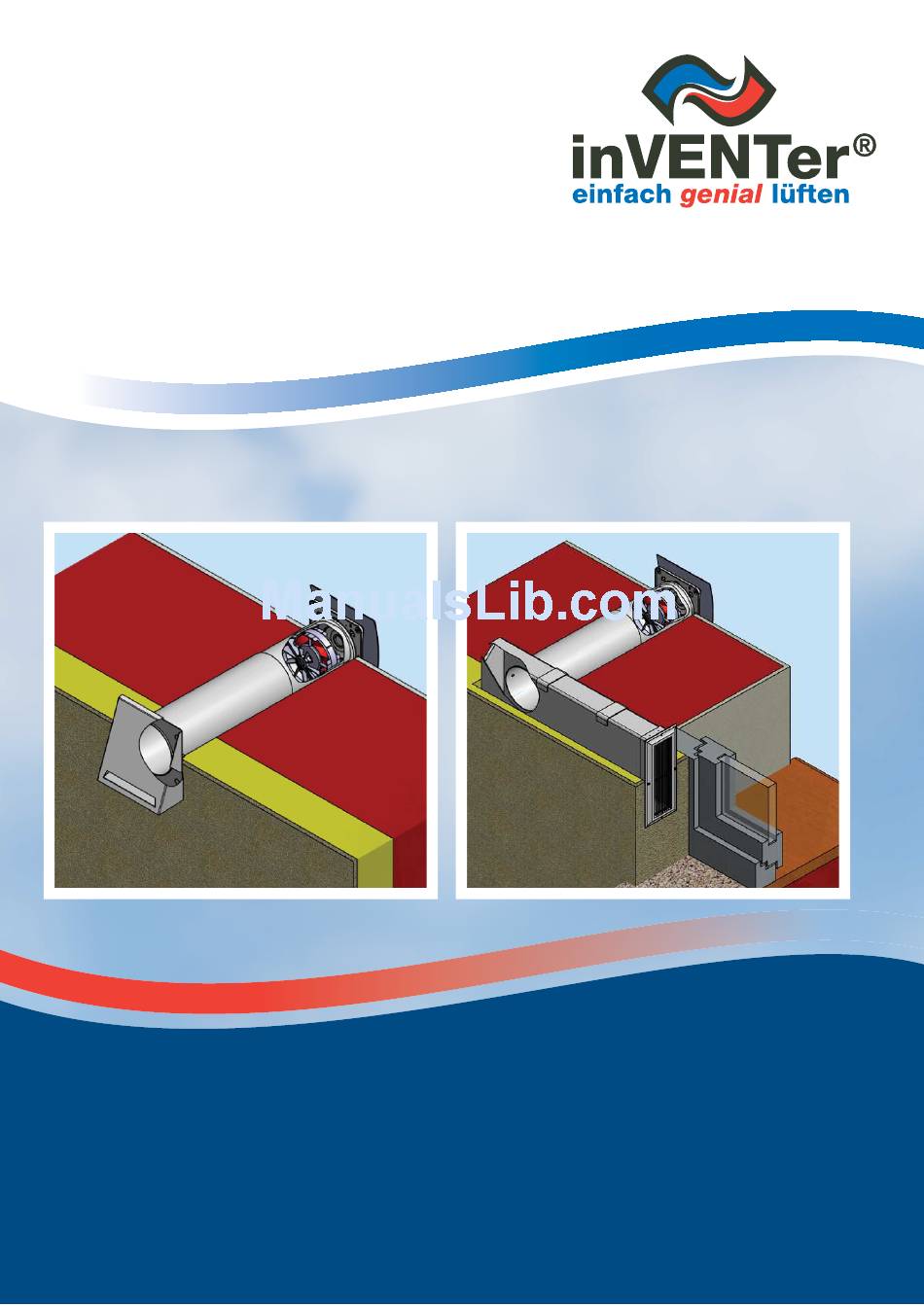

- Page 1 GS62 Air Extractor System Installation and Operating Instructions 09/2013...
- Page 2 Observe all safety regulations in this documentation. TRADEMARKS inVENTer® is a registered trademark of ÖkoHaustechnik inVENTer GmbH. Other names used in this documentation may be trademarks whose use by third parties may infringe upon the rights of the owner. EXEMPTION FROM LIABILITY The content of this documentation has been reviewed for compliance with the hardware and software described.
-
Page 3: Table Of Contents
Deliverables, accessories and spare parts ......27 Deliverables ......................27 Accessories ......................27 Spare parts ......................27 GS62 Air Extraction System • Installation and Operating Instructions 09/2013... - Page 4 Legal notice ............31 GS62 Air Extraction System • Installation and Operating Instructions 09/2013...
-
Page 5: System Overview
SYSTEM OVERVIEW 1 SYSTEM OVERVIEW The GS62 was developed for the ventilation of rooms with outside windows in single and multiple occupancy houses, hotels and guest houses. It is an air extraction system that works without heat recovery and with direct current. - Page 6 The air duct is embedded in the insulation and the airflow is directed out in the window reveal. The wall opening for the ventilation system must therefore be in close proximity to the window. The GS62-Corner 500 is used for a 250 … 450mm distance, the GS62-Corner 1000 for a 451 .. 950mm distance, between wall opening and window reveal.
-
Page 7: Description
DESCRIPTION 2 DESCRIPTION The GS62 air discharge system is used to expel old air from a room. The fan is preinstalled in the housing for ex works deliveries. 2.1 Features • Low power consumption of fan (approx. 70% less than comparable AC fans) •... -
Page 8: Operating Conditions
3.2 Flat duct (GS62-Corner) The length of the flat duct (GS62-Corner 500) is 500mm, and so can be used for gaps between wall open- ing and window reveal of 250 ... 450mm. If the gap between wall opening and window reveal is greater than 400mm, a flat duct 1000mm in length can be ordered as an option (GS62-Corner 1000). -
Page 9: Functional Elements / Interfaces
Make two holes in the masonry - one (Ø75) for the wall mounting box and one (Ø115) for the telescopic tube. Ensure that the hole for the wall mounting sleeve of the GS62 is at an angle of 1-2° to the outside wall so that condensation is drained away reliably. -
Page 10: Psu
Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Interior plaster Figure 5: Determining the wall thickness GS62 Air Extraction System • Installation and Operating Instructions 09/2013... - Page 11 Seal all the joints of the tube and sleeve with durable, watertight adhesive tape* . This fuses together the joints. When condensation forms in the telescopic tube, the sealed joints prevent moisture from penetrating into the wall. *) Not included in the delivery. GS62 Air Extraction System • Installation and Operating Instructions 09/2013...
-
Page 12: Fitting The Telescopic Tube Into The Wall
GS62 with GS62-Corner: Stick sealing tape all around the projection of the telescopic tube. Caution - The GS62 is not suitable for drying out buildings. Do not use the GS62 whilst con- struction work is being carried out in the building. Close the telescopic tube to protect the fan. -
Page 13: Protective Hood
Note: Remove the polystyrene spacer from the telescopic tube before fitting the protective hood *) Use of the GS62-Blank protective hood only after coating (by customer) with Nano Set included GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 14: Nonreturn Valve
Telescopic tube Connector cable (2-wire) po- sition from the masonry for fan and PSU connection Masonry Hole for wall attachment (4 x) Figure 10: Fan housing installation on interior room side GS62 Air Extraction System • Installation and Operating Instructions 09/2013... - Page 15 Connect the cable in the fan housing to the connectors provided. Information on this is in Section Elec- trical connection on Page 23. Refit the housing screen (1) and housing cover (2). GS62 Air Extraction System • Installation and Operating Instructions 09/2013...
-
Page 16: Inner Baffle
Put the Inside baffle (2) onto the fan housing (1) - as seen from the inside panel. Allow the four mounting elements (3) to audibly click into place Figure 10: (from left to right) inside baffle (curved plastic), glass inside baffle, tile inside baffle GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 17: Flat Duct (Gs62-Corner)
Shorten the flat duct on the side opposite the hole for the telescopic tube down to the length determined: overall length of flat duct = 70mm + (y+z) - 35mm. GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 18: Dimensional Drawings
Figure 13: Wall opening dimensional drawing, GS62 telescopic tube with protective hood (exterior view) Note - Keep to the minimum distance of 250mm away from other components on the exterior. - Page 19 Figure 15: Dimensional drawing for 2-part telescopic tube (extension) Wall mounting box Figure 16: Dimensional drawing for wall mounting box Protective hood Figure 17: Dimensional drawing for GS62 protective hood GS62 Air Extraction System • Installation and Operating Instructions 09/2013...
-
Page 20: Gs62 With Gs62-Corner
Figure 18: Dimension drawing from left to right GS inside baffle (white, stainless, gold and silver), glass, tile 5.10.2 GS62 with GS62-Corner Note - The dimensional drawings for these components are in Section Dimensional drawings for GS62 with protective hood - telescopic tube (extension), wall mounting box and inside baffle Wall opening ≥ 250... - Page 21 Air extraction system (as a complete assembly) Figure 20: Dimensional drawing for GS62 with GS62-Corner Flat duct Figure 21: Dimensional drawing for flat duct (500mm/1000mm) Reveal grate Figure 22: Dimensional drawing for grate with sleeve GS62 Air Extraction System • Installation and Operating Instructions 09/2013...
-
Page 22: Electrical Connection
(except when using the on/off switch). The descriptions and connection options for the functional modules are in additional, accom- panying installation and operating instructions for the GS61 air extraction system. GS62 Air Extraction System • Installation and Operating Instructions 09/2013... - Page 23 The cable is then directly at the intended cable feedthrough of the fan housing and can be routed straight into the housing. Information on this is in Section Installation > Fan housing. GS62 Air Extraction System • Installation and Operating Instructions 09/2013...
-
Page 24: Technical Details
GS61 PSU 5.2W / 13.5V 5.2W / 13.5V Airflow The output voltage is 13.5V. Pressure difference [Pa] Volume flow [m³/h] PSU / voltage steady (13.5V) Diagram: GS62 airflow with protective hood GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 25: Gs61 Psu
Diameter: 107mm Diameter: 107mm Diameter: 107mm Diameter: 107mm Diameter: 107mm Diameter: 107mm Tube Weight (g) Weight (g) Weight (g) Weight (g) Weight (g) Extension Identical construction to sleeve and tube GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 26: Inner Baffle
Dimensions (mm) Height: 100 Height: 100 Height: 100 Height: 100 Width: 100 Width: 100 Width: 100 Width: 100 Depth: 17 Depth: 17 Depth: 17 Depth: 17 Weight (g) Weight (g) GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 27: Deliverables, Accessories And Spare Parts
Grate for duct 2001-0070 2001-0070 *) A Nano Set is provided with the GS62-Blank protective hood for surface coating. 1 Nano Set is enough to coat at least 10 GS62-blank protective hoods **) Only for commercial customers GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 28: Maintenance And Repair
MAINTENANCEANDREPAIR 9 MAINTENANCE AND REPAIR The GS62 air extraction system is virtually maintenance-free. The table lists all maintenance measures. Danger - Prior to any maintenance and repair work, disconnect all relevant equipment from the power supply. System Maintenance measure module... -
Page 29: Troubleshooting And Disposal
Telescopic tube / flat duct Telescopic tube / flat duct Telescopic tube / flat duct Recycling Recycling Recycling inside baffle PVC / glass / metal PVC / glass / metal GS62 Air Extraction System • Installation and Operating Instructions 09/2013... -
Page 30: Warranty And Service
Note - The terms of warranty of the country in which the system was sold apply outside Ger- many. Please contact the dealer in your country. GS62 air extractor system The manufacturer assumes a warranty of two years for the GS62 air extraction system. The warranty becomes void if •... -
Page 31: Legalnotice
District court Jena, company reg. no. 208892 Images: © Öko-Haustechnik inVENTer GmbH 2013 Rights to all content: © Öko-Haustechnik inVENTer GmbH 2013 Subject to changes. All information provided "as is". No liability assumed for printing errors. GS62 Air Extraction System • Installation and Operating Instructions 09/2013... - Page 32 Öko-Haustechnik inVENTer GmbH Ortsstraße 4a 07751 Löberschütz, Germany Phone: +49 (0)36427 / 2192-0 Fax: +49 (0)36427 / 2192-13 Email: info@inventer.de Subject to change © Öko-Haustechnik inVENTer GmbH 2013 www.inventer.de...
