Angular Influences
Target tilt angles around both the X and Y-axis of less than 5° in the case of diffuse reflection only cause problems with surfaces that
produce strong direct reflection.
These influences must be taken into account especially when scanning profiled surfaces. In principle, angular behavior of triangula-
tion is also subject to the reflective properties of the target surface.
optoNCDT
X-axis
Y-axis
Angle

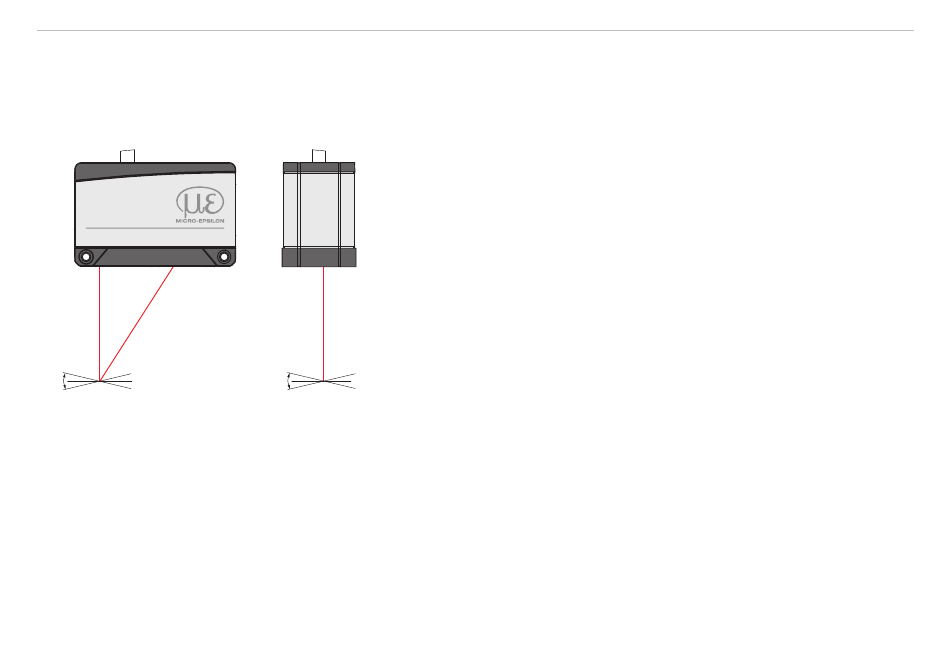

Fig. 9 Measurement error caused by tilt angle with diffuse reflection
