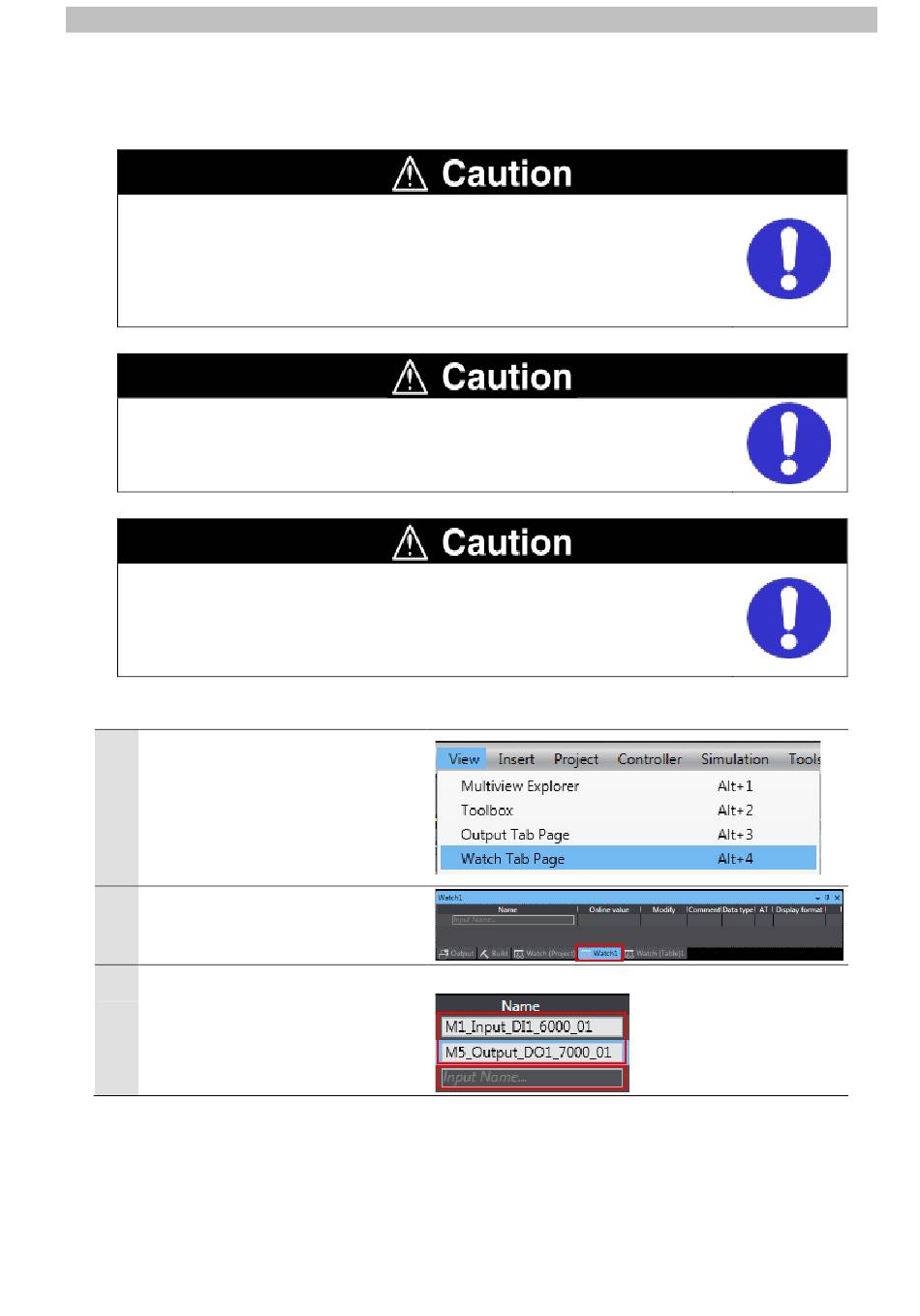

7.4.2. Checking Sent and Received Data
Check that correct data is sent and received.
In this procedure, the output of the u-remote is performed, which may have a
risk of unexpected operation of the devices connected to the u-remote.
Ensure safety before you proceed with this operation check described here.
If you cannot ensure safety, do not proceed. When you perform this operation
check, make sure to complete all the steps and make the output of the u-remote
safe.
If you wire the I/O in the state where the devices are powered ON, this may
cause damage to the devices.
Always read and follow the information provided in all safety precautions in the
manuals for each device to be wired.
If you change the variable values on a Watch Tab Page when Sysmac Studio is
online with the CPU Unit, the devices connected to the Controller may operate
regardless of the operating mode of the CPU Unit.
Always ensure safety before you change the variable values on a Watch Tab
Page when Sysmac Studio is online with the CPU Unit.
1
Select Watch Tab Page from the
View Menu.
2
Select the Watch1 Tab.
3
Click Input Name and enter the
following variable names for
monitoring.
M1_Input_DI1_6000_01
M5_Output_DO1_7000_01
