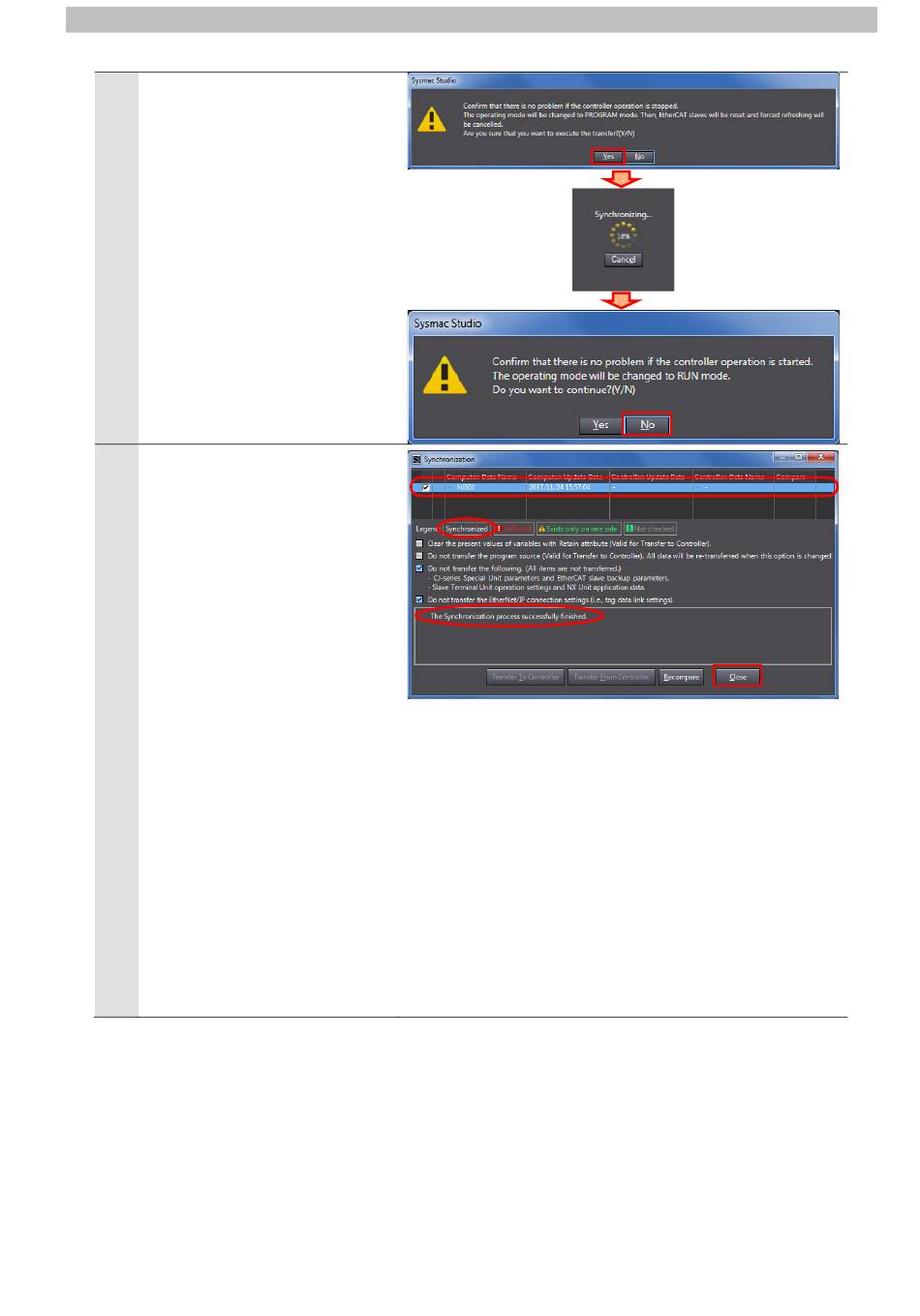

The dialog box on the right is
displayed. Confirm that there is
no problem, and click Yes.
A screen is displayed stating
"Synchronizing".
The dialog box on the right is
displayed. Confirm that there is
no problem, and click No.
*Do not return to RUN mode.
10
As shown in the figure on the
right, the font color that is used
to display the synchronized data
changes to the same color as
the one used to specify
"Synchronized". Check that a
message is displayed stating
"The Synchronization process
successfully finished".
Confirm that there is no
problem, and click Close.
*When the Sysmac Studio
project data coincides with the
Controller data, a message is
displayed stating "The
synchronization process
successfully finished".
*If the synchronization fails,
check the wiring and repeat
from step 1.
