PART IDENTIFICATION CHART

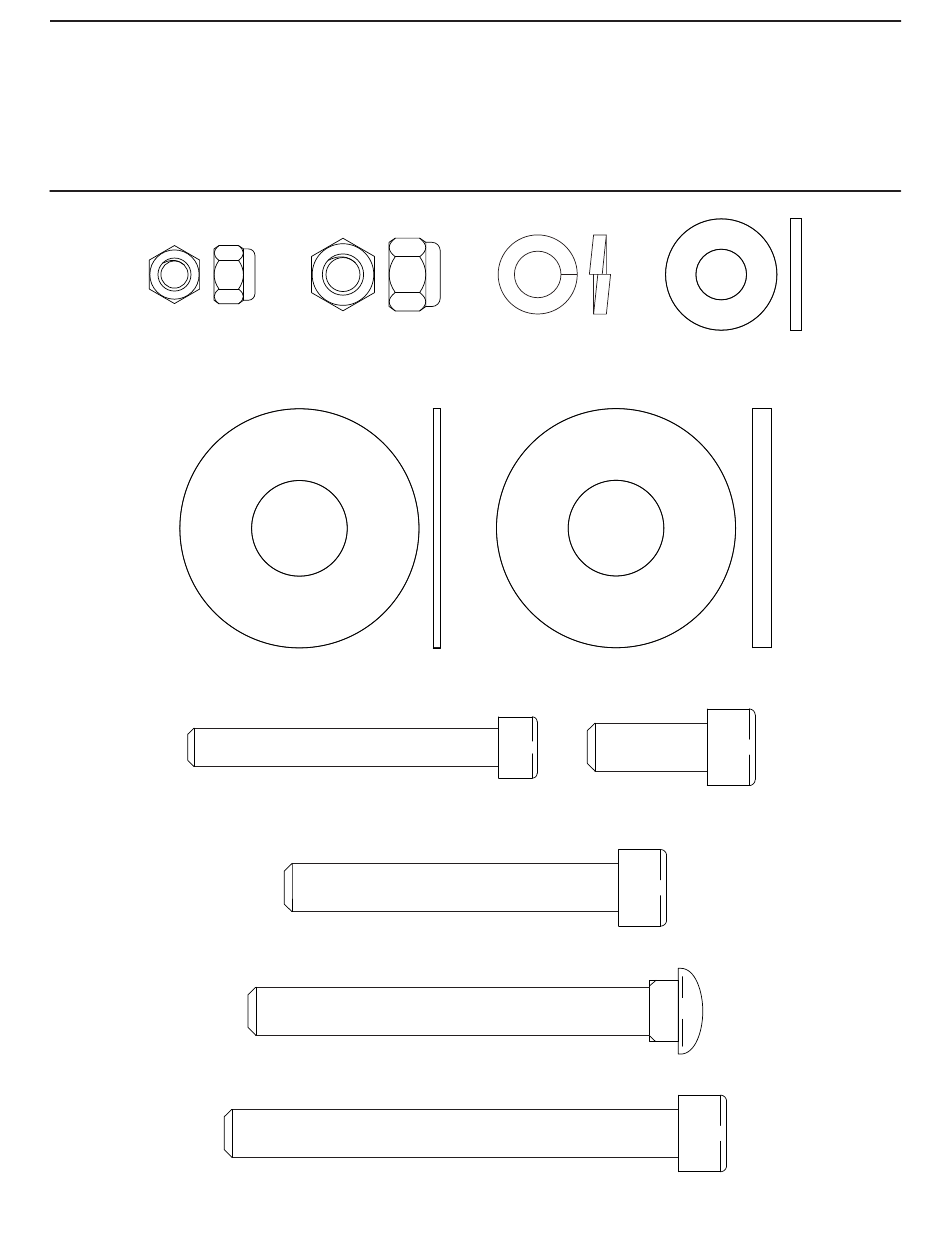

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.
M8 Locknut
M10 Split
M10 Locknut
(29)–2
Washer M10 Washer
(24)–24
(32)–6 (22)–14
Nylon Washer (3)–2 Large Washer (4)–3
M8 x 65mm Bolt (28)–2
M10 x 25mm Screw (27)–6
M10 x 70mm Bolt/Screw (23)–16
M10 x 90mm Carriage Bolt (25)–8
M10 x 95mm Bolt (26)–4
6
