Pro-Form PFBE25020.0 User Manual page 8

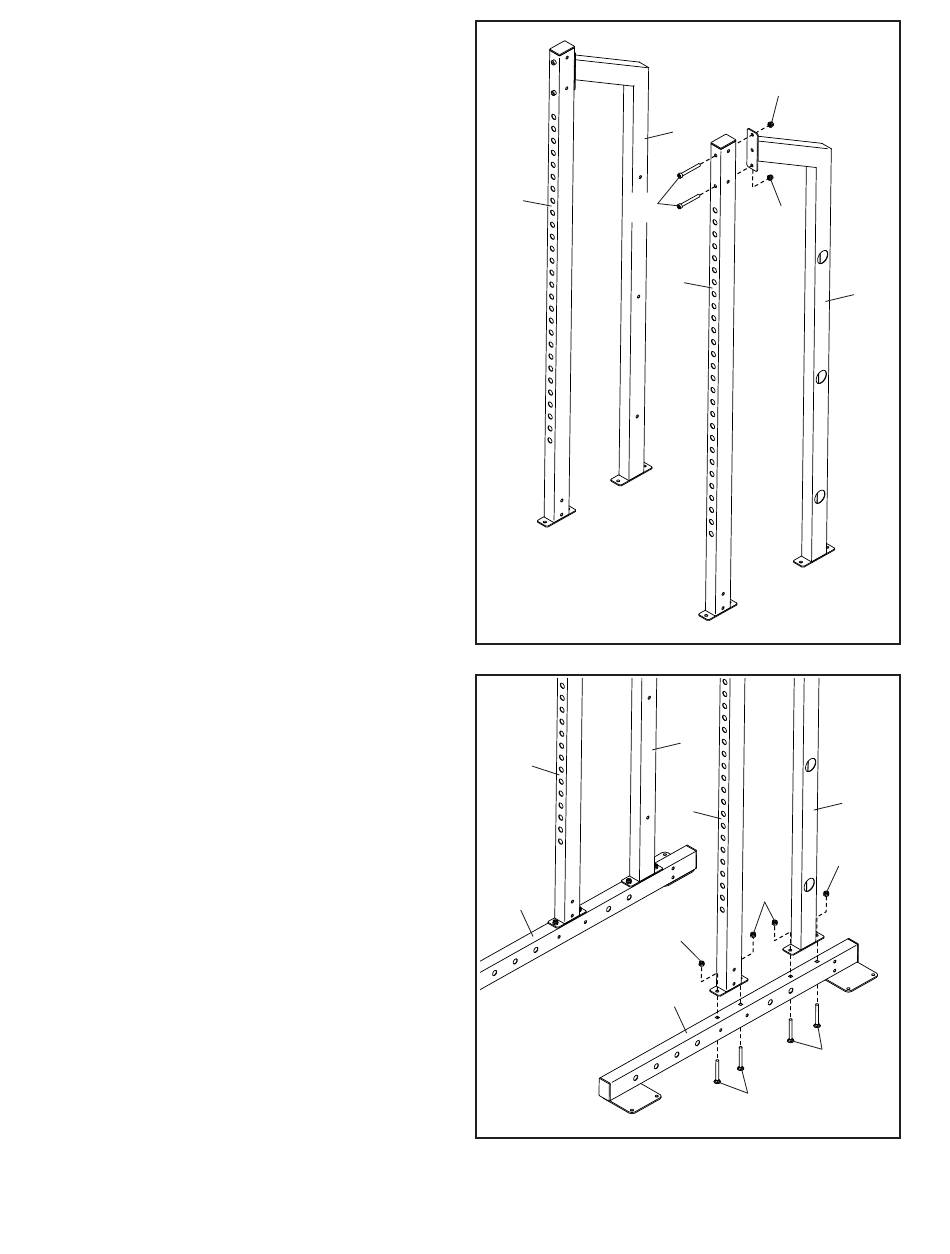

2. Identify the Left Support (11).
Attach the Left Support (11) to an Upright (8)
with two M10 x 95mm Bolts (26) and two M10
Locknuts (24); do not tighten the Locknuts yet.
Attach the Right Support (17) to the other
Upright (8) in the same way.
3. Identify the Left Base (33) and orient it as shown.
Next, insert four M10 x 90mm Carriage Bolts
(25) upward through the Left Base (33).
Then, slide the Left Support (11) and the
attached Upright (8) onto the M10 x 90mm
Carriage Bolts (25), and attach four M10
Locknuts (24) to the Carriage Bolts; do not
tighten the Locknuts yet.
Attach the Right Support (17) and the other
Upright (8) to the Right Base (10) in the
same way.
2
8
26
3
Hand tighten hardware in this step. It will be taken
8
out and used to attach the Upper Crossbar in step 6.
10
8
24
17
24
8
17
8
24
24
24
33
25
25
11
11
