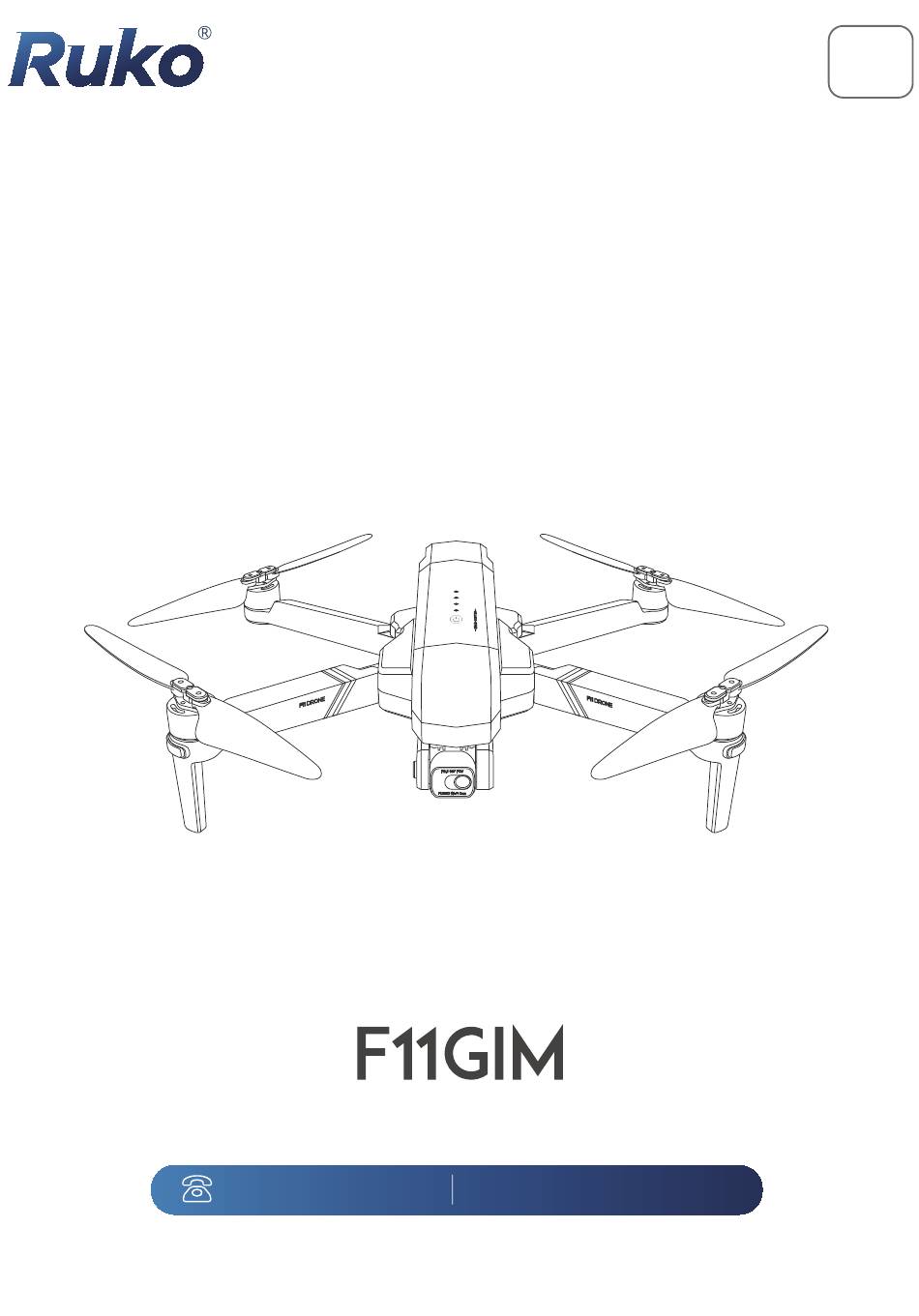

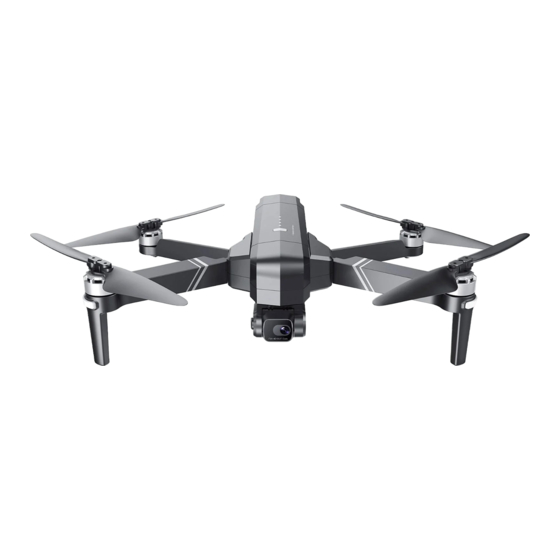

- Page 1 for age User Manual & Safety Disclaimer v2.0 CONTACT US FOR MORE TECH SUPPORT + 1 949-394-4635 Mon-Sun 6PM-4AM(PST)
- Page 2 CONTACT US FOR MORE TECH SUPPORT + 1 949-394-4635 Mon-Sun 6PM-4AM(PST) +86 19129317359...
- Page 3 Disclaimer and Safety Guidelines 1-10 User Manual 11-54...
- Page 4 F 11 GIM User Manual Safety at a Glance The Ruko F11GIM is NOT a toy and is NOT suitable for people under the age of 14. 1. Glossary The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:...
- Page 5 Electromagnetic interference sources include, but are not limited to: high-voltage power lines, high-voltage power transmission stations, mobile phone base stations and TV broadcast signal towers, Wi-Fi hot spots, routers, and Bluetooth devices. Must fly away from electromagnetic interference sources. Copyright ©2022 Ruko All Rights Reserved.
- Page 6 Aircraft. Connect Aircraft WiFi with your phone, make sure that you have connected the WiFi name “RUKO-GIM-******" exactly after App access right and Internet permission with your phone, please make reference to operation video on App first before flying.
- Page 7 After turning off the GPS, the aircraft cannot realize one-key return to home, low power return, or out of control. After turning off the, GPS follow, orbiting, route planning, and aircraft finding functions cannot be realized. Long Press Fly Outdoor Copyright ©2022 Ruko All Rights Reserved.
- Page 8 F1 1 GI M User Manual It is important to set an appropriate RTH altitude before each flight. Make sure your phone has permission to access the Wi-Fi "RUKO -GIM-******" and connect successfully. Do the compass and gyroscope calibration each time before flying, or it maybe can’t work normally.
- Page 9 5V/3A chargers. If the aircraft has not been used for a month, the battery must be removed to prevent the battery from being in a long-term low-power discharge state. Copyright ©2022 Ruko All Rights Reserved.
- Page 10 DO NOT charge the battery immediately after the flight as the temperature may be too high. Wait until it cools down to room temperature before chargingagain. Overheating warning Due to the battery current output, slighthotness is normal while flying. Copyright ©2022 Ruko All Rights Reserved.
- Page 11 3) Do not turn on the aircraft when it is on desk or hollow wooden floor. They will amplify the small vibrations into high-frequency vibrations, which will cause the gimbal cannot work. On the desk On the hollow wooden floor Copyright ©2022 Ruko All Rights Reserved.
- Page 12 Put the Aircraft on a level surface after calibration, then the gimbal will start to work after 20 seconds. Before Start During Compass and Gyro calibration Copyright ©2022 Ruko All Rights Reserved.
- Page 13 If return by low battery, it flies back due to current height, this can not be cancelled. CONTACT US FOR MORE TECH SUPPORT rukodrone@gmail.com +1 ( 949 ) 394 - 4635 ( Available from 6pm to 4am PDT) Copyright ©2022 Ruko All Rights Reserved.
-
Page 14: Table Of Contents
F11 GI M User Manual User Manual 1 Using This Manual 1.1 Legend 1.2 Read Before the First Flight 1.3 Download the RUKO DRONE App 1.4 Video Tutorials 2 Product Profile 2.1 Important 2.2 Product List 2.3 Preparing the Aircraft 2.4 Aircraft Diagram... - Page 15 6.1 Flight Environment Requirements 6.2 Pre-Flight Checklist 6.3 Calibration Before Flight 6.4 Starting/Stopping the Motors 6.5 Automatic Take-off / Automatic Landing 6.6 How to take off the Ruko F11GIM Drone 6.7 Aerial Photography Tips & Tricks 7 Appendix 7.1 Specifications 7.2 Accessories Support 7.3 Common Problems and Solutions...
-
Page 16: Using This Manual
Make sure to use RUKO DRONE App during flight. Scan the QR code on the right to download the latest version of the app. RUKO DRONE App supports Android 6.0 or higher, iOS 10.0.2 or higher, dual-band wifi (2.4GHz) and 5.8GHz phones. -
Page 17: Product Profile
Please also keep this instruction manual for future reference and maintenance. 2.1 Important The Ruko F11GIM is NOT a toy and is not suitable for people under the age of 14. It requires correct assembly and debugging to avoid any accident before every flight. -
Page 18: Preparing The Aircraft
Ensure that there is sufficient space under the camera to prevent the camera angle from being stuck to the ground during the self-check. 2.4 Aircraft Diagram Gimbal ① Propeller ② Motor ③ LED Indicator Light ④ Intelligent Battery ⑤ Power Button ⑥ Copyright ©2022 Ruko All Rights Reserved. -
Page 19: Transmitter Diagram
49.21 feet(15 meters height). After pressing the emergency stop button, the aircraft will lose power and fall out of sky directly. It is recommended to use it only in an emergency to avoid loss. Copyright ©2022 Ruko All Rights Reserved. - Page 20 Shooting Low battery indicator Recording Tips: When the transmitter is in low battery , the charging indicator light on the transmitter will turn red and keep flashing, now you need to charge the transmitter. Copyright ©2022 Ruko All Rights Reserved.
-
Page 21: Aircraft
flight battery. 3.1 Three Gears Speed of the Aircraft The F11GIM has three speed ranges: 14.76 ft/s, 29.53 ft/s, and 39.37 ft/s. The default speed is medium speed. Turn the speed wheel to the right to adjust the flight speed up to 39.37 ft/s, and... -
Page 22: Return To Home
Smart RTH When the pilot needs the Aircraft to return home automatically, he can click the smart RTH button on Transmitter or tap the return home icon on the RUKO DRONE App to activate RTH. Copyright ©2022 Ruko All Rights Reserved. - Page 23 The Aircraft is not equipped with obstacle avoidance function. Please judge the flight status reasonably during the flight. Avoid obstacles in time, and set the corresponding flight and return altitude according to the flight environment. Copyright ©2022 Ruko All Rights Reserved.
- Page 24 After triggering the Return-to-Home function, the Aircraft ③ adjusts the nose direction and starts to return home; The Aircraft automatically flies to the top of the home point, then ④ starts to land, and completes the home return. Copyright ©2022 Ruko All Rights Reserved.
-
Page 25: Intelligent Flight Mode
F 11 GIM User Manual 3.4 Intelligent Flight Mode F11GIM has four intelligent flight modes: Route rules, follow mode, surround mode and gesture mode. According to the user's shooting needs, the operation can be completed by one click, which is simple and fast. - Page 26 F1 1 GI M User Manual Image Follow Make sure you have downloaded RUKO DRONE App on your phone; ① Connect your smartphone to the Aircraft’s WiFi; ② After the Aircraft takes off in an open environment with good ③...
- Page 27 F 11 GIM User Manual Surround Mode ① Make sure the RUKO DRONE App has been downloaded and installed on the smartphone; Connect your smartphone to Aircraft WiFi; ② ③ After the Aircraft takes off, fly it in GPS mode;...
-
Page 28: Propellers
F 11 GIM User Manual 3.5 Propellers The propellers on the adjacent motors of the F11GIM are forward and reverse propellers. The two propellers on the same motor are the same, and the propellers are marked with A and B respectively. The rotation directions of the propellers with the same mark are different. -
Page 29: Intelligent Flight Battery
F 11 GIM User Manual 3.6 Intelligent Flight Battery The F11GIM intelligent flight battery has a capacity of 2500mAh, a rated voltage of 11.1 V, and with charge and discharge management functions. This battery uses high-energy and large-capacity batteries to increase the flight time of the Aircraft. - Page 30 flash and indicate the current charge level; when the fourth indicator light is always on, it indicates that the charging is complete. After charging is complete, please remove the charger in time. Copyright ©2022 Ruko All Rights Reserved.
- Page 31 It is recommended to use a 5V/3A charger. If the Aircraft has not been used for a month, the battery must be removed to preventthe battery from being discharged for a long time. Copyright ©2022 Ruko All Rights Reserved.
-
Page 32: Camera Overview
On the hollow wooden floor ④ Do not interfere with the gimbal by external forces or pick up the aircraft during calibration. Otherwise, the gimbal will stop to work. Picking up the Aircraft Touching the camera (during self-inspection) Copyright ©2022 Ruko All Rights Reserved. - Page 33 If not, turn off the Aircraft, then move the camera up and down by hand. If still stuck, please contact us for technical support. Storing Photos and Videos F11GIM is equipped with a micro SD card slot for storage space expansion.Card speed: 10M/s; Copyright ©2022 Ruko All Rights Reserved.
-
Page 34: Transmitter
4 Transmitter 4.1 Transmitter Profile F11GIM Transmitter uses the 2.4 GHz frequency band, and the Transmitter distance is up to 4000FT (unobstructed and interference -free environment). The foldable handle can stably place the mobile device, and the maximum adjustable width is 3.1 inches. - Page 35 Camera Angle: Rotate the right wheel to adjust the camera lens to downwards and upwards. Shutter Button: Press once to take a picture. Record Button: Press once to start recording, and press again to stop recording. Copyright ©2022 Ruko All Rights Reserved.
- Page 36 Note: Once restart, the controller will back to default mode - Mode 1. (In Mode 1, indicator will be blue; In Mode 2, it will be trun off) Direction Joystick Throttle Joystick Left Joystick Right stick Copyright ©2022 Ruko All Rights Reserved.
- Page 37 Aircraft remain horizontal in the middle position. The joystick offset corresponds to the angle of the Aircraft left and right tilt. The greater the offset, the greater the tilt angle and the faster the flight speed. Copyright ©2022 Ruko All Rights Reserved.
-
Page 38: Communication Range Of Transmitter
flight direction of the Attitude Indicator in the app, and the Attitude Indicator points straight ahead (perpendicular to the coordinates), indicating that the Transmitter is facing the Aircraft. Remote controller position Aircraft orientation Copyright ©2022 Ruko All Rights Reserved. -
Page 39: Linking The Transmitter
• Flick the left stick of Transmitter up and down, and after the Aircraft emits a beep, it means the linking is successful. • Connect your mobile phone to Aircraft’s WiFi "RUKO-GIM-******", tap the app to enter the control interface; the mobile phone screen displays information such as the Transmitter’s battery signal and... -
Page 40: Camera View
Transmitter Battery Display When the mobile phone is not connected to the Aircraft’s WiFi, this icon is Transmitter .After the mobile phone is connected to the Aircraft’s WiFi, this icon is the Transmitter real-time voltage Copyright ©2022 Ruko All Rights Reserved. - Page 41 D N/A: Flying distance H N/A: Flying height DS N/A: Flying speed VS N/A: Ascent/decrease speed Attitude Indicator Display information of the orientation of the Aircraft, and position of the Transmitter . Remote controller position Aircraft orientation Copyright ©2022 Ruko All Rights Reserved.
- Page 42 Home Point and turn off the motors. Auto Takeoff / Landing Click to expand the control panel, long press to make the Aircraft take off or land automatically. Back Tap to return to the home screen. Parameter Copyright ©2022 Ruko All Rights Reserved.
- Page 43 Flight log: Choose the date to share the flight log. PTZ Adjust Access to "PTZ adjust",click "Restore factory settings",the gimbal will back to factory setting. Copyright ©2022 Ruko All Rights Reserved.
-
Page 44: Flight
Voice prompt: Turn on or off the aircraft status voice prompt of the app. Before using the RUKO DRONE App, make sure that the phone has sufficient power. When you use the RUKO DRONE App on your mobile phone, please focus on controlling the Aircraft. -
Page 45: Pre-Flight Checklist
Whether the 4 motors can start normally after power-on, and whether the rotation speeds are consistent. Connect drone WiFi with your phone, make sure that you have connected the WiFi name "RUKO-GIM-******" exactly after app access right and Internets permission with your phone. Make sure the camera is clean. - Page 46 Please make sure turn on the Aircraft firstly and then the transmitter. Otherwise, they will not pair successfully. ⑤ Connect the mobile phone to Aircraft's WiFi (name: RUKO-GIM -****** ), click on the app to enter the control interface. RUKO-GIM-****** RUKO-GIM-****** Copyright ©2022 Ruko All Rights Reserved.
- Page 47 F1 1 GIM User Manual When the Android phone is connected to Aircraft WiFi (named RUKO-GIM- ******), as the Aircraft WiFi has no network, wait for about 10-40 seconds on the phone WiFi setting page, the phone will pop up the network setting...
- Page 48 ⑤ When the calibration is completed,the gimbal will start to work after 20 seconds. "Fly" is displayed in the app, and you can now prepare to take off. Copyright ©2022 Ruko All Rights Reserved.
-
Page 49: Starting/Stopping The Motors
Start the motor after confirming the safe take-off ① conditions. One-key Take-off button on the App to take off. ② The Aircraft will take off automatically and hover at a ③ distance of 4 ft from the ground. Copyright ©2022 Ruko All Rights Reserved. - Page 50 Home Point. Please refer to User Manual (page 19-20 ) for more details. Method 2：Press the land button on the app, the drone will land directly. Method 3：Keep pulling Throttle Joystick down until the drone lands and motors stop. Copyright ©2022 Ruko All Rights Reserved.
-
Page 51: How To Take Off The Ruko F11Gim Drone
F1 1G IM User Manual 6.6 How to take off the Ruko F11GIM Drone Basic Flight Steps Place the Aircraft on a flat and open ground with the nose facing ① forward and the tail facing the pilot. ② Power on the Aircraft. -
Page 52: Appendix
Maximum charging power: 15W Gimbal Stabilization Mechanical Range：Tilt About -100° to +70°, Roll About -35° to +35° Controll Range: Adjusted angle of camera (up and down): About -80° to +0° Camera Lens: FOV 100° Copyright ©2022 Ruko All Rights Reserved. - Page 53 Mobile device bracket: 2 inches to 3.2 inches smart phone （mobile phone width） Working temperature: 32 degrees Celsius to 104 degrees Celsius USB Cable Compatible Charger (not included): Output currency 5V/3A Rated power: ≤15W Copyright ©2022 Ruko All Rights Reserved.
-
Page 54: Accessories Support
Transmitter All of the above accessories can be searched and purchased on Amazon, and you can enter the Ruko store to buy them yourself. Be sure to use original accessories. The use of non-original accessories may cause danger to the safe use of the Aircraft. -
Page 55: Common Problems And Solutions
Turn on the drone on the place without the subtle vibrations into vibrations high-frequency vibrations Put the Aircraft on level ground after The compass is in calibrating compass calibration. The gimbal will start to work after 20 seconds Copyright ©2022 Ruko All Rights Reserved. - Page 56 GPS signal is weak Under the tree, next to the Please stay away from obstacles for more building, in an obstructed than 32.81 feet(10 meters), and search for place GPS signals in an open area Copyright ©2022 Ruko All Rights Reserved.
- Page 57 We tested all Aircraft before shipping. Therefore, it is inevitable that The product has slight marks shipping there will be slight traces. However, it can be guaranteed that all Aircraft are 100% brand new. Copyright ©2022 Ruko All Rights Reserved.
- Page 59 Ruko's official website https://rukotoy.com/support-drones If you have any questions or suggestions about the User Manual, please contact us via the following email: rukodrone@gmail.com Ruko is a trademark of Shenzhen Ruike Innovation Technology Co.,Ltd Copyright 2022 Ruko All Rights Reserved.
- Page 60 rukotoy.com +1 949-394-4635 | Mon-Sun 9AM-6PM (EST) +86 19129317359 rukodrone@gmail.com...
