Summary of Contents for RUKO F11GIM2

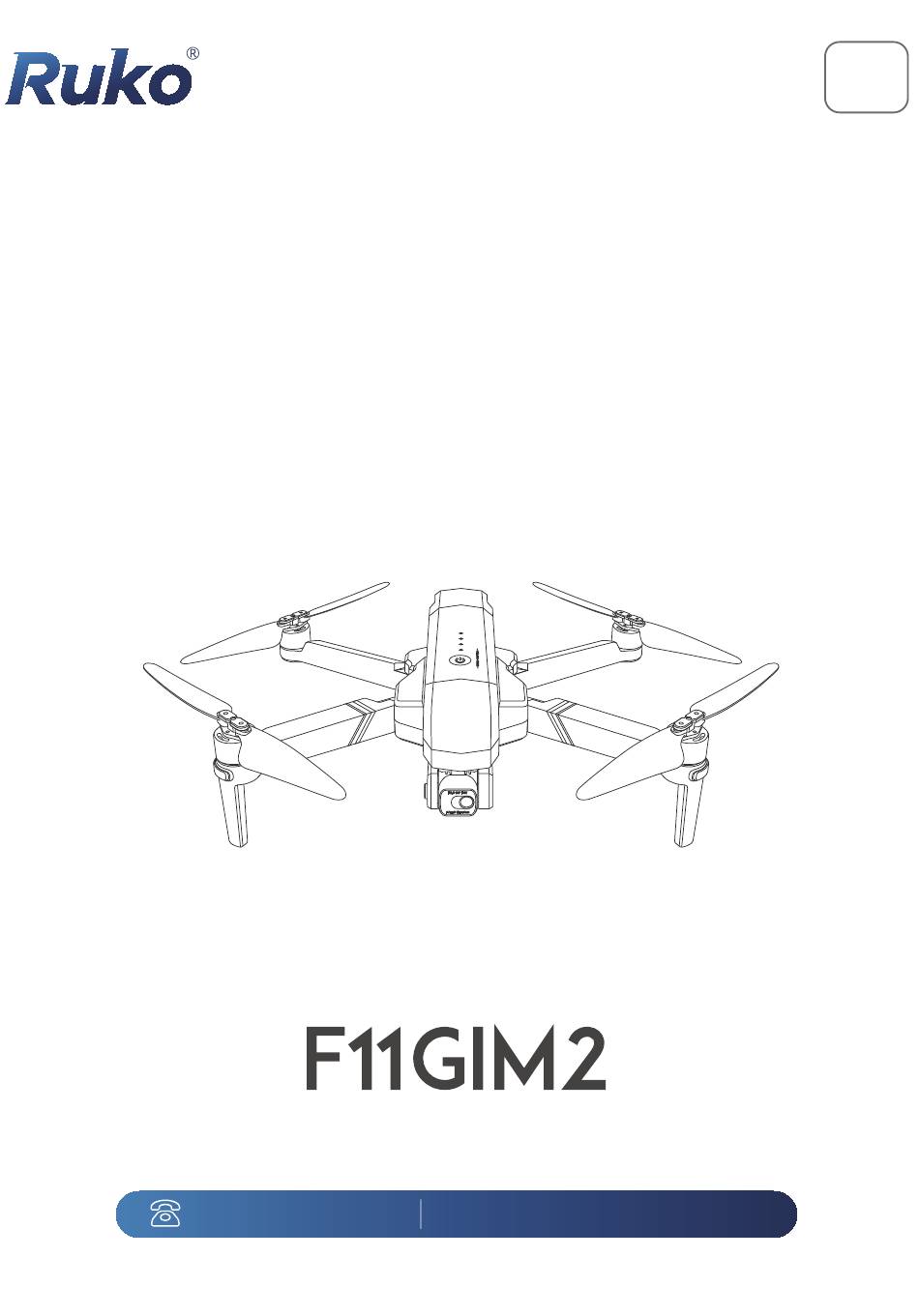

Page 1 for age User Manual CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST)
Page 2 CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST) rukobrandstore@gmail.com +86 19129317359...
Page 3: Table Of Contents
6.2 Controlling the Drone 6.3 Optimal Transmission Zone 6.4 Emergency Stop 6.5 Charging the Controller 7 Drone 7.1 Preparing the Aircraft 7.2 Drone Diagram 7.3 Assemble the Propeller 7.4 Intelligent Flight Battery 7.5 Gimbal and Camera Copyright ©2023 Ruko All Rights Reserved.
Page 4 11.2 APP Icons Introduction 12 APP Setting 12.1 Setting 13 Image Storage 13.1 APP One Key Share Function 13.2 How to Download the Pictures and Videos 14 Flight 14.1 Take Off/ Landing Procedures 14.2 Quick Start Copyright ©2023 Ruko All Rights Reserved.
Page 5 15 Speciﬁcations 15.1 Drone 15.2 Gimbal Stabilization 15.3 Camera 15.4 5G Transmission 15.5 APP/ Live View 15.6 Remote Controller 15.7 Intelligent Flight Battery 15.8 Charging Cable: Type-c 16 Common Problems 17 Accessories Support Copyright ©2023 Ruko All Rights Reserved.
Page 6: Using This Manual
1.4 Download the App "RUKO DRONE" app. Scan the QR code downlaod QR code of "RUKO DRONE" for Apple IOS system. QR code of "RUKO DRONE" for Android system. The IOS version of RUKO DRONE is The operation system version of RUKO DRONE compatible with IOS v9.0 and later.
Page 7: Package Contents
F 1 1 G IM 2 User Manual 2 Package Contents Drone Remote Controller Drone Battery Gimbal Cover Spare Propeller USB Charging Cable User Manual Allen Wrench Screw RC Cable (USB-C connector) RC Cable (Micro USB connector) RC Cable (Lightning connector) Copyright ©2023 Ruko All Rights Reserved.
Page 8: Preface
F11 G IM2 User Manual 3 Preface Thank you for purchasing the Ruko-Series GPS aircraft. Please read all instructions and warnings carefully before operating. Please also keep this instruction manual for future reference and maintenance. Important This product shoud be operated by the people who are over 14 years old.
Page 9 Only operate with included parts for intended use. Please use the original parts made by Ruko-Series for any re-equipping or maintenance to ensure ﬂying safety. Please operate and use only under the scope of the product function permitted.
Page 10 The R/C aircraft is composed of material such as metal, ﬁber, plastic, electronics, etc. Therefore, please keep it away from any heat source and avoid prolonged exposure to direct sunlight. Excessive heat exposure can cause distortion and damage. Copyright ©2023 Ruko All Rights Reserved.
Page 11 Consult the dealer or an experienced radio/TV technician for help. Please note that changes or modiﬁcations not expressly approved by the party responsible for compliance could void the use's authority to operate the equipment. Copyright ©2023 Ruko All Rights Reserved.
Page 12: Warning
Please dispose of the packing material timely so as not to cause injury to children. Please DO NOT disassemble or re-equip the aircraft as it may cause a breakdown of the aircraft during ﬂying. Copyright ©2023 Ruko All Rights Reserved.
Page 13 Please DO NOT make the battery short-circuited or decompose the battery. DO NOT throw the battery into the ﬁre; DO NOT place the batteries near the high temperature or heated area (such as near the ﬁre or near the electric heating device). Copyright ©2023 Ruko All Rights Reserved.
Page 14 Keep your UAS within sight. Never ﬂy over groups of people. Never ﬂy over stadiums or sports events. Understand airspace restrictions and requirements. Copyright ©2023 Ruko All Rights Reserved.
Page 15 F1 1 GI M 2 User Manual The product should only be used by adults and children 14 years and older. Adult supervision is required for children under 14 years of age. Copyright ©2023 Ruko All Rights Reserved.
Page 16: Fly Safety
Avoid ﬂying over or near obstacles, crowds, high voltage power lines, trees, airport or bodies of water. DO NOT ﬂy near strong electromagnetic sources such as power lines and base stations as it may affect the onboard compass. Copyright ©2023 Ruko All Rights Reserved.
Page 17 Stay away from the rotating No Fly Zone propellers and motors. It's important to understand basic ﬂight guidelines,for the safety of both you and those around you. Don't forget to read the Safety Guidelines before ﬂight. Copyright ©2023 Ruko All Rights Reserved.
Page 18: Remote Controller
Point, within a radius of about 3 meters). Press again to cancel RTH. Press once to check the current battery level. Press once and then 7.Shutter long press to turn on the remote Press once to take a photo. controller. Copyright ©2023 Ruko All Rights Reserved.
Page 19 Status Display V-speed Distance Height D-speed The F11GIM2 has three speed mode: Camera mode 4.5m/s, Normal mode 6.5m/s, and Sport mode 10m/s. The default speed is Normal mode, higher speed will consume battery faster. Copyright ©2023 Ruko All Rights Reserved.
Page 20: Controlling The Drone
(press once indicating the power level, long press the remote control beeps three times and SPEED power on, LED screen indicates "RHAND MODE".) Direction Joystick Throttle Joystick Left Joystick Right Joystick Copyright ©2023 Ruko All Rights Reserved.
Page 21 Push the stick to the left and the aircraft will rotate counter- clockwise. Push the stick to the right and the aircraft rotates clockwise. In the neutral position, the angular velocity of rota- tion is zero, and the aircraft does not rotate. Copyright ©2023 Ruko All Rights Reserved.
Page 22 The joystick offset corresponds to the angle of the aircraft left and right tilt. The greater the offset, the greater the tilt angle and the faster the ﬂight speed. Copyright ©2023 Ruko All Rights Reserved.
Page 23: Optimal Transmission Zone
The signal between the drone and the remote controller is most reliable when the antennas are positioned in relation to the aircraft as shown below. DO NOT use other wireless devices to avoid interference to the remote controller. Copyright ©2023 Ruko All Rights Reserved.
Page 24: Emergency Stop
By using this function the drone motor will stop working immediately thus fall to the ground, which might cause damage. Only use this feature when in emergency so as to reduce the risk of damage or injury. Copyright ©2023 Ruko All Rights Reserved.
Page 25: Charging The Controller
USB Adapter (Not included) Chargi ng CharGE DONE The Remote Control Is Charging Fully Charged With Remote Control Connect the remote controller Micro USB-C Port to the charger for charging. Please note: Never overcharge. Copyright ©2023 Ruko All Rights Reserved.
Page 26: Drone
All aircraft arms are folded before ship out of the factory. Please follow the steps below to unfold the arms. Take off the Gimbal Cover Unfold the front arms Unfold the rear arms and then unfold all the propellers Copyright ©2023 Ruko All Rights Reserved.
Page 27: Drone Diagram
USB-C port MicroSD card slot 7.3 Assemble the Propeller Please note that the letter "A" or "B" is printed on each propeller, and make sure all the propellers are attached in the correct motor position. Copyright ©2023 Ruko All Rights Reserved.
Page 28: Intelligent Flight Battery
7.5 Gimbal and Camera The gimbal of F11GIM2 drone ensure the user can capture clear and stable image and videos even when the drone is ﬂying, the camera also equipped with electronic stabilization function.
Page 29 Do not interfere with the gimbal by putting external forces or ④ picking up the aircraft during calibration. Otherwise, the gimbal will stop to work. Picking up the Aircraft Touching the camera (during self-inspection) Copyright ©2023 Ruko All Rights Reserved.
Page 30 Make sure to install the gimbal cover when the drone is not in use. If the gimbal get wet after ﬂying in wet weather, temporary failure might occur, make the gimbal and the drone dry so as to get it recover to full function. Copyright ©2023 Ruko All Rights Reserved.
Page 31: Drone Status Indicators
F 1 1 G IM 2 User Manual 8 Drone Status Indicators F11GIM2 drone has front and back four LED lights. Back LED Back LED Front LED Front LED LED light Color Reason Action required indicator Charge the battery Low Power...
Page 32: Product Functions Profile
Home point in straight line. The drone may link to the remote controller automatically during the RTH process, if connected successfully, the RTH process will stop. Copyright ©2023 Ruko All Rights Reserved.
Page 33 ﬂies higher than any other objects surrounding. When ﬂight distance further than 98 ft, make sure the drone has enough battery to ﬂy back. The drone can NOT return to Home Point without a strong GPS signal. Copyright ©2023 Ruko All Rights Reserved.
Page 34: Waypoint Flight
ﬂight function (16 points the most). Click to reset the points of ﬂight route. Click , conﬁrm to start Waypoint Flight. Push the Direction Joystick to cancel the Waypoint Flight . Copyright ©2023 Ruko All Rights Reserved.
Page 35: Point Of Interest
When the electromagnetic interference value is bigger than 150, please land the drone and complete the compass calibration again or change to another place to ﬂy. This function will only be available when the GPS signal is strong. Copyright ©2023 Ruko All Rights Reserved.
Page 36: Gps Follow Me
GPS Follow Me function will be affected by the tall structures, trees and the living areas with signal inteference. GPS Follow-me function is not activated when the GPS signal weak or GPS positioning off on the mobile device. Copyright ©2023 Ruko All Rights Reserved.
Page 37: Image Recognition Follow Me
3 seconds to 0 with hand motion to take photos and record video. Follow the instruction on the app. When raise the hand, make sure to keep the elbow at the same height of the shoulder. Copyright ©2023 Ruko All Rights Reserved.
Page 38: Connect The App
3. Enter the App, and allow the permission to pop up. When you enter the CONTROL interface and see the image transmission screen of aircraft, the connection is successful. Copyright ©2023 Ruko All Rights Reserved.
Page 40 “Developer options” , you need to change the "Default USB conﬁguration" to " Transferring ﬁles" after opening the developer mode. 3. The data cable cannot charge the mobile device. Please check the battery power of the mobile device before use. Copyright ©2023 Ruko All Rights Reserved.
Page 41: App Functions
F 1 1 G IM 2 User Manual 11 APP Functions 11.1 Control Wait until the drone status says "Ready to Fly" before initiating ﬂight, access to the control interface. Copyright ©2023 Ruko All Rights Reserved.
Page 42: App Icons Introduction
SD card status (pls format the SD card Auto take off for the 1st time) GPS return home Photo/video switching More functions Shutter Media gallery (one key to share) Sound recording Altitude(meters) Distance(meters) Speed(meters/sec) Copyright ©2023 Ruko All Rights Reserved.
Page 43 F 1 1 G IM 2 User Manual User can refer to the aircraft ﬂight direction from the Attitude Indicator in the app. Remote controller position Aircraft orientation Copyright ©2023 Ruko All Rights Reserved.
Page 44: App Setting
Altitude is 20 meters; Follow below picture to turn off the Beginner Mode and set the proper ﬂight setting in the app. The drone must be conneted with the app to save the setting. Copyright ©2023 Ruko All Rights Reserved.
Page 45 Access to "Track", click to open the map surface to search ① the drone. The last position of lost drone will be showed on the map. ② Current position of the mobile phone Copyright ©2023 Ruko All Rights Reserved.
Page 46 Gimbal Back to Factory Setting Get the gimbal back to factory setting, access to "PTZ adjust", click " Restore factory setting" How to change units This function enables to switch the units between Inch(MPH), Meter(m/s), Metric(km/h). Copyright ©2023 Ruko All Rights Reserved.
Page 49: How To Download The Pictures And Videos
”, either choose to download the picture and video from SD card or app album: Download the picture and video from SD card, click ,choose ① ﬁles and click save to the mobile album. Copyright ©2023 Ruko All Rights Reserved.
Page 50 SD Card(sold separately) Video be stored in the app album will be compressed, thus always suggest to download the video from the SD card to get the best resolution. Copyright ©2023 Ruko All Rights Reserved.
Page 51: Flight
Keep the drone camera facing forward, start the motors. Gently push the throttle joystick up to take off. Pull the throttle joysticks down to land the drone. Stop the motors after landing. Power off the drone remote controller, replace the gimbal cover. Copyright ©2023 Ruko All Rights Reserved.
Page 52: Quick Start
ﬂashing white and blue then turn to ﬂashing white and pink. It takes about 50 seconds to complete the connect process. Step 3: Connect the app Select the Appropriate RC cable. SPEED Copyright ©2023 Ruko All Rights Reserved.
Page 53 When it is needed to manually trigger the compass calibration to adapt to the enviroment, please push the joystick to 1 & 11 o'clock position, follow the above steps to rotate the drone. SPEED Copyright ©2023 Ruko All Rights Reserved.
Page 54 GPS Mode and switch to Manual Control mode, so that it is able to get the drone take-off. Howerer, under Manual Control mode, there is high risk that the drone will ﬂy away with the wind, as no GPS positioning assisted. Copyright ©2023 Ruko All Rights Reserved.
Page 55: Specifications
Operating Temperature Range: 32° to 104° F ( 0° to 40° C) Satellite Systems: GPS/GLONASS Dimensions (LxWxH): Unfolded: 45X40.5X8(cm) Folded: 17.6X10.5X8(cm) 15.2 Gimbal Stabilization Machanical Range: Tilt About -100°TO+70°, Roll About -35°TO+35° Controll Range: Adjusted angle of camera (up and down): About -80° TO+0° Copyright ©2023 Ruko All Rights Reserved.
Page 56: Camera
Supported File Systems: FAT32 Supported SD Cards: Micro SD card (Class 10/U1 or later) 32G-128G 15.4 5G Transmission Operating Frequency: 5.15-5.35 GHz; 5.725-5.825 GHz Supported Transmission Protocol: 802.11a; 802.11n20; 802.11n40 Video Transmission Frame Rate: 30FPS Copyright ©2023 Ruko All Rights Reserved.
Page 57: App/ Live View
Max operating distance: Up to 3KM (Outdoor and Unobstructed) Battery: 1500mAh Li-polymer Charging time: About 2 hours Operating time: about 2 hours Operating Voltage: 3.7V Mobile Device Holder: 4.7-6.5 inches Operating Temperature: 32° to 104° F ( 0° to 40° C ) Copyright ©2023 Ruko All Rights Reserved.
Page 58: Intelligent Flight Battery
Max Charging Time: About 4.5 hours (Depending on Charging Power) Charging Temperature Range: 32° to 104° F ( 0° to 40° C ) 15.8 Compatible Charger (not included) Compatible Charger(not include): Output currency 5V/3A Rated Power:≤15W Copyright ©2023 Ruko All Rights Reserved.
Page 59: Common Problems
GPS signal is Please ﬂy the Aircraft in an unstable. Flying near open area free of obstacles buildings and in within the circle of radius obstructed places 32.81 ft(10 meters) Copyright ©2023 Ruko All Rights Reserved.
Page 61 Android 6.0 and above, IOS camera is taking 10.02 and above Certain phones' Set the phone to airplane setting preventing mode the app working normally USB permissions are Allow all the pop-up not set permission Copyright ©2023 Ruko All Rights Reserved.
Page 62 Cannot charge unstable voltage amperage output(2-3A) battery/Cannot fully output charge battery Please use the original Using inferior factory charging cable to charging cables charge Copyright ©2023 Ruko All Rights Reserved.
Page 63 The product has slight We tested all Aircraft before shipping. Therefore, it marks before shipping is inevitable that there will be slight traces. However, it can be guaranteed that all Aircraft are 100% brand new Copyright ©2023 Ruko All Rights Reserved.
Page 64: Accessories Support
Transmitter All of the above accessories can be searched and purchased on Amazon, and you can enter the Ruko store to buy them yourself. Be sure to use original accessories. The use of non-original accessories may cause danger to the safe use of the aircraft.
Page 65 If you have any questions or suggestions about the User Manual, please contact us via the following email: rukobrandstore@gmail.com Ruko is a trademark of Shenzhen Ruike Innovation Technology Co.,Ltd Copyright 2023 Ruko All Rights Reserved. Copyright ©2023 Ruko All Rights Reserved.
Page 68 CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST) rukobrandstore@gmail.com +86 19129317359...
