Summary of Contents for RUKO F11GIM2

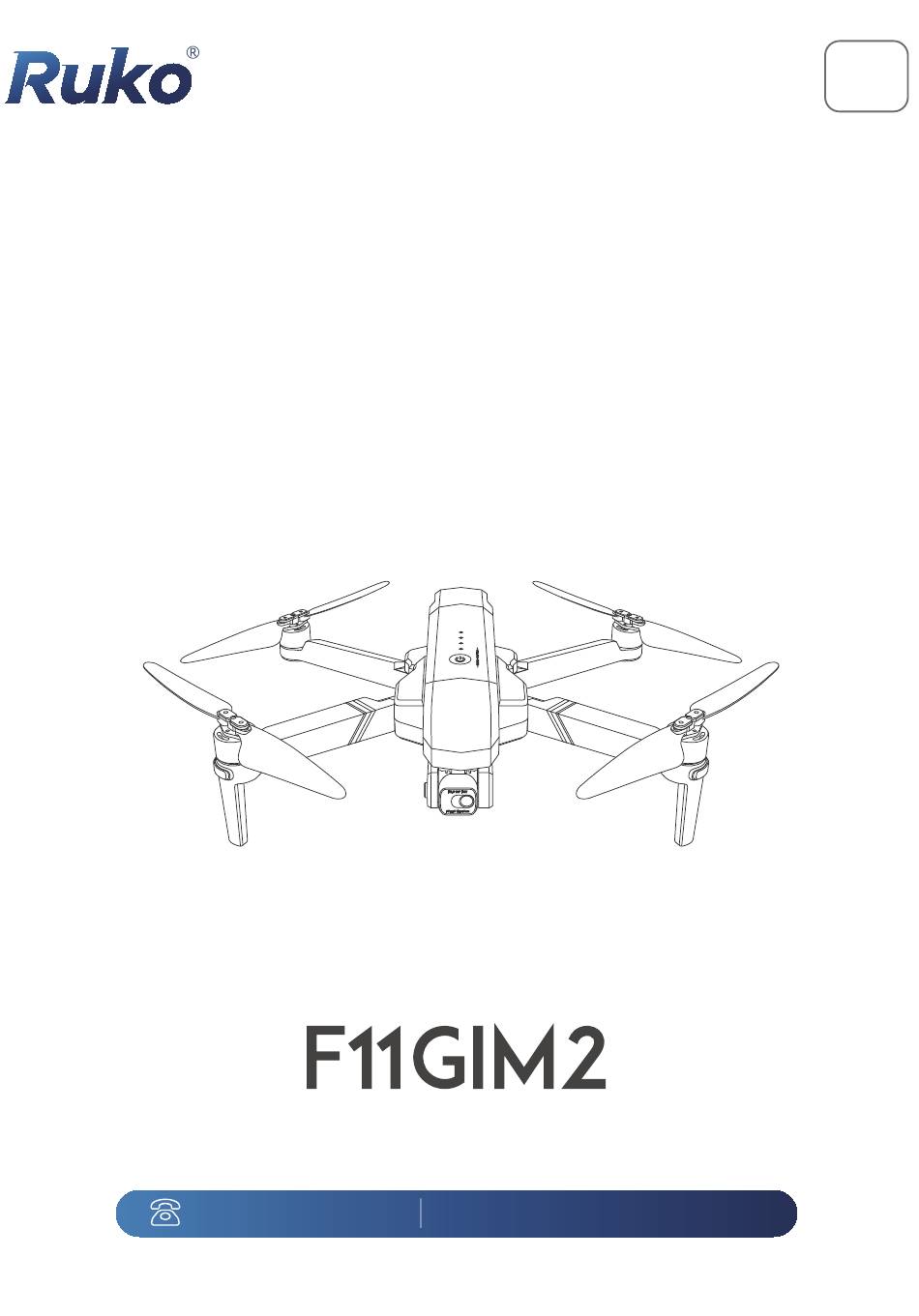

  • Page 1 for age Quick Start & Safety Disclaimer CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST)
  • Page 2 CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST) rukobrandstore@gmail.com +86 19129317359...
  • Page 3 Contents v 1 . 0 Must Know Flight Tips 1-10 Flight Guide 11-24 Safety Disclaimer 25-38...
  • Page 4 Safety Disclaimer CONTACT US FOR MORE TECH SUPPORT CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST) +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST) APP operation Youtube operation animation video Copyright ©2023 Ruko All Rights Reserved.
  • Page 5 1. Manually land the aircraft. 2. Manually trigger and complete 1. Spinning around. the Compass Calibration. Compass interference 2. Losing control. 3. Stay away from metal objects 3. Unable to use RTH. with magnetic field interference sources. Copyright ©2023 Ruko All Rights Reserved.
  • Page 6 Please reconnect the data cable for correct settings. Android Please select “Transferring files” to allow permissions. Copyright ©2023 Ruko All Rights Reserved.
  • Page 7 “Developer options”, you need to change the "Default USB configuration" to "Transferring files" after opening the developer mode. (The way to open “Developer options” varies depending on the phone model. You can search Google for details.) (Example phone: Samsung S9) Copyright ©2023 Ruko All Rights Reserved.
  • Page 8 2. The signal is 3.Cannot fly in GPS to 5 minutes signal tower unstable. mode Unable to RTH Open and Successful search, All functions are About 60-90 undisturbed good signal. available. seconds outdoor area Copyright ©2023 Ruko All Rights Reserved.
  • Page 9 3. Vertical rotation calibration. takeoff. 1. Turn the remote controller Placed the aircraft on a level joysticks to 11 and 1 o’ clock. Gyroscope Calibration ground or landing pad. 2. Autocomplete calibration. Copyright ©2023 Ruko All Rights Reserved.
  • Page 10 3. DO NOT charging immediately after flight. 4. The battery has Auto-Discharging Function, it automatically discharge to approximate 85% of the Charging time About 3.5 hours battery level when it is idle for 2-3days. Copyright ©2023 Ruko All Rights Reserved.
  • Page 11 DO NOT use batteries under the following conditions: Extrusion and Damp, water damage Fell, battery impact Leakage deformation DO NOT use the batteries when it is obviously abnormal to avoid power failure, crash, smoke and fire and other safety events. Copyright ©2023 Ruko All Rights Reserved.
  • Page 12 USB cable not inserted or loose it is securely installed Signal interference causes the Choose an open area and pay Imaging freezing. image transmission signals attention to flying skills (during flight) unstable or interrupted Copyright ©2023 Ruko All Rights Reserved.
  • Page 13 The following is some skills for taking good photos and videos: Weather Sunny and well-lighted clear and realistic, Shooting Angle Front-lighting good color reproduction, high saturation, clear imaging 1.Windless weather Video shooting 2.Hover shooting, steady and uniform control of the aircraft Copyright ©2023 Ruko All Rights Reserved.
  • Page 14: Flight Guide

    1 Flight Guide Download App RUKO DRONE Download on the App Store RUKO DRONE Download for Android RUKO DRONE App Charge the Batteries Charger not included ≤15W SPEED Copyright ©2023 Ruko All Rights Reserved.
  • Page 15 2 Unfold the Drone Lift and then pull Copyright ©2023 Ruko All Rights Reserved.
  • Page 16: Prepare The Remote Control

    3 Prepare the Remote control Install Take out Pull out the holder Back of remote controller Mobile device Copyright ©2023 Ruko All Rights Reserved.
  • Page 17 4 Select an Open Flight Area Height≥65ft Copyright ©2023 Ruko All Rights Reserved.
  • Page 18 Press and hold the button until the aircraft plays startup sound. Press once and long press for 3 seconds to turn on the remote. Note: The drone and transmitter linking takes around 50 seconds. Copyright ©2023 Ruko All Rights Reserved.
  • Page 19 6 Data Cable Connection and Setup RC Cable (USB-C connector) RC Cable (Micro USB connector) RC Cable (Lightning connector) When entering the APP interface please remember to ALLOW all pop-up permissions. SPEED Copyright ©2023 Ruko All Rights Reserved.
  • Page 20 ( About 1-2 turns ) Rotate the aircraft vertically 360°. ( About 1-2 turns ) Calibrate the Gyroscope Push joysticks to 11 & 1 o'clock position. ( About 2 seconds ) A level ground SPEED Copyright ©2023 Ruko All Rights Reserved.
  • Page 21 GPS search successfully Ready to fly Solid blue lights SPEED DS 0 VS 0 ft/s ft/s Tips: 1. The searching time depends on the flight environment. 2. If unsuccessful, the motors can't be started. Copyright ©2023 Ruko All Rights Reserved.
  • Page 22 Start the Motors Push joysticks to 5 & 7 o'clock position. ( About 2 seconds ) SPEED Take off Push up the left stick. SPEED Copyright ©2023 Ruko All Rights Reserved.
  • Page 23 Check the Flight Guide in the App Search “Ruko F11 GIM 2 Scan QR Code for More Quick Start” on YouTube for Tech and Video Support First Flight CONTACT US FOR MORE TECH SUPPORT Printed in China. Copyright ©2023 Ruko All Rights Reserved.
  • Page 24: Common Problems And Solutions

    GPS signal is Please fly the aircraft in an unstable. Flying near open area free of obstacles buildings and in within the circle of radius obstructed places 32.81 ft(10 meters) Copyright ©2023 Ruko All Rights Reserved.
  • Page 25 GPS Mode After complete the compass The compass is in calibration, place the drone calibrating on a level ground Copyright ©2023 Ruko All Rights Reserved.
  • Page 26 GPS signal is weak Please stay away from Under the tree, next obstacles for more than 32.81 to the building, in an feet(10 meters), and search obstructed place for GPS signals in an open area Copyright ©2023 Ruko All Rights Reserved.
  • Page 27 Therefore, it The product has slight We tested all aircraft is inevitable that there will be marks before shipping slight traces. However, it can be guaranteed that all aircraft are 100% brand new Copyright ©2023 Ruko All Rights Reserved.
  • Page 28: Safety At A Glance

    Safety at a Glance The Ruko F11 GIM2 is NOT a toy and is NOT suitable for people under the age of 14. 1. Glossary The following terms are used throughout the product literature to indicate various levels of potential harm when operating...
  • Page 29 Ruko may make available. Any personal injury property damage, legal disputes and all other adverse events caused by the violation of the safety instructions or due to any other factor, WILL NOT be Ruko's responsibility. Copyright ©2023 Ruko All Rights Reserved.
  • Page 30: Flight Environment Requirements

    16ft away from structures. Avoid obstacles crowds trees bodies of water and high voltage power lines. Avoid areas with high levels of electromagnetism such as areas near base stations,electrical substations, power lines and broadcasting towers. Copyright ©2023 Ruko All Rights Reserved.
  • Page 31 Keep the aircraft at least 9.8 feet above the water surface when flying over water. It is forbidden to fly indoors. Only fly in authorized areas. To learn more about aircraft requirements,please visit the Federal Aviation Administration's aircraft page https://www.caa.co.uk/home/ Copyright ©2023 Ruko All Rights Reserved.
  • Page 32 If the aircraft has not been used for a month, the battery must be removed to prevent the battery from being in a long-term low-power discharge state. Use 5V/3A charging plugs. Fast USB Adapter (5V/3.0A ) charging plugs exceeding 5V/3A are prohibited. (Not included) Copyright ©2023 Ruko All Rights Reserved.
  • Page 33 Overheating warning It is forbidden to overcharge the battery, please remove charging cable in time after fully charged to avoid damage due to overcharge. Copyright ©2023 Ruko All Rights Reserved.
  • Page 34: Pre-Flight Checklist

    firm installation. Make sure that the camera cover was moved before turning on the aircraft. Make sure that that nothing obstructs the motors. Make sure the camera lens and sensor are clean and without stains. Copyright ©2023 Ruko All Rights Reserved.
  • Page 35: Problems You May Encounter

    Unfold arms ② Make sure to fly outdoors in an environment with strong GPS signals. GPS Mode GPS Mode Strong GPS Signal Weak GPS Signal GPS ≥ 3 bars GPS < 3 bars Copyright ©2023 Ruko All Rights Reserved.
  • Page 36 You can short press and then hold the button to stop the drone when it is at the altitude within 42ft(13m) Once activated, the drone motors will stop working immediately and fell to the ground. Copyright ©2023 Ruko All Rights Reserved.
  • Page 37 Do not turn on the aircraft when it is on desk or hollow wooden ③ floor. They will amplify the small vibrations into high-frequency vibrations, which will cause the gimbal cannot work. On the desk On the hollow wooden floor Copyright ©2023 Ruko All Rights Reserved.
  • Page 38 Put the aircraft on a level surface after calibration, then the gimbal will start to work after 20 seconds. Before Start During Compass and Gyro calibration Put on a level surface and wait for 20 seconds Copyright ©2023 Ruko All Rights Reserved.
  • Page 39 CONTROL page and see the image transmission of the aircraft, the connection is successful. The remote controller cannot fast charge the mobile phone. Please ③ check the battery level of the mobile device before use. Copyright ©2023 Ruko All Rights Reserved.
  • Page 40 The RTH an't be cancelled, but you can adjust the landing position by moving the joysticks. return altitude 16 ft current altitude 16 ft 98 ft SPEED RTH within 98 ft Copyright ©2023 Ruko All Rights Reserved.
  • Page 41 fly to the Home Point, if the aircraft is flying exceed the set return altitude, it will fly to the Home Point at its current altitude. current setting altiude 16ft altitude >98ft Copyright ©2023 Ruko All Rights Reserved.
  • Page 44 CONTACT US FOR MORE TECH SUPPORT +1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST) rukobrandstore@gmail.com +86 19129317359...
