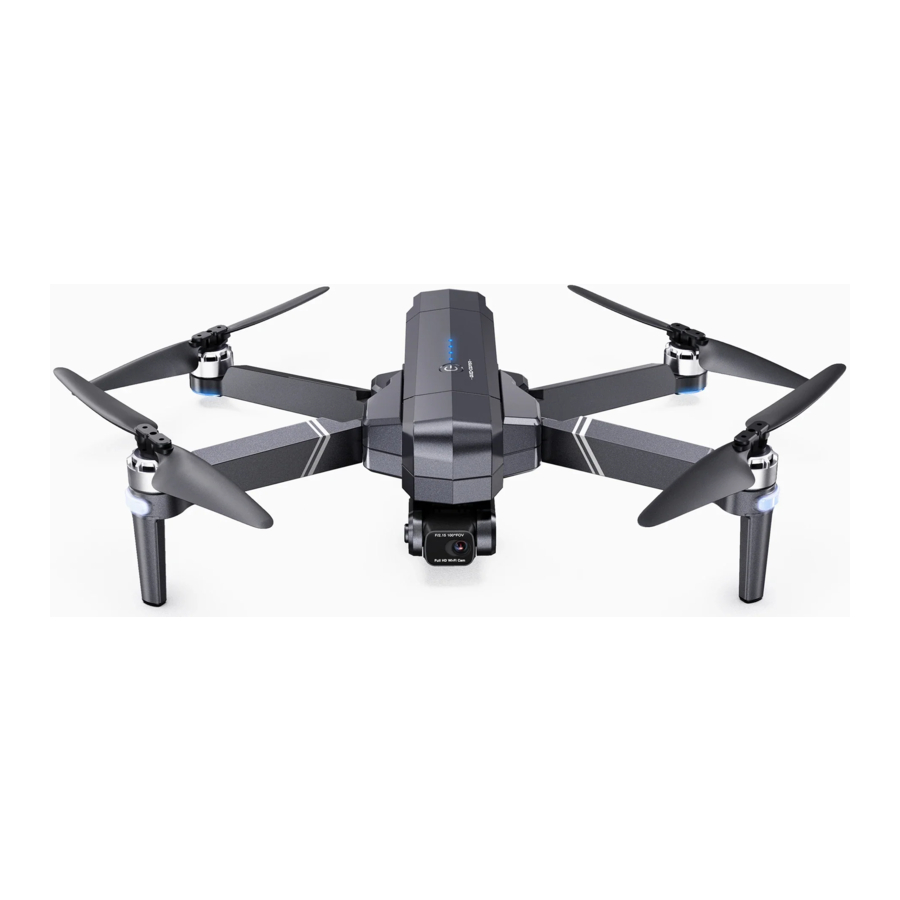

Ruko F11GIM2 - Drone Quick Guide

Learning to Fly

There are many steps in the operation of the aircraft, and users need to learn the parameters, settings, and operating procedures of the aircraft.

Learning channels:

Flight Environment and Signal interference

Any radio signal will be affected by obstacle blocking and magnetic interference, the user need to choose an open and unobstructed area without interference.

Interference:

Steps Consequences Solutions
5G signal interference (Including remote controller and image transmission)
  1. The remote controller cannotcontrol the aircraft.
  2. The auto return home functionis triggered 6 seconds after disconnection.
  1. Wait for the aircraft to returnautomatically.
  2. Change the flight direction orenvironment.
  3. The remote controller is pointedin the direction of the aircraft during flight.
  1. Cannot reach the advertisedimage transmission distance.
  2. Imaging freezing.
GPS signal interference
  1. Unstable flight.
  2. Drift away.
  3. Unable to use RTH.
  1. Manually control the aircraft toa safe area.
  2. Stay away from obstacles andinterference.
  3. Fly higher than the surroundingobstacles.
Compass interference
  1. Spinning around.
  2. Losing control.
  3. Unable to use RTH.
  1. Manually land the aircraft.
  2. Manually trigger and completethe Compass Calibration.
  3. Stay away from metal objectswith magnetic field interference sources.

Remote Control Connection Settings

Select an appropriate data cable to connect the remote controller and the mobile phone, when the correct data of the remote controller is connected to the mobile phone, the setting option or prompt will pop up.

Mobile phone system Permission page
IOS
Please select "Trust" to allow permissions.
If you choose other options, the image transmission data of the aircraft cannot be transmitted normally, and the image of the aircraft cannot be seen. Please reconnect the data cable for correct settings.
Android
Please select "Transferring files" to allow permissions.

dangerSome USB Settings of Android phones are hidden in the "Developer options", you need to change the "Default USB configuration" to "Transferring files" after opening the developer mode. (The way to open "Developer options" varies depending on the phone model. You can search Google for details.)
Remote Control Connection Settings
(Example phone: Samsung S9)

GPS Signal Searching

GPS signal search depends on the environment.

Searching environment Searching time Searching condition Corresponding situation
Indoor Unsearchable Cannot fly in GPS mode, must switch to indoor flight mode
Close to buildings, doorsteps, woods, signal tower About 90 seconds to 5 minutes
  1. The search fails.
  2. The signal is unstable.
  1. Unstable flight
  2. Drifting
  3. Cannot fly in GPS mode Unable to RTH
Open and undisturbed outdoor area About 60-90 seconds Successful search, good signal. All functions are available.

Pairing & Calibration

Please pairing the remote controller and complete the compass calibration according to the following operations.

Steps Operation procedure Cautious
Remote Controller Pairing
  1. Turn on the aircraft.
  2. Turn on the remote controller.
  3. Automatically pairing.
The automatically pairing time is about 50 seconds.
Compass Calibration (Default Setting)
  1. Successful pairing.
  2. Enter the App for compasscalibration.
  3. Horizontal rotationcalibration.
  4. Vertical rotation calibration.
Calibration is required at each start.
Compass Calibration
(Strong magnetic interference)
  1. Turn the remote controllerjoysticks to 1 and 11 o 'clock.
  2. Horizontal rotation calibration.
  3. Vertical rotation calibration.
The aircraft will automatically enter the calibration procedure if it encounters a strong magnetic interference before takeoff.
Gyroscope Calibration
  1. Turn the remote controllerjoysticks to 11 and 1 o' clock.
  2. Autocomplete calibration.
Placed the aircraft on a level ground or landing pad.

Battery storage & use recommendations

Please store the battery according to the following table:

Storage recommendations Details Cautious
Battery power 50%-60% Battery bulges may occur if the battery is fully charged for a long time.
Condition Cool dry place High temperature (greater than 40 degrees Celsius) and damp storage can damage batteries.

Please use the battery according to the following table:

Use Recommendations Details Cautious
In cold weather (below 0°),
Temperature 0°C-40°C power consumption is fast, which will shorten the flight time.
Charging power 5V=2A/3A or QC 3.0 fast charger
  1. DO NOT use high-powerchargers.
  2. DO NOT overcharge.
  3. DO NOT charging immediately after flight.
  4. The battery has Auto-Discharging Function, it automatically discharge to approximate 85% of the battery level when it is idle for 2-3days.
Charging time 5V=2A/3A charger:
about 4.5 hours
QC 3.0 fast charger: about 3 hours

dangerSince the battery has Auto-Discharging Function, please remember to charge the battery before each flight.

DO NOT use batteries under the following conditions:

Damp, water damage Fell, battery impact Extrusion and deformation Leakage

dangerDO NOT use the batteries when it is obviously abnormal to avoid power failure, crash, smoke and fire and other safety events.

App does not show what the drone's camera is taking

Types Consequences Solutions
No transmission image The remote control and drone do not pair successfully, and the matching time is about 50 seconds Automatically complete the matching before entering the APP operation interface
USB permissions are not set

Please reinsert the cable correctly set the USB Settings option that pops up.

Select "Transferring files" for Android phones, and "Trust" for iphones.

USB cable not inserted or loose Insert the RC cable and ensure it is securely installed
Imaging freezing. (during flight) Signal interference causes the image transmission signals unstable or interrupted Choose an open area and pay attention to flying skills

Photography Tips

Be sure to choose an open area without interference.

  • For your first flight, use Beginner mode and fly in a short distance, paying attention to the flight height must be higher than the obstacles.
  • Turn off Beginner mode and set maximum altitude and distance to start long-distance flight, please fly the aircraft upwind, so that it have enough power to trigger the RTH automatically and ensure that the aircraft safely returns to the home point.
  • When flying long distances, the remote controller and mobile phone should be point at the aircraft to maintain the best communication effect.
  • An SD card is recommended for storing higher resolution video files.

The following is some skills for taking good photos and videos:

Weather Sunny and well-lighted clear and realistic, good color reproduction, high saturation, clear imaging
Shooting Angle Front-lighting
Video shooting
  1. Windless weather
  2. Hover shooting, steady and uniform control of the aircraft

Flight Guide

Download App

RUKO DRONE
apps.apple.com

play.google.com

RUKO DRONE App

Charge the Batteries

Charger not included
Charge the Batteries

Unfold the Drone

Unfold the Drone

Prepare the Remote control

Prepare the Remote control

Select an Open Flight Area

Select an Open Flight Area

Power on

  1. Press and hold the button until the aircraft plays startup sound.
    Power on - Step 1
  2. Press once and long press for 3 seconds to turn on the remote.

warning Note: The drone and remote controller linking takes around 50 seconds.

Data Cable Connection and Setup

Data Cable Connection and Setup

  • When entering the APP interface please remember to ALLOW all pop-up permissions.

Calibration

Calibrate the Compass

  • Rotate the aircraft horizontally 360°. ( About 1-2 turns )
  • Rotate the aircraft vertically 360°. ( About 1-2 turns )

Calibrate the Gyroscope

  • Push joysticks to 11 & 1 o'clock position.
    ( About 2 seconds )
    Calibrate the Gyroscope

Gimbal Self-inspection

  • Put on a level surface.
    ( About 20 seconds )
    Gimbal Self-inspection

Search for GPS Automatically

Search for GPS Automatically

warningTips:

  1. The searching time depends on the flight environment.
  2. If unsuccessful, the motors can't be started.

Start the Motors

  • Push joysticks to 5 & 7 o'clock position.
    About 2 seconds

Take off

  • Push up the left stick.

NEW TO FLYING DRONES?


Check the Flight Guide in the App

Search "Ruko F11 GIM 2 Quick Start" on YouTube for First Flight

Scan QR Code for More Tech and Video Support
CONTACT US FOR MORE TECH SUPPORT

Common Problems and Solutions

Question Reason Solutions

The motors cannot be started

Weak GPS signal Turn on the aircraft in an open area with strong GPS signal
The red light stays on The aircraft has low battery. Please charge the battery in time
The pink light stays on The compass is not calibrated. Please refer to the "Calibration Before Flight" section of the user manual
The left and right joystick are not in place Push the left and right joysticks simultaneously to 5 o'clock and 7 o'clock for 2 seconds

Unstable flight

Flying too low, affected by aircraft airflow Please fly the aircraft above 9.84ft(3 meters)
The gyroscope is not calibrated Place the aircraft on a horizontal surface and conduct gyroscope/horizontal calibration. Please refer to the "Calibration Before Flight" section of the user manual
The propellers become deformed and incomplete Replace the propellers with new ones
GPS signal is unstable. Flying near buildings and in obstructed places Please fly the aircraft in an open area free of obstacles within the circle of radius 32.81 ft(10 meters)

Out of control, spinning around on its own, abnormal sound

The remote controller signal is interfered or the Aircraft exceeds the range of remote control Please fly the aircraft outdoors without interference, and ensure that it is within a controllable range
Compass interference Please manually land the drone in time and calibrate the compass. Please make sure to fly away from the buildings, trees, power lines, and signal towers
The propellers become deformed and incomplete Replace the propellers with new ones

The camera is tilted/Gimbal is not working/ Can't adjust the camera angle
The drone was placed on an unlevel surface such as grass and sand and so on Place the drone on landing pad or cardboard horizontally, and ensure a gap between the camera and the surface
The drone was placed on the surface which transfer samll vibration, such as hollow wooden floor, desk and so on Place the drone on a solid level ground
Keep touching the camera and gimbal or holding the drone before all set Never touch the camera when the power is on, place the drone on a level ground until the gimbal complete self-check
The compass is in calibrating After complete the compass calibration, place the drone on a level ground

Video freezes, image transmission distance is short

The remote controller and the mobile phone are not pointed at the direction of the drone Point the remote controller and the mobile device at the flying direction of the aircraft to maintain the strongest signal connection
Phone performance freezes Close unused apps running in the background to maintain the best performance of the phone

Video is not clear

If use APP storage, the pixels are 1920×720P Insert the memory card and storage the video on the memory card
App does not show what the drone's camera is taking The phone operating system version is too low The required device operating system to work with the app is Android 6.0 and above, IOS 10.02 and above

APP crashes or functions abnormally

Wrong app downloaded Download the correct App
A few mobile phone versions are old and incompatible with APP Provide mobile phone version and model, we will adapt and solve it

GPS signal is weak

Turning on the drone indoors GPS signals cannot be found indoors. Please search for GPS signals in an open place outdoors
Under the tree, next to the building, in an obstructed place Please stay away from obstacles for more than 32.81 feet(10 meters), and search for GPS signals in an open area

Unable to return home, drifting and flying away

GPS signal was turned off during the flight Please don't turn off GPS suddenly during outdoor flight. Switch back to GPS mode in time

Cannot charge battery/Cannot fully charge battery

Using inferior charger or charging on the computer with unstable voltage output Use a mobile USB charger that ensures constant stable voltage output(5V) and amperage output(2-3A)
Using inferior charging cables Please use the original factory charging cable to charge

Short battery life

Flying in windy weather Flying in windy weather will accelerate power loss
Flying in cold weather In low temperatures, the chemical reaction of the lithium battery is slowed down and the energy cannot be fully released
The battery is not fully charged Fully charged with the correct USB charger before flying

The product has slight marks

We tested all aircraft before shipping In order to give you the best experience, we tested functions of all aircraft before shipping. Therefore, it is inevitable that there will be slight traces. However, it can be guaranteed that all aircraft are 100% brand new

Safety at a Glance

dangerThe Ruko F11 GIM2 is NOT a toy and is NOT suitable for people under the age of 14.

Glossary

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

Recommend warning Hints & Tips Reference

Disclaimer and Warning

  • This product is NOT a toy and is NOT suitable for people under the age of 14. Keep the aircraft out of the reach of children and exercise caution when operating this aircraft in the presence of children.
  • This product is a flying camera that offers easy flight when in good working order as set forth below. Read the materials associated with the product before using for the first time. These documents are included in the product package.
  • Inappropriate use of the product could result in personal injury or property damage.
  • The information in this document affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Failure to read and follow the instructions and warnings in this document may result in product loss, serious injury to you, or damage to your aircraft.
  • By using this product, you hereby signify that you have read this disclaimer carefully and thatyou understand and agree to abide by the terms and conditions herein. Please be sure to strictly abide by the specification requirements and safety guidelines stated in this document.
  • You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and all applicable polices and guidelines Ruko may make available.
  • Any personal injury property damage, legal disputes and all other adverse events caused by the violation of the safety instructions or due to any other factor, WILL NOT be Ruko's responsibility.

Flight Environment Requirements

  • It is suggested to fly in areas below 9000 feet above sea level, choose an open field of 32 feet in diameter outdoor, far away from densely populated areas, residential surroundings and electromagnetic interference sources. Fly in an environment with temperture between 32°F to 102°F and in good weather with clear vision.
    Flight Environment Requirements - Part 1
  • DO NOT use the aircraft in severe weather conditions including strong wind, snow, rain, and fog.
  • Only fly in open areas. Tall structures and large metal structures may affect the aircraft compass and GPS system. It is recommended to keep the aircraft at least 16ft away from structures.
  • Avoid obstacles crowds trees bodies of water and high voltage power lines.
  • Avoid areas with high levels of electromagnetism such as areas near base stations, electrical substations, power lines and broadcasting towers.
  • Fly with caution when taking off from moving surfaces such as a moving boat or vehicle.
  • Keep the aircraft at least 9.8 feet above the water surface when flying over water.
  • It is forbidden to fly indoors. Only fly in authorized areas.
    Flight Environment Requirements - Part 2
    Flight Environment Requirements - Part 3

dangerTo learn more about aircraft requirements, please visit the Federal Aviation Administration's aircraft page https://www.caa.co.uk/home/

Precautions and Maintenance for the Intelligent Battery

  • Please fully charge the battery for the first time before using it.
  • It is recommended to charge and discharge it once a month, do not store it fully charged, keep 50%-60% of the electricity, the storage temperature is 10-40°C, and the best storage temperature is 19-21°C.
  • Water enters the battery and the battery protection board fails, which will cause the battery to not be used normally. Do not use the battery in rain or in a humid environment, as this may cause the battery to self-ignite or even explode.
  • If the battery is squeezed, deformed, and dropped from a high altitude, it is forbidden to use it again.
  • Prohibition of prolonged high-temperature exposure. The high temperature of the battery will cause the internal pressure of the battery to be too high and cause an explosion.
  • If the aircraft has not been used for a month, the battery must be removed to prevent the battery from being in a long-term low-power discharge state.
  • dangerUse 5V/3A charging plugs. Fast charging plugs exceeding 5V/3A are prohibited.
  • dangerIt is prohibited to use computer USB, simple USB, and non-original charging cables for charging.
    Precautions and Maintenance for the Intelligent Battery - Part 1
  • dangerPlease remove the battery in time after the aircraft has landed on low power to avoid battery damage caused by battery over-discharge.
  • It is forbidden to overcharge the battery, please remove charging cable in time after fully charged to avoid damage due to overcharge.
    Precautions and Maintenance for the Intelligent Battery - Part 2
  • dangerPlease remove the battery in time after the aircraft has landed on low power to avoid battery damage caused by battery over-discharge. It is forbidden to overcharge the battery, please remove charging cable in time after fully charged to avoid damage due to overcharge.

Pre-Flight Checklist

  • Make sure to read the manual and watch the guide video before the first flight.
  • Make sure that you go outdoor to an open aera to operate the aircraft.
  • Make sure that the aircraft battery, remote control, and mobile device are fully charged.
  • Make sure that that the arms of the aircraft are fully extended.
  • Make sure the intelligent flight battery is installed firmly.
  • Make sure that that the propeller is free from damage, aging, deformation, no foreign matter entanglement, and firm installation.
  • Make sure that the camera cover was moved before turning on the aircraft.
  • Make sure that that nothing obstructs the motors.
  • Make sure the camera lens and sensor are clean and without stains.

Problems You May Encounter

  • Flight preparation
    1. The aircraft direction Please pay attention to the direction of the aircraftwhen flying. The camera direction is the forward of the aircraft.
      Problems You May Encounter - Part 1
    2. Make sure to fly outdoors in an environment with strong GPS signals.
      Problems You May Encounter - Part 2
  • To Prevent Flying Lost
    1. Keep the aircraft visible for beginner. It is better for beginners to fly the aircraft within a real-time image transmission range on your phone's App for safety.
    2. Keep the drone GPS mode on. During the flight, DO NOT turn off GPS signal (Do not long-press button, otherwise GPS will be turned off), the Aircraft would fly unsteadily, or lose the direction, SPEED or will be lost completely.
    3. Return the aircraft timely. During the flight, if the picture freezes, please RETURN the aircraft first, change to another new environment or check if there is interference around, then connect again.
    4. Reserve enough power for the drone to return home. When doing long distance flight test, please make sure to reserve enough power for the drone to return, escpecially in the windy weather, as the battery will be comsumed more quickly.
    5. Be careful when using emergency. button on the remote controller is only for emergency stop. You can short press and then hold the button to stop the drone when it is at the altitude within 42ft(13m) Once activated, the drone motors will stop working immediately and fell to the ground.
  • Gimbal Camera Guidelines
    1. Please take off the gimbal camera cover before flight.
    2. Please take off from solid and level surface, don't take off from grass or sand ground.
      Gimbal Camera Guidelines - Step 2
    3. Do not turn on the aircraft when it is on desk or hollow wooden floor. They will amplify the small vibrations into high-frequency vibrations, which will cause the gimbal cannot work.
      Gimbal Camera Guidelines - Step 3
    4. Do not interfere with the gimbal by external forces or pick up the aircraft during self-inspection (After compass and Gyroscope calibration, the gimbal will enter self-inspection for 20 seconds).
      Gimbal Camera Guidelines - Step 4
    5. The Gimbal cannot work during the compass and Gyro calibration. Put the aircraft on a level surface after calibration, then the gimbal will start to work after 20 seconds.
      Gimbal Camera Guidelines - Step 5

Remote Controller Cable Settings


Remote Controller Cable Settings

  1. Select the appropriate RC cable. Connect one end of the RC cable to the remote controller and the other end to the mobile phone.
  2. ALLOW ALL pop-up permissions. When you enter the APP CONTROL page and see the image transmission of the aircraft, the connection is successful.
  3. The remote controller cannot fast charge the mobile phone. Please check the battery level of the mobile device before use.

Cautions of Return To Home (RTH) feature

When flight distance within 98 ft
When flight distance within 98 ft

  • Please mind your drone's flight altitude, make sure it flies higher than any other objects surrounding.
  • There are two common but must pay attention conditions that can be listed as follows:
  • RTH with Sufficient Battery: If you enable the drone RTH feature by pressing the RTH button, the drone will keep the current altitude and return directly to the take-off point, the set return-altitude won't take effect. You can control the drone with joystick, or cancel RTH by pressing the RTH button again.
  • RTH in Low Battery: If the RTH feature has been enabled because of extreme low battery, the drone will keep the current altitude and return directly to the take-off point, the set return altitude won't take effect. The RTH an't be cancelled, but you can adjust the landing position by moving the joysticks.

When flight distance further than 98 ft

  1. If the aircraft is more than 98ft (30m) from the Home Point when RTH begins, and is flying below 65ft (20m) without setting a return altitude, it will automatically rise to the default return altitude of 65ft (20m) then fly to the Home Point.
    When flight distance further than 98 ft - Step 1
  2. If the aircraft is more than 98ft (30m) from the Home Point when RTH begins, and set a return altitude, if the aircraft is flying below the set altitude, it will rise to the set return altitude and then fly to the Home Point, if the aircraft is flying exceed the set return altitude, it will fly to the Home Point at its current altitude.
    When flight distance further than 98 ft - Step 2

CONTACT US FOR MORE TECH SUPPORT
+1 (888)892-0155 Mon-Fri 7:00AM - 7:00PM (PST)
+86 19129317359
rukobrandstore@gmail.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Ruko F11GIM2 - Drone Quick Guide

Advertisement

Need help?

Need help?

Do you have a question about the F11GIM2 and is the answer not in the manual?

Questions and answers

Table of Contents
