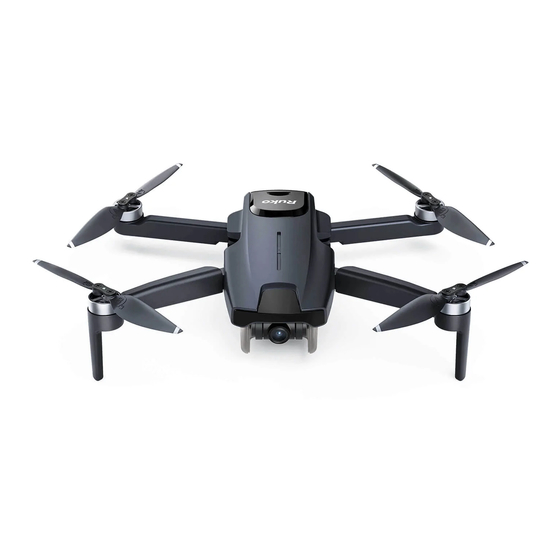

  • Page 1 for age User Manual v1.0 CONTACT US FOR MORE TECH SUPPORT + 1 949-394-4635 Mon-Sun 6PM-4AM(PST)
  • Page 2 CONTACT US FOR MORE TECH SUPPORT + 1 949-394-4635 Mon-Sun 6PM-4AM(PST) Rukofunnytoys@gmail.com +86 19129317359...

  • Page 3: Table Of Contents

    Contents 1 Using This Manual 1.1 Legend 1.2 Read Before the First Flight 1.3 Download the Ruko Mini app 1.4 Video Tutorials 2 Product Profile 2.1 Introduction 2.2 Using for the First Time 2.3 Diagram 3 Aircraft 3.1 Flight Mode 3.2 Calibration and Aircraft Status Indicator...
  • Page 4 6.4 Wi-Fi Connection 6.5 Compass Calibration Before Flight 6.6 Calibrate the Gyroscope/Level 6.7 Starting/Stopping the Motors 6.8 Auto Takeoff/Lading 6.9 How to take off the Ruko F11MINI Drone 6.10 Aerial Photography Tips & Tricks 7 Appendix 7.1 Specifications 7.2 Accessories Support 7.3 Common Problems and Solutions...

  • Page 5: Using This Manual

    1.3 Download the Ruko Mini app 1.4 Video Tutorials Make sure to use Ruko Mini app during flight. Scan the following QR code to download the latest version of the app. ( For Android ) ( For iOS ) Ruko Mini app supports Android 6.0 or higher, iOS 10.0.2 or...

  • Page 6: Video Tutorials

    The Ruko F11MINI is beginner friendly with easy operation and a weight of less than 249 grams (no FAA registration required). You can also start the intelligent flight modes (GPS Follow, Route Planning, Fly Around ) on the Ruko Mini app, bringing you a better flight experience. Feature Highlights Camera: With a 120°FOV lens and a 90°...
  • Page 7 Intelligent Flight Modes: GPS Follow, Route Planning and Fly Around. The aircraft can follows or flies around you with one click on the Ruko Mini app. It also can flies along the path you marked on the app. Product list...

  • Page 8: Using For The First Time

    Remove the camera cover from the aircraft's camera. Unfold the front arms before unfolding the rear arms. Before powering on the aircraft, ensure that the front and rear arms are extended andthe aircraft is placed on the horizontal ground. Copyright ©2022 Ruko All Rights Reserved.
  • Page 9 F11MINI User Manual Preparing the Remote Controller Follow the steps below to prepare the Ruko remote controller. ① Unfold the remote controller handle. ② Unfold the mobile phone holder. ③ Unfold the antenna. The maximum transmission distance of the remote controller is 500 meters.
  • Page 10 Wi-Fi Connection ① Open the mobile phone Wi-Fi setting page. ② Connect the mobile phone to aircraft's Wi-Fi (name:Ruko_F11_ Mini_5G_******) Ruko_F11_Mini_5G_****** Ruko_F11_Mini_5G_****** Copyright ©2022 Ruko All Rights Reserved.

  • Page 11: Diagram

    (American control sticks) Use a control stick to control aircraft movements.The left control stick is the throttle lever, which can adjust the aircraft's altitude and nosedirection. (Up/Down, Left Rotation/Right Rotation). The Japanese hand's control stick functions is different from the American control sticks. Copyright ©2022 Ruko All Rights Reserved.
  • Page 12 Flip up to open the holder for placing mobile phones. The width of the phone holder is adjustable. The maximum adjustable width is up to 3.1 inches. ⑨ Adjust the Camera Angle up. ⑩ Adjust the Camera Angle down. Copyright ©2022 Ruko All Rights Reserved.

  • Page 13: Aircraft

    2m/s. 3 Aircraft F11MINI aircraft is mainly composed of a flight remote controller, a communication system, a video downlink system, a propulsion system, propulsion system and an Intelligent Flight Battery.

  • Page 14: Calibration And Aircraft Status Indicator

    3.2 Calibration and Aircraft Status Indicator 3.2 Calibration and Aircraft Status Indicator The F11MINI aircraft's status indicator is located under the rear arm of aircraft to indicate the current status of the flight control system. Please refer to the following table for the status of the flight control system represented by different blinking modes.

  • Page 15: Return To Home

    When the pilot needs the aircraft to return home automatically, he can click the smart RTHbutton on remote controller or tap the return on the Ruko Mini app to activate RTH. During the return home, short press the smart return button on the remote controller or click the return icon on the F11MINI interface again to exit the return home.
  • Page 16 Pay attention to maintaining the flying height to avoid hitting people or obstacles. If the flight altitude is between 164ft (50m) to 393ft (120m),the aircraft will directly fly to the default altitude of 164ft (50m), then return to the Home Point. Copyright ©2022 Ruko All Rights Reserved.
  • Page 17 In order to prevent unnecessary dangers due to insufficient battery power, when the aircraft battery power is low, the low battery return home function will be automatically triggered. According to the remaining power after returning, there are 2 situations after returning: Copyright ©2022 Ruko All Rights Reserved.
  • Page 18 You can control the joysticks on the remote control to avoid obstacles. When the aircraft is less than 65 feet (20 meters ) away from the return point,the return can be canceled. Copyright ©2022 Ruko All Rights Reserved.
  • Page 19 The aircraft automatically flies to the top of the home point, then starts to land, and completes the home return. When out of control, the aircraft cannot avoid obstacles. When the GPS signal is weak, the aircraft cannot return to home automatically. Copyright ©2022 Ruko All Rights Reserved.

  • Page 20: Intelligent Flight Mode

    GPS Follow, Route Planning and Fly Around. The operation can be completed by one click, which is simple and fast. Before taking off, please make sure to download and install the Ruko Mini app on your mobile phone, connect the mobile phone to the aircraft Wi-Fi, turn on the GPS on the remote controller, and select an open environment with good GPS signal.
  • Page 21 Launch aircraft and ensure flight height is higher than the nearby obstructions. ③ Tap "Delete Single Point" or "Delete All" to reset the marked point. ④ Confirm the marked points are correct and tap The aircraft will start waypoint flight. Copyright ©2022 Ruko All Rights Reserved.
  • Page 22 The Route Planning function only works when the GPS signal is strong. Please avoid high buildings, trees, and areas where Wi-Fi signal might be interfered. Aircraft is not equipped with obstacle avoidance function. Please use it in open areas free of obstacles. Copyright ©2022 Ruko All Rights Reserved.
  • Page 23 The default surround mode radius is 16 feet (5m), and the maximum radius is 65 feet (20m). The flying speed of the surround mode radius depends on the surround mode radius, the larger radius, the faster the flying speed. Copyright ©2022 Ruko All Rights Reserved.

  • Page 24: Propellers

    F11MINI User Manual 3.5 Propellers 3.5 Propellers The propellers on the adjacent motors of the F11MINI are forward and reverse propellers. The two propellers on the same motor are the same, and the propellers are marked with A and B respectively.

  • Page 25: Intelligent Flight Battery

    Before each flight, please check to make sure that the propellers are in good condition. 3.6 Intelligent Flight Battery The F11MINI intelligent flight battery has a capacity of 2100mAh, a rated voltage of 7.6V, and with charge and discharge management functions. This battery uses high-energy and largecapacity batteries to increase the flight time of the aircraft.
  • Page 26 Checking Battery Level Press and hold the power button, after the indicator light turns on to the fourth, release the power button to check the current battery level. Electricity High Copyright ©2022 Ruko All Rights Reserved.
  • Page 27 It is recommended to charge and discharge it once a month, do not store with a full charge, keep 50%-60% of the power, the storage temperature is 10-40°C, and the best storage temperature is 19-21°C. Copyright ©2022 Ruko All Rights Reserved.

  • Page 28: Camera Overview

    120°FOV lens and a 90° adjustable camera, which can stably shoot 2.7K HD video and 4K ultra-clear images, providing you with a broad field of vision for unforgettable moments. 0° -90° Copyright ©2022 Ruko All Rights Reserved.
  • Page 29 2K@25FPS or 720P@25FPS and stored in the album in the Ruko Mini app. Storing Photos and Videos F11MINI is equipped with a micro SD card slot for storage space expansion. Card speed: 10M/s. File format: support FAT32 format.

  • Page 30: Remote Controller

    4 Remote Controller 4.1 Remote Controller Profile 4.1 Remote Controller Profile F11MINI remote controller uses the 2.4 GHz frequency band, and the remote controller distance is up to 1640FT (unobstructed and interference-free environment). The folding handle can stably place the mobile phone, and the maximum adjustable width is 3.1 inches.
  • Page 31 Blinking during flight indicates that the Remote controller is low power. Controlling the Camera Recording Button: Press once to switch to recordingmode or start/stop recording. Camera Button: Press once to switch to camera mode or take a photo. Camera Button Recording Button Copyright ©2022 Ruko All Rights Reserved.
  • Page 32 Push up and down the right joystick to pair the remote controller with aircraft. American hand's control （Mode 2） Left Joystick Right Joystick It will back to the default American control mode when turn off the remote controller and turn on again. Copyright ©2022 Ruko All Rights Reserved.
  • Page 33 The greater the offset, the greater the tilt angle and the faster the flight speed. The forward direction of the aircraft is based on the direction of the nose. Copyright ©2022 Ruko All Rights Reserved.

  • Page 34: Communication Range Of Remote Controller

    Attitude Indicator in the app, and the attitude Indicator points straight ahead (perpendicular to the coordinates), indicating that the remote controller is facing the aircraft. Remote controller position Aircraft orientation Copyright ©2022 Ruko All Rights Reserved.

  • Page 35: Linking The Remote Controller

    Keep the battery at around 3.8-3.9V, and recharge it every month or so to keep the battery active. Please remember to turn off the power of the remote controller Copyright ©2022 Ruko All Rights Reserved.

  • Page 36: Ruko Mini App

    F11MINI User Manual 5 Ruko Mini APP 5.1 Home After running Ruko Mini app, enter the homepage. F11MINI Co ntro l Video promotion I n st ru c ti o n Control Operate the aircraft through the app page buttons to realize the functions of the aircraft.

  • Page 37: Camera View

    Aircraft Battery Level Controller Battery Level More Features System Settings SD Card Auto Takeoff/Lading Flight height Speed of vertical flight D N/A H N/A H.S N/A V.S N/A Speed of horizontal flight Flight distance Copyright ©2022 Ruko All Rights Reserved.
  • Page 38 Tap the icon to enter parameter interface. Beginner mode: In this mode, the aircraft’s farthest flight distance and altitude is 98ft,and the return altitude is 65ft, so that the aircraft can fly more safely within sight. Copyright ©2022 Ruko All Rights Reserved.
  • Page 39 Find drone: It shows the last position of the aircraft when it lost the image transmission signal. Open the map to find the position where the aircraft is disconnected from the app. Export flight log: You can export the flight log data. Copyright ©2022 Ruko All Rights Reserved.
  • Page 40 H.S N/A: Speed of horizontal flight (forward or backward). V.S N/A: Speed of vertical flight (ascending or descending). Attitude Indicator Display information of the orientation of the aircraft, and position of the remote controller. Remote controller position Aircraft orientation Copyright ©2022 Ruko All Rights Reserved.
  • Page 41 After unlocking the aircraft, click one button to take off, tap it again to descend the aircraft, you can cancel the descent by push up the throttle stick. Back Tap to return to the home screen. Copyright ©2022 Ruko All Rights Reserved.
  • Page 42 ①Allow Ruko Mini to get your location. Otherwise, the following functions cannot be realized. Allow Ruko Mini to connect to the mobile phone on the local ② network, otherwise you will not be able to see the aircraft image transmission screen.

  • Page 43: Flight

    The flight altitude is limited to 393ft, and the local laws and regulations must be strictly observed during flying. Please be sure to read the F11MINI Disclaimer and Safety Summary, and understand the safety precautions before flying. 6.1 Flight Environment Requirements Do not fly in severe weather such as strong wind, snow, rain, and fog.

  • Page 44: Pairing Remote Controller With Aircraft

    ② Long press the power button of aircraft, the motor light will be on and you will hear a beeping sound, indicating that the aircraft has been turned on. Copyright ©2022 Ruko All Rights Reserved.

  • Page 45: Wi-Fi Connection

    6.4 Wi-Fi Connection ① Open the phone Wi-Fi setting page. ② Connect the mobile phone to aircraft's Wi-Fi (name: Ruko_F11_Mini_5G_******). Einstellungen MEINE NETZWERKE Ruko_F11_Mini_5G-****** Copyright ©2022 Ruko All Rights Reserved.
  • Page 46 Wi-Fi, 2.4G+5G, can be applied. The aircraft Wi-Fi can only support one mobile phone. When one mobile phone is connected to the aircraft Wi-Fi, other mobile phone will not be able to connect to the Wi-Fi. Copyright ©2022 Ruko All Rights Reserved.

  • Page 47: Compass Calibration Before Flight

    (No fixed direction of rotation required.) After the compass calibration is completed, place the aircraft on a level ground. Vertical Calibration The indicator changes from fast flashing to steady light Copyright ©2022 Ruko All Rights Reserved.

  • Page 48: Calibrate The Gyroscope/Level

    7 o'clock position together. ③ The aircraft starts to calibrate the gyroscope automatically when the rear light flashes fast. ④ The gyroscope calibration is completed when the light changes back to the original light state. Copyright ©2022 Ruko All Rights Reserved.

  • Page 49: Starting/Stopping The Motors

    Method 2 Stopping the Motors Method 1: After the aircraft takes off, push the throttle stick to the lowest position and operate the aircraft to land until the motor stops, then release the joystick. Copyright ©2022 Ruko All Rights Reserved.

  • Page 50: Auto Takeoff/Lading

    Click the One-key Takeoff button on remote controller or enter the app and click to take off. ③ The aircraft will take off automatically and hover at a distance of 4 ft from the ground. Copyright ©2022 Ruko All Rights Reserved.
  • Page 51 ② When the aircraft is descending, push the throttle lever of the remote controller up and immediately open it to exit the automatic landing process. Copyright ©2022 Ruko All Rights Reserved.

  • Page 52: How To Take Off The Ruko F11Mini Drone

    ③ The aircraft landed on the ground and turned off the motors by itself. 6.9 How to take off the Ruko F11MINI Drone Basic Flight Steps ① Place the aircraft on a flat and open ground with the nose facing forward and the tail facing the pilot.

  • Page 53: Aerial Photography Tips & Tricks

    Max Flight Altitude 393 feet Max Flight Distance 1640 feet Max Image Transmission Distance 1640 feet (open and non-interference) Image Transmission Frequency Motor Model 1503 brushless motor Satellite system GPS/GLONASS Flight time About 30 minutes Copyright ©2022 Ruko All Rights Reserved.

  • Page 54: Accessories Support

    Remote Controller All of the above accessories can be searched and purchased on Amazon, and you can enter the Ruko store to buy them yourself. Be sure to use original accessories. The use of non-original accessories may cause danger to the safe use of the aircraft.

  • Page 55: Common Problems And Solutions

    Please make on its own, abnormal sound Compass interference sure to fly away from the buildings, trees, power lines, and signal towers The propellers become Replace the propellers with new ones deformed and incomplete Copyright ©2022 Ruko All Rights Reserved.
  • Page 56 GPS signal is weak Please stay away from obstacles for more Under the tree, next to the than 32.81 feet(10 meters), and search for building, in an obstructed place GPS signals in an open area Copyright ©2022 Ruko All Rights Reserved.
  • Page 57 We tested all aircraft before shipping. Therefore, it is inevitable that The product has slight marks shipping there will be slight traces. However, it can be guaranteed that all aircraft are 100% brand new Copyright ©2022 Ruko All Rights Reserved.
  • Page 58 Ruko's official website https://rukotoy.com/support-drones If you have any questions or suggestions about the User Manual, please contact us via the following email: rukodrone@gmail.com Ruko is a trademark of Shenzhen Ruike Innovation Technology Co.,Ltd Copyright 2022 Ruko All Rights Reserved.
  • Page 60 CONTACT US FOR MORE TECH SUPPORT + 1 949-394-4635 Mon-Sun 6PM-4AM(PST) rukodrone@gmail.com +86 19129317359...
