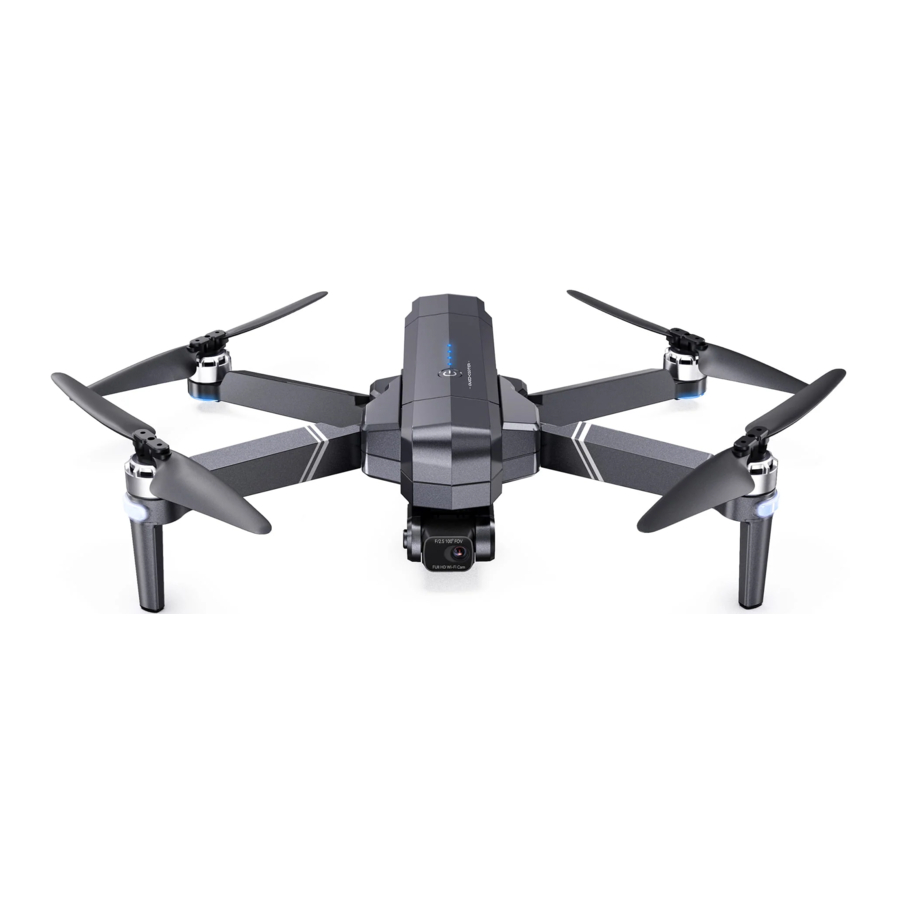

Ruko F11GIM - Drone Quick Guide

Download App

RUKO DRONE App

Charge the Batteries

Preparation

Preparation - Step 1

Preparation - Step 2 - Unfold the antenna

Select an Open Flight Area

Operation

Press and hold the button until theAircraft plays startup sound.
Short-press to power on the Transmitter.

caution Note: Please turn on the Aircraft firstly, then the Transmitter. Otherwise, they will not be paired.

Connect to Wi-Fi

Connect the mobile device to the Aircraft's Wi-Fi and enter the app operation page. Please refer to User Manual & Safety Guidelines for more details.

Calibrate the Compass

Rotate the aircraft horizontally 360°.
(About 1-2 turns)
Rotate the aircraft vertically 360°.
(About 1-2 turns)

Calibrate the Gyroscope

Push joysticks to 11 & 1 o'clock position.
(About 2 seconds)

Gimbal Self-inspection

Put on a level surface.
(About 20 seconds)

Search for GPS Automatically

caution Tips:

The searching time depends on the flight environment.
If unsuccessful, the motors can't be started.

Start the Motors

Push joysticks to 5 & 7 o'clock position.
(About 2 seconds)

Take off

Push up the left stick.

NEW TO FLYING DRONES?
Check the Flight Guide in the App

Search "Ruko F11 GIM Quick Start" on YouTube for First Flight
Scan QR Code for More Tech and Video Support

CONTACT US FOR MORE TECH SUPPORT
rukodrone@gmail.com
+1 (949) 394 - 4635 (Available from 6pm to 4am PDT)

Common Problems and Solutions

Question	Reason	Solutions
The motors cannot be started	Weak GPS signal	Turn on the Aircraft in an open area with strong GPS signal
	The red light stays on	The Aircraft has low battery. Please charge the battery in time
	The pink light stays on	The compass is not calibrated. Please refer to the "Calibration Before Flight" section of the User Manual
	The left and right joystick are not in place	Push the left and right joysticks simultaneously to 5 o'clock and 7 o'clock for 2 seconds
Unstable flight	Flying too low, affected by Aircraft airflow	Please fly the Aircraft above 9.84ft (3 meters)
	The gyroscope is not calibrated	Place the Aircraft on a horizontal surface and conduct gyroscope/horizontal calibration. Please refer to the "Calibration Before Flight" section of the User Manual
	The propellers become deformed and incomplete	Replace the propellers with new ones
	GPS signal is unstable. Flying near buildings and in obstructed places	Please fly the Aircraft in an open area free of obstacles within the circle of radius 32.81 ft (10 meters)
Out of control, spinning around on its own, abnormal sound	The Transmitter signal is interfered or the Aircraft exceeds the range of remote control	Please fly the Aircraft outdoors without interference, and ensure that it is within a controllable range
	Compass interference	Please manually land the drone in time and calibrate the compass. Please make sure to fly away from the buildings, trees, power lines, and signal towers
	The propellers become deformed and incomplete	Replace the propellers with new ones
The Gimbal is not working	When Fly from the grass, the gimbal touches the grass	Put the drone on landing pad or cardboard to prevent the gimbal from hitting with other objects
	When fly from the wooden floor, vibration will be transmitted through the floor	Take off the drone from the place without vibrations
	The gimbal is interfered by external forces or the drone is picked up during self-inspection	Put the Aircraft on the level ground without touching. The gimbal will star to work after 40 seconds
	When turning on the drone on the desk, the desk will amplify the subtle vibrations into high-frequency vibrations	Turn on the drone on the place without vibrations
	The compass is in calibrating	Put the Aircraft on level ground after compass calibration. The gimbal will start to work after 20 seconds
Video freezes, image transmission distance is short	The Aircraft is out of Wi-Fi range	Fly the Aircraft within the range of the Wi-Fi
	WiFi image transmission signal interference	Fly the Aircraft in an unobstructed open area free of buildings, high-voltage wires and signal towers
	The transmitter and the mobile phone are not pointed at the direction of the drone	Point the Transmitter and the mobile device at the flying direction of the Aircraft to maintain the strongest signal connection
	Phone performance freezes	Close unused apps running in the background to maintain the best performance of the phone
Video is not clear	if use APP storage, the pixels are 1920×720P	Insert the memory card and storage the video on the memory card
App does not display the interface	The phone is not connected to Wi-Fi	Connect your mobile device to the Wi-Fi: Ruko-GIM-******
	The phone version is too low	Android 6.0 and above, IOS 10.02 and above
	When connecting to the drone' s WiFi, the network is not set or set incorrectly	Set the Wi-Fi correctly
		Turn the phone to airplane mode
	VPN switch is turned on	Turn off the VPN switch
APP crashes or functions abnormally	Wrong app downloaded	Download the correct App
APP crashes or functions abnormally	A few mobile phone versions are old and incompatible with APP	Provide mobile phone version and model, we will adapt and solve it
Phone cannot connect to Wi-Fi	It is the first time to connect your phone to the Wi-Fi	Try connecting a few more times or restart the phone
The WiFi name is not displayed in the list	The phone is a single band	Use the dual band devices that support both 2.4 GHz and 5 GHz/5.8 GHz
The WiFi name is not displayed in the list	WiFi has not been activated	Wait for about 30 seconds after turning on the Aircraft and keep refreshing the Wi-Fi list while the Wi-Fi is activated
GPS signal is weak	Turning on the drone indoors	GPS signals cannot be found indoors. Please search for GPS signals in an open place outdoors
GPS signal is weak	Under the tree, next to the building, in an obstructed place	Please stay away from obstacles for more than 32.81 feet (10 meters), and search for GPS signals in an open area
Unable to return home, drifting and flying away	GPS signal was turned off during the flight	Please don't turn off GPS suddenly during outdoor flight. Switch back to GPS mode in time
App always says the Transmitter has low battery	The phone cannot connect to the Transmitter due to the wrong sequence for turning on the equipments	The correct sequence is: Turn on the Aircraft firstly turn on the Transmitter Connect the WiFi
The Aircraft cannot be paired with the Transmitter	The wrong sequence for turning on the equipments	Correct pairing steps: Turn on the Aircraft. Turn on the Transmitter
Cannot charge battery/Cannot fully charge battery	Using inferior charger or charging on the computer with unstable voltage output	Use a mobile USB charger that ensures constant stable voltage output (5V) and amperage output (2-3A)
Cannot charge battery/Cannot fully charge battery	Using inferior charging cables	Please use the original factory charging cable to charge
Short battery life	Flying in windy weather	Flying in windy weather will accelerate power loss
	Flying in cold weather	In low temperatures, the chemical reaction of the lithium battery is slowed down and the energy cannot be fully released
	The battery is not fully charged	Fully charged with the correct USB charger before flying
The product has slight marks	We tested all Aircraft before shipping	In order to give you the best experience, we tested functions of all Aircraft before shipping. Therefore, it is inevitable that there will be slight traces. However, it can be guaranteed that all Aircraft are 100% brand new
