Operation

18
8 Operation
8.1

HMI navigation

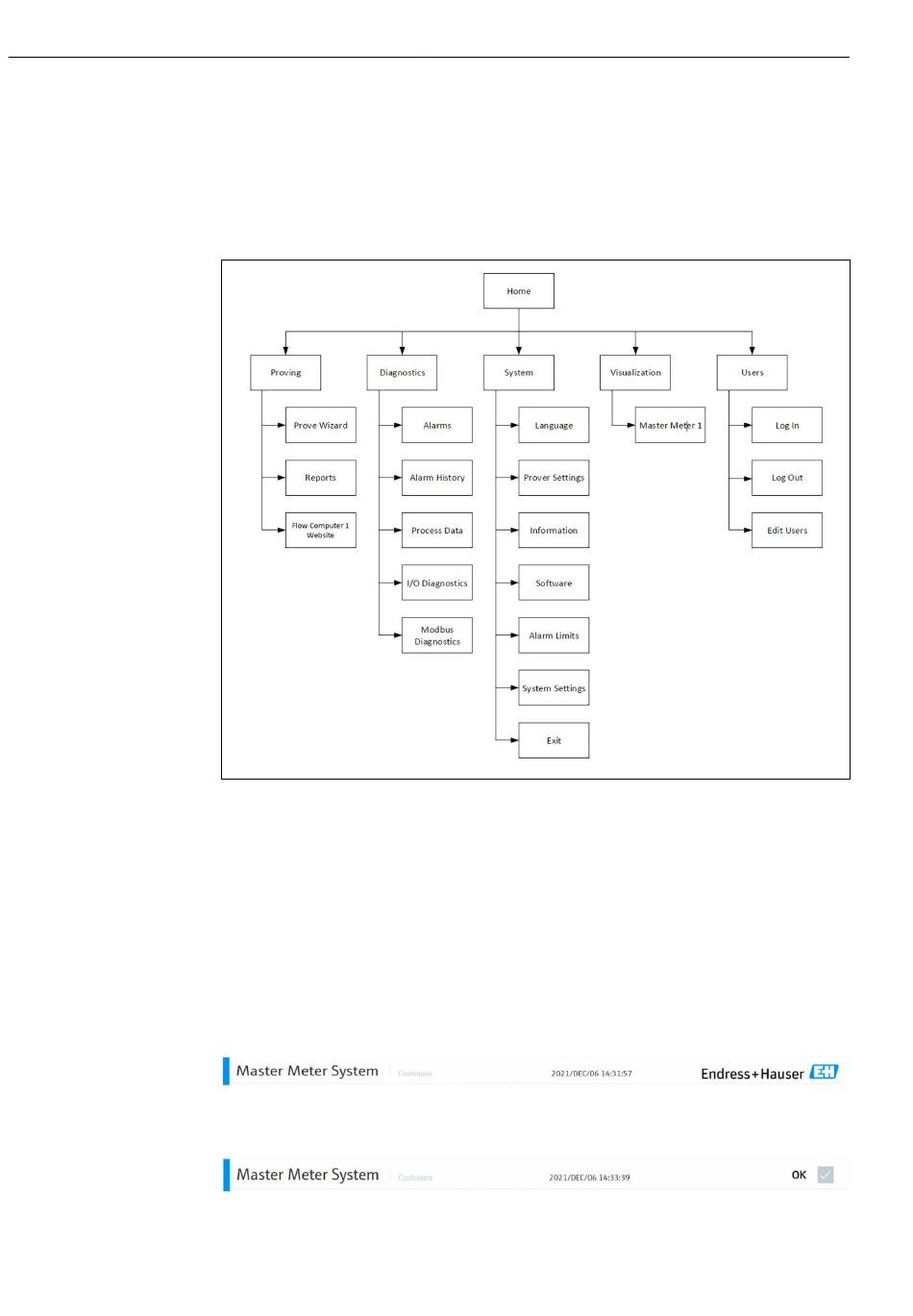

The following overview shows hows the user can navigate between the screens. Depending
on the user group, certain screens may not be available and are therefore grayed out.
8.2

General information

8.2.1

Status bar

The status bar is located at the top of the screen and contains the following information:
• System name
• Customer name
• System date, system time
• Endress+Hauser logo (→  7,  18) or system status (OK, warning, error;
→  8,  18)
 7 Status bar (with Endress+Hauser logo)
 8 Status bar (with system status)
