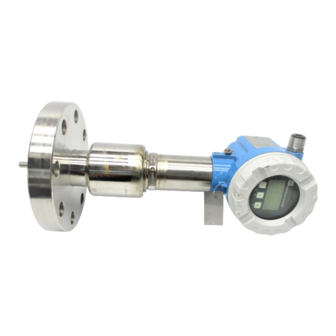

Endress+Hauser Levelflex M FMP45 Operating Instructions Manual

Endress+Hauser Levelflex M FMP45 Operating Instructions Manual

Guided level-radar hart/4...20 ma
Hide thumbs Also See for Levelflex M FMP45:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Levelflex M FMP45
Guided Level-Radar
HART/4...20 mA
6
BA279F/00/en/12.06
No. 52021039
Valid as of software version
V 01.04.00 (amplifier)
V 01.04.00 (communication)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Levelflex M FMP45

Summary of Contents for Endress+Hauser Levelflex M FMP45

  • Page 1 Operating Instructions Levelflex M FMP45 Guided Level-Radar HART/4...20 mA BA279F/00/en/12.06 No. 52021039 Valid as of software version V 01.04.00 (amplifier) V 01.04.00 (communication)
  • Page 2 Brief overview Levelflex M FMP45 with HART/4...20 mA Brief overview For quick and simple commissioning: → ä 6 Safety Instructions Explanation of the warning symbols You can find special instructions at the appropriate position in the chapter in question. The positions are indicated with the icons Warning #, Caution " and Note !.
  • Page 3 Levelflex M FMP45 with HART/4...20 mA Brief overview Brief operating instructions KA 189F/00/a2/11.05 Levelflex M - Brief operating instructions 52012501 Contrast: measured value dist./ meas value Group selection basic setup tank medium process empty full dist./ check range of start...
  • Page 4 Brief overview Levelflex M FMP45 with HART/4...20 mA Endress + Hauser...

  • Page 5: Table Of Contents

    Notes on safety conventions and icons ... 7 Contact addresses of Endress+Hauser ... 79 Identification ....8 Technical data .

  • Page 6: Safety Instructions

    Levelflex M FMP45 with HART/4...20 mA Safety instructions Designated use The Levelflex M FMP45 is a compact level transmitter for the continuous measurement of solids and liquids, measuring prinziple: Guided Level Radar / TDR: Time Domain Reflectometry. Installation, commissioning and operation The Levelflex M has been designed to operate safely in accordance with current technical, safety and EU standards.

  • Page 7: Notes On Safety Conventions And Icons

    Levelflex M FMP45 with HART/4...20 mA Safety instructions Notes on safety conventions and icons In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin.

  • Page 8: Identification

    Dat./Insp.: D01301-A Reference to additional safety-relevant documentation L00-FMP4xxxx-18-00-00-en-001 Fig. 1: Information on the nameplate of the Levelflex M FMP45 (example) 2.1.2 Ordering structure This overview does not mark options which are mutually exclusive. Ordering structure Levelflex M FMP45 Approval: A Non-hazardous area...
  • Page 9 Levelflex M FMP45 with HART/4...20 mA Identification Ordering structure Levelflex M FMP45 (continued) Probe: A ..mm, rope 4mm, 316 C ..inch, rope 1/16", 316 K ..mm, rod 16 mm, 316L ..mm, coax , 316L M ..inch, rod 16 mm, 316L N ..inch, coax, 316L...
  • Page 10 Identification Levelflex M FMP45 with HART/4...20 mA Ordering structure Levelflex M FMP45 (continued) Power Supply; Output: 2-wire; 4-20mA HART D 2-wire; PROFIBUS -PA 2-wire; FOUNDATION Fieldbus G 4-wire 90-250VAC; 4-20mA HART H 4-wire 10.5-32VDC; 4-20mA HART Special version Operation: W/o display, via communication...

  • Page 11: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 12: Installation

    Installation Levelflex M FMP45 with HART/4...20 mA Installation Quick installation guide F12 or T12 housing Turn housing The housing can be turned 350° in order to simplify access to the display and the terminal compartment ½ 1 " F12 housing...

  • Page 13: Installation Conditions

    Levelflex M FMP45 with HART/4...20 mA Installation Installation conditions 3.3.1 Dimensions Housing dimensions Dimensions for the process connection and the probe type → ä 14. max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max. 94...
  • Page 14 Installation Levelflex M FMP45 with HART/4...20 mA Levelflex M FMP45 - process connection, type of probe Housing dimensions → ä 13. F12 / T12 / F23 housing Variant “3”: remote electronic 4 x Ø 8,5 Variant “4”: remote electronic Ø 21.3 with angled adaptor Ø...

  • Page 15: Installation

    Levelflex M FMP45 with HART/4...20 mA Installation Installation 3.4.1 Mounting kit In addition to the tool needed for flange mounting, you will require the following tool: • For the mounting of threaded connection: 60 mm Open-end spanner for 1½", 50 mm Open-end spanner for ¾".
  • Page 16 Installation Levelflex M FMP45 with HART/4...20 mA 3.4.3 Mounting probes in an empty silo " Caution! If there is a risk of electrostatic discharge from the product, then both processconnection and rope must be earthed before the probe is lowered into the silo.
  • Page 17 Levelflex M FMP45 with HART/4...20 mA Installation 3.4.4 Mounting rope probes in a partially full silo It is not always possible to empty a silo which is already in operation. Because the probe can be turned in the threaded boss, it can also be mounted when the silo is only partially filled. In order to...
  • Page 18 Installation Levelflex M FMP45 with HART/4...20 mA 3.4.5 General instructions Normally use rod probes. Rope probes are used in liquids for measuring ranges > 4m and with restricted ceiling clearance which does not allow the installation of rigid probes. Coax probes are not influenced by the installation conditions. They may also be operated •...
  • Page 19 Levelflex M FMP45 with HART/4...20 mA Installation Other installations • Select the mounting location such that the distance to internals (5) (e.g. limit switch, struts) > is 300 mm over the entire length of the probe, also during operation. • Probe must within the measuring span not touch any internals during operation.
  • Page 20 Installation Levelflex M FMP45 with HART/4...20 mA Supporting probes against warping For WHG or Ex approval: For probe lengths ≥ 3 m a support is required (see figure). Rod probes Probe rod Sleeve bored tight to ensure electrical contact between the rod and sleeve! Short metal pipe e.g.
  • Page 21 Levelflex M FMP45 with HART/4...20 mA Installation Installing with heat insulation • If process temperatures are high (≥ 200 °C), FMP45 must be included in normal tank insulation to prevent the electronics heating up as a result of heat radiation or convection.
  • Page 22 In vacuum applications and in applications where extremely condensate fermation may occur, there is the danger that the vessel is completely flooded. For media groups with high DC values, this may result in a measuring value lower than the actual level. Please contact your local Endress+Hauser representative for remedial actions.
  • Page 23 Levelflex M FMP45 with HART/4...20 mA Installation 3.4.7 Notes on special installation situations Welding the probe into the vessel " Caution! Before welding the probe into the vessel, it must be grounded by a low-resistive connection. If this is not possible, the electronics as well as the HF module must be disconnected. Otherwise the electronics may be damaged.
  • Page 24 Installation Levelflex M FMP45 with HART/4...20 mA 3.4.8 Installation for difficult to access process connections Installation with remote electronic • Follow installation instructions on → ä 18 • Mount housing on a wall or pipe as shown in the diagram.

  • Page 25: Turn Housing

    Levelflex M FMP45 with HART/4...20 mA Installation Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...

  • Page 26: Wiring

    Wiring Levelflex M FMP45 with HART/4...20 mA Wiring Quick wiring guide Wiring in F12/F23 housing " Before connection please note the following: ● The power supply must be identical to the data on the Caution! nameplate (1). ENDRESS+HAUSER Made in Germany...
  • Page 27 Levelflex M FMP45 with HART/4...20 mA Wiring Wiring in T12 housing " Before connection please note the following: ● The power supply must be identical to the data on the nameplate (1). Caution! ENDRESS+HAUSER Made in Germany LEVELFLEX-M D-79689 Maulburg ●...

  • Page 28: Connecting The Measuring Unit

    Wiring Levelflex M FMP45 with HART/4...20 mA Connecting the measuring unit Terminal compartment Three housings are available: • Aluminium housing F12 with additionally sealed terminal compartment for: – standard, – EEx ia. • Aluminium housing T12 with separate terminal compartment for: –...
  • Page 29 Levelflex M FMP45 with HART/4...20 mA Wiring Cable entry Cable gland: M20x1.5 Cable entry: G ½ or ½ NPT Supply voltage HART, 2-wire The following values are the voltages across the terminals directly at the instrument: Terminal voltage Current Communication...
  • Page 30 Wiring Levelflex M FMP45 with HART/4...20 mA Overvoltage protection If the measuring device is used for the level measurement in flammable liquids which requires the use of an overvoltage protection according to DIN EN 60079-14, standard for testprocedures DIN IEC 60060-1 (10 kA, Puls 8/20 μs) it has to be ensured that •...

  • Page 31: Recommended Connection

    Levelflex M FMP45 with HART/4...20 mA Wiring " Caution! If the HART communication resistor is not built into the supply unit and the HART interface is to be used, it is necessary to insert a communication resistor of 250 Ω into the 2-wire line.

  • Page 32: Operation

    Operation Levelflex M FMP45 with HART/4...20 mA Operation Quick operation guide ENDRESS + HAUSER – >3 s Return to basic setup tank shape medium property Group Selection Standard safety settings aluminium tank plastic tank linearisation bypass / pipe extended calibr.
  • Page 33 Levelflex M FMP45 with HART/4...20 mA Operation 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.

  • Page 34: Display And Operating Elements

    Operation Levelflex M FMP45 with HART/4...20 mA Display and operating elements Four lines with 20 characters each. Display contrast adjustable through key combination. (liquid crystal display) Orde Ser.- Orde Ser.- r Cod r Cod No.: No.: sber sber surin surin...
  • Page 35 Levelflex M FMP45 with HART/4...20 mA Operation 5.2.2 Display symbols The following table describes the symbols that appear on the liquid crystal display: Sybmol Meaning ALARM_SYMBOL This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates a warning.

  • Page 36: Local Operation

    Operation Levelflex M FMP45 with HART/4...20 mA Local operation 5.3.1 Locking of the configuration mode The Levelflex can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: "unlock parameter" (0A4): A value <> 100 (e.g. 99) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
  • Page 37 There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the Endress+Hauser service organization. Please contact Endress+Hauser if you have any questions.
  • Page 38 Operation Levelflex M FMP45 with HART/4...20 mA 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset.

  • Page 39: Display And Acknowledging Error Messages

    Levelflex M FMP45 with HART/4...20 mA Operation Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 40: Hart Communication

    5.5.2 ToF Tool operating program The ToF Tool is a graphical operation software for instruments from Endress+Hauser. It is used to support commissioning, securing of data, signal analysis and documentation of the instruments. It is compatible with the following operating systems: WinNT4.0, Win2000 and WinXP.
  • Page 41 Levelflex M FMP45 with HART/4...20 mA Operation Menu-guided commissioning L00-FMP4xxxx-20-00-00-de-002 Signal analysis via envelope curve: L00-FMP4xxxx-20-00-00-de-007 Connection options • Service-interface with adapter FXA193 (RS232C) or FXA291 and ToF Adapter FXA291 (USB) • HART with Commubox FXA191/FXA195 (see → ä 30)

  • Page 42: Commissioning

    Commissioning Levelflex M FMP45 with HART/4...20 mA Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist “Post-installation check” (→ ä 25). • Checklist “Post-connection check” (→ ä 25).

  • Page 43: Basic Setup

    Levelflex M FMP45 with HART/4...20 mA Commissioning Basic Setup tank shape flange: Standard reference point of measurement measuring cond. Unknown measuring cond. Standard empty calibr. full calibr. mapping E = empty calibr. (= zero) LN = probe length setting in 005...
  • Page 44 Commissioning Levelflex M FMP45 with HART/4...20 mA The basic setup is sufficient for successful commissioning in most applications. The Levelflex is initially adjusted at the factory to the probe length ordered, so that in most cases only the application parameters, that automatically adapt the device to the measuring conditions, need to be entered.

  • Page 45: Basic Setup With The Vu331

    Levelflex M FMP45 with HART/4...20 mA Commissioning Basic Setup with the VU331 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042)) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 46 Commissioning Levelflex M FMP45 with HART/4...20 mA bypass / pipe The "bypass / pipe" option is designed especially for the installation of probes in a bypass or a stilling well. If this option is selected, the upper blocking distance is preset to 100 mm.
  • Page 47 Levelflex M FMP45 with HART/4...20 mA Commissioning Function "process propert." (004) ⇒ ENDRESS + HAUSER – Use this function to adapt the device reaction to the filling speed in the tank. The setting impacts on an intelligent filter. Selection: • standard •...
  • Page 48 Commissioning Levelflex M FMP45 with HART/4...20 mA Function "probe length" (031) ⇒ ENDRESS + HAUSER – Use this function to select whether the probe length was changed after factory calibration. Only then is it necessary to enter or correct the probe length.
  • Page 49 Levelflex M FMP45 with HART/4...20 mA Commissioning After selection "length too short" or "length too long", the calculation of the new value need approx. 10 s. Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero).
  • Page 50 Commissioning Levelflex M FMP45 with HART/4...20 mA 100% F = full calibration (= span) F max = E – upper blocking distance L00-FMP4xxxx-14-00-06-en-009 Note! The usable measuring range lies between the lower and the upper blocking distance. The values for empty distance (E) and span (F) can be set independently of this.
  • Page 51 Levelflex M FMP45 with HART/4...20 mA Commissioning distance too small distance = ok L00-FMP4xxxx-14-00-06-en-010 distance = ok Use this function at part-covered probe. Choosing function "manual" or "probe free" at free probe. • mapping is carried out up to the currently measured echo •...
  • Page 52 Commissioning Levelflex M FMP45 with HART/4...20 mA Function "range of mapping" (052) ⇒ ENDRESS + HAUSER – This function displays the suggested range of mapping. The reference point is always the reference point of the measurement (→ ä 43). This value can be edited by the operator.

  • Page 53: Blocking Distance

    Levelflex M FMP45 with HART/4...20 mA Commissioning Blocking distance Function "upper block. dist" (059) ⇒ ENDRESS + HAUSER – For rod probes and for rope probes with lengths of up to 8 m, the upper blocking distance is preset to 0.2 m on delivery.
  • Page 54 Commissioning Levelflex M FMP45 with HART/4...20 mA Maximum measured error Typical statements for reference conditions: DIN EN 61298-2, percentage of the span. Output: digital analogue sum of non-linearity, measurig range: ± 0.06 % non-repeatability – up to 10 m: ±3 mm and hysteresis –...

  • Page 55: Envelope Curve With Vu331

    Levelflex M FMP45 with HART/4...20 mA Commissioning Envelope curve with VU331 After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E)) function group) is recommended.). 6.6.1 Function "plot settings" (0E1) ⇒...

  • Page 56: Function "Envelope Curve Display" (0E3)

    Commissioning Levelflex M FMP45 with HART/4...20 mA Function "envelope curve display" (0E3) You can obtain the following information from the envelope curve display in this function: quality of evaluated echo full calibr. evaluated echo empty calibr. is marked envelope curve...
  • Page 57 Levelflex M FMP45 with HART/4...20 mA Commissioning Horizontal-Zoom-Modus Press , to switch to the envelope curve navigation. You are then in Horizontal Zoom mode. Either is displayed. You now have the following options: • increases the horizontal scale. • decreases the horizontal scale.

  • Page 58: Basic Setup With The Tof Tool

    Commissioning Levelflex M FMP45 with HART/4...20 mA Exiting the navigation • Press again to run through the different modes of the envelope curve navigation. • Press to exit the navigation. The set increases and shifts are retained. Only when you reactivate the "recording curve"(0E2) function does the Levelflex use the standard display...
  • Page 59 Levelflex M FMP45 with HART/4...20 mA Commissioning Basic Setup step 2/6: • Enter the application parameters: – tank properties (for a description, → ä 45) – medium properties (for a description, → ä 46) – process properties (for a description, → ä 47)
  • Page 60 Commissioning Levelflex M FMP45 with HART/4...20 mA Basic Setup step 4/6: • Enter the application parameters: – probe length (for a description, → ä 48) – probe (for a description, → ä 48) – probe length (for a description, → ä 48) –...
  • Page 61 Levelflex M FMP45 with HART/4...20 mA Commissioning Basic Setup step 6/6: • This step starts the tank mapping • The measured distance and the current measured value are always displayed in the header • for a description, → ä 52) l00-fmp4xxxx-20-00-00-en-004 6.8.1...
  • Page 62 Commissioning Levelflex M FMP45 with HART/4...20 mA 6.8.2 Envelope curve with the ToF Tool After the basic setup, an evaluation of the measurement using the envelope curve is recommended (→ ä 62). L00-FMP4xxxx-20-00-00-en-007 Note! For the optimization of the measurement the installation of the Levelflex in another place can be executed when enterference echoes.
  • Page 63 Levelflex M FMP45 with HART/4...20 mA Commissioning Evaluation of the measurement: • The map must correspond to the course of the envelope curve (for rod probes up to approx. 5 cm and for rope probes up to approx. 25 cm before the end of the probe) when the tank is empty.

  • Page 64: Maintenance

    They contain the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for repairs to the Levelflex M are listed with their order numbers on → ä 73 and 76. Please contact Endress+Hauser Service for further information on service and spare parts.

  • Page 65: Accessories

    Levelflex M FMP45 with HART/4...20 mA Accessories Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the Levelflex M. Weather protection cover A Weather protection cover made of stainless steel is recommended for outdoor mounting (order code: 543199-0001).
  • Page 66 Accessories Levelflex M FMP45 with HART/4...20 mA Remote display FHX40 Wall-mounting Pipe-mounting (without mounting bracket) (mounting bracket and plate supplied optionally, s. product structure) Separate housing FHX 40 (IP 65) Micropilot M Levelflex M Prosonic M O rd O rd...
  • Page 67 TI404F/00/en. Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: •...

  • Page 68: Trouble-Shooting

    Trouble-shooting Levelflex M FMP45 with HART/4...20 mA Trouble-shooting Trouble-shooting instructions Levelflex M -Trouble Shooting Check voltage and Not ok compare it with the Instrument does Connect the Instrument works? Ready specifications on the not respond correct voltage nameplate. Check the polarity...

  • Page 69: System Error Messages

    Levelflex M FMP45 with HART/4...20 mA Trouble-shooting System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before data reset general reset & new calibr. could be stored; avoid emc problem; required emc problem;...
  • Page 70 Trouble-shooting Levelflex M FMP45 with HART/4...20 mA Code Description Possible cause Remedy W601 linearisation ch1 curve not linearization not monotonously increasing correct linearisation table monotone W611 less than 2 linearisation number of entered linearization points < 2 correct linearisation table...

  • Page 71: Application Errors

    Levelflex M FMP45 with HART/4...20 mA Trouble-shooting Application errors Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of 1. See table of error messages (→ ä 69) has occurred. error messages (→ ä 69) →...
  • Page 72 Trouble-shooting Levelflex M FMP45 with HART/4...20 mA Device displays a Incorrect probe length 1. Carry out automatic probe length level when the detection when the tank is tank is empty. empty. 20 mA/100% 2. Carry out mapping over entire probe when the tank is empty (probe free!).

  • Page 73: Spare Parts

    Spare parts Note! You can order spare parts directly from your Endress+Hauser service organization by giving the serial number which is printed on the measuring transducer nameplate (→ ä 8). The corresponding spare part number also appears on each spare part. Installation instructions are given on the instruction card that is also delivered.
  • Page 74 Trouble-shooting Levelflex M FMP45 with HART/4...20 mA 10 Housing 52013409 Housing F12, aluminium, coated, M20, metal 52013348 Housing F12, aluminium, coated, G1/2, 4-wire 52013349 Housing F12, aluminium, coated, NPT1/2, 4-wire 52013350 Housing F12, aluminium, coated, M20, 4-wire 52013351 Housing F12, aluminium, coated, M20, metal...
  • Page 75 Levelflex M FMP45 with HART/4...20 mA Trouble-shooting Spare parts for Levelflex M FMP45 housing type F23 20 Cover 52018670 Cover F23 316L, sight glass, gasket 52018681 Cover F23 316L, gasket Endress + Hauser...
  • Page 76 Trouble-shooting Levelflex M FMP45 with HART/4...20 mA Spare parts for Levelflex M FMP45 housing type T12 with separate connecting compartment O rd r. -N d e : I L O o .: s s b e re a s u...
  • Page 77 Levelflex M FMP45 with HART/4...20 mA Trouble-shooting 10 Housing 52006205 Housing T12, aluminium, M20, PEL, cover 543180-1023 Housing T12, aluminium, NPT1/2, PEL 11 Hood for terminal compartment 52005643 Hood T12 12 Set of screws 535720-9020 Set of screws for housing F12/T12...
  • Page 78 Trouble-shooting Levelflex M FMP45 with HART/4...20 mA FMP45 - probes, accessories and spare parts Under development. Endress + Hauser...

  • Page 79: Return

    Levelflex M FMP45 with HART/4...20 mA Trouble-shooting Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.

  • Page 80: Technical Data

    Technical data Levelflex M FMP45 with HART/4...20 mA Technical data 10.1 Additional technical data 10.1.1 Input The measured variable is the distance between a reference point (see Fig. on → ä 14) and the Measured variable product surface. Subject to the input empty distance (E, see Fig. on → ä 90), the level is calculated.
  • Page 81 Levelflex M FMP45 with HART/4...20 mA Technical data Influence of ambiente The measurements are carried out in accordance with EN 61298-3: temperature • digital output (HART, PROFIBUS PA, Foundation Fieldbus): – average T : 0.6 mm/10 K, max. ±3.5 mm over the entire temperature range -40 °C...+80 °C 2-wire •...
  • Page 82 Technical data Levelflex M FMP45 with HART/4...20 mA 10.1.4 Operating conditions: Environment Ambient temperature range Ambient temperature for the transmitter: -40 °C ... +80 °C (-40 °F … +176 °F) The functionality of the LCD display may be limited for temperatures Ta<-20 °C and Ta>+60 °C.
  • Page 83 Levelflex M FMP45 with HART/4...20 mA Technical data Climate class DIN EN 60068-2-38 (test Z/AD) Vibration resistance DIN EN 60068-2-64 / IEC 68-2-64: 20…2000 Hz, 1 (m/s Cleaning the probe Depending on the application, soilings or sediments can accumulate on the probe. A thin, even layer only influences measurement slightly.
  • Page 84 Technical data Levelflex M FMP45 with HART/4...20 mA Materials used in the process Rope probe Rod probe 1.4401 / PFA TFM 1600 TFM 1600 2 mm 0.75 mm 2 mm 2 mm L00-FMP4xxxx-16-00-00-en-002 Rod and coax probe Rope probe Process connection Stainless steel 1.4435/316L...
  • Page 85 Levelflex M FMP45 with HART/4...20 mA Technical data Weight FMP45 Levelflex M XT version (max. 280 °C) HT version (max. 400 °C) Rod probe Rope probe Coax probe Rod probe Rope probe Coax probe Weight with F12 or approx. 8.5 kg approx.
  • Page 86 10.1.7 Certificates and approvals CE approval The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. Manufacturer declaration Permitted pressures, temperatures and load cycles as per EN 13445 and AD- data sheet S2 (for FMP45).
  • Page 87 Levelflex M FMP45 with HART/4...20 mA Technical data External standards and EN 60529 guidelines Protection class of housing (IP-code) EN 61010 Safety regulations for electrical devices for measurement, control, regulation and laboratory use. EN 61326 Emissions (equipment class B), compatibility (appendix A - industrial area) NAMUR NE 21 Electromagnetic Compatibility (EMC) of Industrial Process and Laboratory Control Equipment.

  • Page 88: Appendix

    Appendix Levelflex M FMP45 with HART/4...20 mA Appendix 11.1 Operating menu HART (Display modul), ToF Tool basic setup tank properties medium cond. process proper. determine length empty calibr. end of probe 030 see Function group “leghth adjustment 03” enter value...
  • Page 89 Levelflex M FMP45 with HART/4...20 mA Appendix full calibr. dist./meas.value check distance range of mapping start mapping dist./meas.value enter value distance = ok input of D and L dist. too small mapping range are displayed D and L manual are displayed probe free dist.

  • Page 90: Description Of Functions

    Appendix Levelflex M FMP45 with HART/4...20 mA 11.2 Description of functions Note! A detailed description of the function groups, functions and parameters is given in the documentation BA245F – "Description of the instrument functions" on the enclosed CD-ROM. 11.3 Function and system design 11.3.1...
  • Page 91 • with a Personal Computer, FXA193 (RS232C) or FXA291 and ToF Adapter FXA291 (USB) and the operating software "ToF Tool - FieldTool Package" respectively "FieldCare". The ToF Tool is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-impulse). It assists with commissioning, securing data, signal analysis and documentation of the measuring point.
  • Page 92 Appendix Levelflex M FMP45 with HART/4...20 mA Endress + Hauser...

  • Page 93: Index

    Levelflex M FMP45 with HART/4...20 mA Index Index Accessories ........65 Maintenance .
  • Page 94 Levelflex M FMP45 with HART/4...20 mA Index Endress + Hauser...
  • Page 95 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
  • Page 96 www.endress.com/worldwide BA279F/00/en/12.06 Nr. 52021039 CCS/FM+SGML 6.0/ProMoDo 52021039...

Table of Contents
