8.9.2

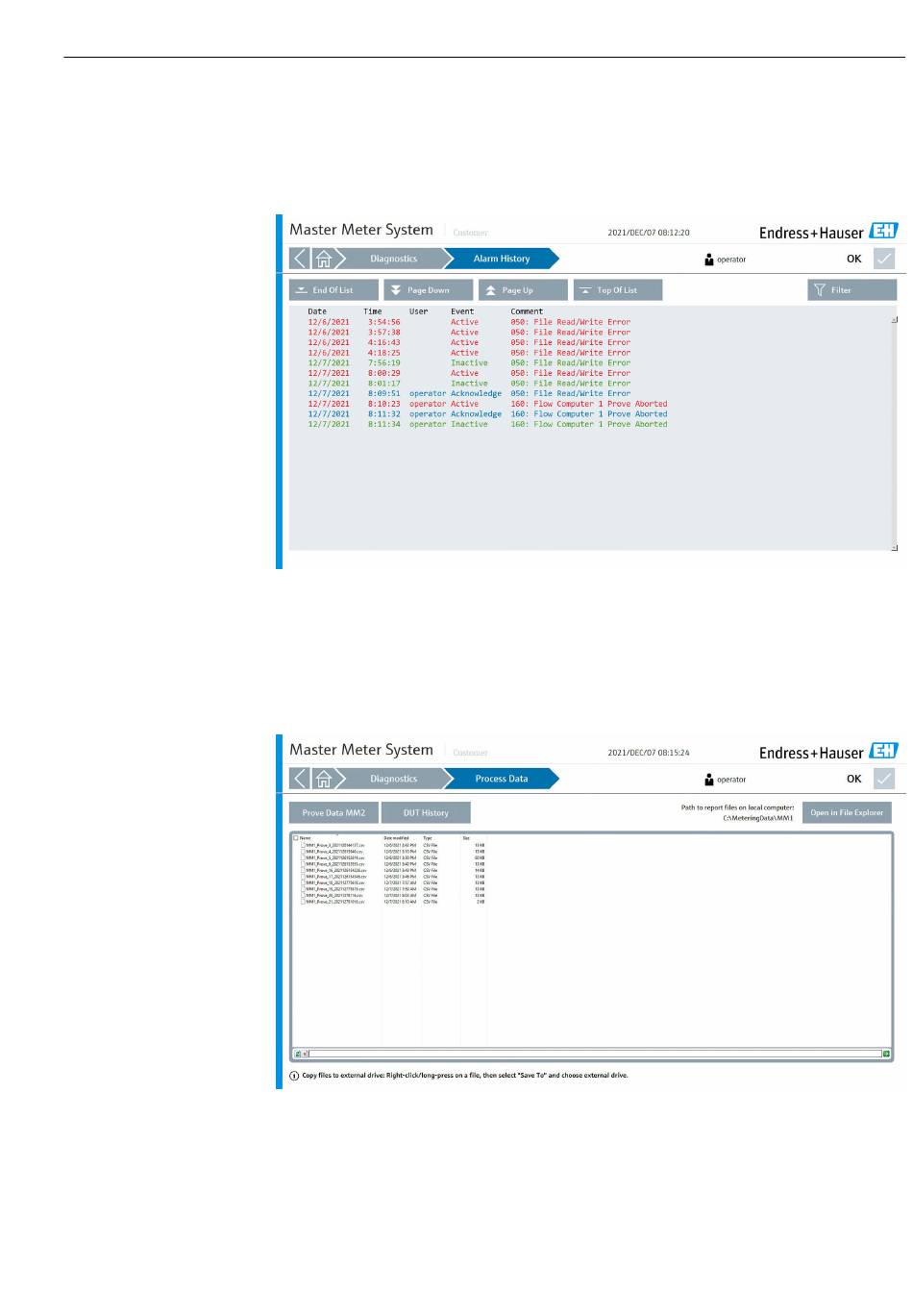

"Alarm History" screen

On the "Diagnostics" screen, tap Alarm History. The "Alarm History" screen opens.

Previous alarms of any status are displayed in the form of a list and can be filtered

according to the operator' s requirements.

8.9.3

On the "Diagnostics" screen, tap Process Data. The "Process Data" screen opens.

The individual process data is saved in .csv format and can be opened in the File Explorer

and exported to an external drive by following the instructions on the screen.

8.9.4

On the "Diagnostics" screen, tap I/O Diagnostics. The "I/O Diagnostics" screen opens.

The "I/O Diagnostics" screen shows the process parameters transmitted by the relevant

field instrument.

Operation

A0048060

A0048061
