Operation
20
8.4

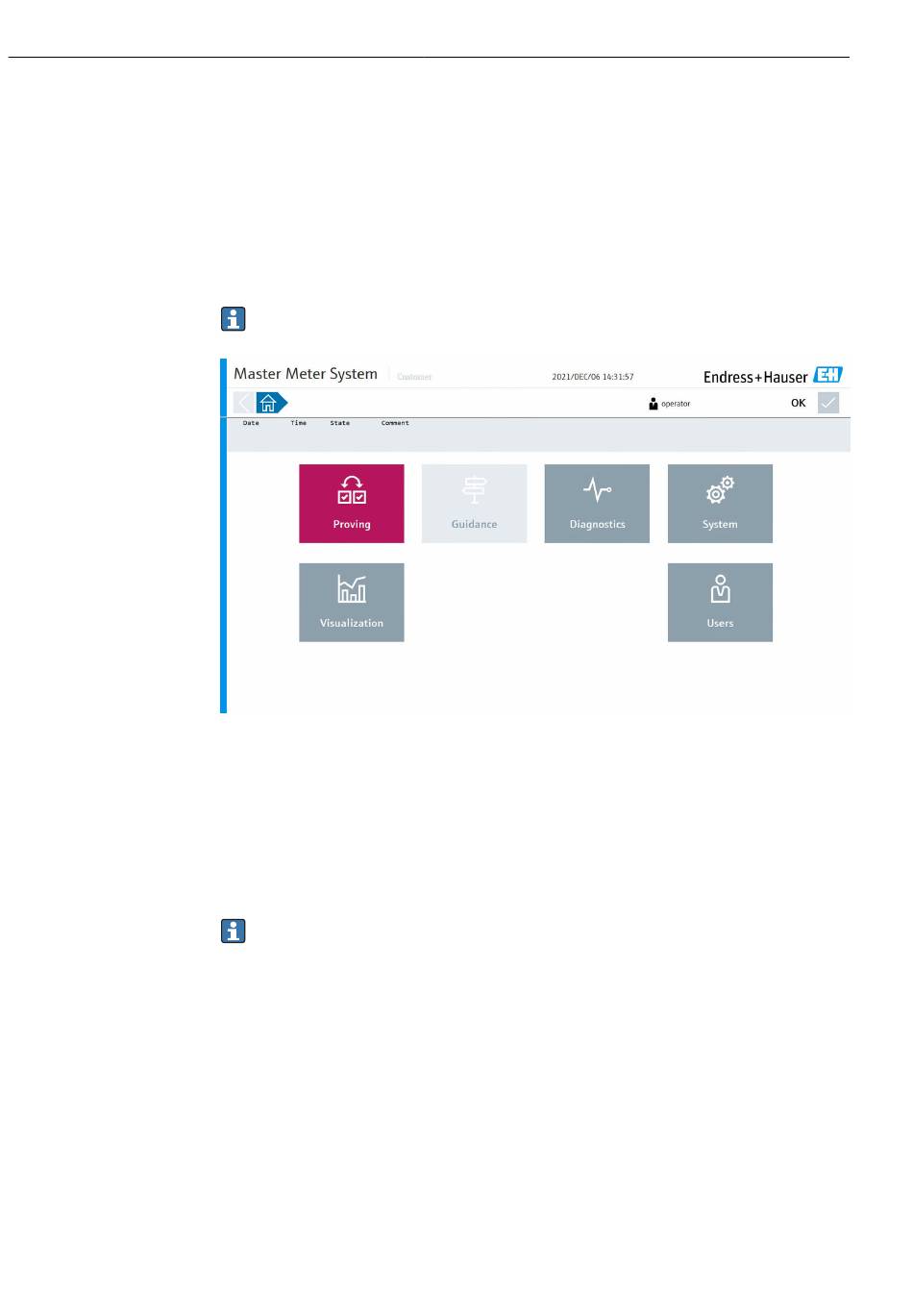

"Home" screen
Each time the tablet PC or panel PC is switched on or restarted, the HMI program is
automatically loaded and the home screen then appears.
The operator can navigate from here to the following main sections:
• Proving
• Diagnostics
• System
• Visualization
• User
The grayed-out Guidance section is temporarily blocked.
8.5
"Proving" screen
A proving operation is carried out on the "Proving" screen. The user should call up the
"Proving" screen" once the physical connection has been prepared, system communication
established and the HMI settings successfully configured.
The operator also can access the MM flow computer on this screen via the integrated web
browser. Reports of past operations can also be retrieved, displayed and exported here.
Additional login data are required to access the MM flow computer.
On the "Home" screen, tap Proving. The "Proving" screen opens.
The operator can navigate from here to the following subsections:
• Prove Wizard
• Reports
• Flow Computer 1 Website
Master Meter System
A0048037
Endress+Hauser
