Operation

8.6.3

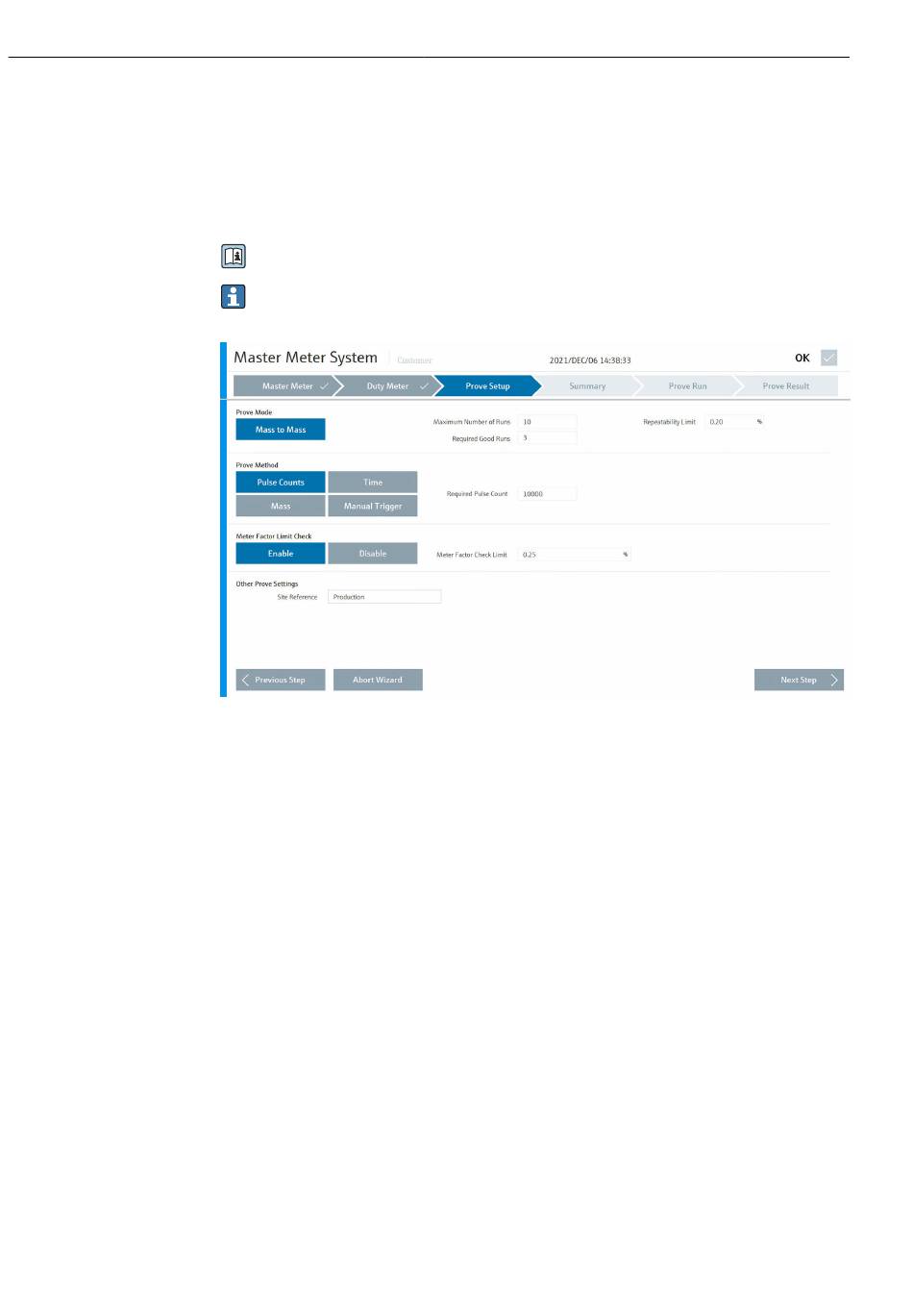

"Prove Setup" screen

Once the Duty Meter has been selected, tap Next Step. The "Prove Setup" screen opens.

Here the operator can select the "prove mode" required for the application and check the

predefined settings under "Prove Mode", "Prove Method", "Meter Factor Limit Check" and

"Other Prove Settings" (→  24).

The current software version supports only the "Mass to Mass" prove mode.

For more information on how to predefine the standard settings →  17

For the various "prove methods", the relevant requirements apply to Pulse Count,

Time and Mass. There are no requirements for the Manual Trigger method.

Master Meter System

A0048047
