8.6.2

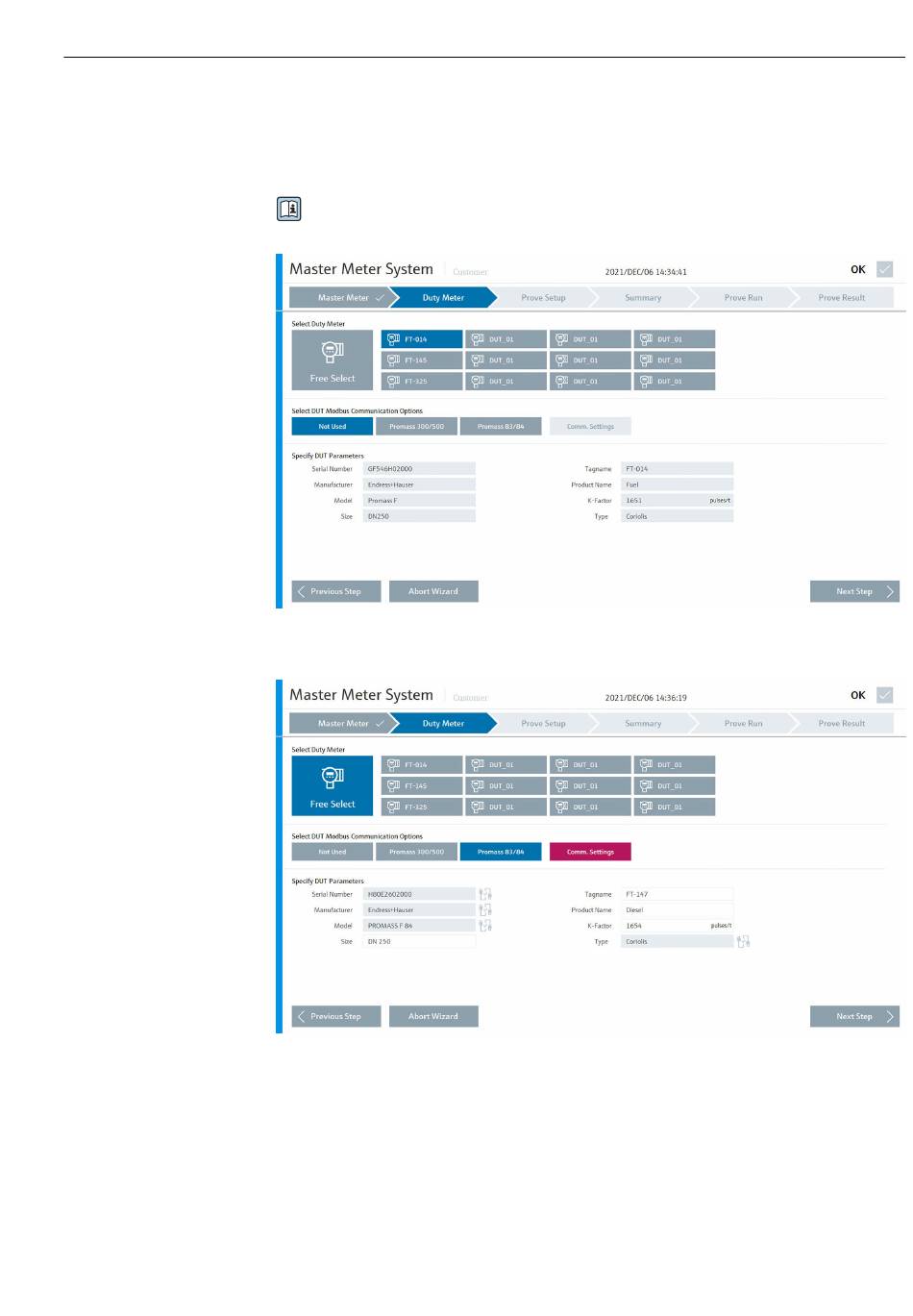

"Duty Meter" screen

Once the MM has been selected, tap Next Step. The "Duty Meter" screen opens. Up to 12
predefined Duty Meters (→  12,  23) and the Free Select option (→  13,  23, if
enabled) are available to the operator. The selected Duty Meter is highlighted in blue.
For more information on how to predefine a Duty Meter, enable or disable the Free
Select option and configure the associated parameters →  17
 12 Duty meter (selected)
 13 Duty meter (Free Select)
If the Free Select option is enabled and selected in the settings, the operator must
manually enter the parameters for the "Free Select" Duty Meter, including the DUT type.
The current software version only supports Coriolis.
Once the Duty Meter has been selected, the DUT Modbus communication options can be
enabled and used as needed. The Next Step button remains grayed out and cannot be
selected until all of the red fields have been completed.
Operation
A0048043
A0048044
