UG-1087

EVALUATION BOARD SOFTWARE

MAIN CONTROLS

The Main Controls tab (see Figure 5) selects the RF and user
configurable register settings. Consult the register descriptions
in the ADF5356 data sheet for details. Default settings are rec-
ommended for most registers.
In RF Settings, ensure that VCOout (MHz) equals the
VCO frequency. Set Output divider to give the required
RFoutA± (MHz).
Ensure that Reference freq equals the applied reference signal. The
PFD frequency is calculated from the reference frequency, the
R counter, the reference doubler, and the reference divide by 2.
Ensure that the value in PFD (MHz) matches the value specified in
the loop filter design.
In Register 4, program CP current to match the value used for
the loop filter design.

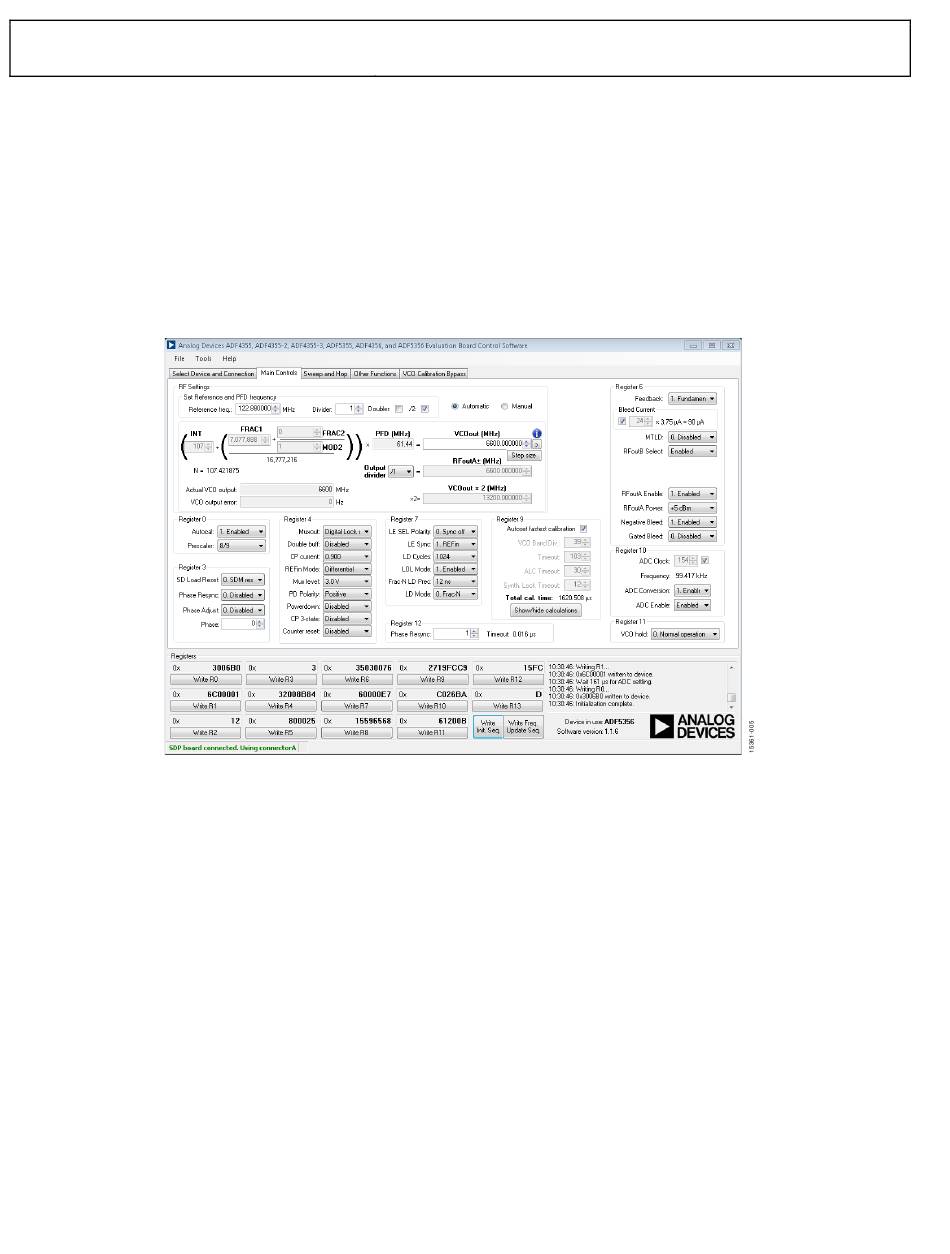

Figure 5. Software Front Panel Display—Main Controls
