VLT® AQUA Drive FC 202
Design Guide
Reference range = Minimum to maximum
Resulting reference
Minimum reference
Forward
Maximum reference
-Minimum reference
Reverse
-Maximum reference

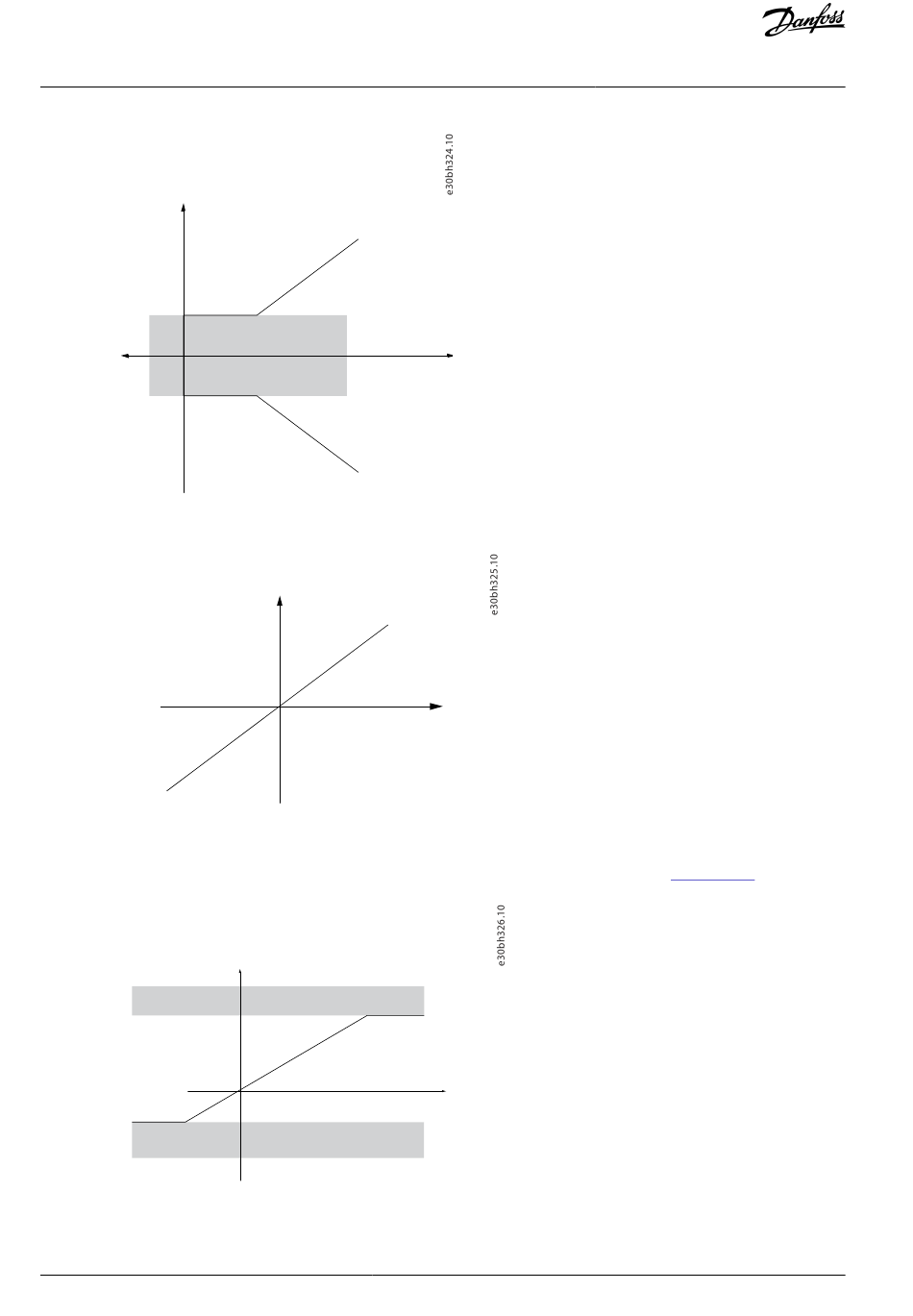

Illustration 87: Sum of All References When Reference Range is Set to 0
Reference range = -Maximum to +maximum
Maximum reference
-Maximum reference
Illustration 88: Sum of All References When Reference Range is Set to 1
The minimum reference cannot be set to less than 0, unless the configuration mode is set to Process. In that case, the following
relations between the resulting reference (after clamping) and the sum of all references are as shown in
Reference range = Minimum to maximum
Resulting reference
Maximum reference
Minimum reference
Illustration 89: Sum of all References when Configuration Mode is set to Process
162 | Danfoss A/S © 2020.09
Sum of all
references
Resulting reference
Sum of all
references
Sum of all
references
Basic Operating Principles
Illustration 89.
AJ300847815559en-000101 / 130R0337
