2.6 Basic Dimensions of Main Components

Inlet/Outlet Fitting: 1/2" Triclamp
Clamp OD = 25mm for Mini-Clamp ½"
Bore ID = 9.4 mm for 3/8" ID tubing
Standard: ASME BPE 2009

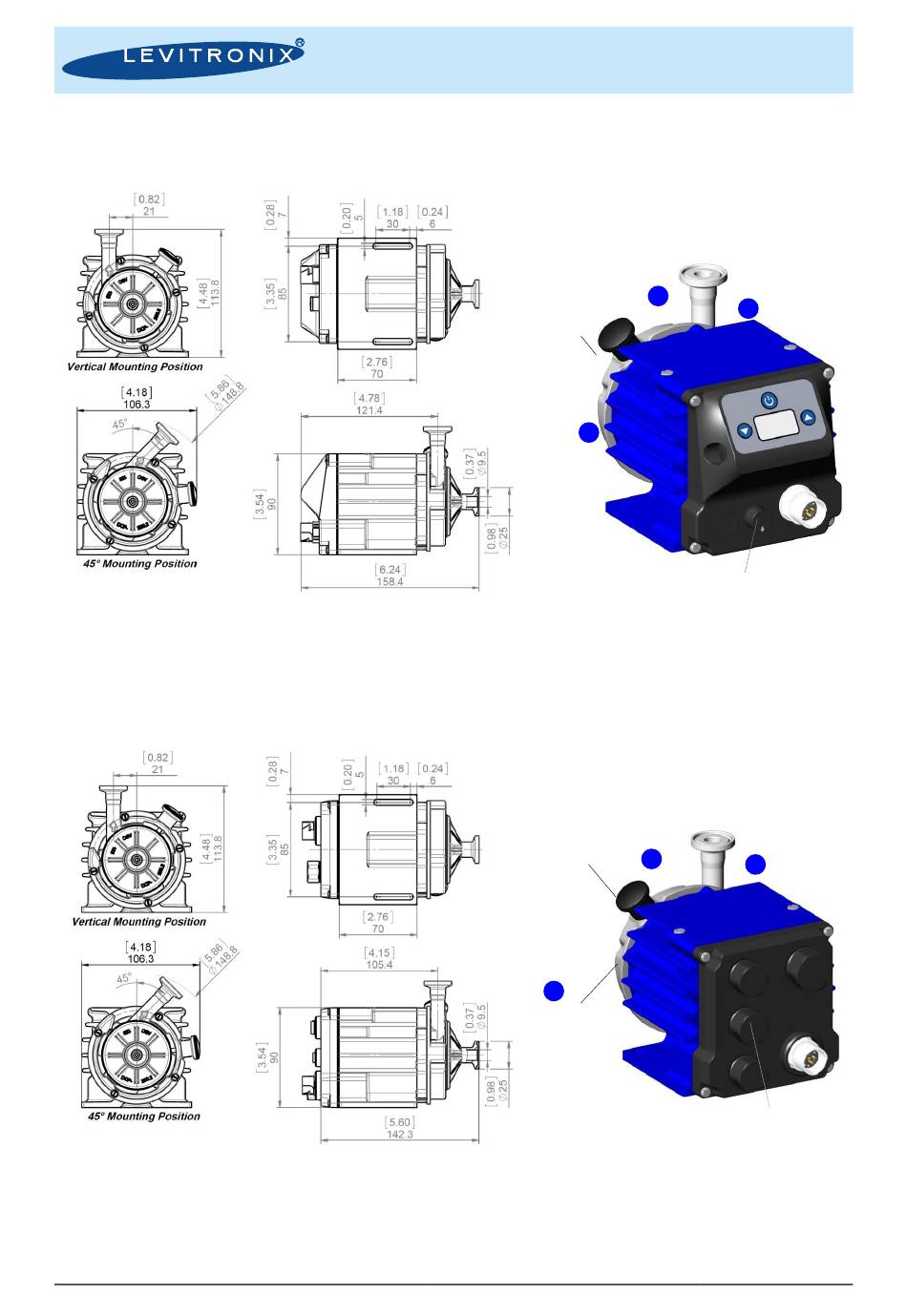

Figure 13: Basic dimensions (in [mm] and [inch]) of Stand-Alone model
(For dimensions with DCP-200.3 and DCP-200.3-SF1 pump head refer to relevant document.)
Inlet/Outlet Fitting: 1/2" Triclamp
Clamp OD = 25mm for Mini-Clamp ½"
Bore ID = 9.4 mm for 3/8" ID tubing
Standard: ASME BPE 2009
Figure 14: Basic dimensions (in [mm] and [inch]) of EasyConnect model
(For dimensions with DCP-200.3 and DCP-200.3-SF1 pump head refer to relevant document.)
PL-4063-00, Rev03, DCO# 20-275
User Manual for PuraLev
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
Single-Use
Pump Head
DCP-200.2
1a
Locking Pin
3
Pump Head Socket
PHS-i100.1
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
Single-Use
Pump Head
DCP-200.2
Locking Pin
1a
3
Pump Head Socket
PHS-i100.1
®
i100SU
www.levitronix.com
Driver IPD-100.6
2c
Protective Cover for PLC
Connector
(Included in driver Package).
Driver IPD-100.4
2b
Protective Cover Nut for
PLC and Fieldbus Connectors
(Included in driver package).
