2.6 Basic Dimensions of Main Components

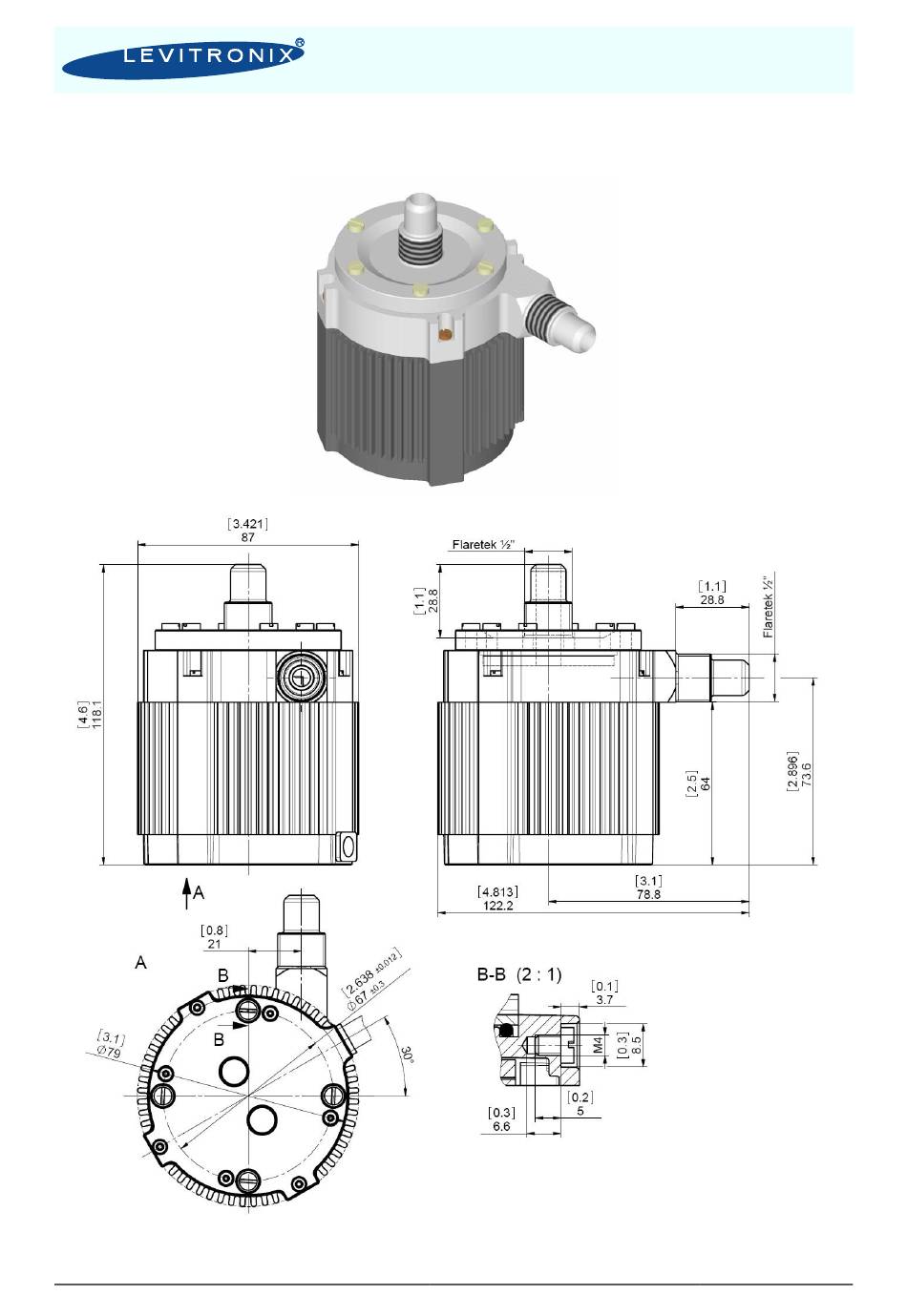

Figure 8: Basic dimensions (in mm and [inch]) of motor BSM-1.x with pump head LPP-200.1
(Same dimensions with LPP-200.11. For other configurations refer to according drawings)
PL-4012-00, Rev07, DCO# 20-144
