Two Fieldbus connectors (IN and OUT) allow to setup arrays of multiple pumps. Therefore, serial pumping
configurations as shown in Figure 6 can be realized.
Inlet
1
Single-Use
Pump Head
Integrated Pump Driver
EasyConnect Model
#1
Power
Fieldbus Fieldbus
PLC
Supply
IN OUT
8
6
7b
24 VDC Remote Control of Array
Supply over PLC or RS485

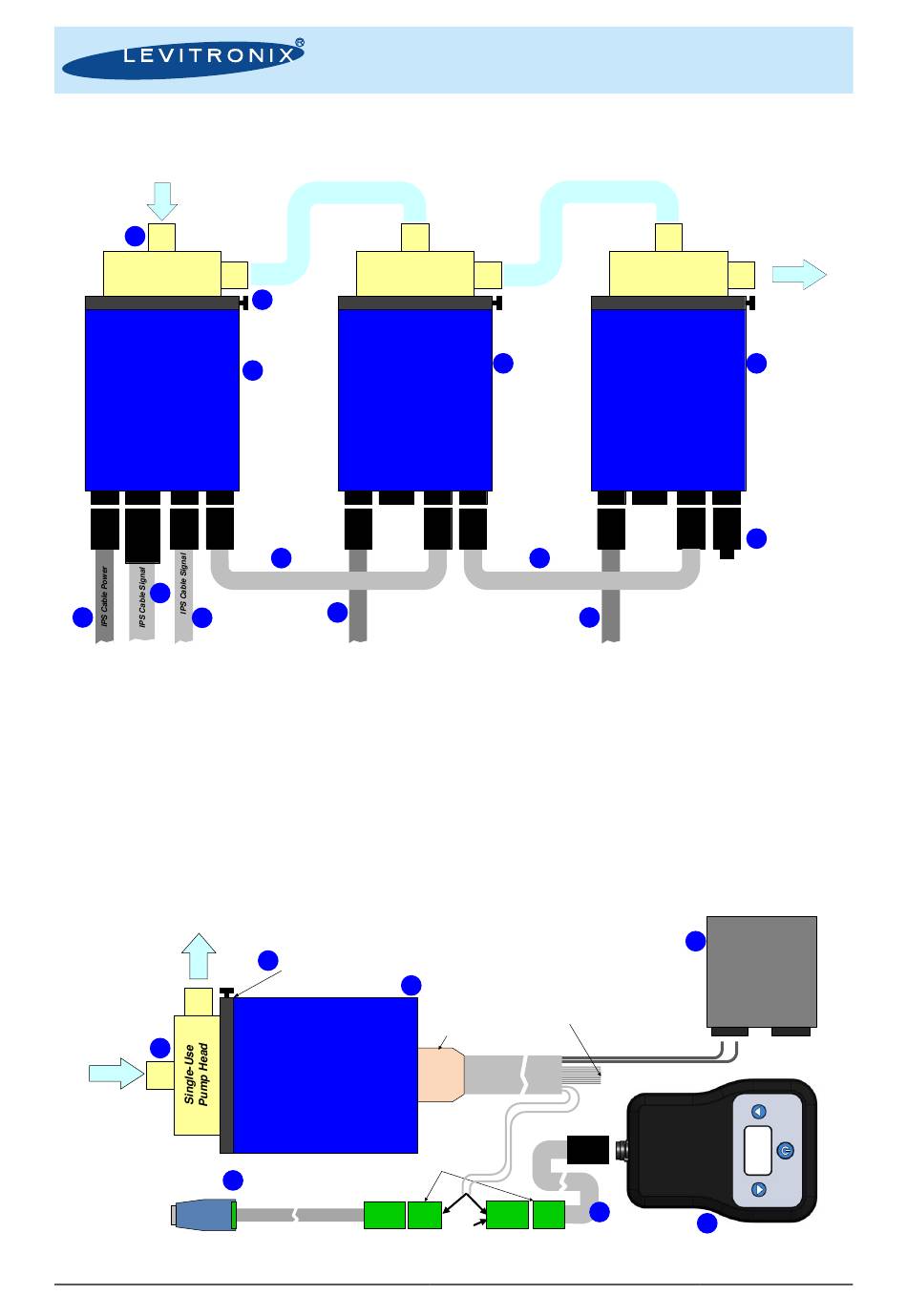

Figure 6: Multi-pump array for serial pumping with EasyConnect models
2.2.3 System Configurations for OEM Models
The OEM model, with one integrated cable only, is designed for compact integration into an equipment. When
using the pump system in speed control mode, the speed can precisely be set via an analog input. Various
digital inputs and outputs allow controlling and monitoring of the system. A RS485 enables communication
with a PC with the Levitronix
are possible. The RS485 can also be used as a fieldbus to implement more intelligent concepts of pump control
or for connecting the user panel LUI-B.1.
Outlet
1
Inlet
PC Connection:
- System configuration
- Firmware update
- Monitoring
Figure 7: System configuration of OEM model for speed control
