Using the Dual Alpha Keypad

The Dual Alpha keypad modifier keys are the Green, Orange, Blue, Shift and Control keys. See
Appendix A – Key Maps for all available keypress sequences. Use Start | Settings | Control Panel |
Keypad | KeyMap tab to change the Diamond 1 and Diamond 2 key keypress defaults.
• Any key press exits volume control mode. Any key press exits backlight control mode.
• Modifier keys are sticky keys. Any modifier key pressed after itself toggles the specific
modifier key off.
• Orange LED near the Backspace key has no function on this keypad.
• Use Start | Settings | Control Panel | Keypad | KeyMap tab to change the Diamond 1 and
Diamond 2 key keypress defaults.

Keypad Icons and the Dual Alpha Keypad

When the HX2 has a Dual Alpha keypad, a modifier key icon is displayed in the taskbar. The icon
looks like a small cube. The sides of the icon change color when a modifier key is pressed.
See Appendix A – Key Maps for all available keypress sequences.
HX2 Reference Guide

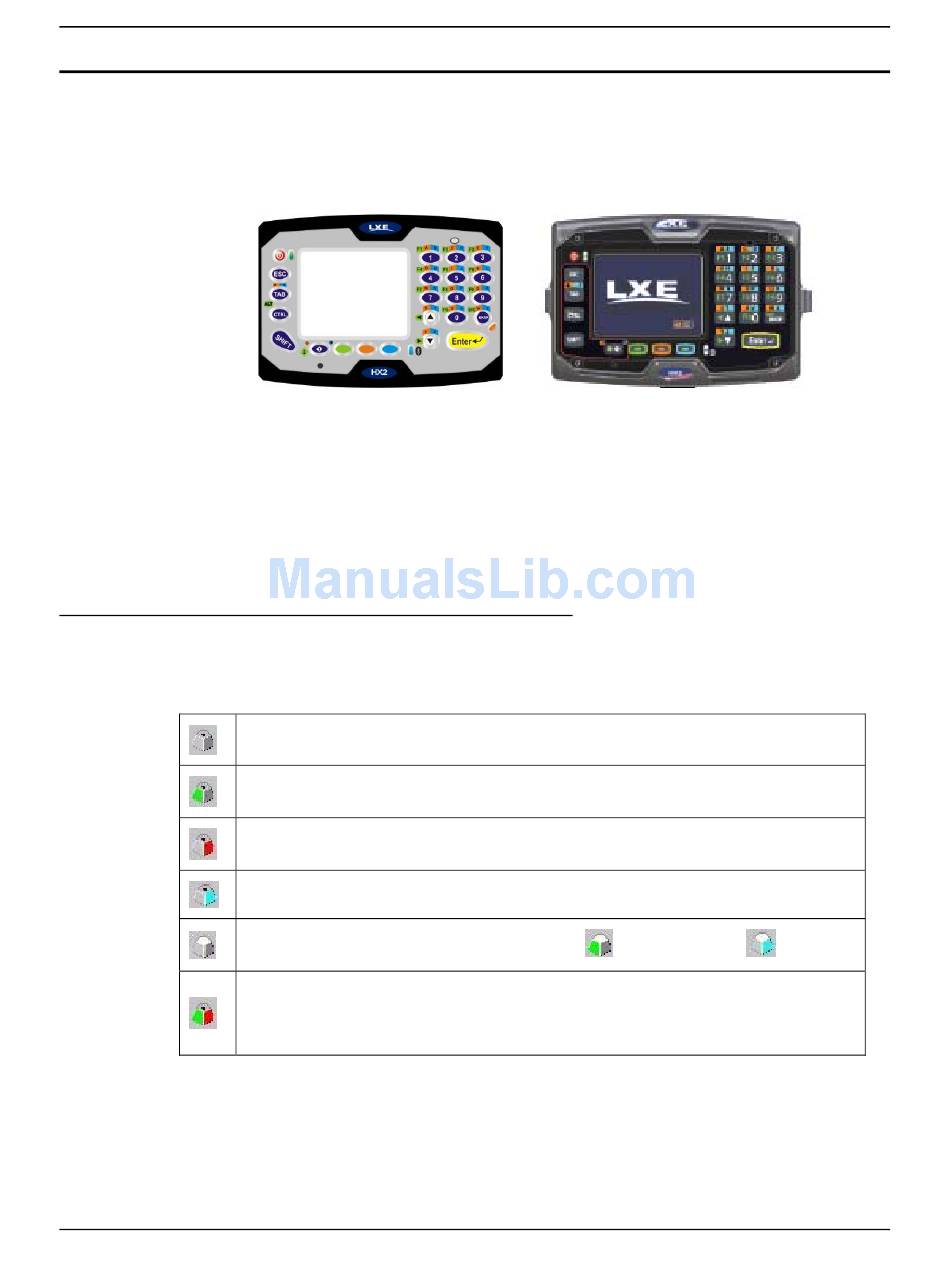

Figure 1-27 Dual Alpha Keypad

No modifier in focus
Green modifier key
Orange modifier key
Blue modifier key
Shift modifier key. For example, Shift + Green
When multiple modifier keys are in focus, for example, Green + Orange + 1 to put a
double quote [ " ] on the screen --- the modifier key icon will show an orange side
and a green side.
or
and Shift + Blue
