Scanner; Figure 3-38 Scanner Control Panel - LXE HX2 Reference Manual

Settings | Control Panel Options

Scanner

Access:
Set HX2 scanner keyboard wedge, scanner sound, scanner port, and scan key settings. Assign
baud rate, parity, stop bits and data bits for available COM ports. Scanner parameters apply to the
HX2 tethered scanner/imager only.
Barcode manipulation parameters are applied to the data resulting from successful barcode scans.
Tethered ring scanner configuration can be changed using the Scanner Control Panel or via the
LXE API functions. While the changed configuration is being read, the Scanner LED is solid
amber. The scanner is not operational during the configuration update.
After hotswapping tethered scanners, the HX2 auto-detects the tethered scanner type.
Port 1 defaults to Bluetooth and Port 2 defaults to Ring when a Bluetooth enabled HX2 with ring
scanner is powered On by the user. See the figure below for an example.
See Chapter 4 – Scanner for explanation and instruction when setting parameters on the Scanner
Control Panels.
E-EQ-HX2RG-D
| Settings | Control Panel | Scanner
Factory Default Settings
Main
Port 1
Port 2
Port 3
Send key messages (WEDGE)
Enable Scanner Sound
Imager LED Illumination
COM1 Port (external serial port)
Baud Rate
Stop Bits
Parity
Data Bits
Barcode
Enable Code ID
Continuous Scan Mode
Timeout between same symbol

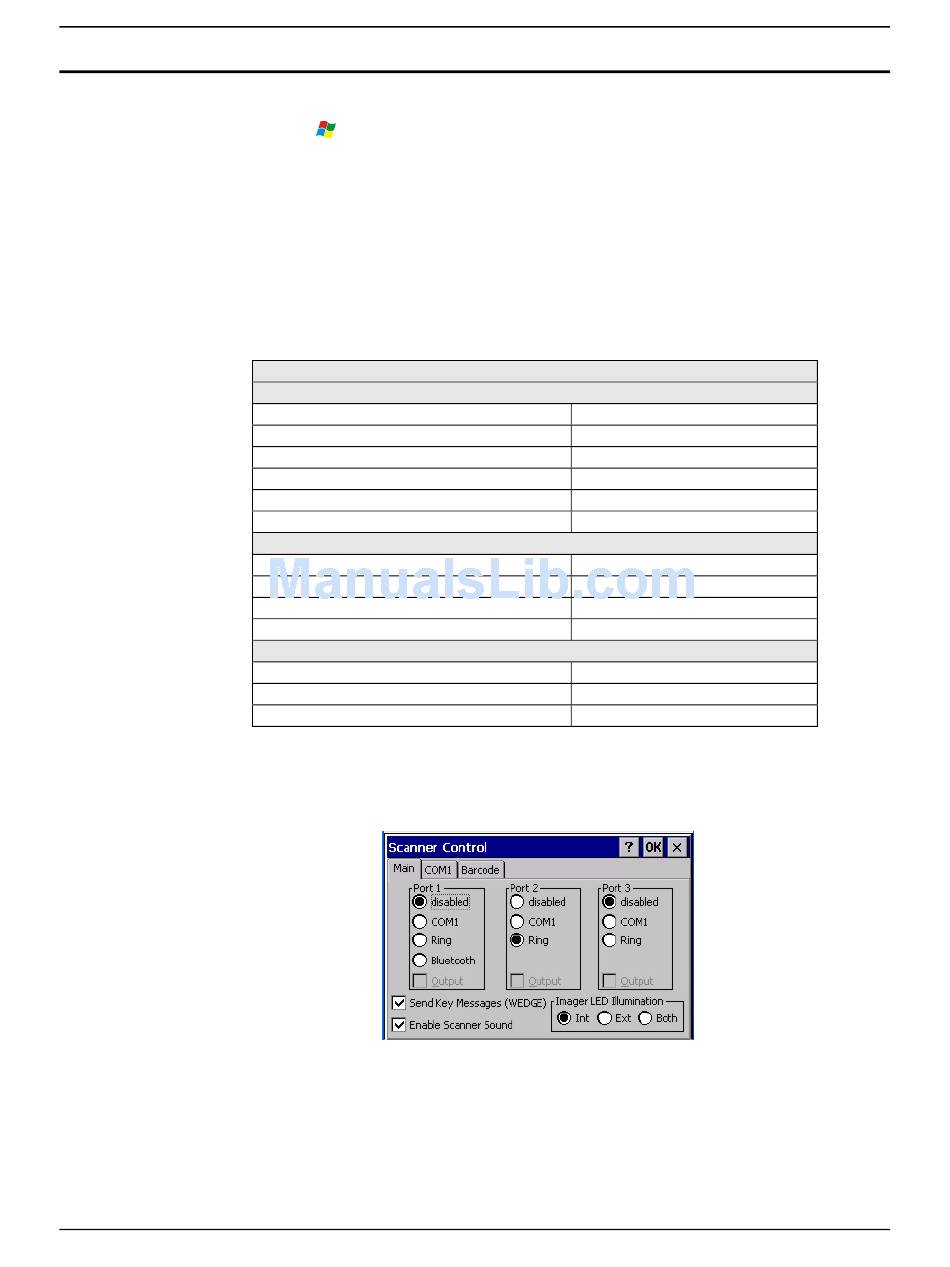

Figure 3-38 Scanner Control Panel

Disabled until auto-detect
Disabled until auto-detect
Disabled until auto-detect
Enabled
Enabled
Internal
9600
1
None
8
Disabled
Disabled
1 second
