Page 17: Chapter 1 Introduction
The HX3 is designed for use in a belt worn voice pouch. A headset provides voice instructions to the user and the user can respond via voice or an optional ring scanner.
Page 18: When To Use This Guide
Use this reference guide as you would any other source book – reading portions to learn about the HX3, and then referring to it when you need more information about a particular subject. This guide takes you through all aspects of installation and configuration for the LXE HX3.
Page 19: Important Battery Information
HX3 backup battery will last for up to 15 minutes. If the backup battery is fully discharged, the HX3 will reset as soon as it is docked in a powered cradle or connected to a fully charged tethered battery. A reset will cause loss of data and custom programs in RAM.
Page 20: Document Conventions
Note: CAUTION WARNING DANGER HX3 Reference Guide All caps are used to represent disk directories, file names, and application names. Rather than use the phrase “choose the Save command from the File menu”, this manual uses the convention “choose File | Save”.
Page 21: Getting Started
5. Attach the ring scanner to the HX3 (optional). 6. Connect the HX3 via a USB-C connection to a desktop PC. 7. Copy LXEConnect setup files from the HX3 to the PC. Install and launch LXEConnect on the PC. 8. Set up the wireless client and network management programs. Refer to Chapter 5 – Wireless Network Configuration.
Page 22: Quick Start Troubleshooting
OK button. Tap Start | Restart. Note: Using any of these methods to save the registry ends the HX3 ActiveSync connection. To make additional changes, it is necessary to reestablish the ActiveSync connection by unhooking the USB end of the cable from the PC and then reinserting the cable.
Page 23: Components
(on a hip flip) and positioned at the top of the figure. Voice Case Note: New batteries must be charged prior to use. The backup battery is continually recharged by the tethered battery. E-EQ-HX3RG-C HipFlip and Belt Figure 1-1 HX3 Components HX3 Reference Guide...

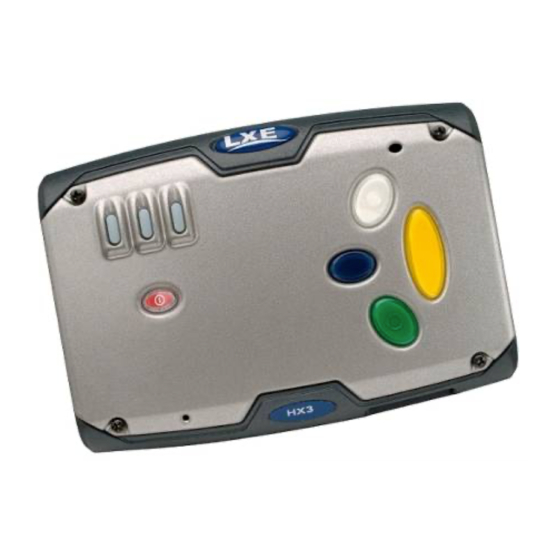

Page 24: Front
Front Note: The keypress values shown above are the default keypress values. These keys may be remapped, if desired. HX3 Reference Guide Figure 1-2 Front Power Switch (Red) Wireless LED (Yellow) Bluetooth LED (Blue) System Status LED (Green or Red)
Page 25: Back
Components Back Note: Before connecting cables to the back, make sure the LXE logo on the HX3 is uppermost or the left/right directions that follow won’t work. Left Side Use Right Side Use E-EQ-HX3RG-C Figure 1-3 Back Ring Scanner Tether cable channel...
Page 26: Hx3 Connectors
See Cables. Cradle Connection Connector 3 is at the base of the HX3. It connects to the Cradle. When the HX3 is in a powered cradle, the HX3 receives external power through the Cradle connector. USB Keyboard or USB Mouse input is received through the Cradle connector (see figure above) when the HX3 is in a cradle.
Page 27: Tethered Ring Scanner / Imager
Components Tethered Ring Scanner / Imager E-EQ-HX3RG-C Figure 1-6 Laser Ring Scanner Figure 1-7 Imager Ring Scanner Laser /Imager Scan Aperture Scan-in-Progress LED HX3 Connector Scan button (Trigger) Quick Disconnect Connectors HX3 Reference Guide...
Page 28: Continuous Scan Mode
If Continuous Scan Mode has been enabled (default is disabled), the laser is always on and decoding. Refer to Chapter 4, Scanner. stare into the laser beam. HX3 Reference Guide Figure 1-8 Ring Scanner Hook and Loop Strap Figure 1-9 Ring Scanner/Imager Apertures Imager –...
Page 29: Cables
Components Cables Figure 1-10 Cable – Audio, Battery and HX3 Connectors Figure 1-11 Cable – Laser Ring Scanner and HX3 Connectors Figure 1-12 Cable – Imager Ring Scanner and HX3 Connectors E-EQ-HX3RG-C HX3 Reference Guide...
Page 30: Li-Ion Battery
Li-Ion Battery Note: The HX3 uses the same batteries, charger and cradle as the LXE HX2. Main battery charging is handled exclusively by the HX2 Multi-Charger/analyzer and the battery charger integrated into a powered cradle. The Standard battery is much thinner than the Extended battery.
Page 31: Mounting Bracket Clips
Remove the HX3 from the mount assembly by pushing down on either mounting clip, or both, until the HX3 mounting bracket disconnects. Or you can disconnect from one clip, then lift the HX3 up at a 45 degree angle until the other side disconnects. Lift the HX3 up and away from the mount assembly.
Page 32: Mounting Devices
Mounting Devices HX3 Voice Case Assembly There are two optional voice cases for the HX3. One design has a partially open front, allowing easy access to the HX3 keypad. The second case design has a clear window covering the keypad.
Page 33: System Status Leds
The HX3 is booting. Green – Steady Green – Blinking The HX3 is On, the OS is loaded and the unit is attached to either a battery with a good charge or to an external power source such as a cradle.
Page 34: Assembly
Retaining Clip, then pinch and pull the cable connector (not the cable!) straight up and away from the HX3. Do not use a metal object, or extreme force, to remove the cable connector from the HX3. Re-connect cables and reassemble the HX3 body-worn components.
Page 35: Slipping The Hx3 Into The Voice Case
2. Attach the battery cable, ring scanner and audio device to the HX3. 3. Slip the HX3 into the voice case. Be sure the screen and keypad are visible through either the opening (voice case without clear window) or through the clear window (voice case with window).
Page 36: Connecting The Audio Cable And A Headset
If the voice case is damaged, it should be removed from service. Note: The HX3 with a voice case does not fit in the cradle. Remove the voice case before placing the HX3 in a charged cradle. Connecting the Audio Cable and a Headset See section titled Set the Audio Speaker Volume.
Page 37: Adjust Microphone And Secure The Cable
The Power key is an oval button located below the LEDs. When a battery is connected to the HX3 for the first time press the Power key. The mobile device begins the startup process. And the Status LED is solid green. Wait until the LED begins blinking green to indicate the HX3 has successfully booted into the OS.
Page 38: Power Key Functions
Press and hold the Power key for approximately 15 seconds then release the key. After releasing the Power key, the Status LED lights solid green to indicate the HX3 is rebooting. If user data was not saved before the Hardware Reset function started, data loss occurs and unsaved registry settings are lost.
Page 39: Cold Boot
HX3. Note: The HX3 reloads the operating system upon every warm boot or cold boot. Anything not saved or preserved to the registry is lost. In warm boot, the OS and the CAB files are reloaded from the internal SD card and the preserved registry is also reloaded.
Page 40: Checking Battery Status
Steady: The HX3 is booting. Green Blinking: Battery power is good (or the HX3 is attached to an AC power source). Steady: Main battery power is low. Battery should be replaced as soon as possible. Blinking: Main battery power failure.
Page 41: Using The Keypad
The Power key is red. It is located below the LEDs. The Power key is used to turn the HX3 on, place the HX3 in suspend or wake the HX3 from Suspend.
Page 42: Bluetooth
| Settings | Control Panel | Bluetooth or Bluetooth icon in taskbar or Bluetooth icon on desktop Bluetooth is an option and may not be available on all HX3s. The HX3 default Bluetooth hardware setting is On. The LXE HX3 Bluetooth devices.
Page 43: Initial Use
These options can still be checked or unchecked whether Bluetooth is enabled or disabled. As Bluetooth devices pair with the HX3, the name of the device and an icon representing the type of device is displayed in the Devices window. The icon state changes as the paired Bluetooth devices connect and disconnect from the HX3.
Page 44: Computer Is Discoverable
Computer is discoverable There is no dialog connected to this checkbox. Enable this checkbox when you want the HX3 to be Discovered by other Bluetooth devices. This option is disabled by default. Prompt if devices request to pair A dialog box appears on the HX3 screen notifying the user a Bluetooth device requests to pair with the HX3.
Page 45: Subsequent Use
10. Whenever the HX3 returns from Suspend Mode, all previously paired, live, Bluetooth devices in the vicinity are paired, one at a time, with the HX3. If the devices cannot connect to the HX3 before the re-connect timeout time period expires there is no indication of the continuing disconnect state.
Page 46: Bluetooth Devices
The Bluetooth LED is located above the Power key on the front of the HX3. The Bluetooth LED blinks slowly when it is idle. Blinks quickly when the HX3 is discovering other Bluetooth devices. And blinks normally when it is connected. There may be audible or visual signals from paired devices as they re-connect with the HX3.
Page 47: Bluetooth Mobile Barcode Reader Setup
Introduction LXE supports several different types of barcode readers. This section describes the interaction and setup for a mobile Bluetooth laser scanner or laser imager connected to the HX3 using Bluetooth functions. • The HX3 must have the Bluetooth hardware and software installed. Contact your LXE representative for details.
Page 48: Hx3 With Label
1. Scan the Bluetooth address barcode label, attached to the HX3, with the LXE Bluetooth mobile scanner. 2. If this is the first time the Bluetooth scanner has scanned the HX3 Bluetooth label, the devices are paired. If not, go to the next step.
Page 49: Hx3 Without Label
Bluetooth HX3 without Label If the HX3 Bluetooth address barcode label does not exist, follow these steps to create a unique Bluetooth address barcode for the HX3: First, locate the HX3 Bluetooth address by tapping Start | Settings | Control Panel | Bluetooth | About tab.
Page 50: Bluetooth Beep And Led Indications
Contact LXE Support for assistance. Bluetooth Printer Setup The Bluetooth managed device should be as close as possible, in direct line of sight, with the HX3 during the pairing process. 1. Open the LXEZ Pairing panel [Start | Settings | Control Panel | Bluetooth].
Page 51: Data Entry
Data Entry Data Entry You can enter data into the HX3 through several different methods. The Ring Scanner aperture provides barcode data entry, the Input/Output (I/O) ports, the built-in microphone and speaker are used to input/output data, and the physical and virtual keypads provide text entry.
Page 52: 2D Imager
Move the ring scanner towards or away from the barcode until a response is emitted by the HX3 (1 beep, 2 beeps, a WAV file, etc) or the bracketed crosshair times out and disappears.
Page 53: Cleaning The Ring Scanner Aperture
Strap Assemblies Caution: Do not perform the following procedures if the ring barcode reader is tethered to the HX3. There is a possibility the Scan button may be pressed inadvertently and the laser beam emitted. LXE recommends that installation or removal of accessories be performed on a clean, well-lit surface.
Page 54: Remove Finger Strap Assembly
3. Remove the trigger module. Figure 1-30 Step 1: Rotate Trigger Module and Remove Screw Figure 1-31 Step 2: Rotate Trigger Module again until it pops up. Remove the HX3 Reference Guide trigger module. Strap Assemblies E-EQ-HX3RG-C...
Page 55: Replace
3. Using a Phillips screwdriver with a blade diameter of 1/8” (.4mm) rotate the black screw clockwise until the trigger module is secured to the ring scanner. 4. Install the finger strap. See Removing / Replacing the Ring Finger Strap Assembly. E-EQ-HX3RG-C Figure 1-32 Replace Trigger Module HX3 Reference Guide...
Page 56: Getting Help
Getting Help All LXE manuals are now available on one CD and they can also be viewed/downloaded from the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled Contacting LXE.
Page 57 USB ActiveSync Cable (Type A to HX3 cradle connector) Battery Cable with Audio Battery Extension Cable Cable Connector Plug Miscellaneous CD with CE 5.0 API’s and LXE API’s with documentation for custom application development Ring Scanner Trigger Assembly, 20 pack Ring Scanner Strap Kit, 20 pack Barcode Readers...
Page 58 Replacement foam ear piece cover for 501 and 502 headsets, 50 pack Replacement leatherette ear piece cover for 501 and 502 headsets, 10 pack Replacement leatherette ear piece cover for 501 and 502 headsets, 50 pack HX3 Reference Guide Getting Help 8200A501HOLSTRBELT 8000A501INDREEL 8500A505STANDSMT 9000A411SCNRSTRAP...
Page 59: Chapter 2 Physical Description And Layout
Chapter 2 Physical Description and Layout Hardware Configuration System Hardware The HX3 hardware configuration is shown in the following figure. Voice Case HipFlip and Belt Figure 2-1 System Hardware E-EQ-HX3RG-C HX3 Reference Guide...
Page 60: 802.11 Wireless Client
Internal SD Memory Card The HX3 has one SD card interface for storage of operating system and program code, as well as persistent storage. The SD slot is inaccessible and ships with an LXE-qualified 128MB (optional 512MB) SD Flash card.
Page 61: Power Supply
The LXE HX3 uses two batteries for operation. A Lithium-Ion (Li-Ion) battery supplies power to the HX3 only when tethered to the HX3. The main battery is either the 2000 mAh (Standard) or the 4000 mAh (Extended) battery. Only one main battery can be tethered to the HX3 at a time.
Page 62: Bluetooth Lxez Pairing
Line of Sight. The wireless client retains wireless connectivity while Bluetooth is active. The user will not be able to select PIN authentication or encryption on connections from the HX3. However, the HX3 supports authentication requests from pairing devices. If a pairing device requests authentication or encryption, the HX3 displays a prompt for the PIN or passcode.
Page 63: Input/Output Connectors
Hardware Configuration Input/Output Connectors The HX3 has three I/O connectors. Two connectors are located next to each other on the back of the mobile device. Each of the two connectors (one for left-handed users and the other for right- handed users) interfaces with peripherals such as a Laser Ring Scanner, an Imager Ring Scanner, an audio headset and a tethered battery.
Page 64: Audio Support
The internal speaker supplies audible verification signals normally used by the Window’s CE operating system. The speaker is located on the front of the HX3, above the Enter key. The mobile device emits a Sound Pressure Level (loudness) of at least 102 dB measured as follows: •...
Page 65: Power Modes
The unit transitions from the Off mode to the On mode when a charged battery is attached to the tether or external power is applied (for example, by docking the HX3 in a powered cradle) and the HX3 Power key is pressed.
Page 66: Suspend Mode
The ActiveSync connection must be re-established after the HX3 exits suspend. Off Mode The unit is in Off Mode when the tethered battery and the backup battery are depleted. Connect a fully charged main battery and press the Power key to turn the HX3 On. HX3 Reference Guide Power Modes...
Page 67: The Keypad
Mappable Keys Some of the options in this section require an ActiveSync connection and LXEConnect. Please see “ActiveSync and the HX3” in Chapter 3 System Configuration for details on establishing this connection. | Settings | Control Panel | KeyPad Control Panel icon.
Page 68: Batteries
A suspended HX3 maintains the date and time for a minimum of two days while tethered to a battery that has reached the Low Warning point and a fully charged backup battery. The HX3 retains data, during a battery hot swap, for at least 5 minutes.
Page 69: Low Battery Warning
Configuration for details on establishing this connection. When the main battery power level is low, the HX3 will signal the user with the low battery warning indicator (the Status LED remains a steady red) that continues until the main battery is replaced, the battery completely depletes, or external power is applied to the HX3 using a powered cradle.
Page 70: Backup Battery
HX3 main battery. It takes several hours of operation before the backup battery is capable of supporting the operation of the mobile device. The duration of backup battery life is dependent upon operation of the HX3, its features and any operating applications.
Page 71: Hx2 Multi-Charger (Optional)
HX2 Multi-Charger (Optional) HX2 Multi-Charger (Optional) The LXE HX2 Multi-Charger is designed to simultaneously charge up to six Rechargeable Lithium Ion Batteries at a time, in any combination of Standard or Extended batteries. The Standard batteries require less than four hours and the Extended batteries require less than 8 hours.
Page 72: Charger/Analyzer Leds
Status Refer to the HX2 Multi-Charger User’s Guide for instruction in setting up the charger, inserting the battery packs into the charging bays, interpreting the LEDs and using the Charge/Analyze Pocket. HX3 Reference Guide Between 90% Between 80% and 100% and 90 % When all LEDs are off, the battery capacity is less than 50%.
Page 73: Hx2 Docking/Charging Cradle
Using an external power supply the cradle recharges Standard batteries in approximately 4 hours (8 hours for the Extended battery). The HX3 does not need to be docked during a spare battery charging process. See Accessories. Remove the voice case before placing the HX3 in the cradle. The HX3 cannot be docked in a cradle while it is mounted in a hip flip.
Page 74: Cradle Leds
HX3 is not properly seated in charging bay and/or if this is the first time the HX3 has been inserted, the HX3 is properly seated and has not been powered On. HX3 is On, is properly seated in the charging bay and is receiving external power through the cradle.
Page 75: Chapter 3 System Configuration
HX3. LXEConnect first requires an ActiveSync connection be established. ActiveSync is already installed on the HX3. The HX3 is preconfigured to establish a USB ActiveSync connection to a PC when the proper cable is attached to the HX3 and the PC: Cable for initial ActiveSync Configuration: USB Client to PC/Laptop The USB-A end of the cable connects to a USB port on a desktop or laptop PC.
Page 76: Install Lxeconnect
ActiveSync / Get Connected Process later in this chapter. 2. Power up the HX3 and verify it has finished booting by observing the Status LED. Once the HX3 has finished booting, the Status LED illuminates a blinking green.
Page 77: Using Lxeconnect
12. LXEConnect is now installed and ready to use. Using LXEConnect 1. If an ActiveSync connection is has not been established, connect the HX3 to the PC. Details on ActiveSync are included in the following section. 2. Double-click the LXEConnect icon that was created on the desktop.
Page 78: Figure 3-5 Lxeconnect Desktop
4. Click the OK button to dismiss the About CERDisp dialog box. The dialog box automatically times out and disappears after approximately 30 seconds. 5. The HX3 can now be configured from the LXEConnect window. Input from the PC’s mouse and keyboard are recognized as if they were attached to the HX3.
Page 79: Activesync / Get Connected Process
PC and the mobile device. If an information type is selected that does not exist on the HX3, the data appears to transfer, but it is ignored by the HX3 and not loaded. When installation of ActiveSync is complete on a PC, the ActiveSync Setup Wizard begins and starts the following processes: •...
Page 80: Initial Install
Figure 3-6 Connect ActiveSync Cable to HX3 Cradle Connector Insert the HX3 cable end into the cradle connector on the bottom of the HX3 until a click is heard. Insert the USB-A end in a USB port on the desktop/laptop computer.
Page 81: Usb Connection
From the popup list, choose USB Client This will set up the HX3 to use the USB configuration (Default). Tap OK and ensure the check box for Enable direct connections to the desktop computer is checked. These settings should not be changed.
Page 82: Backup Hx3 Files
Backup HX3 Files Use the following to backup data files from the HX3 to a desktop or laptop PC using the appropriate cables and Microsoft’s ActiveSync. Prerequisites Initial ActiveSync partnership between the HX3 and the target PC has been completed. After the partnership has been established with the mobile device and the host computer, ActiveSync can be performed over USB.
Page 83: Connect
You can copy files to or from the HX3 using drag-and-drop. You will not be allowed to delete files or copy files out of the \Windows directory on the HX3. (Technically, the only files you cannot delete or copy are ones marked as system files in the original build of the Windows OS image.
Page 84: Activesync Troubleshooting
ActiveSync on the host returns to the Get Connected screen without connecting to the cabled device. If the HX3 is connected to a PC by a cable, disconnect the cable from the HX3 and reconnect it again. Check that the correct connection is selected, USB Client.
Page 85: Windows Ce 5.0
HX3 and its Windows CE environment. Note: The HX3 reloads the operating system upon every warm boot or cold boot. Anything not saved or preserved to the registry is lost. In warm boot, the OS and the CAB files are reloaded from the internal SD card and the preserved registry is also reloaded.
Page 86: Installed Software
Some standard Windows options require an external modem connection. Modems are not available from LXE nor supported by LXE. When you order an HX3 you receive the software files required by the separate programs needed for operation and wireless communication. The files are loaded by LXE and stored in folders in the HX3.
Page 87: Software Backup
The HX3 has a unique 128-bit ID code as required by the CE 5.0 specification. This ID number is generated by the boot loader. This ID code is available in the control panel, and via a Win32 standard API.
Page 88: Folders Copied At Startup
Optional Software Bluetooth Only installed on a Bluetooth equipped HX3. The System Administrator can Discover and Pair targeted Bluetooth devices for each HX3. The System Administrator can enable / disable Bluetooth settings and assign a Computer Friendly Name for each HX3. The Bluetooth control panel can be accessed by tapping Start | Settings | Control Panel | Bluetooth, or by double- tapping the Bluetooth icon in the taskbar.
Page 89: Wavelink Avalanche Enabler
The HX3 has the Avalanche Enabler installation files loaded, but not installed, on the mobile device when it is shipped from LXE. The installation files are located in the System folder on CE devices. The installation application must be run manually the first time Avalanche is used.
Page 90: Desktop
Suspend because the HX3 is always powered On (when a fully charged tethered battery and backup battery are present). Tap the Suspend button, or tap the red Power button, to turn the screen off and place the HX3 into Suspend mode.
Page 91: My Device Folders
Data entered by the end-user and saved by the running applications Storage for downloaded files / applications Mounted network drive Network user profiles Applications Internal SD Flash Card Location for temporary files Operating System in Secure Storage Preserved upon Coldboot? HX3 Reference Guide...
Page 92: Start Menu Program Options
Communication Access: Note: Some communication menu options require an external modem connection to the HX3. Modems are not available from LXE nor supported by LXE. Start / Stop FTP Server Access: Start FTP Server or Stop FTP Server These shortcuts call the Services Manager to start and stop the FTP server.
Page 93: Command Prompt
| Programs | Command Prompt Figure 3-8 Pocket CMD Prompt Screen | Programs | Summit Start | Programs | Summit | SCU Start | Programs | Summit | SCU | Enable Radio | Programs | Summit | Certs HX3 Reference Guide...
Page 94: Taskbar
Show Clock Advanced Expand Control Panel There are a few changes in the CE version of Taskbar as it relates to the general desktop PC Windows Taskbar options. HX3 Reference Guide | Settings | Taskbar … Enabled Disabled Enabled Disabled...
Page 95: Advanced Tab
| Help for an explanation of standard Windows CE taskbar icons. Following are a few of the HX3 and LXE unique taskbar icons that may appear in the Taskbar. These icons are in addition to the Windows CE taskbar icons.
Page 96: Settings | Control Panel Options
Set the mobile device owner details (name, phone, etc). Enter notes. Enable / disable Owner display parameters. Enter Network ID for the device – user name, password, domain. Set HX3 access password properties for signon and/or screen saver. Control the connection between the HX3 and a local desktop/laptop computer.
Page 97 Program memory settings. Enter device name and description. Review copyright notices. Enable / disable volume and sounds. Set volume parameters and assign sound wav files to CE events. Set the parameters for a Summit client. (See “Chapter 5, Wireless Network Configuration” for instruction.) Note: HX3 Reference Guide...
Page 98: About
User application version information can be shown in the Version window. Version window information is retrieved from the registry. Modify the Registry using the Registry Editor (see section titled Utilities). LXE recommends caution when editing the Registry and also recommends making a backup copy of the registry before changes are made.
Page 99: Battery
To Charge Backup Battery To Discharge Backup Battery The Main Battery is charged/recharged when the HX3 is docked in a powered cradle and the battery is inserted in a cradle charging bay. It is also charged/recharged when the battery is disconnected from the HX3 and then placed in a HX2 Multi-charger.
Page 100: Figure 3-13 Control Panel - Bluetooth
Bluetooth Access: Discover and manage pairing with nearby Bluetooth devices. Only LXE printers or scanners are recognized and displayed in the Bluetooth panel. All other Bluetooth devices are ignored. Your Bluetooth panel setups may be different than those shown on the following pages.
Page 101: Bluetooth Devices
An icon with a red background indicates the devices Bluetooth connection is inactive. An icon with a white background indicates the device is connected to the HX3 and the devices Bluetooth connection is active. Inactive devices can be deleted from the list. Active devices can be disconnected from the HX3 and remain on the list.
Page 102: Figure 3-16 Bluetooth Device Pair / Delete / Disconnect Menu
Tap Pair as Printer to set up the HX3 to send data to the printer. Tap Delete to delete an inactive device (icon with red background) from the HX3 paired device database. Close the LXEZ Pairing control panel to erase the device from the list after deleting.
Page 103: Settings
Tap the button to toggle Bluetooth hardware On or Off. When Off, the Bluetooth LED is turned off. The default value is Bluetooth On. Options Note: All pop-up window Bluetooth notification messages are disabled by default on the HX3. Option Report when connection lost...
Page 104 HX3 Reference Guide Default Information Disabled When enabled, other Bluetooth devices can discover the HX3 when it is nearby. Disable this option to ensure other devices cannot discover the HX3. Disabled When enabled (checked), a dialog box is placed on the display when devices request to pair.
Page 105: About
Discover button. It can auto-reconnect to devices previously known but which have gone out of and then returned within range. Pairing supports SPP devices only. Up to two Bluetooth devices can be connected to the HX3 at a time; LXE supports one scanner and one printer (see Accessories).
Page 106: Certificates
Access: Manage digital certificates used for secure client communication. Lists the Stored certificates trusted by the HX3 user. These values may change based on the type of network security resident in the client, access point or the host system. Tap the Import button to import a digital certificate file.
Page 107: Date/Time
Registry and take effect immediately. Tap the Sync button to synchronize HX3 date and time with a time server. By default, the HX3 OS first searches for a time server on the local intranet. If not found, it then searches the internet for a time server.
Page 108: Dialing
Dialing Access: Set dialup properties for internal modems. Modems are not supplied or supported by LXE. Factory Default Settings Location Area Code Tone Dialing Country/Region Disable Call Waiting Tap the Edit button to make changes to Dialing properties. Tap the ? button and follow the instructions in Help.
Page 109: Display
Select the Desktop image and set the display backlight timer when on battery or external power. Because of the headless design of the HX3, the Display Backlight timer has no effect. Although the HX3 has no display, the Background and Appearance tabs can be used to modify the HX3 desktop as viewed via LXEConnect.
Page 110: Appearance
Tap the Delete button to delete schemes. Tap the Apply button to apply the selected scheme to the HX3. Tap the OK button to exit, or the X button to escape without making any changes. Changes are saved to the registry and take effect immediately.
Page 111: Hx3 Options
If there is no icon corresponding to this item in the Control Panel, contact your LXE representative for upgrade details. Set options such as IP V6 and autolaunching time sync. It may be necessary to warmboot the HX3 after making desired changes. A pop up window indicates if a warmboot is required. Factory Default Settings...
Page 112: Misc
The System/GrabTime.ini file takes precedence over the Windows/GrabTime.ini file. System/Grabtime.ini also persists after a coldboot; Windows/Grabtime.ini does not persist. Misc Options on this tab configure device specific options. Options not available on the HX3 are dimmed. CapsLock NumLock Touch Screen Disable...
Page 113: Keyboard
Keyboard Properties panel. Only one font at a time can be selected. The fonts affect the screen display. These values do not affect virtual (onscreen) key taps. E-EQ-HX3RG-C | Settings | Control Panel | Keyboard Icon Enable Short Slow Default HX3 Figure 3-26 Control Panel – Keyboard HX3 Reference Guide...
Page 114: Keypad
Tap the X button to ignore changes and return to the Control Panel. Tap the ? button for Help. The changes take effect immediately. The Alpha tab has no effect on the HX3. HX3 Reference Guide | Settings | Control Panel | Keypad Icon 0 –...
Page 115: Keymap Tab
Keyboard keys and some CE functions can be remapped to any of the keys listed in the Key dropdown list. Select an HX3 keyboard key in the Key dropdown list to remap. Select the desired result key in the Remapped key dropdown list. Buttons available for remapping using the Key dropdown list are the Backspace, Left Arrow, Right Arrow, Up Arrow, Down Arrow, F1, F2, F3 and F4.
Page 116: Launchapp Tab
Control Panel. Tap the ? button for Help. The changes take effect immediately. See Also: Appendix A – Key Maps, Creating Custom Key Maps for more information. HX3 Reference Guide Figure 3-28 Keypad – LaunchApp Tab Settings | Control Panel Options...
Page 117: Runcmd Tab
Tap the OK button to save the changes. Tap the X button to ignore changes and return to the Control Panel. Tap the ? button for Help. The changes take effect immediately. See Also: Appendix A – Key Maps, Creating Custom Key Maps for more information. E-EQ-HX3RG-C Figure 3-29 Keypad – RunCmd Tab HX3 Reference Guide...
Page 118: Mixer
Mixer Access: The microphone aperture is located to the left of the HX3 logo. The speaker aperture is located to the right of the LXE logo. Use these settings to adjust the volume, record gain, and sidetone for microphone input and speaker output.
Page 119: Input Tab
Enable Headset Input Boost Record Gain Mouse Access: Due to the headless design of the HX3, these settings have no effect on the device. E-EQ-HX3RG-C Function When enabled, the internal microphone is turned off. The default is unchecked (disabled). When enabled, the internal microphone is turned on. The default is checked (enabled).
Page 120: Network And Dialup Connections
Set network driver properties and network access properties. Select a connection to use, or create a new connection on the HX3. Tap OK to save the settings or tap the X button to ignore changes. Tap the ? button for Help.
Page 121: Owner
Enter the information and tap the OK button to save the changes. The changes take effect immediately. E-EQ-HX3RG-C | Settings | Control Panel | Owner Icon Blank Disabled Blank Disabled Blank Blank Blank Figure 3-33 Owner Properties HX3 Reference Guide...
Page 122: Password
The password must be entered before performing a cold boot or cold reset. If entering a power-on or screensaver password will not allow you to disable password protection or run COLDBOOT, contact LXE Technical Support. HX3 Reference Guide | Settings | Control Panel | Password Icon...
Page 123: Pc Connection
ActiveSync on the HX.3 Change Connection …. DO NOT use the Change Connection button to select a different connection method. The HX3 can only connect via USB. If ActiveSync is disabled or the connection type is changed, it may be necessary to return the HX3 to LXE for repair.
Page 124: Power
Battery Power Battery Power Battery Power All Power Management settings should be set to Never. LXE does not recommend using Power Management on the HX3. The mode timers are cumulative. The System Idle timer begins the countdown after the User Idle timer has expired and the Suspend timer begins the countdown after the System Idle timer has expired.
Page 125: Regional Settings
| Settings | Control Panel | Regional Settings English (United States) 123,456,789.00 / -123,456,789.00 neg $123,456,789.00 pos / ($123,456,789.00) neg h:mm:ss tt (tt=AM or PM) M/d/yy short / dddd,MMMM,dd,yyyy long English (United States) English (United States)-US English (United States)-US Figure 3-37 Regional Settings HX3 Reference Guide...
Page 126: Remove Programs
Files stored in the My Documents folder are not removed using this option. Note: Do not remove LXE-installed programs using this option. HX3 Reference Guide | Settings | Control Panel | Remove Programs Settings | Control Panel Options...
Page 127: Scanner
Barcode Enable Code ID Port 1 defaults to Bluetooth and Port 2 defaults to Ring when a Bluetooth enabled HX3 with ring scanner is powered On by the user. See Chapter 4 – Scanner for explanation and instruction when settings parameters on the Scanner Control Panels.
Page 128: Stylus
Stylus Access: Due to the headless design of the HX3, these settings have no effect on the device. Double Tap Follow the instructions on the screen and tap the OK button to save the changes. The double-tap changes take effect immediately.
Page 129: System
This is actual DRAM memory, and does not include internal flash used for storage. E-EQ-HX3RG-C | Settings | Control Panel | System Icon 1/3 storage, 2/3 program memory HX3001 LXE_HX3 Figure 3-40 System – General HX3 Reference Guide...
Page 130: Memory
Move the slider to allocate more memory for programs or storage. If there isn’t enough space for a file, increase the amount of storage memory. If the HX3 is running slowly, try increasing the amount of program memory. Adjust the settings and tap the OK button to save the changes. The changes take effect immediately.
Page 131: Device Name
Input Panel and tap OK to save the changes. The changes take effect immediately. Copyrights This screen is presented for information only. The Copyrights information cannot be changed by the user. E-EQ-HX3RG-C Figure 3-42 System – Device Name Figure 3-43 System – Copyrights HX3 Reference Guide...
Page 132: Volume And Sounds
Provides access to the Summit Client Utility (SCU). For details on the SCU, please see Chapter 5, Wireless Network Configuration. Note: This Control Panel icon is not present with some versions of the SCU. HX3 Reference Guide | Settings | Control Panel | Volume & Sounds Enabled Enabled...
Page 133: Sd Flash Cards, Cab Files And Programs
Tap the My Device icon on the Desktop then tap the System icon. Files A flash card is used for permanent storage of the LXE driver and utility files. It is also used for registry content back up. The flash card cannot be removed/exchanged by the user.
Page 134: Utilities
Utilities These utilities are pre-loaded by LXE. Contact your LXE representative for upgrade availability and download. LAUNCH.EXE All applications to be installed into memory are normally in the form of Windows CE CAB files. The CAB files exist as separate files from the main installation image, and need to be copied to the mobile device using an internal Flash card or from a PC using ActiveSync.
Page 135: Regload.exe
.REG file format is the same as on the desktop PC. WARMBOOT.EXE Double tap this file to warm boot the computer (i.e., all RAM is preserved). It automatically saves the registry before rebooting which means configuration changes are not lost. E-EQ-HX3RG-C HX3 Reference Guide...
Page 136: Command-Line Utility
The device beeps and the captured screen file (scrnnnnn.bmp) is placed in the \System folder. The numeric filename is incremented by 1 each time the PrtScrn function is activated. The command is not case-sensitive. HX3 Reference Guide Utilities E-EQ-HX3RG-C...
Page 137: Wavelink Avalanche Enabler Configuration
Briefly . . . The Wavelink Avalanche Enabler installation file is loaded on the mobile device by LXE; however, the device is not configured to launch the installation file automatically. The installation application must be run manually the first time Avalanche is used.
Page 138: Stop The Enabler Service
The Enabler running on LXE Windows CE devices will attempt to access COM1, COM2, and COM3. “Agent not found” will be reported if the Mobile Device Server is not located or a serial port is not present or available (COM port settings can be verified using the LXE scanner applet in the Control Panel).
Page 139: Mobile Device Wireless And Network Settings
5. Choose settings for Manage Network Settings, Manage Wireless Settings and Use Avalanche Network Profile. 6. Tap the OK button to save the changes. 7. Reboot the device. Related Manual: Using Wavelink Avalanche on LXE Windows Computers. E-EQ-HX3RG-C HX3 Reference Guide...
Page 140: Enabler Configuration
Enabler Configuration Avalanche Icon Some parameters and features described in this section may not be available if you are not running the latest version of the Enabler. Please contact your LXE representative for details. File HX3 Reference Guide Wavelink Avalanche Enabler Configuration...
Page 141: File Menu Options
The default password is system. The password is not case-sensitive. Scan Config Note: LXE does not support the Scan Configuration feature on Windows CE devices. The Scan Config option under the File menu allows the user to configure Enabler settings using a special barcode that can be created using the Avalanche Mobility Center Console utilities.
Page 142: Avalanche Update Using File | Settings
Access: Start | Avalanche | File | Settings Use these menu options to setup the Avalanche Enabler on the mobile device. LXE recommends changing and then saving the changes (reboot) before connecting to the network. Alternatively, the Mobile Device Server on can be disabled until needed (refer to the Wavelink Avalanche Mobility Center User’s Guide.
Page 143: Connection Tab
Mobile Device Server before checking for a wireless connection to the Mobile Device Server. Disable ActiveSync connection with the Mobile Device Server. When enabled and the link speed is less than the minimum specified, the Enabler cannot connect. HX3 Reference Guide...
Page 144: Execution Tab
Figure 3-47 Avalanche Enabler Execution Options (Dimmed) Auto-Execute Selection Select Auto-Execute App Delay before execution HX3 Reference Guide Wavelink Avalanche Enabler Configuration An application that has been installed with the Avalanche Mobility Center Console can be run automatically following each boot.
Page 145: Server Contact Tab
If the time interval for periodic contact with the Mobile Device Server occurs, a mobile device that is in Suspend Mode can ‘wakeup’ and process updates. Reboot mobile device before attempting to contact Mobile Device Server. Only connect when the device has external power. HX3 Reference Guide...
Page 146: Startup/Shutdown Tab
Monitor and launch Enabler Manage Taskbar (Lock or Hide) Program Shutdown (Continue or Stop monitoring) HX3 Reference Guide Wavelink Avalanche Enabler Configuration When the device boots, do not launch the Enabler application and do not attempt to connect to the Mobile Device Server.
Page 147: Scan Config Tab
Wavelink Avalanche Enabler Configuration Scan Config Tab Note: Scan Config functionality is a standard option of the Wavelink Avalanche System but is not currently supported by LXE on Windows CE. Display Tab Figure 3-51 Avalanche Enabler Window Display Options Update Window Display The user interface for the Enabler can be configured to dynamically change based on the status of the connection with the Nobile Device Server.
Page 148: Shortcuts Tab
Configure shortcuts to other applications on the mobile device. Shortcuts are viewed and activated in the Programs panel. This limits the user’s access to certain applications when the Enabler is controlling the mobile device display. HX3 Reference Guide Wavelink Avalanche Enabler Configuration E-EQ-HX3RG-C...
Page 149: Adapters Tab
Wavelink Avalanche Enabler Configuration Adapters Tab Note: LXE recommends the user review the network settings configuration utilities and the default values in Chapter 5 – Wireless Network Configuration before setting All Adapters to Enable in the Adapters applet. Figure 3-53 Avalanche Enabler Adapters Options – Network...
Page 150 Network For device-specific descriptions of these Enabler parameters, refer to Chapter 5 – Wireless Network Configuration. LXE does not recommend enabling Manage Wireless Settings. When you download a profile that is configured to manage network and wireless settings, the Enabler will not apply the manage network and wireless settings to the adapter unless the global...
Page 151: Status Tab
Failure to perform the warmboot will leave the device in an undetermined configuration and it may not perform as expected. If the intention is to stop using Avalanche to manage the device configuration, please see Enabler Uninstall Process earlier in this section. E-EQ-HX3RG-C Figure 3-56 Status Display HX3 Reference Guide...
Page 152: Express Scan
To use eXpress Scan to configure an LXE device: 1. Start eXpress Scan on the LXE device by double clicking the eXpress Scan icon on the desktop. 2. Enter the barcode password used when the barcode was created, if any.
Page 153 X in the upper right corner. The password can be re-entered and Barcode 1 scanned again. 6. Once the first barcode is scanned, the remaining barcodes may be scanned in any order. E-EQ-HX3RG-C Figure 3-59 Scan Barcode 1 Figure 3-60 Scan Remaining Barcodes HX3 Reference Guide...
Page 154 2. If Wavelink Avalanche is deployed and the appropriate network settings are configured, the device connects to the Mobile Device Server and any software updates and additional configuration data are downloaded. HX3 Reference Guide Figure 3-61 Configuring Settings eXpress Scan...
Page 155: Chapter 4 Scanner
Bluetooth scanner and/or 2D imager, unless specifically stated otherwise. Access: Set HX3 scanner keyboard wedge, scanner sound, and scanner port. Assign baud rate, parity, stop bits and data bits for COM1. Scanner parameters apply to the tethered ring scanner/imager or the mobile Bluetooth barcode reader only.
Page 156: Barcode Processing Overview
Scanner control panel options are based on the installed software version levels, driver and OS versions in HX3 devices. Your Scanner options may or may not be as described in this section. Contact your LXE representative to obtain the most current software and drivers for your mobile device.
Page 157: Factory Default Settings
Continuous Scan Mode Timeout between same symbol Port 1 defaults to Bluetooth and Port 2 defaults to Ring when a Bluetooth enabled HX3 with ring scanner/imager is powered On by the user. If Send Key Messages … is checked any data scan is converted to keystrokes and sent to the active window.
Page 158: Main Tab
When Send Key Messages (WEDGE) is checked any data scan is converted to keystrokes and sent to the active window. When this checkbox is not checked, the application will need to use the set of LXE Scanner APIs to retrieve the data from the scanner driver. Note that this latter method is significantly faster than using Wedge.
Page 159: Com1 Tab
HX3 on the same data. The default setting is Internal illumination. The imager has a bank of three LEDs above the imager aperture that illuminate when External or Both radio buttons are enabled.
Page 160: Barcode Tab
The Scanner application enables or disables the Code ID that may be scanned. Enabling or disabling a specific barcode symbology is done manually using the configuration barcode in the Linked Scanner Programming Guide (available on the LXE Manuals CD and the LXE ServicePass website).
Page 161: Continuous Scan Mode
Note: If the Continuous Scan options are not available, an OS update is needed to enable this feature. Please contact your LXE representative for details. Enabling Continuous Scan ensures the laser is always on and decoding. Laser beam is emitted continuously. Do not look or stare into the laser beam.
Page 162: Enable Code Id
Scanner Control Panel processing causes a bad scan beep by the mobile device on the same data HX3 Reference Guide Barcode Tab E-EQ-HX3RG-C...
Page 163: Barcode - Symbology Settings
Barcode Data) add a prefix or suffix to a barcode. The Symbology drop-down box contains all symbologies supported on the HX3. An asterisk appears in front of symbologies that have already been configured or have been modified from the default value.
Page 164 Max field is rejected. The default for this field is All (9999). If the value entered is greater than the maximum value allowed for that symbology, the maximum valid length will be used instead. HX3 Reference Guide Barcode Tab E-EQ-HX3RG-C...
Page 165: Strip Leading/Trailing Control
Strips the Code ID based on the type code id specified in the Enable Code ID field in the Barcode tab. By default, Code ID stripping is enabled for all symbologies (meaning code IDs will be stripped, unless specifically configured otherwise). E-EQ-HX3RG-C Figure 4-6 Symbology / Strip Leading / Trailing HX3 Reference Guide...
Page 166: Barcode Data Match List
• If the stripping configuration results in a 0 length barcode, a ‘good’ beep will still be sounded, since barcode data was read from the scanner. HX3 Reference Guide Figure 4-7 Symbology / Barcode Data Match List Barcode Tab E-EQ-HX3RG-C...
Page 167: Match List Rules
If Strip Code ID is disabled, then the barcode data to match must include the Code ID. If Strip Code ID is enabled, the data should not include the Code ID since it has already been stripped. E-EQ-HX3RG-C HX3 Reference Guide...
Page 168: Add Prefix/Suffix Control
Non-ASCII equivalent keys in Key Message mode are unavailable in this option. Non- ASCII equivalent keys include the function keys (e.g. <F1>), arrow keys, Page up, Page down, Home, and End. HX3 Reference Guide Figure 4-8 Symbology / Prefix and Suffix Control Barcode Tab...
Page 169: Barcode - Ctrl Char Mapping
Barcode – Ctrl Char Mapping See Also: Barcode Processing Overview earlier in this chapter. The Ctrl Char Mapping button activates a dialog to define the operations the LXE Wedge performs on control characters (values less than 0x20) embedded in barcodes. Control characters can be replaced with user-defined text which can include hat encoded or hex encoded values.
Page 170 Replacement List Box Delete HX3 Reference Guide The edit control where the user types the characters to be assigned as the replacement of the control character. Replacements for a control character are assigned by selecting the appropriate character from the Character drop down box, typing the replacement in the Replacement edit control (according to the formats defined above) and then selecting Assign.
Page 171: Barcode - Custom Identifiers
Code ID to the Custom IDs list. identifier (the actual Code ID). Both Name and ID Code must be specified in order to add a custom Code ID to the Custom IDs list. HX3 Reference Guide...
Page 172: Control Code Replacement Examples
Hex-encoded The hex-encoded text is translated text to the equivalent hex value. Escaped hex- The hex-encoding to pass thru to encoded text the application. HX3 Reference Guide Example Example Control configuration Character ESCape ‘Ignore (drop)’ 0x1B in the barcode is discarded.
Page 173: Barcode Processing Examples
‘ddd’ ‘zzz’ Resulting Data bbb1234567890xxx bbb11234567890xxx < rejected > (too short) ccc]E04567890yyy ccc]E0234567890yyy ccc]E0yyy < rejected > (too long) ddd7890zzz dddzzz ddd45zzz < rejected > (disabled) < rejected > (disabled) aaa4567890www aaa1234567890www < rejected > (too short) HX3 Reference Guide...
Page 174: Length Based Barcode Stripping
• c1 = Code = ‘]C1’ • c2 = Code = ‘]C1’ • c3 = Code = ‘]C0’ (24 character barcode is CODE128) • c4 = Code = ‘]C1’ HX3 Reference Guide Figure 4-11 AIM Custom IDs Barcode Tab E-EQ-HX3RG-C...
Page 175: Figure 4-12 Aim Custom Setup For C1
Add the data for the match codes. Refer to the previous section BarcodeData Match List for instruction. Scan a barcode and examine the result. E-EQ-HX3RG-C Figure 4-12 AIM Custom Setup for C1 Figure 4-13 Barcode Match Data for C1 HX3 Reference Guide...
Page 176 Barcode Tab HX3 Reference Guide E-EQ-HX3RG-C...
Page 177: Chapter 5 Wireless Network Configuration
Utility (SCU) features and/or security options described in this chapter. Please contact your LXE representative for Summit driver update availability. The HX3 mobile device has a wireless client that can be configured for no encryption, WEP encryption or WPA security.
Page 178: Summit Client Configuration
Note: Terminology used on your screen displays may be different than those shown in the figures in this chapter. Contact your LXE representative for Summit driver updates as they become available. The Summit radio is either an 802.11g radio, capable of both 802.11b and 802.11g data rates or an 802.11a radio, capable of 802.11a, 802.11b and 802.11g data rates.
Page 179: Help
Summit Client Configuration Help The ? button in the title bar on most SCU screens does not display help on the HX3. Summit Tray Icon The Summit tray icon The Summit tray icon is displayed when: • The Summit radio is installed and active.
Page 180: Figure 5-2 Scu – Main Tab
Selecting a different profile from the drop down list does not require logging in to Administrator mode. The profile must already exist. LXE recommends performing a Suspend/Resume function when changing profiles. Profiles can be created or edited after the Admin login password has been entered and accepted.
Page 181: Admin Login
Create, edit, rename and delete profiles on the Config / Profile tab. • Edit global parameters on the Global / Global Setting tabs. • Enable/disable the Summit tray icon in the taskbar. E-EQ-HX3RG-C Figure 5-3 Main Tab – Enter Admin Password HX3 Reference Guide...
Page 182: Config / Profile Tab
If the name is not unique, an error message is displayed and the new profile is not created. Rename Assigns a new, unique name. If the new name is not unique, an error message is displayed and the profile is not renamed. HX3 Reference Guide Default Blank Blank Fast...
Page 183: Figure 5-5 Scu – Scan
Important – The settings for Auth Type, EAP Type and Encryption depend on the security type chosen. Please refer to Wireless Security later in this Summit Client Utility section to determine the proper settings for the security type implemented on the wireless LAN. E-EQ-HX3RG-C Figure 5-5 SCU – Scan HX3 Reference Guide...
Page 184: Config / Profile Parameters
Power Save Fast Tx Power Maximum Bit Rate Auto HX3 Reference Guide Summit Client Configuration Explanation A string of 1 to 32 alphanumeric characters, establishes the name of the Config or Profile. Options are Default or ThirdPartyConfig. A string of up to 32 alphanumeric characters. Establishes the Service Set Identifier (SSID) of the WLAN to which the client connects.
Page 185 It is important this parameter correspond to the AP to which the device is to connect. For example, if this parameter is set to G rates only the LXE device may only connect to APs set for G rates and not those set for B and G rates.
Page 186 Parameter Default EAP Type None Encryption None HX3 Reference Guide Summit Client Configuration Explanation Extensible Authentication Protocol (EAP) type used for 802.1x authentication to the Access Point. Options are: None, LEAP, EAP-FAST, PEAP-MSCHAP, PEAP-GTC, or EAP-TLS. Note: EAP Type chosen determines whether the Credentials button is active and also determines the available entries in the Credentials pop-up window.
Page 187: Figure 5-6 Scu – Status Tab
Note: After completing radio configuration, it is good practice to review this screen to verify the radio has associated (no encryption, WEP) or authenticated (LEAP, any WPA), as indicated above. E-EQ-HX3RG-C Figure 5-6 SCU – Status Tab HX3 Reference Guide...
Page 188: Diags Tab
Release/Renew Start Ping Diagnostics Site Survey HX3 Reference Guide Figure 5-7 SCU – Diags Tab Function Tap this button to apply, or reapply, the current config profile and attempt to associate or authenticate to the wireless LAN. Activity is logged in the Diagnostic Output text box on the lower part of the panel.
Page 189: Global / Global Settings Tab
A radio: 5 sec. Full Off (Not supported in this release) 2346 2347 32 bytes 5000 1000 8 seconds SUMMIT or blank System BG radio: Off A radio: Optimized Figure 5-8 SCU – Global / Global Settings Tab HX3 Reference Guide...
Page 190: Global / Global Settings Parameters
Global / Global Settings Parameters Custom Parameter Option LXE does not support the parameter Custom option. The parameter value is displayed as “Custom” when the operating system registry has been edited to set the Summit parameter to a value that is not available from the parameter’s drop down list. Selecting Custom from the drop down list has no effect.
Page 191 (sent as several pieces instead of as one block). Use a low setting in areas where communication is poor or where there is a great deal of wireless interference. Options are: Any number between 256 bytes and 2346 bytes. HX3 Reference Guide...
Page 192 A valid directory path, of up to 64 characters, where WPA Certificate Authority and User Certificates are stored on the mobile device. LXE suggests ensuring the Windows folder path currently exists before assigning the path in this parameter. See sections titled...
Page 193 No error message or prompting for corrected credentials is displayed. If the authentication credentials are not stored in the active profile and the authentication times out, the user is again prompted to enter the credentials. Options are: An integer from 3 to 60. HX3 Reference Guide...
Page 194: Summit Wireless Security
Placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3 exits suspend. Sign-On vs. Stored Credentials Because of the design of the HX3, stored credentials must be used. • The Username and Password may be entered on the Credentials screen. If this method is selected, anyone using the mobile device can access the network.
Page 195: Windows Certificate Store Vs. Certs Path
Use MS store checkbox after checking the Validate server checkbox. 4. The default is to use all certificates in the store. If this is OK, skip to Step #8. 5. Otherwise, to select a specific certificate tap the Browse (…) button. E-EQ-HX3RG-C HX3 Reference Guide...
Page 196: Figure 5-9 Choose Certificate
MS store checkbox after checking the Validate server checkbox. 4. Enter the certificate name in the CA Cert textbox. 5. Tap OK to exit the Credentials screen and then Commit to save the profile changes. HX3 Reference Guide Summit Client Configuration Figure 5-9 Choose Certificate...
Page 197: No Security
Tap the Commit button to save the new profile configuration. Perform a warm reset function to connect using the new profile configuration. Note: LXE recommends performing a Suspend/Resume function each time the Commit button is tapped. ActiveSync connection must be re-established after the HX3 exits suspend.
Page 198: Wep Keys
Main tab and warm boot. The SCU Main tab shows the device is associated after the radio connects to the network. HX3 Reference Guide Figure 5-11 Configure a Summit Profile with WEP Figure 5-12 Summit WEP Keys...
Page 199: Leap W/O Wpa Authentication
Figure 5-13 Configure a Summit Profile for LEAP w/o WPA Enter the SSID of the Access Point assigned to this profile. Set Auth Type to Open. Set EAP Type to LEAP. Set Encryption to Auto WEP. Tap the Credentials button. E-EQ-HX3RG-C HX3 Reference Guide...
Page 200: Figure 5-14 Leap Credentials Dialog
Tap the Commit button to save the new profile configuration. Perform a warm reset to connect using the new profile configuration. Note: LXE recommends performing a Suspend/Resume function each time the Commit button is tapped. ActiveSync connection must be re-established after the HX3 exits suspend.
Page 201: Eap-Fast Authentication
RADIUS server. The RADIUS server must have auto provisioning enabled to send the PAC provisioning credentials to the client device. Please refer to the LXE Security Primer for more information on the RADIUS server configuration.
Page 202: Figure 5-16 Summit Eap-Fast Credentials
Main tab and perform a warmboot (or Suspend/Resume) function. Note: Warmbooting or placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3 reboots or exits suspend. HX3 Reference Guide...
Page 203: Peap/Mschap Authentication
Set Encryption to Auto WEP (without WPA). To configure PEAP-MSCHAP for WPA set Encryption to WPA TKIP. Tap the Credentials button. Enter the Username or Domain\Username in the Credentials popup text entry box. Enter the Password. Leave the CA Certificate Filename blank for now. Tap OK. Tap Commit. E-EQ-HX3RG-C HX3 Reference Guide...
Page 204: Figure 5-18 Peap/Mschap Credentials
Perform a Warm Boot (or Suspend/Resume) function to connect using the new profile configuration. Note: Warmbooting or placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3reboots or exits suspend. The device should be authenticating the server certificate and using PEAP/MSCHAP for the user authentication.
Page 205: Wpa/Leap Authentication
Tap the Commit button to save the new profile configuration. Perform a warm reset (or Suspend/Resume) to connect using the new profile configuration. Note: Warmbooting or placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3reboots or exits suspend. E-EQ-HX3RG-C...
Page 206: Wpa Psk Authentication
Figure 5-21 Configure a Summit Profile with WPA PSK Encryption Enter the SSID of the Access Point assigned to this profile. Set Auth Type to Open. Set EAP Type to None. Set Encryption to WPA PSK. HX3 Reference Guide Summit Client Configuration E-EQ-HX3RG-C...
Page 207: Figure 5-22 Summit Psk Entry Dialog
Tap the Commit button to save the new profile configuration. Perform a warm reset (or Suspend/Resume) to connect using the new profile configuration. Note: Warmbooting or placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3reboots or exits suspend. E-EQ-HX3RG-C...
Page 208: Peap/Gtc Authentication
Figure 5-23 Configure a Summit Profile with PEAP/GTC Enter the SSID of the Access Point assigned to this profile. Set Auth Type to Open. Set EAP Type to PEAP-GTC. Set Encryption to WPA TKIP. Tap the Credentials button. HX3 Reference Guide Summit Client Configuration E-EQ-HX3RG-C...
Page 209: Figure 5-24 Peap/Gtc Credentials
Perform a Warm Boot (or Suspend/Resume) function to connect using the new profile configuration. Note: Warmbooting or placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3reboots or exits suspend. The device should be authenticating the server certificate and using PEAP/GTC for the user authentication.
Page 210: Eap-Tls Authentication
Figure 5-25 Configure a Summit Profile with EAP-TLS Enter the SSID of the Access Point assigned to this profile. Set Auth Type to Open. Set EAP Type to EAP-TLS. Set Encryption to WPA TKIP. Tap the Credentials button. HX3 Reference Guide Summit Client Configuration E-EQ-HX3RG-C...
Page 211: Figure 5-26 Eap-Tls Credentials Dialog
Perform a Warm Boot (or Suspend/Resume) function to connect using the new profile configuration. Note: Warmbooting or placing the HX3 in suspend terminates the ActiveSync connection. The ActiveSync connection must be re-established after the HX3reboots or exits suspend. The device should be authenticating the server certificate and using EAP-TLS for the user authentication.
Page 212: Certificates
Certificates Please refer to the LXE Security Primer to prepare the Authentication Server and Access Point for communication. It is important that all dates are correct on CE computers when using any type of certificate. Certificates are date sensitive and if the date is not correct authentication will fail.
Page 213: Figure 5-29 Download Ca Certificate Screen
Tap the Save button and save the certificate to the desktop PC. Keep track of the name and location of the certificate as the certificate file name and file location is required in later steps. E-EQ-HX3RG-C Figure 5-29 Download CA Certificate Screen HX3 Reference Guide...
Page 214: Installing A Root Ca Certificate On The Mobile Device
Start | Control Panel | Certificates. Tap the Import button. Make sure From a File is selected and tap OK. If the OK button is no present, press Enter. HX3 Reference Guide Figure 5-31 Certificate Stores Figure 5-32 Import Certificate From a File...
Page 215: Figure 5-33 Browsing To Certificate Location
Using the Explorer buttons, browse to the location where you copied the certificate, select the certificate desired and tap OK. Tap OK to import the certificate. Once the certificate is installed, return to the proper authentication section, described later in this chapter. E-EQ-HX3RG-C Figure 5-33 Browsing to Certificate Location HX3 Reference Guide...
Page 216: User Certificates
This process saves a user certificate and a separate private key file. Windows CE devices such as the HX3 require the private key to be saved as a separate file rather than including the private key in the user certificate.
Page 217: Figure 5-36 Request A Certificate Type
Certificates Tap on the advanced certificate request link. Tap on the Create and submit a request to this CA link. E-EQ-HX3RG-C Figure 5-36 Request a Certificate Type Figure 5-37 Advanced Certificate Request Screen HX3 Reference Guide...
Page 218: Figure 5-38 Advanced Certificate Details
HX3USER.PVK. The certificate file created later in this process must be given the same name, for example, HX3USER.CER. DO NOT check “Enable strong private key protection”. Make any other desired changes and tap the Submit button. HX3 Reference Guide Figure 5-38 Advanced Certificate Details Certificates E-EQ-HX3RG-C...
Page 219: Figure 5-39 Script Warnings
Tap None if you do not wish to use a password, or • Enter and confirm your desired password then tap OK. Tap the Download certificate link. E-EQ-HX3RG-C Figure 5-39 Script Warnings Figure 5-40 Script Warnings Figure 5-41 User Certificate Issued HX3 Reference Guide...
Page 220: Figure 5-42 Download Certificate Security Warning
Be sure use the same name for the certificate file as was used for the private key file. For example, it the private key was saved as HX3USER.PVK then the certificate file created must be given the same name, for example, HX3USER.CER. HX3 Reference Guide Figure 5-42 Download Certificate Security Warning Certificates E-EQ-HX3RG-C...
Page 221: Installing A User Certificate On The Hx3 (Wpa-Tls Only)
Certificates Installing a User Certificate on the HX3 (WPA- TLS Only) Copy the certificate and private key files to the mobile device. Import the certificate by navigating to Start | Control Panel | Certificates. Select My Certificates from the pull down list.
Page 222: Figure 5-45 Browsing To Certificate Location
If the private key is present, the process is complete. • If the private key is not present, import the private key. To import the private key, tap OK to return to the Certificates screen. HX3 Reference Guide Figure 5-45 Browsing to Certificate Location Certificates E-EQ-HX3RG-C...
Page 223: Figure 5-46 Browsing To Private Key Location
Make sure the certificate and private key file have the same name, for example HX3USER.CER for the certificate and HX3USER.PVK for the private key file. If the file names are not the same, rename the private key file and import it again. E-EQ-HX3RG-C Figure 5-46 Browsing to Private Key Location HX3 Reference Guide...
Page 224 Certificates HX3 Reference Guide E-EQ-HX3RG-C...
Page 225: Appendixa Key Maps
5 Key Keypad The HX3 keypad is designed for use with voice applications. Because of the limited design, the HX3 should be connected via ActiveSync to a PC running LXEConnect when a full keyboard is needed (for example, during system configuration).
Page 226 5 Key Keypad HX3 Reference Guide E-EQ-HX3RG-C...
Page 227: Appendixb Technical Specifications
1.8 oz 51 g Ring scanner. Max baud rate 230.4Kbps. Main Battery Asynchronous port. Max baud rate 230.4Kbps. Max baud rate 921.6Kbps. Audio / Battery / HX3 Cable 3.50 in 8.89 cm 4.98 in 12.55 cm 1.40 in 3.56 cm Tethered.
Page 228: Environmental Specifications
-4°F to 158°F (-20°C to 60°C) IEC 60529 compliant to IP54 5% to 90% non-condensing at 104°F (40°C) See HX3 User’s Guide, Appendix B. Resistant to exposure to skin oil and other lubricants. 8 KV air, 4kV direct contact Compact Flash adapter 2.4 - 2.4897 GHz IEEE 802.11b 802.11g DSSS OFDM...
Page 229: Summit 802.11 A/B/G Cf 2.4/5.0Ghz
5.0GHz IEEE 802.11a DSSS OFDM 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 64 mW (18dBm) 1-11 FCC, 1-13 ETSI see HX3 Environmental Specs see HX3 Environmental Specs TCP/IP, Ethernet, ODI Up to 3.0 Mbit/s over the air No less than 32.80 ft (10 meters) line of sight...
Page 230 Network Card Specifications HX3 Reference Guide E-EQ-HX3RG-C...
Page 231: Appendixc Reference Material
Appendix C Reference Material Contents of this Appendix include the following charts: • Valid VK Codes for CE • ASCII Control Codes • Hat Encoding • Decimal-Hexadecimal Chart • Revision History E-EQ-HX3RG-C HX3 Reference Guide...
Page 232: List Of Valid Vk Codes For Ce 5
VK_EXECUTE VK_EXSEL VK_F1 VK_F10 VK_F11 VK_F12 VK_F13 VK_F14 VK_F15 VK_F16 VK_F17 VK_F18 VK_F19 VK_F2 VK_F20 VK_F21 VK_F22 VK_F23 VK_F24 HX3 Reference Guide VK_F3 VK_F4 VK_F5 VK_F6 VK_F7 VK_F8 VK_F9 VK_FINAL VK_HANGUL VK_HANJA VK_HELP VK_HOME VK_HYPHEN VK_INSERT VK_JUNJA VK_KANA VK_KANJI VK_LAUNCH_APP1...
Page 233: Ascii Control Codes
Ctrl-Shift-` VK_CONTROL (0x11) down VK_A (0x41) down WM_CHAR (0x1) VK_A (0x41) up VK_CONTROL (0x11) up Ctrl-b Ctrl-c Ctrl-d Ctrl-e Ctrl-f Ctrl-g Ctrl-h Ctrl-i Ctrl-j Ctrl-k Ctrl-l Ctrl-m Ctrl-n Ctrl-o Ctrl-p Ctrl-q Ctrl-r Ctrl-s Ctrl-t Ctrl-u Ctrl-v Ctrl-w HX3 Reference Guide...
Page 234 Char Control Action CANcel line End of Medium SUBstitute ESCape File Separator Group Separator Record Separator Unit Separator HX3 Reference Guide ASCII Control Codes Ctrl-x Ctrl-y Ctrl-z VK_CONTROL (0x11)down VK_PACKET (0xe7) down WM_CHAR 0x1b VK_PACKET up VK_CONTROL up VK_CONTROL (0x11)down...
Page 235: Hat Encoding
0x95 0x96 0x97 0x98 0x99 0x9A 0x9B 0x9C ~^\\ 0x9D 0x9E 0x9F ~^_ (Underscore) 0xA0 ~ (Tilde and Space) 0xA1 0xA2 ~” 0xA3 0xA4 0xA5 0xA6 ~& 0xA7 ~’ 0xA8 0xA9 0xAA 0xAB 0xAC 0xAD ~- (Dash) HX3 Reference Guide...
Page 236: Figure C-2 Hat Encoded Characters Hex Ae Through Ff
0xD0 Ñ 0xD1 Ò 0xD2 Ó 0xD3 Ô 0xD4 Õ 0xD5 Ö 0xD6 Figure C-2 Hat Encoded Characters Hex AE through FF HX3 Reference Guide Desired Encoded ASCII ~. (Period) × Ø ~0 (Zero) Ù Ú Û Ü Ý Þ...
Page 237: Decimal - Hexadecimal Chart
0x7B 0x7C 0x7D 0x7E 0x7F 0x80 0x81 0x82 0x83 0x84 0x85 0x86 0x87 0x88 0x89 0x8A 0x8B 0x8C 0x8D 0x8E 0x8F 0x90 0x91 0x92 0x93 0x94 0x95 0x96 0x97 0x98 0x99 0x9A 0x9B 0x9C 0x9D 0x9E 0x9F HX3 Reference Guide...
Page 238: Figure C-4 Decimal – Hexadecimal Chart (160 To 255 Decimal)
Figure C-4 Decimal – Hexadecimal Chart (160 to 255 Decimal) HX3 Reference Guide 0xA0 0xC8 0xA1 0xC9 0xA2 0xCA 0xA3 0xCB 0xA4 0xCC 0xA5 0xCD 0xA6 0xCE 0xA7 0xCF 0xA8 0xD0 0xA9 0xD1 0xAA 0xD2 0xAB 0xD3 0xAC 0xD4 0xAD...
Page 239: Revision History
Revised the following sections: “Introduction”, “Summit Radio”, “Summit Client Utility”, “Main Tab”. Revised Profile Tab parameters: “Radio Mode” and “Tx Power”. Revised Global Tab parameters: “TX Diversity”, “Rx Diversity”. Added Global Tab parameter: “DFS Channels”. Revised “Network Device Specifications”. HX3 Reference Guide...
Page 240 Revision History HX3 Reference Guide E-EQ-HX3RG-C...
Page 241: Index
...31 computer friendly name ...88 Control panel...84 Devices tab...85 printers and scanners...84 Properties ...86 Report failures...87 Settings tab...87 Bluetooth icons...85 Bluetooth Pairing and Auto-Reconnect...89 Bluetooth scanner Multiple beeps...46 Bluetooth version 2.0...46 Boot loader, responsibility...71 HX3 Reference Guide...
Page 242 Ctrl Char Mapping...153 Cumulative mode timers...108 Current Time ...91 Custom identifier ...144 Custom Identifiers ...155 Custom parameter option...174 Customize dates, times, currency ...109 HX3 Reference Guide Data Bits ...111, 139 Data entry imager ...36 keypad...35 laser scanner...35 Data entry ...35 Data Loss Backup Battery...3...
Page 243 Hints Key Maps ...209 HKEY_LOCAL_MACHINE ...82 Hotswapping allowed for Main Battery ...53 hotswapping not allowed network card ...44 HX3 Options panel ...95 Icons Bluetooth...85 My Computer ...74 Recycle Bin...74 IEC IP65 ...212 Important Battery Information...3 Install ActiveSync on Desktop or Laptop...64 Internal modems not supported by LXE...92...
Page 244 Review System and mobile device data and revision levels...113 Root CA Certificates Generating...196 Installing on mobile device ...198 Save settings ...6 Scan HX3 Reference Guide Good and Bad Scan sounds ...116 SCANBAD.WAV ...116 SCANGOOD.WAV ...116 Scanner Main tab ...142 Port...142 Send Key Messages ...142...
Page 245 Wedge...141, 142 WEP Keys Summit...182 When to use this guide ...2 Windows CE .NET on-line Help...69 Windows OS version...113 Wireless network configuration ...161 Wireless Security Summit Client ...178 WPA LEAP Authentication, Summit ...189 WPA PSK Authentication, Summit...190 HX3 Reference Guide...
Page 246 Index HX3 Reference Guide E-EQ-HX3RG-C...

LXE HX3 Reference Manual

Chapter 1 Introduction

Overview

Getting Started

Components

Assembly

Tapping the Power Key

Power Key Functions

Using the Keypad

Bluetooth

Data Entry

Cleaning the Ring Scanner Aperture

Strap Assemblies

Getting Help

Chapter 2 Physical Description and Layout

Hardware Configuration

Power Modes

The Keypad

Batteries

HX2 Multi-Charger (Optional)

HX2 Docking/Charging Cradle

Chapter 3 System Configuration

Introduction

Configuring the HX3 with Lxeconnect

Activesync / Get Connected Process

Windows CE 5.0

Installed Software

Desktop

Start Menu Program Options

Settings | Control Panel Options

SD Flash Cards, CAB Files and Programs

Utilities

Wavelink Avalanche Enabler Configuration

Express Scan

Chapter 4 Scanner

Introduction

Barcode Processing Overview

Factory Default Settings

Main Tab

COM1 Tab

Barcode Tab

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LXE HX3

Summary of Contents for LXE HX3
