5.5.2.1.2 How To Change Scan Parameters

On the right side of the MONITOR window is a group for controlling EMISSION and
EM. See Figure 5-9. In this group are editable boxes that change the scan
parameters described in section 5.5.2.1.1.

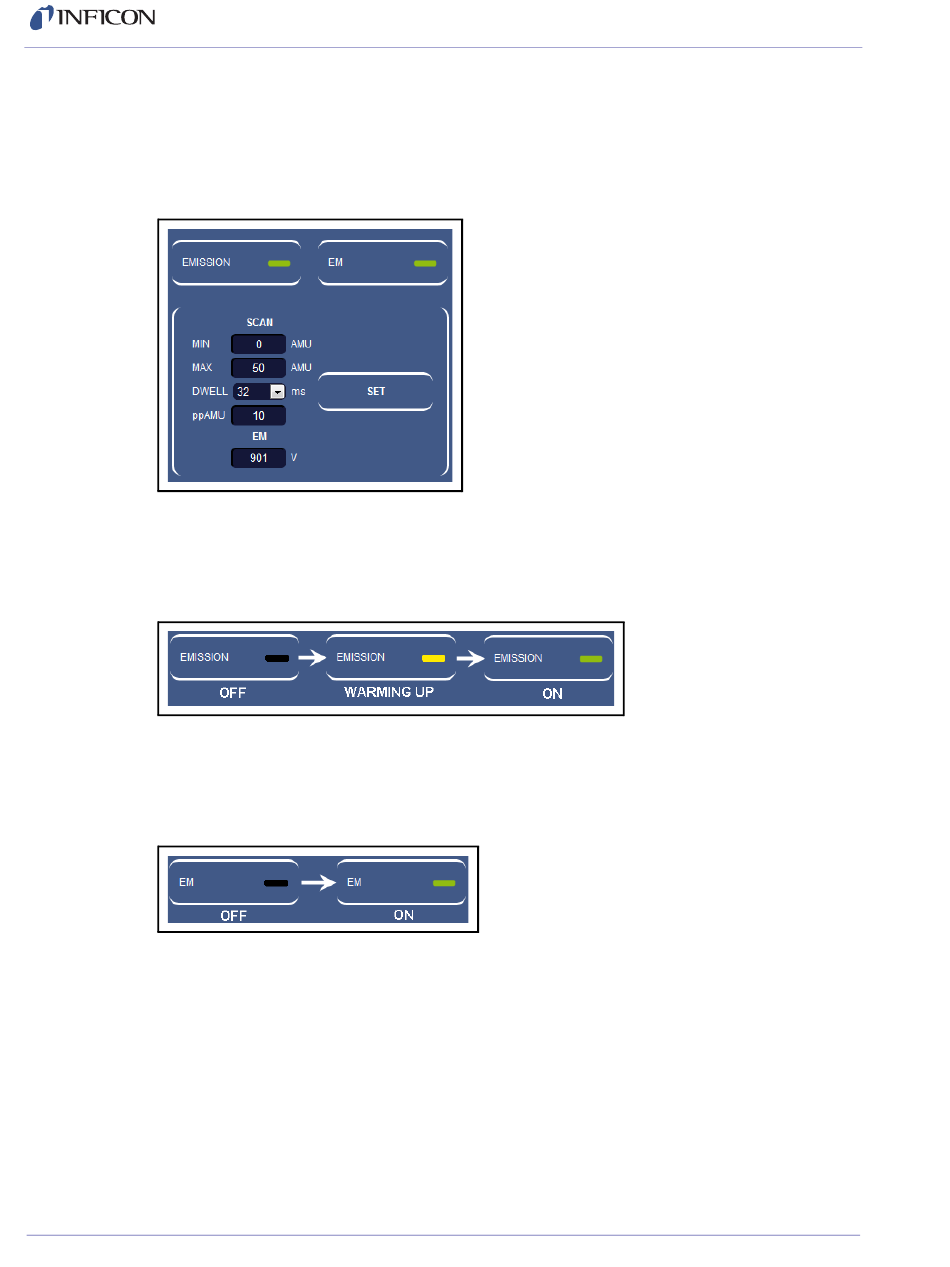

Figure 5-9 Where to change scan parameters
To turn On/Off Emission, click EMISSION. There is an indicator on the right side of
the EMISSION button. This indicator changes color based on emission state.
There are three colors, as shown in Figure 5-10.
Figure 5-10 Emission status
The Electron Multiplier is controlled the same way as the emission. To turn the
Electron Multiplier on or off, click EM. There are only two different EM states:
OFF (Black) and ON (Green). See Figure 5-11.
Figure 5-11 Electron multiplier status
Emission and EM are the only settings that, when altered, have an immediate
impact on data collection.
The other scan parameters can be changed, but will not affect the data collection
until SET is clicked. Click SET to restart data acquisition using the changed
parameters.
To change Min/Max AMU values, highlight the current value in the appropriate box
and type in the Min or Max AMU value that is desired. Click SET to start collecting
data in the new mass range.
