Hardware Setup

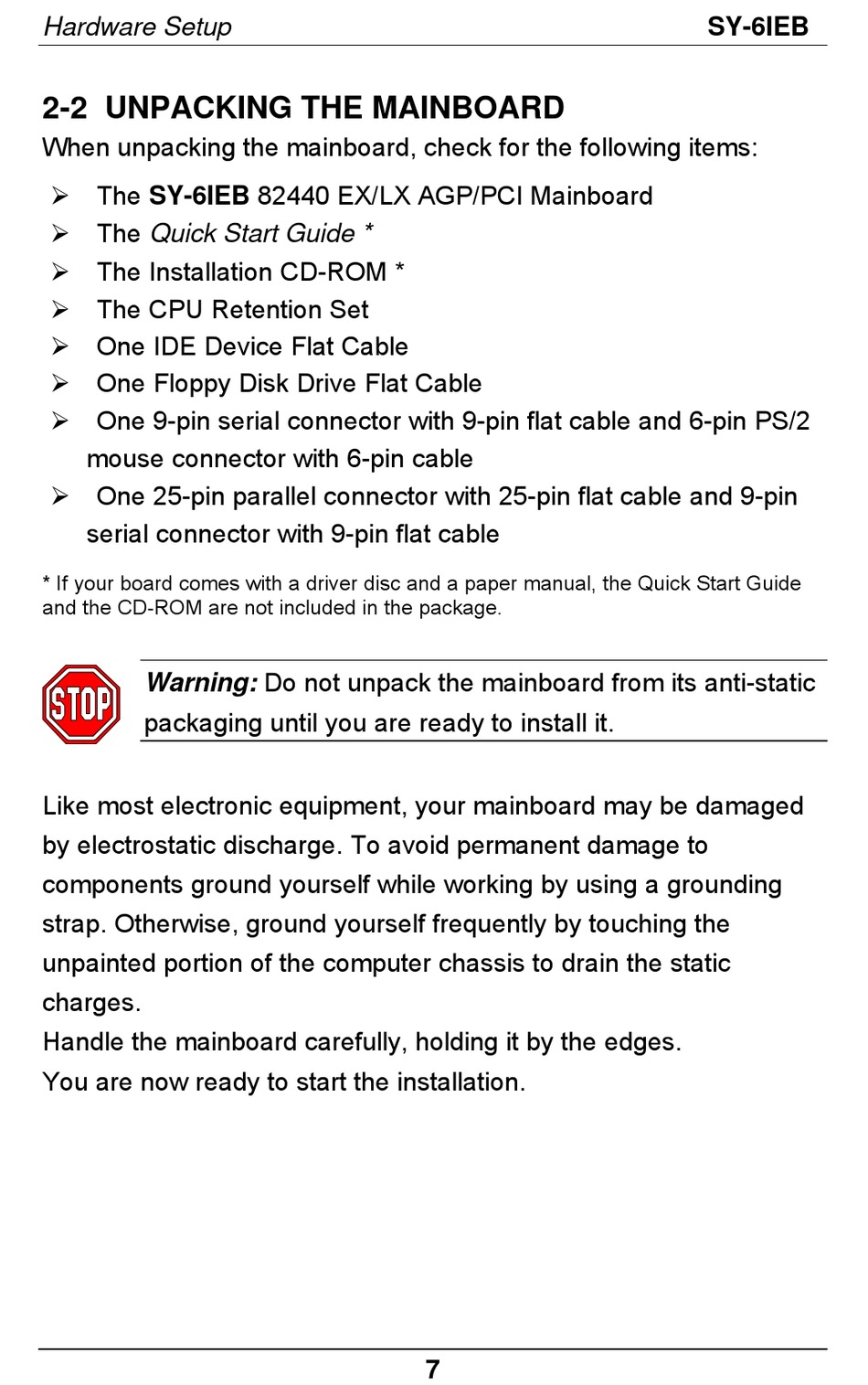

2-2 UNPACKING THE MAINBOARD

When unpacking the mainboard, check for the following items:
Ø The SY-6IEB 82440 EX/LX AGP/PCI Mainboard
Ø The Quick Start Guide *
Ø The Installation CD-ROM *
Ø The CPU Retention Set
Ø One IDE Device Flat Cable
Ø One Floppy Disk Drive Flat Cable
Ø One 9-pin serial connector with 9-pin flat cable and 6-pin PS/2
mouse connector with 6-pin cable
Ø One 25-pin parallel connector with 25-pin flat cable and 9-pin
serial connector with 9-pin flat cable
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the mainboard from its anti-static
packaging until you are ready to install it.
Like most electronic equipment, your mainboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the mainboard carefully, holding it by the edges.
You are now ready to start the installation.
