Hardware Setup
1. Serial Ports COM1/COM2
External Devices that use the COM ports include serial mice and

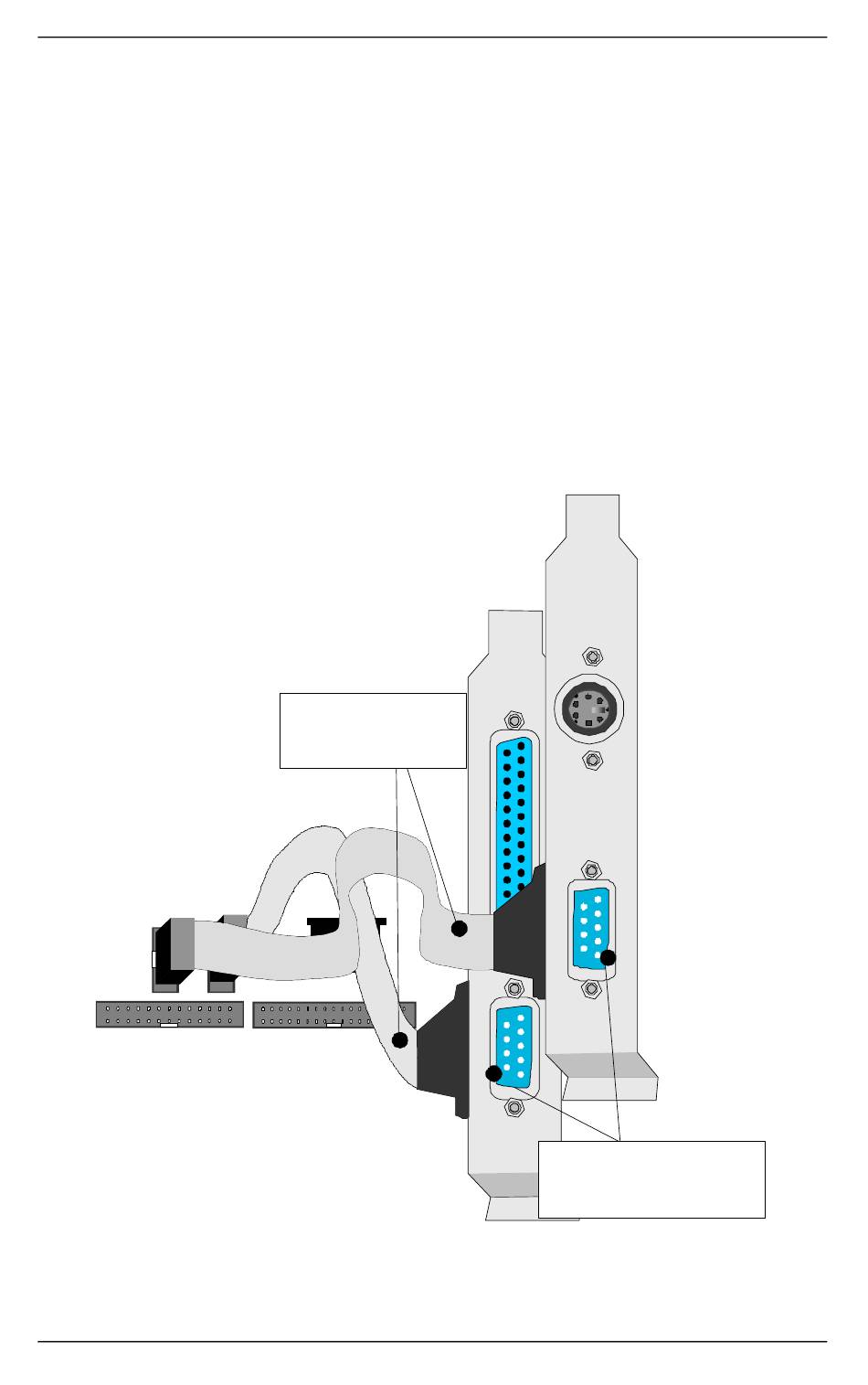

modems. The COM port connectors are located on 2 separate
brackets, as shown on the figure below. Please plug their respective
10 pin flat cable connectors into the COM1 and COM 2 serial port
connectors on the mainboard.
The bracket should be fixed to one of the slots at the back of the
computer case using a screw, after having finished this you can plug
any serial device into the back panel connectors.
COM 2
COM 1
1
1
PRT 1
1
9-pin serial
flat cables (2x)
PS/2 Mouse
Connector
KB
Connector
1
FDC
19
SY-6IEB
9-pin male external
serial connector (2x)
