Summary of Contents for SOYO SY-6IZA-NA

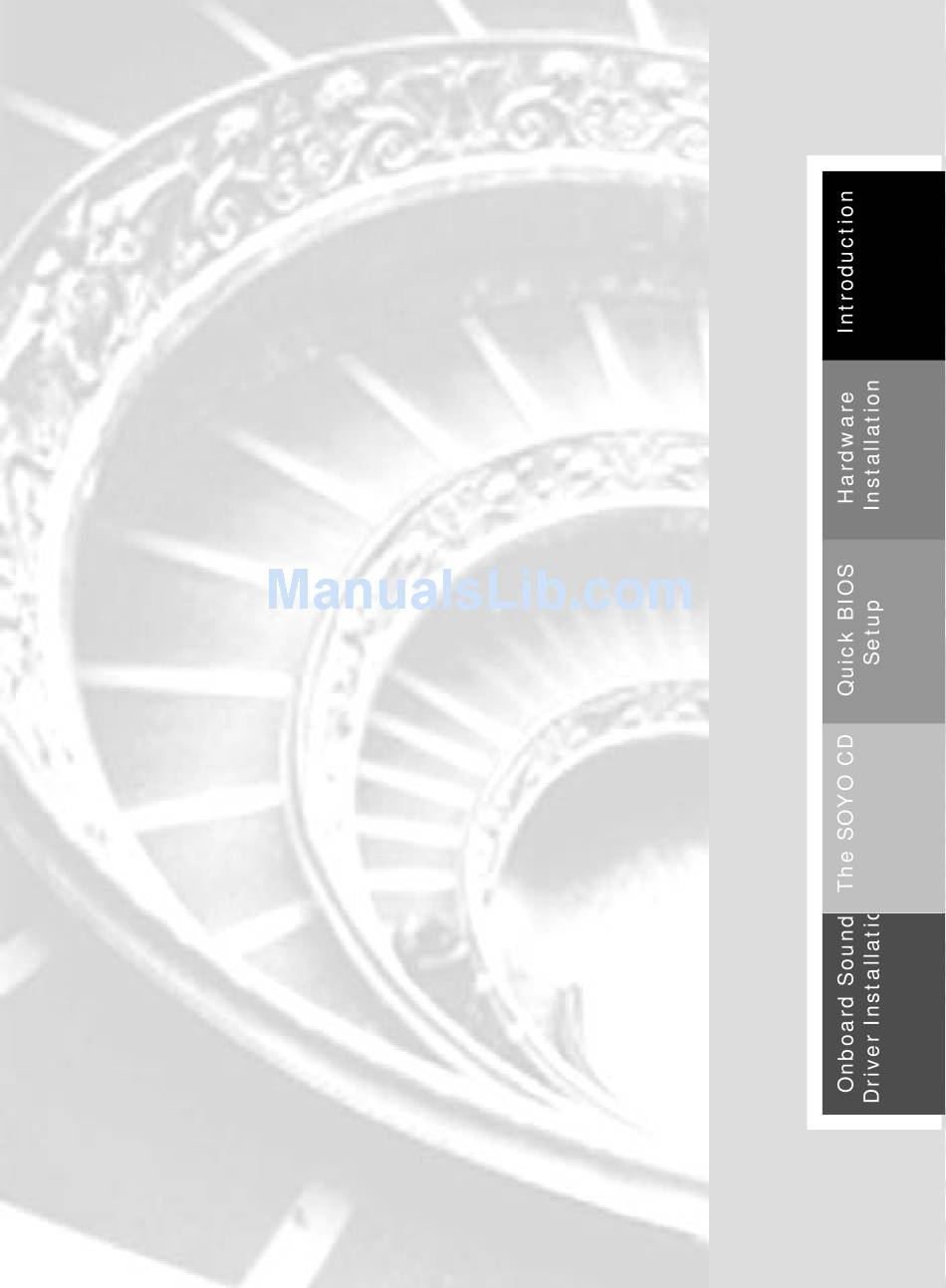

- Page 1 SY-6IZA SY-6IZA-NA Motherboard Quick Start Guide...
-
Page 2: Atx Form Factor
Our customers should ensure that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights. - Page 3 When unpacking the Motherboard, check for the following items: The SY-6IZA/6IZA-NA 440 ZX AGP/PCI Motherboard The Quick Start Guide The Installation CD-ROM SOYO 3-in-1 Bonus Pack CD-ROM (Norton AntiVirus, Ghost and Virtual Drive) One IDE Device Flat Cable One Floppy Disk Drive Flat Cable...
-

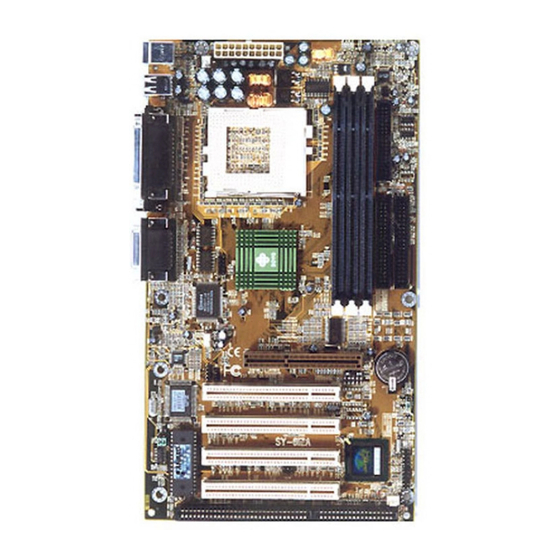

Page 4: Sy-6Iza Motherboard Layout
PCI slot Auto-detect CPU voltage Ø Ø 1 x 16-bit ISA slot Ø PC98, ACPI, Ultra DMA/33 Ø 2 x USB ports onboard SOYO COMBO Setup Ø 1 x IrDA port Ø Ø Supports Wake-On-LAN (WOL) Supports multiple-boot function Ø Ø... - Page 5 Auto-detect CPU voltage Ø slave PCI slot PC98, ACPI, Ultra DMA/33 Ø Ø 1x 16-bit ISA slot Ø SOYO COMBO Setup Ø 2 x USB ports onboard Supports Wake-On-LAN (WOL) Ø 1 x IrDA port Ø Ø Supports onboard hardware monitoring and Supports multiple-boot function Ø...
- Page 6 SY-6IZA/6IZA-NA Quick Start Guide Installation To avoid damage to your Motherboard, follow these simple rules while handling this equipment: Before handling the Motherboard, ground yourself by grasping an unpainted portion of the system's metal chassis. Remove the Motherboard from its anti-static packaging. Hold it by the edges and avoid touching its components.
-
Page 7: Install The Motherboard
SY-6IZA/6IZA-NA Quick Start Guide Install the Motherboard Follow the steps below in order to perform the installation of your new SY-6IZA/6IZA-NA Motherboard. Install the CPU Step 1. Record the working frequency of your CPU Mark your CPU Frequency: that should be clearly marked on the CPU cover. 300MHz (66 x 4.5) 333MHz (66 x 5.0) 366MHz (66 x 5.5) - Page 8 SY-6IZA/6IZA-NA Quick Start Guide Make Connections to the Motherboard Step 2. This section tells how to connect internal peripherals and power supply to the Motherboard. Internal peripherals include IDE devices (HDD, CD-ROM), Floppy Disk Drive, Chassis Fan, Front Panel Devices (Turbo LED, Internal Speaker, Reset Button, IDE LED, and KeyLock Switch.), Wake-On-LAN card, VGA card, Sound Card, and other devices.
-
Page 9: Memory Configuration Table
Step 5. This Motherboard does not use any jumpers to set the CPU frequency; CPU setting are changed through the BIOS [SOYO COMBO SETUP]. Refer to Chapter 3 “ Quick BIOS Setup” for details on how to set the processor frequency. - Page 10 Your system can be power on by either pressing a power button or typing in a password, which can be set in the BIOS SOYO COMBO Setup. To avoid being unable to power up the system due to of forgetting the password, you can place a jumper cap to short JP8. This will always enable the Power Button.
- Page 11 Press the <Del> key during the system diagnostic checks to enter the Award BIOS Setup program. From the BIOS main menu, select [SOYO COMBO SETUP] and move the cursor to the [CPU Frequency] field to set the proper working frequency.
-
Page 12: Quick Bios Setup
This Motherboard does not use any hardware jumpers to set the CPU frequency. Instead, CPU settings are software configurable with the BIOS [SOYO COMBO SETUP]. The [SOYO COMBO SETUP] menu combines the main parameters that you need to configure, all in one menu, for a quick setup in BIOS. - Page 13 The SOYO CD will auto-run, and the SOYO CD Start Up Menu will be as shown. If you use Windows NT, the SOYO-CD will not detect your motherboard type. In that case the following dialog will pop up, please choose your motherboard and press OK. Now the SOYO- CD Start Up Menu will be shown.
-
Page 14: Install Drivers And Utilities
SY-6IZA/6IZA-NA Quick Start Guide The user's manual files included on the SOYO CD are in PDF (Postscript Document) format. In order to read a PDF file, the appropriate Acrobat Reader software must be installed in your system. Note: The Start Up program automatically detects if the Acrobat Reader utility is already present in your system, and otherwise prompts you on whether or not you want to install it. - Page 15 Select which driver you want to install and click OK, or click Cancel to abort the driver installation and return to the main menu. Note: Once you have selected a driver, the system will automatically exit the SOYO CD to begin the driver installation program. When the installation is complete, most drivers require...
- Page 16 Check the Latest Releases Step 3. Click the 'Check the latest Releases' button to go the SOYO Website to automatically find the latest BIOS, manual and driver releases for your motherboard. This button will only work if your computer is connected to the internet through a network or modem connection. Make sure to get your modem connection up before clicking this button.
- Page 17 Installing AudioPCI in Windows 95/98 To install the audio drivers in Windows 95/98, insert the SOYO CD into your CD-ROM drive. It will auto-run (If not, run Cdstart.exe in the root of the CD). Now press the install the 6IZA drivers button, select ‘...
- Page 18 SY-6IZA/6IZA-NA Quick Start Guide Uninstalling AudioPCI in Windows NT 4.0 To uninstall the software: Click the [Start] button, point to Settings and click [Control Panel]. Double-click the Multimedia icon. From the Audio Devices tabbed page, Select any existing audio devices and then click Remove. Click [Yes] when prompted to remove the driver.
- Page 19 Quick Trouble shoot tips Video (no display) related issues I built a new computer system using a Soyo board and nothing happens when turning it on, no video and no beeps from the PC speaker. What is happening and how can it be fixed? No screen and no beeps mean that your CPU and motherboard do not work at all.
-
Page 20: Bios Issues
IV motherboard with 2AA2 bios. Where can I find the latest BIOS of my motherboard? Please go to the technical support page of one of the SOYO websites (Taiwan: www.soyo.com.tw ), and look up your motherboard to find the latest BIOS revision. - Page 21 If you are running a Cyrix CPU, make sure the 'linear burst function' is enabled in the bios. I can not get my board to run properly. Please make sure you have the latest bios and driver from the SOYO web site at: http://www.soyo.com...
- Page 22 SY-6IZA/6IZA-NA Quick Start Guide How to contact us: If you are interested in our products, please contact the SOYO sales department in the region you live. If you require Technical Assistance, please contact our Technical Support in the region you live.
- Page 23 SoyoCom Produkte: Technical Support: E-Mail: sales@soyo.de tel: 852-27109810 Fon: +49-(0)441/20910-31/33 fax: 852-27109078 Fax: +49-(0)441/203422 E-mail: soyo@hkstar.com Technischer Support: SOYO China (Gin Mei Jei) E-Mail: support@soyo.de Fon: +49-(0)441/20910-40 Region Covered: All of China Fax: +49-(0)441/203422 Sales: Tel: 86-10-62510089 SOYO KOREA fax: 86-10-62510388...
- Page 24 Edition: March 2000 Version 2.2 6IZA/6IZA-NA SERIAL...
