Hardware Setup

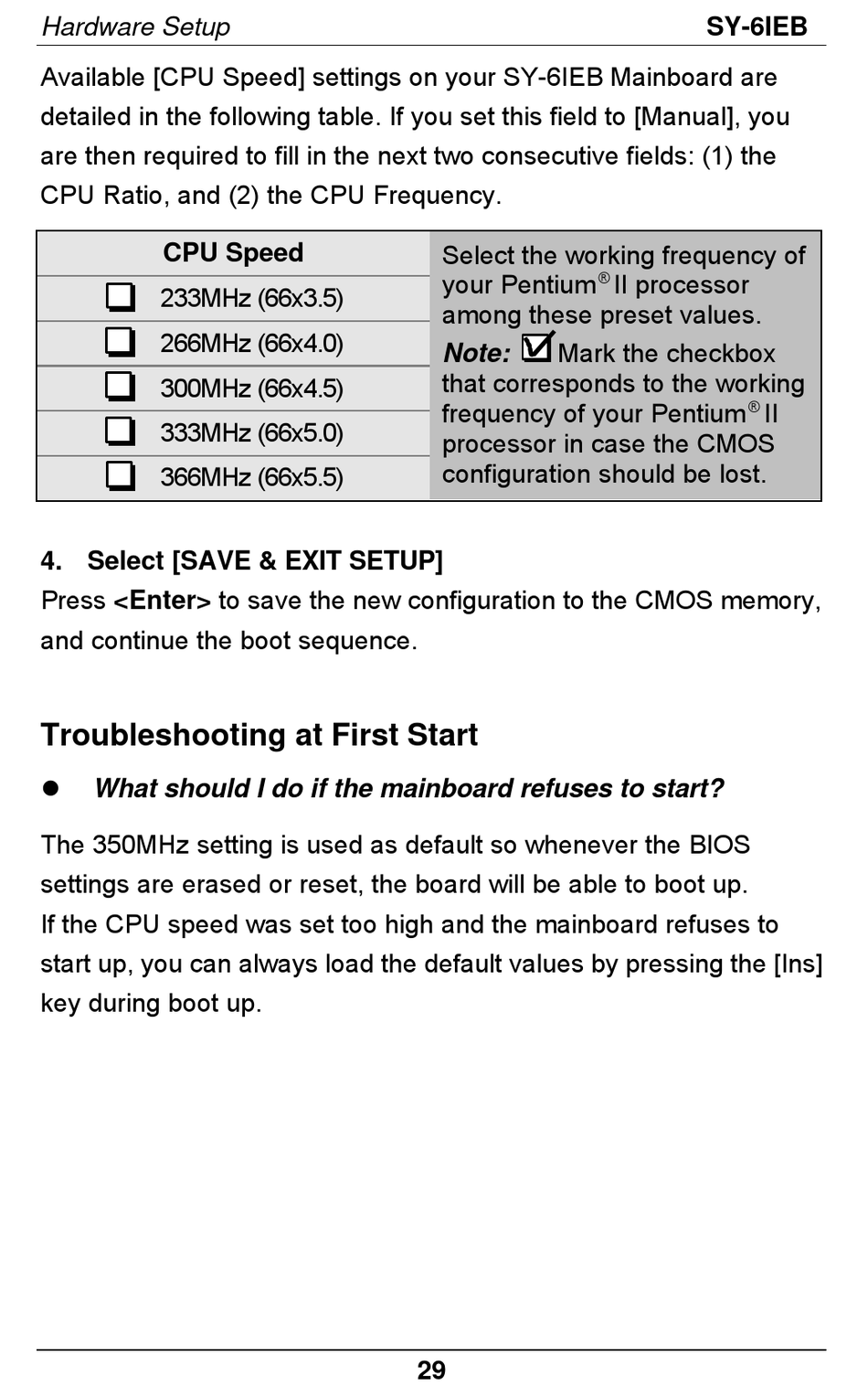

Available [CPU Speed] settings on your SY-6IEB Mainboard are
detailed in the following table. If you set this field to [Manual], you
are then required to fill in the next two consecutive fields: (1) the
CPU Ratio, and (2) the CPU Frequency.
CPU Speed
233MHz (66x3.5)
266MHz (66x4.0)
300MHz (66x4.5)
333MHz (66x5.0)
366MHz (66x5.5)
4. Select [SAVE & EXIT SETUP]
Press <Enter> to save the new configuration to the CMOS memory,
and continue the boot sequence.
Troubleshooting at First Start
What should I do if the mainboard refuses to start?
l
The 350MHz setting is used as default so whenever the BIOS
settings are erased or reset, the board will be able to boot up.
If the CPU speed was set too high and the mainboard refuses to
start up, you can always load the default values by pressing the [Ins]
key during boot up.
Select the working frequency of
your Pentium
among these preset values.
Note:
Mark the checkbox
that corresponds to the working
frequency of your Pentium
processor in case the CMOS
configuration should be lost.
29
SY-6IEB
®
II processor
®
II
