Hardware Setup
SY-6IEB
3. Insert the Screws
Install the two pairs of screws used to set the retention clip in the two
pairs of holes at both ends of Slot 1. Insert the screws from below
the mainboard upward, as shown in the figure below.

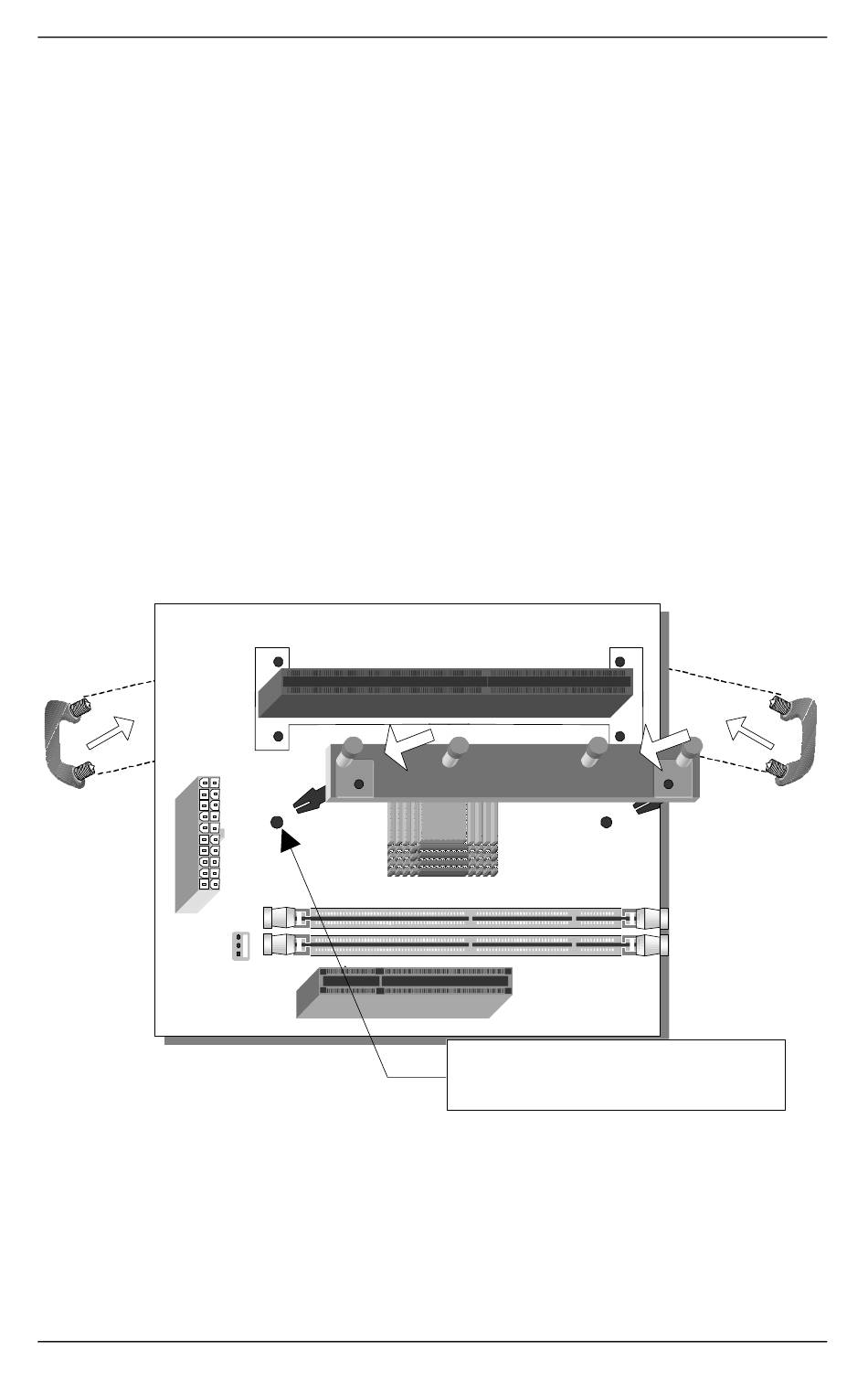

4. Install the Supporting Base
Insert the supporting base into the two holes adjacent to the two
sets of screws previously installed.
Pay special attention to the directionality provided by the larger pin-
hole on the AGP port side. Do not apply excessive force when
inserting the supporting base. If the supporting base does not go in,
check the orientation with the following figure and position the
supporting base so as to match the larger pinhole.
Larger Pin-hole
10
