Hardware Setup

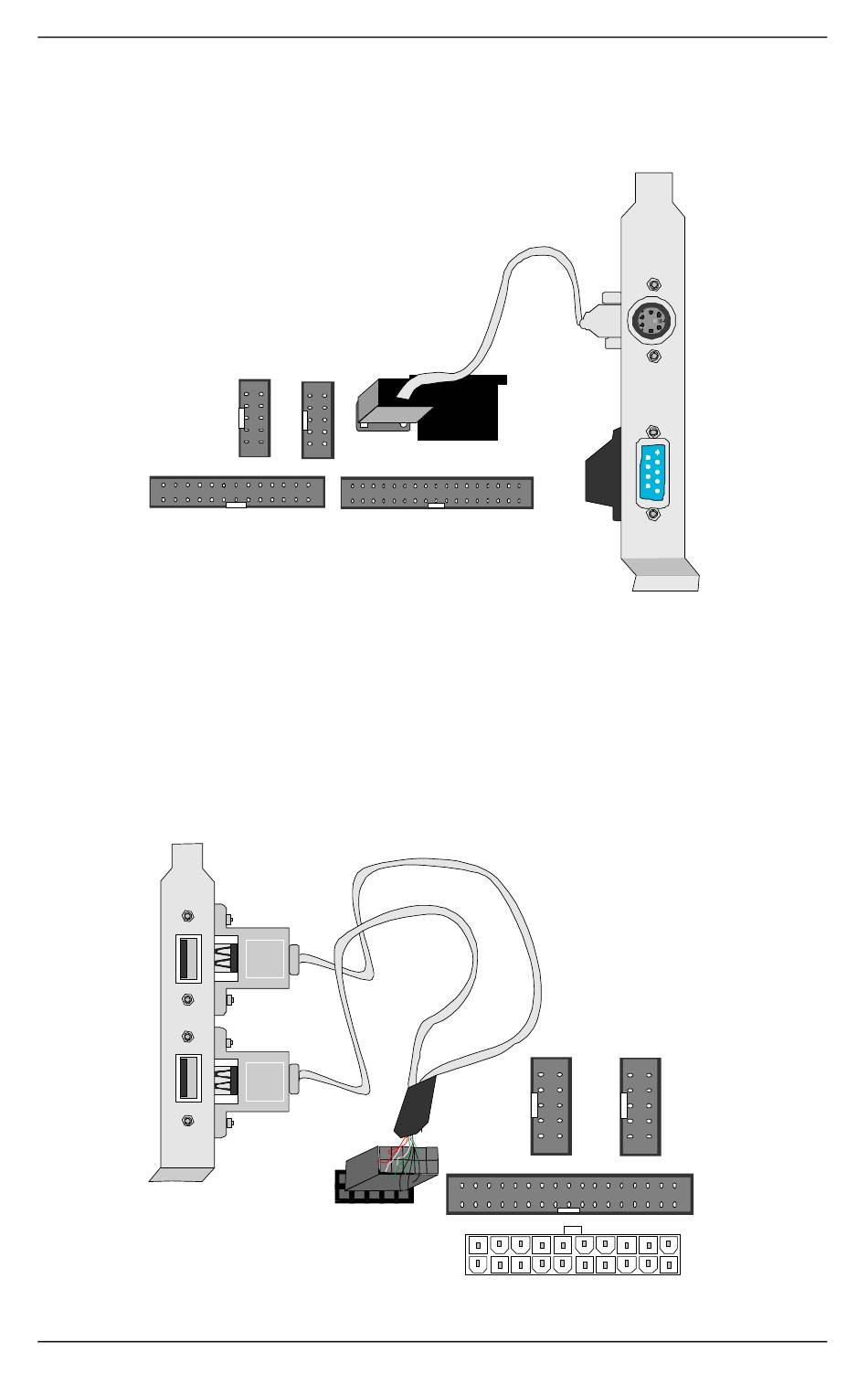

PS/2 Mouse
Attach the mouse cable to the 6-pin male PS/2 mouse connector on
the Mainboard to enable PS/2 mouse function.
PRT
1
Universal Serial Bus (USB)
This mainboard provides a dual-row 10-pin header (one pin is empty)
to support two USB ports for your additional devices. Attach the
USB cable (Optional) to this header as shown in the diagram below.
The USB cable has two USB ports mounted on a bracket.
PS/2 Mouse
COM 2
COM 1
Connector
1
1
FDC
1
USB
KB
Connector
KB
Connector
21
SY-6IEB
