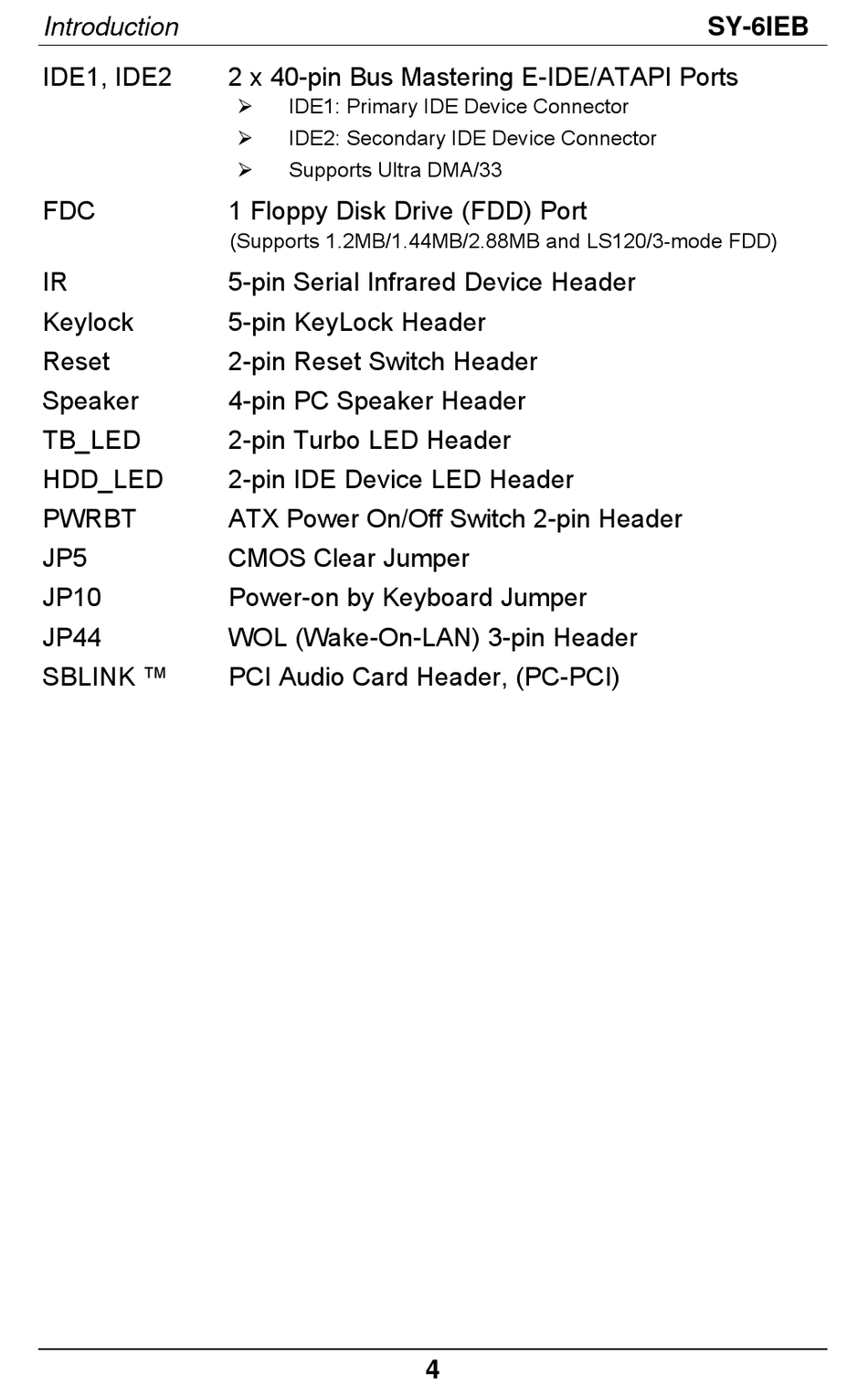

Introduction
IDE1, IDE2
FDC
IR
Keylock
Reset
Speaker
TB_LED
HDD_LED
PWRBT
JP5
JP10
JP44
SBLINK ™
2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
Ø IDE1: Primary IDE Device Connector
Ø IDE2: Secondary IDE Device Connector
Ø Supports Ultra DMA/33
1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
5-pin Serial Infrared Device Header
5-pin KeyLock Header
2-pin Reset Switch Header
4-pin PC Speaker Header
2-pin Turbo LED Header
2-pin IDE Device LED Header
ATX Power On/Off Switch 2-pin Header
CMOS Clear Jumper
Power-on by Keyboard Jumper
WOL (Wake-On-LAN) 3-pin Header
PCI Audio Card Header, (PC-PCI)
4
SY-6IEB
