Mainboard Layout

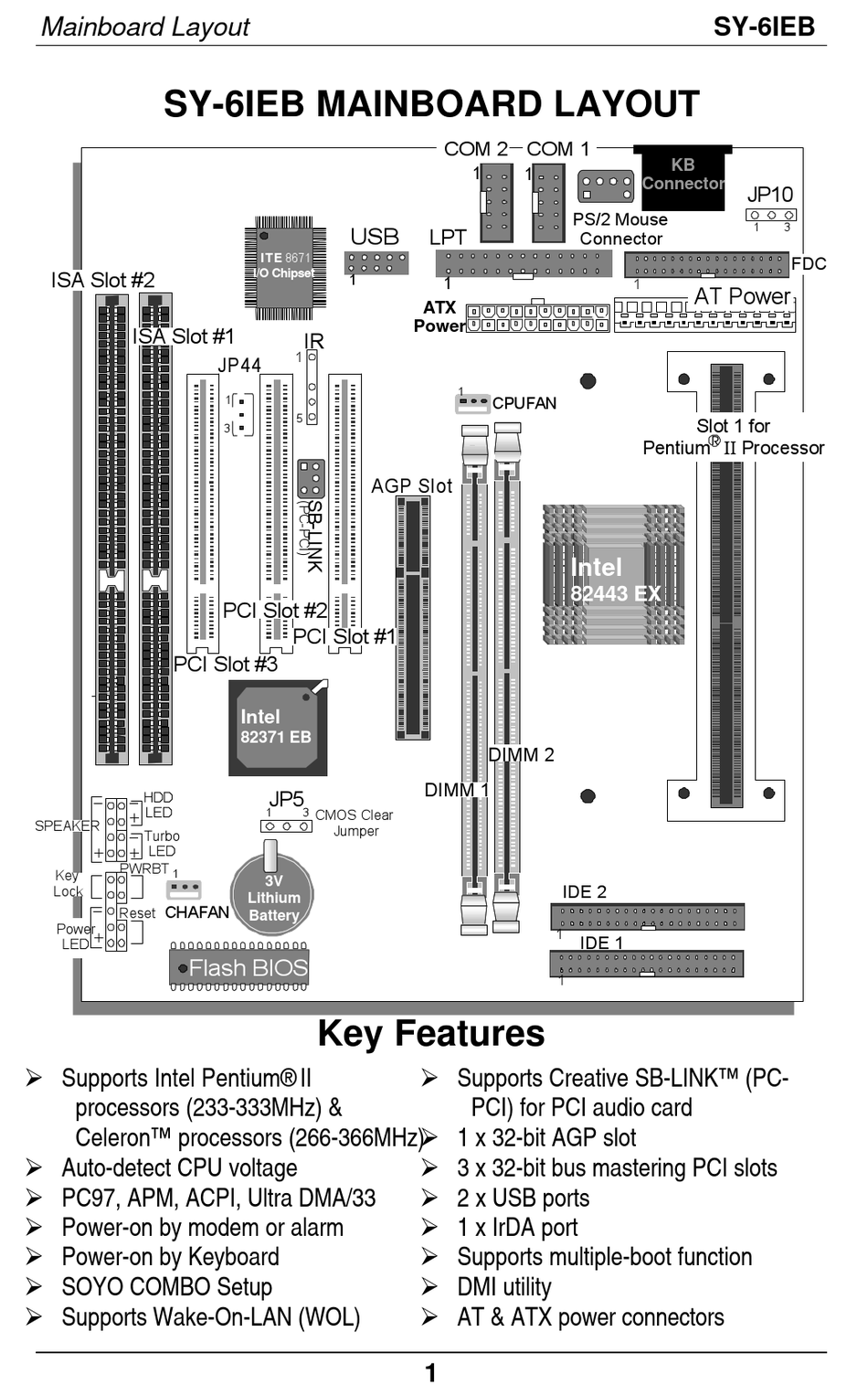

SY-6IEB MAINBOARD LAYOUT

ISA Slot #2
ISA Slot #1
PCI Slot #3
HDD
LED
+
SPEAKER
Flash BIOS Turbo
LED
+ +
PWRBT
1
Key
Lock
CHAFAN
Reset
Power
+
LED
Ø Supports Intel Pentium® II
processors (233-333MHz) &
Celeron™ processors (266-366MHz)
Ø Auto-detect CPU voltage
Ø PC97, APM, ACPI, Ultra DMA/33
Ø Power-on by modem or alarm
Ø Power-on by Keyboard
Ø SOYO COMBO Setup
Ø Supports Wake-On-LAN (WOL)
USB
ITE 8671
I/O Chipset
1
IR
1
JP44
1
5
3
PCI Slot #2
PCI Slot #1
Intel
82371 EB
JP5
1 3
CMOS Clear
Jumper
3V
Lithium
Battery
Flash BIOS
Key Features
COM 2 COM 1
1
1
LPT
1
ATX
Power
1
CPUFAN
AGP Slot
DIMM 2
DIMM 1
Ø Supports Creative SB-LINK™ (PC-
PCI) for PCI audio card
Ø 1 x 32-bit AGP slot
Ø 3 x 32-bit bus mastering PCI slots
Ø 2 x USB ports
Ø 1 x IrDA port
Ø Supports multiple-boot function
Ø DMI utility
Ø AT & ATX power connectors
1
SY-6IEB
KB
Connector
PS/2 Mouse
Connector
1
AT Power
Slot 1 for
R
Pentium II Processor
Intel
82443 EX
IDE 2
1
IDE 1
1
JP10
1 3
FDC
