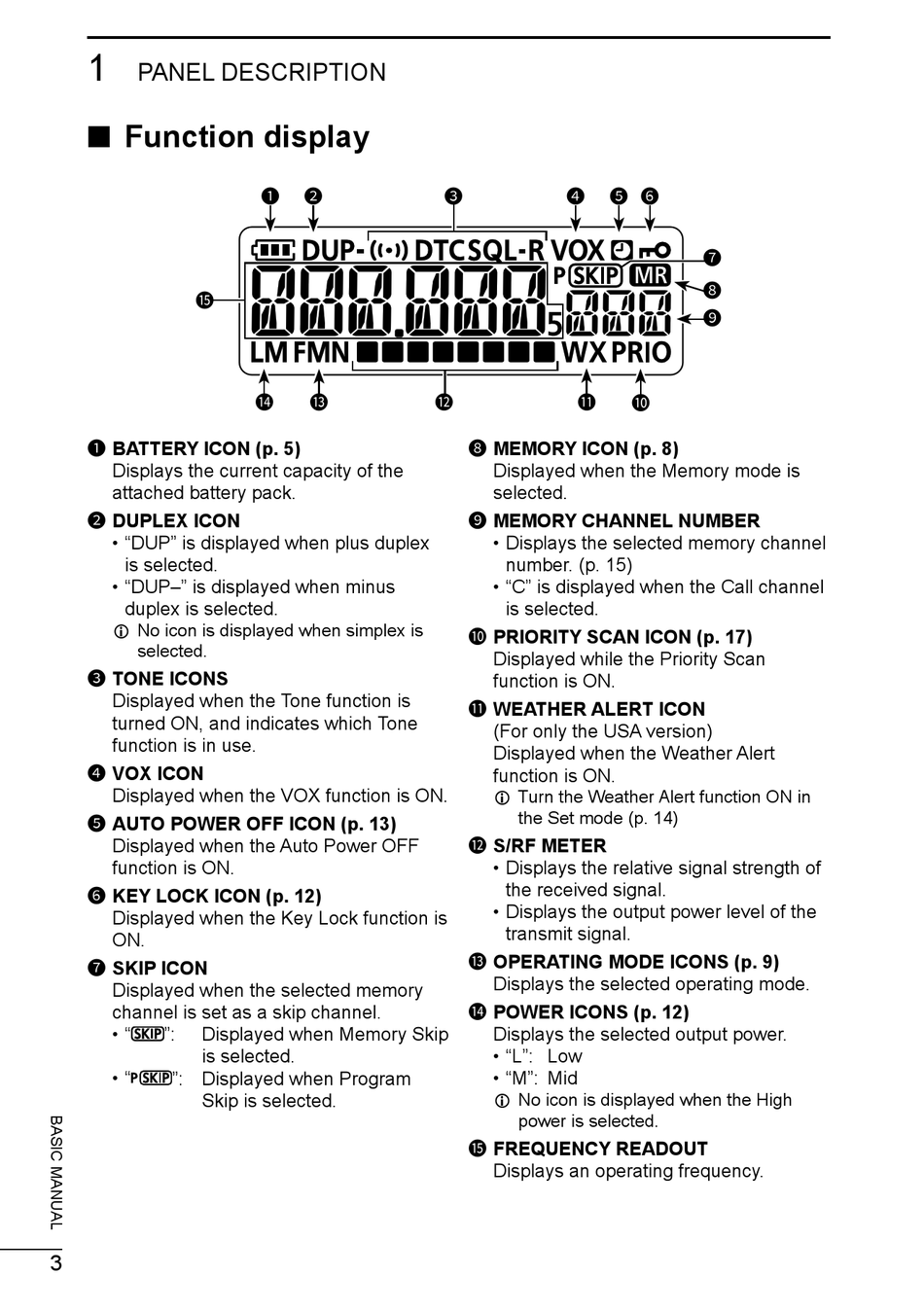

PANEL DESCRIPTION

■ Function display

15
1 BATTERY ICON (p� 5)
Displays the current capacity of the
attached battery pack.
2 DUPLEX ICON
• "DUP" is displayed when plus duplex
is selected.
• "DUP–" is displayed when minus
duplex is selected.
L No icon is displayed when simplex is
selected.
3 TONE ICONS
Displayed when the Tone function is
turned ON, and indicates which Tone
function is in use.
4 VOX ICON
Displayed when the VOX function is ON.
5 AUTO POWER OFF ICON (p� 13)
Displayed when the Auto Power OFF
function is ON.
6 KEY LOCK ICON (p� 12)
Displayed when the Key Lock function is
ON.
7 SKIP ICON
Displayed when the selected memory
channel is set as a skip channel.
• " ": Displayed when Memory Skip
is selected.
• " ": Displayed when Program
Skip is selected.
3
1 2
14 13
3 4 5 6
12 11
8 MEMORY ICON (p� 8)
Displayed when the Memory mode is
selected.
9 MEMORY CHANNEL NUMBER
• Displays the selected memory channel
number. (p. 15)
• "C" is displayed when the Call channel
is selected.
10 PRIORITY SCAN ICON (p� 17)
Displayed while the Priority Scan
function is ON.
11 WEATHER ALERT ICON
(For only the USA version)
Displayed when the Weather Alert
function is ON.
L Turn the Weather Alert function ON in
the Set mode (p. 14)
12 S/RF METER
• Displays the relative signal strength of
the received signal.
• Displays the output power level of the
transmit signal.
13 OPERATING MODE ICONS (p� 9)
Displays the selected operating mode.
14 POWER ICONS (p� 12)
Displays the selected output power.
• "L": Low
• "M": Mid
L No icon is displayed when the High
power is selected.
15 FREQUENCY READOUT
Displays an operating frequency.
