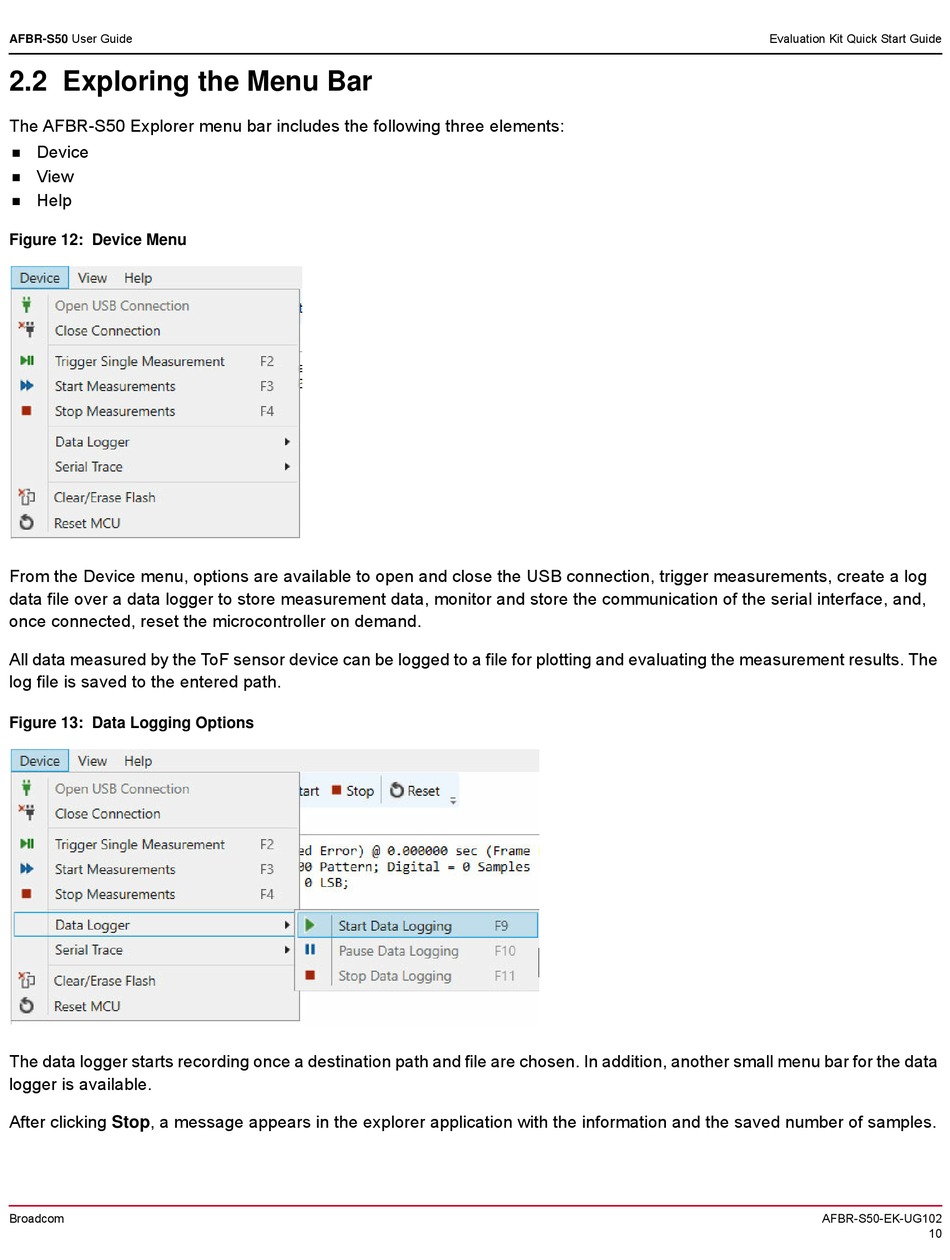

2.2 Exploring the Menu Bar

The AFBR-S50 Explorer menu bar includes the following three elements:
Device

View

Help

Figure 12: Device Menu
From the Device menu, options are available to open and close the USB connection, trigger measurements, create a log
data file over a data logger to store measurement data, monitor and store the communication of the serial interface, and,
once connected, reset the microcontroller on demand.
All data measured by the ToF sensor device can be logged to a file for plotting and evaluating the measurement results. The
log file is saved to the entered path.
Figure 13: Data Logging Options
The data logger starts recording once a destination path and file are chosen. In addition, another small menu bar for the data
logger is available.
After clicking Stop, a message appears in the explorer application with the information and the saved number of samples.
