AFBR-S50 User Guide

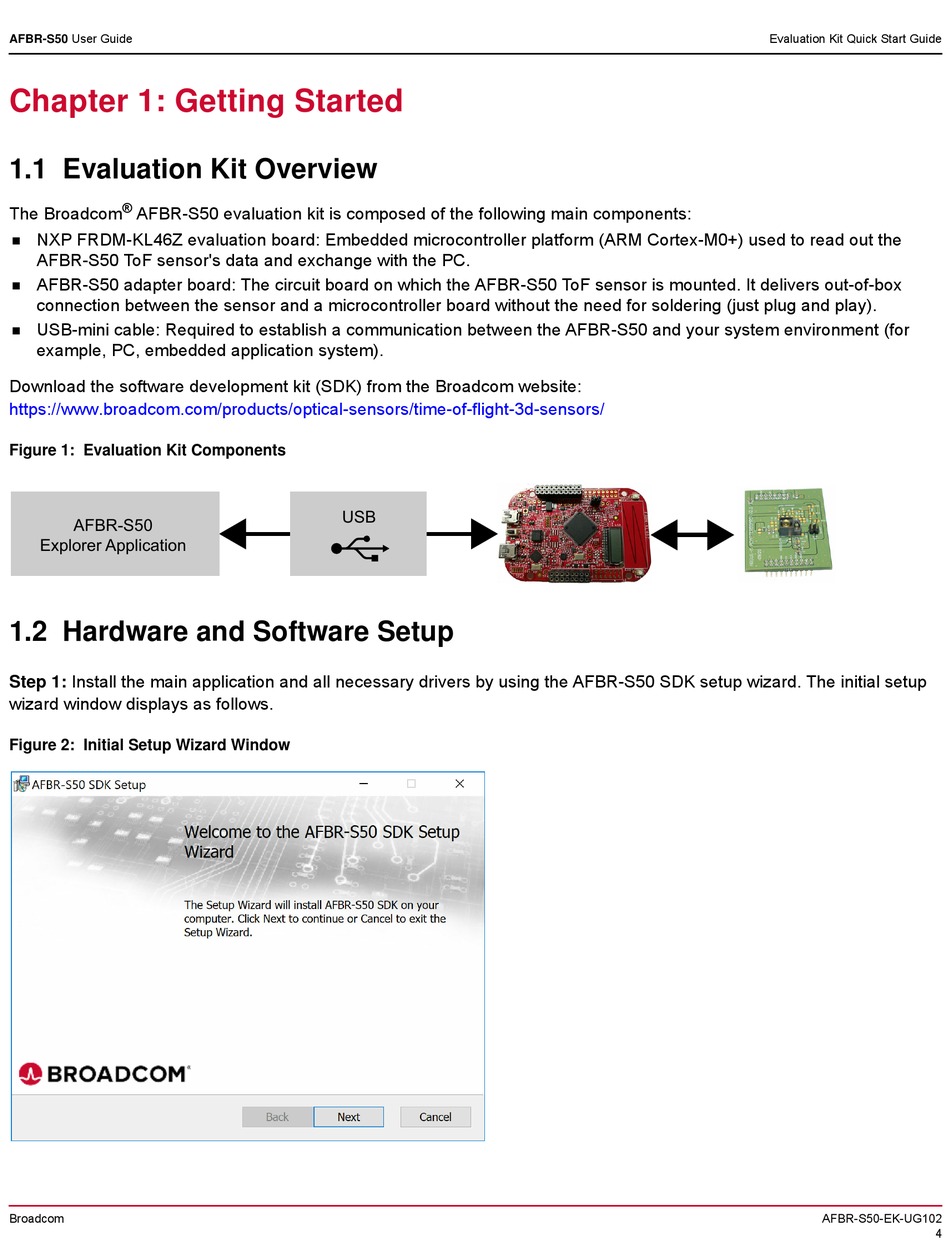

Chapter 1: Getting Started

1.1 Evaluation Kit Overview

®
The Broadcom AFBR-S50 evaluation kit is composed of the following main components:
NXP FRDM-KL46Z evaluation board: Embedded microcontroller platform (ARM Cortex-M0+) used to read out the

AFBR-S50 ToF sensor's data and exchange with the PC.
AFBR-S50 adapter board: The circuit board on which the AFBR-S50 ToF sensor is mounted. It delivers out-of-box

connection between the sensor and a microcontroller board without the need for soldering (just plug and play).
USB-mini cable: Required to establish a communication between the AFBR-S50 and your system environment (for

example, PC, embedded application system).
Download the software development kit (SDK) from the Broadcom website:
https://www.broadcom.com/products/optical-sensors/time-of-flight-3d-sensors/
Figure 1: Evaluation Kit Components
AFBR-S50
Explorer Application

1.2 Hardware and Software Setup

Step 1: Install the main application and all necessary drivers by using the AFBR-S50 SDK setup wizard. The initial setup
wizard window displays as follows.
Figure 2: Initial Setup Wizard Window
Broadcom
USB
Evaluation Kit Quick Start Guide
AFBR-S50-EK-UG102
4
