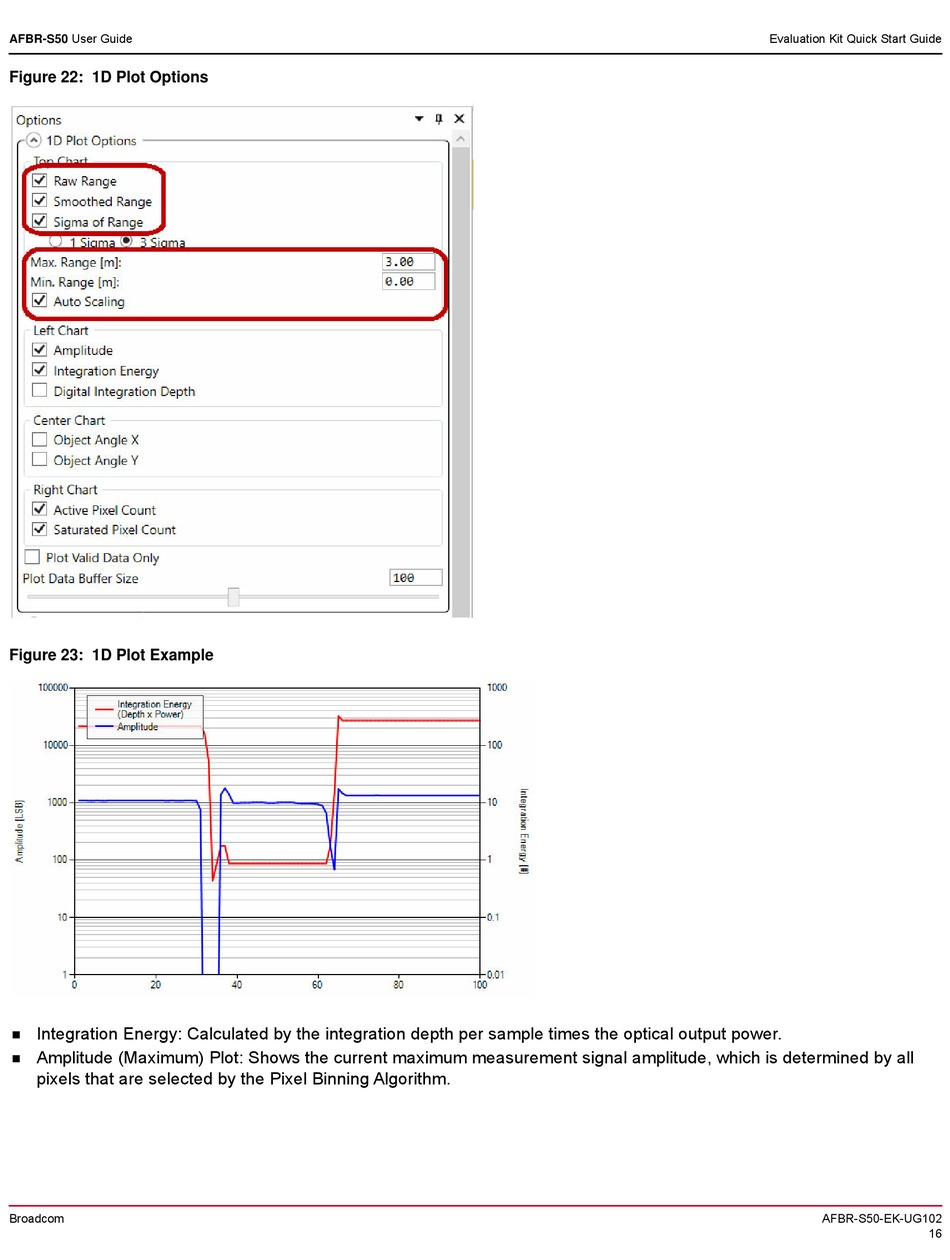

Figure 22: 1D Plot Options
Figure 23: 1D Plot Example
Integration Energy: Calculated by the integration depth per sample times the optical output power.
Amplitude (Maximum) Plot: Shows the current maximum measurement signal amplitude, which is determined by all
pixels that are selected by the Pixel Binning Algorithm.
