AFBR-S50 User Guide

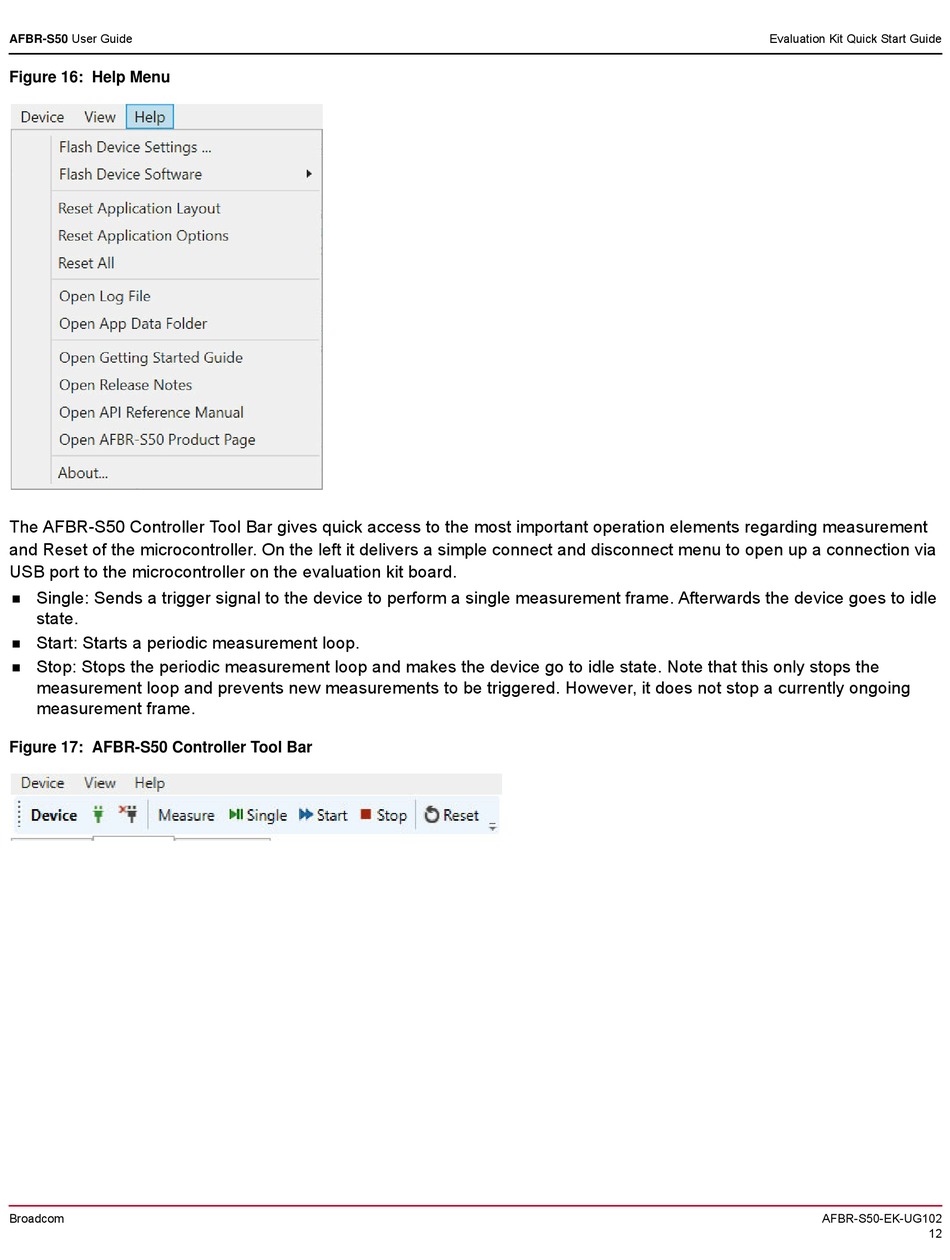

Figure 16: Help Menu
The AFBR-S50 Controller Tool Bar gives quick access to the most important operation elements regarding measurement
and Reset of the microcontroller. On the left it delivers a simple connect and disconnect menu to open up a connection via
USB port to the microcontroller on the evaluation kit board.
Single: Sends a trigger signal to the device to perform a single measurement frame. Afterwards the device goes to idle

state.
Start: Starts a periodic measurement loop.

Stop: Stops the periodic measurement loop and makes the device go to idle state. Note that this only stops the

measurement loop and prevents new measurements to be triggered. However, it does not stop a currently ongoing
measurement frame.
Figure 17: AFBR-S50 Controller Tool Bar
