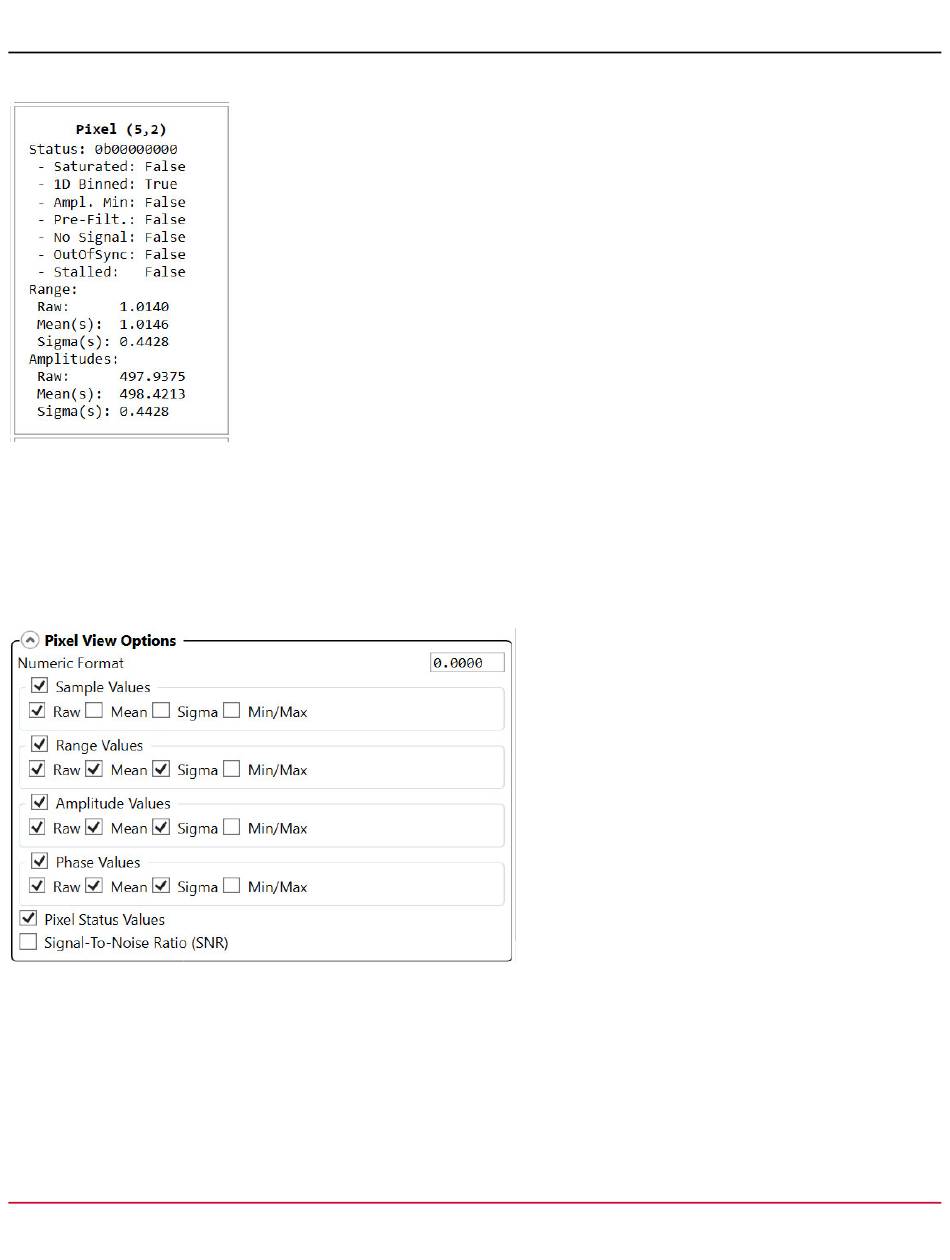

Figure 30: Single Pixel Status
For a detailed description of the single statuses, open the API reference manual and type argus_px_status_t in the
search field.
Choose which of the results to keep visible or hidden by selecting the associated Pixel View Options from the Options Panel.
In addition, the Numeric Format of the displayed results can be adapted.
Figure 31: Pixel View Options
