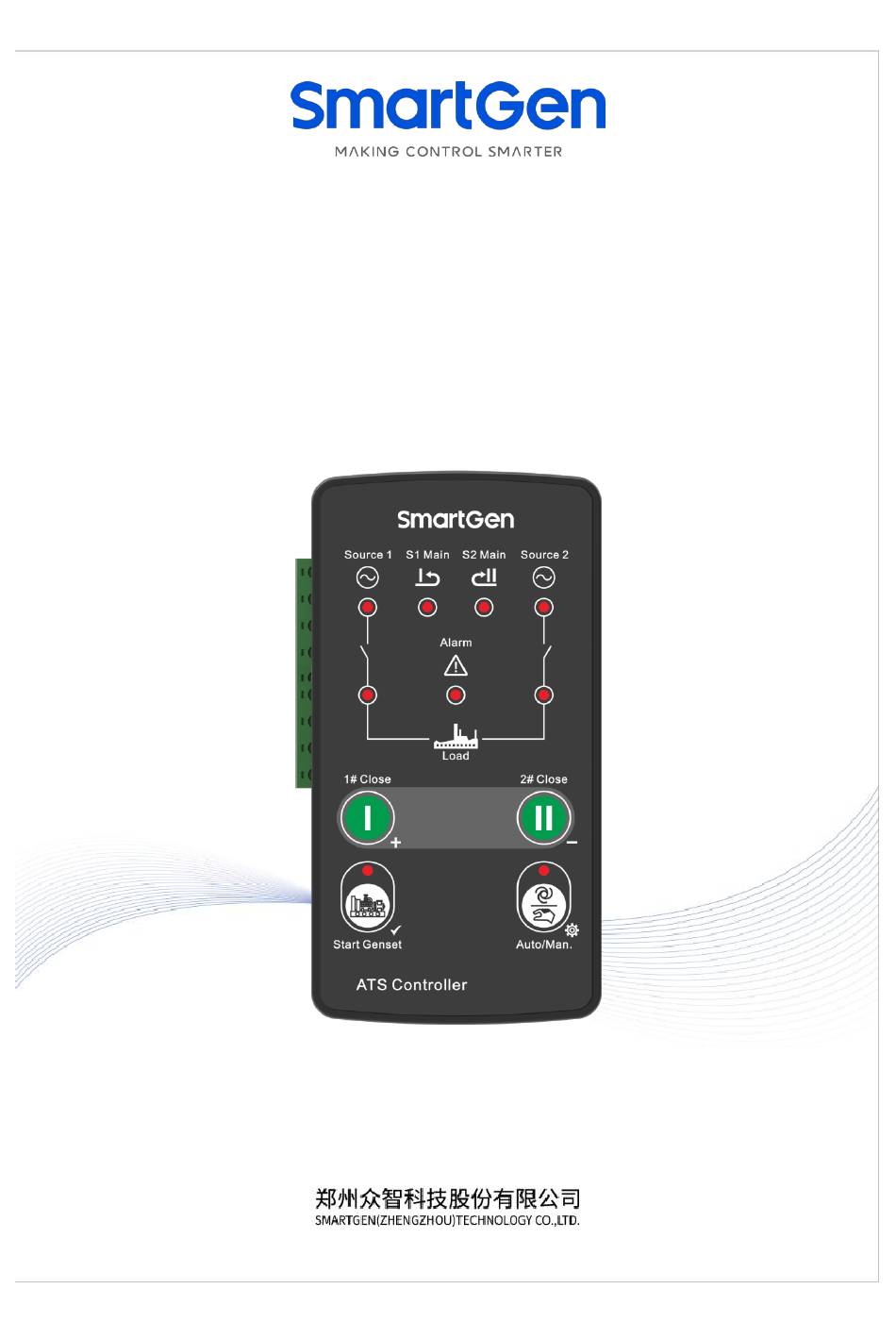

- Page 1 HAT162 ATS CONTROLLER USER MANUAL...
- Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 Software Version Date...
-
Page 3: Table Of Contents
8.3 RESET TO DEFAULT ........................14 TYPICAL APPLICATION ......................... 15 10. OVERALL DIMENSION AND PANEL CUTOUT ..................19 10.1 CASE DIMENSION ........................19 10.2 CUTOUT DIMENSION ........................19 10.3 INSTALLATION ........................... 20 11. TROBLESHOOTING ..........................21 HAT162 ATS Controller User Manual Page 3 of 21... -
Page 4: Overview
1. OVERVIEW HAT162 ATS Controller is suitable for no breaking two stage ATS. It can accurately detect 2-way-3-phase voltage and judge voltage abnormal (such as over voltage, under voltage, over frequency, under frequency, lack of phase and phase rotation), and then control ATS to switch. When ATS switches abnormally, the controller can detect close/open failure and alarm on the front panel to ensure the correct action of ATS. -
Page 5: Specification
IP65: when water-proof gasket installed between control panel and Protection Level enclosure. Apply AC2.2kV voltage between high voltage terminal and low voltage Insulation Strength terminal; The leakage current is not more than 3mA within 1min. Weight 0.6kg HAT162 ATS Controller User Manual Page 5 of 21... -
Page 6: Operation
While genset start signal is active, press it can deactivate the genset start signal; Test (Confirm) While genset start signal is inactive, press it can active the genset start signal; Confirm user-defined parameters in parameter setting screen. HAT162 ATS Controller User Manual Page 6 of 21... -
Page 7: Indicator Description
1# close status input detecting is active, and then 1# supply ramps on load; if press , 2# close relay outputs, and 2# close status indicator illuminated when 2# close status input detecting is active, and then 2# supply ramps on load. HAT162 ATS Controller User Manual Page 7 of 21... -
Page 8: Auto Operation
Reset close fault alarm: after alarm occurs, switch controller to manual mode to reset alarm. This moment, troubleshooting and ATS transfer test can be carried out. NOTE: After reset alarms, the fault must be checked and cleared. HAT162 ATS Controller User Manual Page 8 of 21... -
Page 9: Wire Connection
Rated capacity: 16A/250VAC contact output Gen Start Volt free normally close Rated capacity: 7A/250VAC Signal output contact output Volt free normally open Aux. output Rated capacity: 7A/250VAC contact output Not connect HAT162 ATS Controller User Manual Page 9 of 21... -
Page 10: Definition And Range Of Parameters
7: User defined (Default: 5s) 1: 1s 2: 5s 3: 10s S1 Abnormal Delay (1-7) 4: 20s 5: 30s 6: 45s 7: User defined (Default: 5s) 1: 1s S2 Abnormal Delay (1-7) 2: 5s HAT162 ATS Controller User Manual Page 10 of 21... - Page 11 2: 8s 3: 15s Gen Stop Delay (1-7) 4: 30s 5: 50s 6: 70s 7: User defined (Default: 90s) 1: S1 Priority Set Priority (1-3) 2: S2 Priority 3: No priority HAT162 ATS Controller User Manual Page 11 of 21...
- Page 12 12: S2 Close Status Output 13: Reserved 14: Reserved 15: Reserved 16: Reserved (1-254) Module Address Address that communicates with PC software. NOTE: The parameters in this form can be set via computers. HAT162 ATS Controller User Manual Page 12 of 21...
-
Page 13: Parameters Setting
LEDs flash, which means parameters are all saved and then it will return to normal mode. NOTE: See “Table 8 Parameter Value Comparison” for the values corresponding of LED indicators. HAT162 ATS Controller User Manual Page 13 of 21... -
Page 14: Reset To Default
Meanwhile, all LEDs flash for 3 times and return back to the normal mode. NOTE: If do not need to restore to factory value, press to return to the normal mode after LED flashes. HAT162 ATS Controller User Manual Page 14 of 21... -
Page 15: Typical Application
9. TYPICAL APPLICATION Fig.4 SGQ-N Wire Connection HAT162 ATS Controller User Manual Page 15 of 21... - Page 16 Fig.5 SGQ-T Wire Connection HAT162 ATS Controller User Manual Page 16 of 21...
- Page 17 And the capacity of the fuse should be selected according to the actual power consumption at the site, which cannot be based on the fuse capacity in the drawing. Fig.7 2 Phase 3 Wire Connection HAT162 ATS Controller User Manual Page 17 of 21...
- Page 18 NOTE: The above drawing shows the wiring method is the AC phase voltage of 220V. If the AC phase voltage is 110V in actual use, please contact our technical personnel to confirm the specific wiring method. HAT162 ATS Controller User Manual Page 18 of 21...
-
Page 19: Overall Dimension And Panel Cutout
CUTOUT DIMENSION The controller has three installation ways: panel built-in, internal 35mm slideway and internal screw mounting. Panel built-in and internal screw mounting are as below: Unit: mm Fig.10 Cutout Dimensions HAT162 ATS Controller User Manual Page 19 of 21... -
Page 20: Installation
10.3 INSTALLATION Fig.11 Panel Built-in Installation Fig.12 35mm Guide Rail Installation Fig.13 Screw Installation HAT162 ATS Controller User Manual Page 20 of 21... -
Page 21: Trobleshooting
Check the connections between controller and ATS. 1# or 2# power LED flashes Check whether AC voltage is normal or not. If switch close failure alarms, please check switch auxiliary contact Alarm LED flashes wiring. _________________________________ HAT162 ATS Controller User Manual Page 21 of 21...
