HAT700 SERIES
HAT700/HAT700I/HAT700B/HAT700BI/HAT700S
ATS CONTROLLER
USER MANUAL
SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAT700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smartgen HAT700

Summary of Contents for Smartgen HAT700

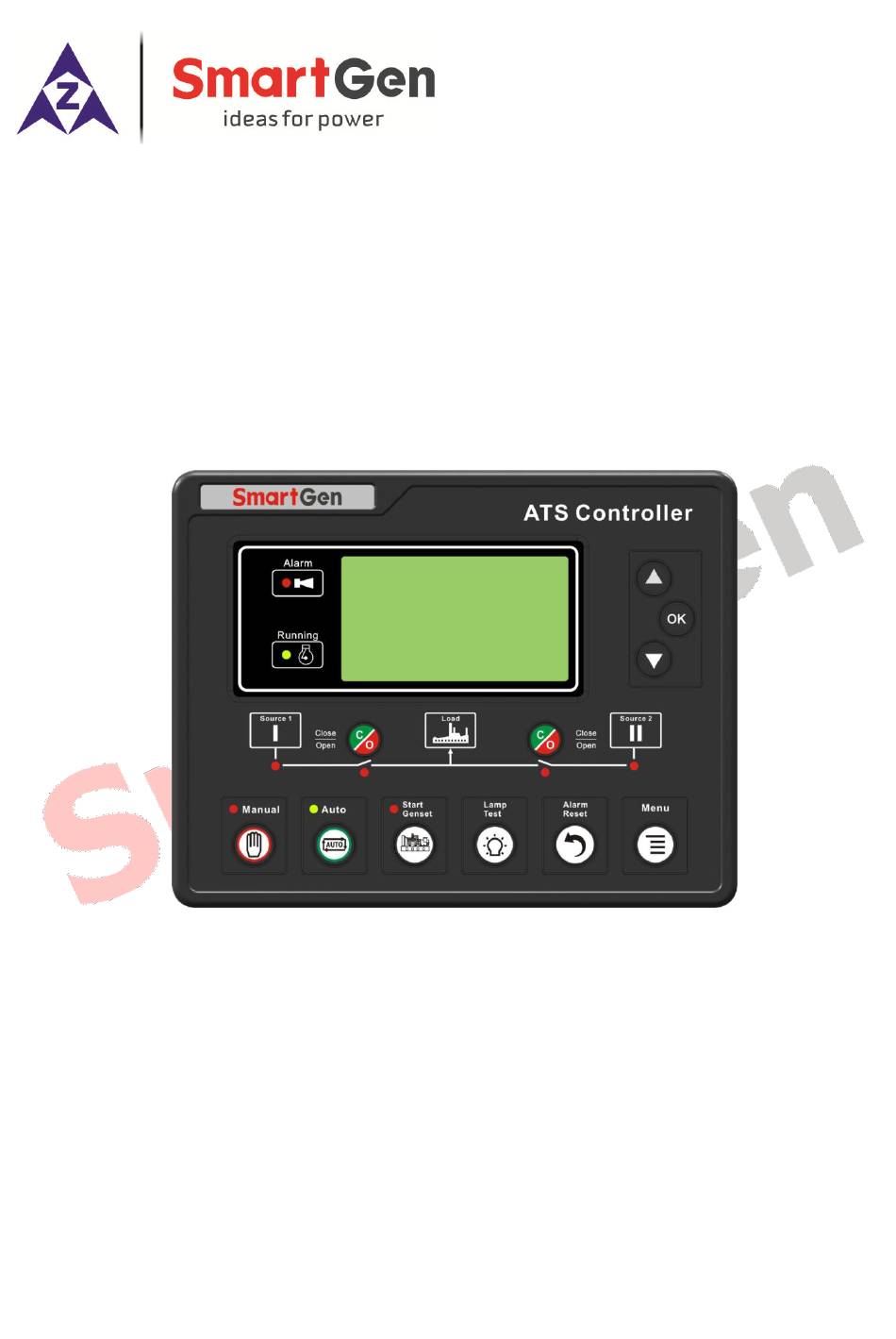

  • Page 1 HAT700 SERIES HAT700/HAT700I/HAT700B/HAT700BI/HAT700S ATS CONTROLLER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
  • Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Software Version Version...

  • Page 3: Table Of Contents

    HAT700 SERIES ATS CONTROLLER USER MANUAL CONTENT OVERVIEW ............................5 ORDER INFORMATION AND MODULES COMPARISON ............... 5 ORDER INFORMATION ......................5 MODULES COMPARISON ......................5 PERFORMANCE AND CHARACTERISTICS ..................6 SPECIFICATION ..........................7 MEASURE AND DISPLAY DATA ....................... 8 OPERATION ............................9 INDICATORS ..........................
  • Page 4 HAT700 SERIES ATS CONTROLLER USER MANUAL ATS POWER SUPPLY ........................39 LOAD SHEDDING ......................... 40 COMMUNICATION CONFIGURATION ..................41 DESCRIPTION OF CONNECTING TERMINALS ................ 41 TYPICAL WIRING DIAGRAM ....................... 43 INSTALLATION ..........................51 FAULT FINDING ........................... 51 HAT700 Series ATS Controller 2018-12-13 Version 1.5...

  • Page 5: Overview

    HAT700 SERIES ATS CONTROLLER USER MANUAL 1 OVERVIEW HAT700 series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, LCD display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.

  • Page 6: Performance And Characteristics

    HAT700 SERIES ATS CONTROLLER USER MANUAL 3 PERFORMANCE AND CHARACTERISTICS System type can set as: “S1 Mains S2 Mains”, “S1 Mains, S2 Gen”, “S1 Gen S2 Mains”, “S1 Gen S2 Gen”. 132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages), push-button operation.

  • Page 7: Specification

    HAT700 SERIES ATS CONTROLLER USER MANUAL 4 SPECIFICATION Items Contents 1. DC 8.0V~35.0V, continuous power supply. Operating Voltage 2. AC90V~280V during AC power supply L1N1/L2N2 (HAT700B/HAT700BI /HAT700S). <5W (Standby mode: ≤2W) Power Consumption HAT700B/HAT700BI/ AC system HAT700/HAT700I HAT700S 3P4W (L-L)

  • Page 8: Measure And Display Data

    HAT700 SERIES ATS CONTROLLER USER MANUAL 5 MEASURE AND DISPLAY DATA Data Items HAT700/HAT700B HAT700I/HAT700BI HAT700S ● ● ● S1/S2 Phase Voltage ( L1-N,L2-N,L3-N) ● ● ● S1/S2 Line Voltage ( L1-L2,L2-L3,L3-L1) ● ● ● S1/S2 Phase (L1-L2-L3) ● ●...

  • Page 9: Operation

    HAT700 SERIES ATS CONTROLLER USER MANUAL 6 OPERATION 6.1 INDICATORS INDICATORS DESCRIPTION Indicator Type Description Slow flashing (1time per sec) when warn alarm occurs. Alarm Fast flashing (5 times per sec) when fault alarm occurs. Running Flash when module countdown running (1time per sec) It is light on when S1 is normal;...

  • Page 10: Key Function Description

    HAT700 SERIES ATS CONTROLLER USER MANUAL 6.2 KEY FUNCTION DESCRIPTION Icon Button Name Function Description Active in Manual mode. Press this key, if S1 load is opened, then the S1 closing relay will be energized; if S1 load is closed, then the S1 opening relay will be energized.

  • Page 11: Lcd Display

    HAT700 SERIES ATS CONTROLLER USER MANUAL 7 LCD DISPLAY 7.1 MAIN SCREEN Status S1 Normal S1 Voltage Status S2 Inactive S2 Voltage Status Genset Standby Genset Status S1 On Load Switch Status Auto Mode Current Mode, Alarm Status, Indications, Others...
  • Page 12 HAT700 SERIES ATS CONTROLLER USER MANUAL S2 Total Supply Time S2 Total Supply Time 35:43:29 HH：MM：SS Auto Mode Current Mode, Alarm Status, Indications, Others S1 Total kWh S1 Total kWh 16263.6kWh S2 Total kWh S2 Total kWh 2879.9kWh Auto Mode...

  • Page 13: Status Description

    HAT700 SERIES ATS CONTROLLER USER MANUAL 7.2 STATUS DESCRIPTION 7.2.1. S1 VOLTAGE STATUS Item Description S1 Available S1 Normal Delay S1 Unavailable S1 Abnormal Delay S1 Available Power supply voltage is within the setting range. S1 Blackout Voltage is 0.

  • Page 14: Switch Status

    HAT700 SERIES ATS CONTROLLER USER MANUAL 7.2.4. SWITCH STATUS Item Description Ready to Transfer Switch transfer begins. Closing S1 S1 closing delay is in progress. Opening S1 S1 opening delay is in progress. Closing S2 S2 closing delay is in progress.

  • Page 15: Fault Alarms

    HAT700 SERIES ATS CONTROLLER USER MANUAL 7.2.6. FAULT ALARMS Fault alarms are active when controller detects the alarm signals. Alarm indicator will flash rapidly (5 times per sec) and the alarm will last until it was removed manually. Fault alarms are latched.

  • Page 16: Others

    5.About NOTE：Default password is 01234, user can change it in case of others change the parameters setting. Please clearly remember the password after changing. If you forget it, please contact SmartGen services. NOTE：Data Calibration is for factory use only and correct passwords must be input before entered.

  • Page 17: Start/Stop Operation

    HAT700 SERIES ATS CONTROLLER USER MANUAL 8 START/STOP OPERATION 8.1 MANUAL START/STOP 8.1.1. PANEL START/STOP In the main screen, press key will enter into manual start operation interface. 1.Return Press Up/Down key to choose parameters (the current line was 2.Stop Genset highlighted with black) and then press Confirm key to confirm.

  • Page 18: S1 Gens S2 Gens" Start/Stop

    HAT700 SERIES ATS CONTROLLER USER MANUAL 8.2.2. “S1 GEN S2 GEN” START/STOP When system is “S1 Gen S2 Gen”, input port start/stop function is as follows: Remote Start on Load: Detect S1 or S2 start output according to start mode. Genset close relay will active after genset is normal.

  • Page 19: Scheduled Run

    HAT700 SERIES ATS CONTROLLER USER MANUAL 8.2.3. SCHEDULED RUN Once Scheduled Run enables, users can set the scheduled start time. Controller will send start signal at preset start time. Start signal will deactivated after the start delay has expired. Scheduled Run On Load or Scheduled Run Off Load can be set.

  • Page 20: Parameters Configuration

    HAT700 SERIES ATS CONTROLLER USER MANUAL 9 PARAMETERS CONFIGURATION 9.1 ILLUSTRATION In the main interface, press key, choose Configuration and press again to enter into password confirmation interface. If password is correct, enter into parameter setting interface, otherwise, exit to main interface directly. Factory default password is 01234. In parameters configuration interface, pressing key to return the prior menu.
  • Page 21 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description Lower limit return value of voltage; it is Under Voltage Return (0-200)% normal only when the value has exceeded Value the set value. Rated Frequency (10.0-75.0)Hz 50.0 Rated frequency of AC system...
  • Page 22 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description 2: PC Two-stage (PC switch without OFF position) Forced Open Action (0-1) 0: Warn Alarm 1: Fault Alarm 0: Disable ; 1: Enable If “Enable” is selected, “Close Time” and...
  • Page 23 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description delay begins, after the start delay has expired, start signal will be initiated. When the genset is ready to stop, stop delay Gen Stop Delay (0-9999)s begins, after the stop delay has expired, stop signal will be initiated.
  • Page 24 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description Bit2: Tuesday Bit3: Wednesday Bit4: Thursday Bit5: Friday Bit6: Saturday Schedule Hours (0-23)h The time of start the genset Schedule Minutes (0-59)min Schedule Work Time (0-30000)min The duration time of genset running...
  • Page 25 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description NEL1 Set Value (0-200)% Off load output will active if the load power has exceeded the set value and the delay NEL1 Delay (0-3600)s time has expired. NEL2 Set Value...
  • Page 26 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description Active Type 1:Normally close Combined 1 Or Out 1 (0-92) S1 Normal Contents Setting Combined 1 Or Out 2 0:Normally open; (0-1) Active Type 1:Normally close Combined 1 Or Out 2...
  • Page 27 HAT700 SERIES ATS CONTROLLER USER MANUAL Item Range Default Description Contents Setting Combined 5 Or Out 1 0:Normally open; (0-1) Active Type 1:Normally close Combined 5 Or Out 1 (0-92) Not Used Contents Setting Combined 5 Or Out 2 0:Normally open;...

  • Page 28: Input/Output Function Description

    HAT700 SERIES ATS CONTROLLER USER MANUAL 9.3 INPUT/OUTPUT FUNCTION DESCRIPTION 9.3.1 INPUT PORTS FUNCTION Item Description Not used Invalid No matter the genset is in manual mode or Auto mode, when the Forced Open input is active, this will force the breaker to transfer the ATS to OFF position.

  • Page 29: Output Ports Function

    HAT700 SERIES ATS CONTROLLER USER MANUAL Item Description Sync Inhibit Sync transfer function is deactivated. Scheduler Inhibit Schedule Start and Schedule Not Start function are deactivated. Simulate S1 voltage is normal; the S1 voltage abnormal delay is Simulate S1 OK deactivated.
  • Page 30 HAT700 SERIES ATS CONTROLLER USER MANUAL Items Description S2 Unavailable Output when S2 power is abnormal. S1 Over Current Output when S1 over current occurs. S2 Over Current Output when S2 over current occurs. Reserved Auto Mode Output when the genset is in Auto mode.
  • Page 31 HAT700 SERIES ATS CONTROLLER USER MANUAL Items Description S1 Over Freq S1 Under Freq S1 Loss Of Phase S1 Phase Seq Wrong Reserved Reserved S2 Blackout S2 Over Volt S2 Under Volt S2 Over Freq S2 power supply status S2 Under Freq...

  • Page 32: Custom Period Output

    HAT700 SERIES ATS CONTROLLER USER MANUAL 9.3.3 CUSTOM PERIOD OUTPUT Defined combination output is composed by 3 parts, condition output SW1 or SW2 and condition output SW3. SW1 or SW2 is TRUE, while SW3 is TRUE, Defined combination output is active;...

  • Page 33: Definite Time Delay And Inverse Definite Minimum Time Setting

    HAT700 SERIES ATS CONTROLLER USER MANUAL 9.4 DEFINITE TIME DELAY AND INVERSE DEFINITE MINIMUM TIME SETTING Definite Time：overcurrent delay is definite time delay. Different overcurrent value has corresponding delay. Inverse Definite Minimum Time(IDMT)：overcurrent delay decrease with the increase of overcurrent.

  • Page 34: Event Log

    HAT700 SERIES ATS CONTROLLER USER MANUAL 10 EVENT LOG On the main screen press key and select Event log, and then press key again, the screen will show the event log interface as follow: After enter into the “Event Log” interface, press to view records.
  • Page 35 HAT700 SERIES ATS CONTROLLER USER MANUAL Action events are as follows: Action Events Description Closing S1 Record when the S1 close relay activated. Closing S2 Record when the S2 close relay activated. Opening Record when the open relay (S1 Open or S2 Open) activated.

  • Page 36: Ats Operation

    HAT700 SERIES ATS CONTROLLER USER MANUAL 11 ATS OPERATION 11.1 MANUAL OPERATION Manual mode is selected by pressing the button; a LED besides the button will illuminate to confirm the operation.  Press S1 button, S1 close relay will active, after the close delay has expired, S1 close relay will deactivated and the S1 take load.
  • Page 37 HAT700 SERIES ATS CONTROLLER USER MANUAL detected after the delay has expired, “Fail to Close” or “Fail to Open” alarm will be initiated. Sync Transfer Diagram： S1 Sync Closing: If both of S1 Power and S2 power are normal, S2 has taken load, then S1 close relay will active until S1 close signal is detected or “Sync Transfer Time”...
  • Page 38 HAT700 SERIES ATS CONTROLLER USER MANUAL S2 Sync Closing Diagram: MANUAL SYNC CLOSING In Manual mode, both of S1 Power and S2 power are normal: if S1 has taken load, press S2 button will lead S2 sync closing; if S2 has taken load, press S1 button will lead S1 sync closing.

  • Page 39: Ats Power Supply

    HAT700 SERIES ATS CONTROLLER USER MANUAL 12 ATS POWER SUPPLY Switch Power Type can be set as DC Power or AC Power. If DC Power is selected, then the switch can be transferred at any time (even when both S1 and S2 are outage). If AC Power is selected, whether the power is normal or not should be judged according to the ATS power setting and AC power voltage.

  • Page 40: Load Shedding

    HAT700 SERIES ATS CONTROLLER USER MANUAL 13 LOAD SHEDDING Non-essential load ---- NEL for short. The controller can control the NEL1, NEL2 and NEL3 to trip separately. The order of the essentiality is: NEL3 > NEL2 > NEL1  Auto trip：...

  • Page 41: Communication Configuration

    HAT700 SERIES ATS CONTROLLER USER MANUAL 14 COMMUNICATION CONFIGURATION HAT700 series controller equips with RS485 serial port which enable the connection of LAN. It uses Modbus protocol via PC or system software, it can also be applicable to dual power switching management to factories, telecom, industrial and civil buildings, which achieves “remote control, remote...
  • Page 42 HAT700 SERIES ATS CONTROLLER USER MANUAL Items Description Remark Capacity: 250V16A Normally Open For single phase, only connect A1, S1 AC System 3P4W voltage input For single phase, only connect A2, S2 AC System 3P4W voltage input Connected with negative of starter Ground terminal battery.

  • Page 43: Typical Wiring Diagram

    HAT700 SERIES ATS CONTROLLER USER MANUAL 16 TYPICAL WIRING DIAGRAM ATYS3 Wiring Diagram Parameters Setting Switch Type PC Three-stage Aux. Output 1 ATS Power L Aux. Output 2 ATS Power N Aux. Output 4 S1 Open Control Aux. Output 6...
  • Page 44 HAT700 SERIES ATS CONTROLLER USER MANUAL SGQ-N/T Wiring Diagram Parameters Setting Switch Type PC Two-stage Aux. Output 1 ATS Power L Aux. Output 2 ATS Power N Aux. Output 6 Gen Start Output HAT700 Series ATS Controller 2018-12-13 Version 1.5...
  • Page 45 HAT700 SERIES ATS CONTROLLER USER MANUAL SGQ-M Wiring Diagram Parameters Setting Switch Type PC Two-stage Aux. Output 1 ATS Power L Aux. Output 2 ATS Power N Aux. Output 6 Gen Start Output HAT700 Series ATS Controller 2018-12-13 Version 1.5...
  • Page 46 HAT700 SERIES ATS CONTROLLER USER MANUAL VITZRO/PHETENG Wiring Diagram Parameters Setting Switch Type CB/CC Aux. Output 1 ATS Power L Aux. Output 2 ATS Power N Aux. Output 4 S1 Open Control Aux. Output 5 S2 Open Control Aux. Output 6...
  • Page 47 HAT700 SERIES ATS CONTROLLER USER MANUAL Contactor Wiring Diagram Parameters Setting Switch Type CB/CC Aux. Output 6 Gen Start Output Close Continuous Out Enable HAT700 Series ATS Controller 2018-12-13 Version 1.5 Page 47 of 51...
  • Page 48 HAT700 SERIES ATS CONTROLLER USER MANUAL ATYSM3S Wiring Diagram Parameters Setting Switch Type PC Three-stage Aux. Output 1 ATS Power L Aux. Output 2 ATS Power N Aux. Output 4 S1 Open Control Aux. Output 6 Gen Start Output HAT700 Series ATS Controller 2018-12-13 Version 1.5...
  • Page 49 HAT700 SERIES ATS CONTROLLER USER MANUAL Breaker Wiring Diagram MCH：Stored Energy Motor；MN：Under Voltage Trip；MX：Open Relay；XF：Close Relay； Parameters Setting Switch Type CB/CC Aux. Output 4 S1 Open Control Aux. Output 5 S2 Open Control Aux. Output 6 Gen Start Output HAT700 Series ATS Controller 2018-12-13 Version 1.5...
  • Page 50 Aux. Output 6 Gen Start Output NOTE: All above are application diagrams of HAT700 series ATS controllers. However, HAT700 and HAT700B have no sample current input, please skip over the current part of the diagram. Note：Auxiliary Output 6 is default set as Genset Start Output (Normally Open) and there is only normally close contact in it.

  • Page 51: Installation

    HAT700 SERIES ATS CONTROLLER USER MANUAL 17 INSTALLATION Controller is panel built-in design; it is fixed by clips when installed. The controller’s overall dimensions and cutout dimensions for panel, please refers to as following, Unit: mm 18 FAULT FINDING Symptoms Possible Solutions Check DC voltage.
