Smartgen HATC60 User Manual

Dual power ats controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HATC60
DUAL POWER ATS CONTROLLER
USER MANUAL
SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HATC60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smartgen HATC60

Summary of Contents for Smartgen HATC60

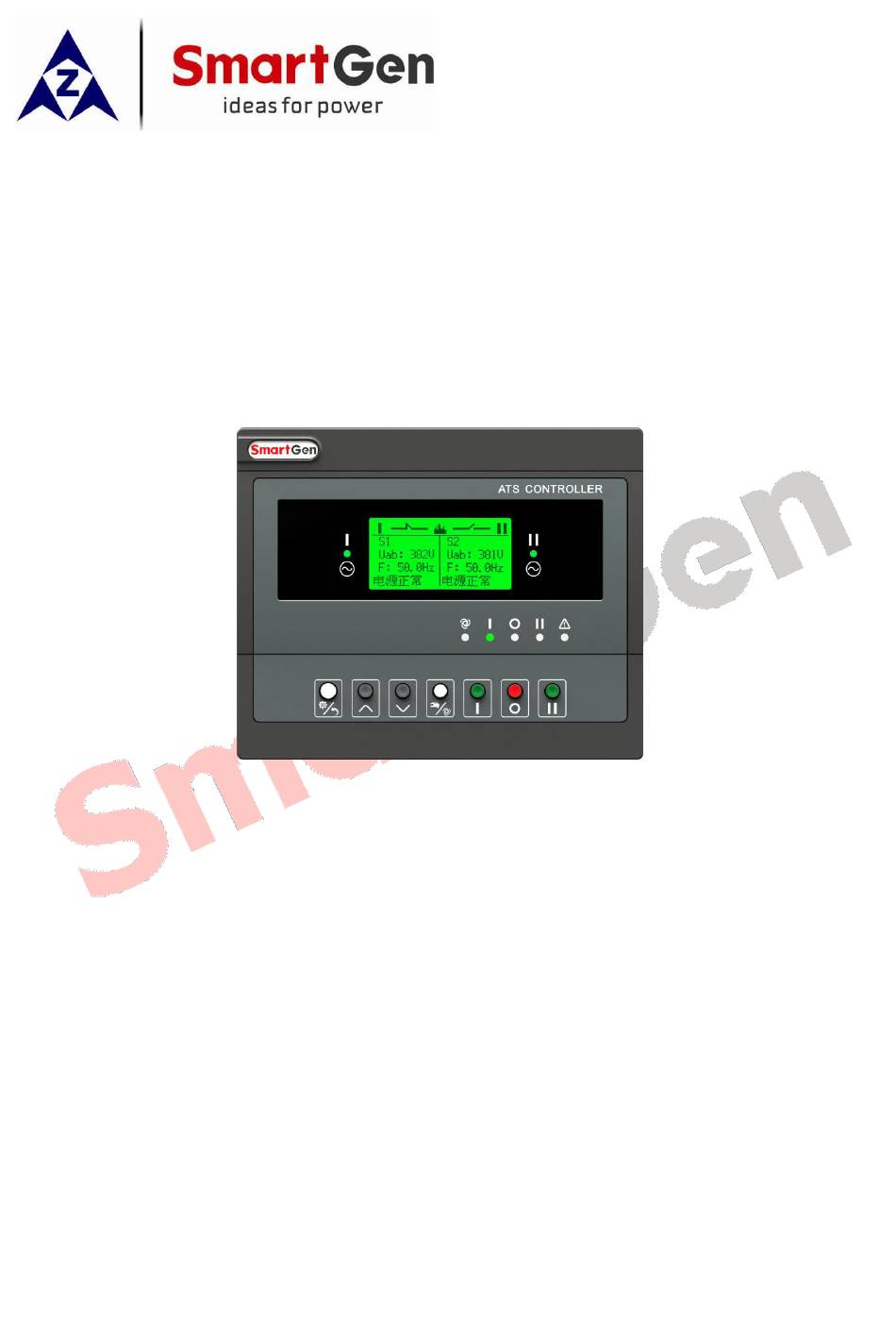

  • Page 1 HATC60 DUAL POWER ATS CONTROLLER USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
  • Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 Software Version Date...

  • Page 3: Table Of Contents

    HATC60 Dual Power ATS Controller User Manual CONTENT 1 OVERVIEW ............................. 4 2 PERFORMANCE AND CHARACTERISTICS ..................5 3 SPECIFICATION ............................. 6 4 MEASURE AND DISPLAY DATA ......................7 5 OPERATION ............................8 5.1 INDICATORS ............................ 8 5.2 KEY FUNCTION DESCRIPTION ..................... 9 6 LCD DISPLAY ............................

  • Page 4: Overview

    HATC60 dual power ATS controller is composed by the powerful microprocessor in the core, which can precisely measure the voltages (2-way 3-phase) and make accurate decision for abnormal voltages (overvoltage, undervoltage, overfrequency, underfrequency, phase loss, reverse phase sequence), and putout power-off control switch signal.

  • Page 5: Performance And Characteristics

    HATC60 Dual Power ATS Controller User Manual 2 PERFORMANCE AND CHARACTERISTICS —— System type Mains-Power Generation, Mains-Mains, Power Generation-Power Generation etc.; —— Suitable for multiple AC system types (3-phase 4-line, 3-phase 3-line, 1-phase 2-line, 2-phase 3-line methods); —— Equipped with single color LCD screen with 132x64 pixel and bilingual display (Simplized Chinese, English), and tuch-button operation;...

  • Page 6: Specification

    HATC60 Dual Power ATS Controller User Manual 3 SPECIFICATION Table 2 Performance Parameters Items Description 1. DC8.0V~48.0V continuous power supply; Operating Voltage 2. AC power supply A1N1/A2N2, voltage range(90~305)V; Power Consumption <3.5W(Standby mode:≤2W) AC system 3P4W (L-L) (80~530)V AC Voltage Input 3P3W (L-L) (80~530)V (DC supply is needed.)

  • Page 7: Measure And Display Data

    HATC60 Dual Power ATS Controller User Manual 4 MEASURE AND DISPLAY DATA Table 3 Display Parameters Measuring & Display Data Items S1/S2 Power Phase Voltage S1/S2 Power Line Voltage S1/S2 Power Voltage Phase S1/S2 Power Frequency S1/S2 Present Power Status...

  • Page 8: Operation

    HATC60 Dual Power ATS Controller User Manual 5 OPERATION Fig.1 Penal Indication Drawing 5.1 INDICATORS Table 4 Indicators Description Indicator Name Color Description Green S1 power is normal, it is always bright; When abnormal, it flashes; When S1 Power Indicator S1 power is shutdown, it is dark;...

  • Page 9: Key Function Description

    HATC60 Dual Power ATS Controller User Manual 5.2 KEY FUNCTION DESCRIPTION Table 5 Button Function Description Key Name Function Description Press it in main interface, menu page appears; Entering menu page, confirm key can move the cursor and confirm the setting information;...

  • Page 10: Lcd Display

    HATC60 Dual Power ATS Controller User Manual 6 LCD DISPLAY 6.1 MAIN SCREEN Table 6 Screen Display Items Display Contents This page displays: loading status of I and II, wire voltage (Uab), frequency, and power status; Uab: 380V Uab: 380V F: 50.0 Hz...

  • Page 11: Status Description

    HATC60 Dual Power ATS Controller User Manual 6.2 STATUS DESCRIPTION Table 7 S1 Voltage Status Status Name Description S1 Available S1 Normal Delay; S1 Unavailable S1 Abnormal Delay; S1 Available Power supply voltage is within the setting range; S1 Blackout Voltage is 0;...
  • Page 12 HATC60 Dual Power ATS Controller User Manual Table 9 Genset Status Status Name Description Genset Start Delay The delay time before genset starts; Genset Return The delay time before genset stops; Delay Schedule Not Work When it is active, the lasting time of scheduled not-working displays;...
  • Page 13 HATC60 Dual Power ATS Controller User Manual Table 11 Warning Alarms Status Name Description It alarms when the forced open (Non-firefighting cutoff input) action is Forced Open Warn Warning, and the forced open input is active; Battery Under Volt Battery voltage is lower than the set limit value;...

  • Page 14: Main Menu

    HATC60 Dual Power ATS Controller User Manual 6.3 MAIN MENU In main screen, press Set/Confirm key and it shall enter the menu interface. 1. Exit 2. Parameters Set 3. History Record 4. Auto Trans./Restore Press Up/Down key to choose parameters (the current line was 5.

  • Page 15: Auto Mode Start/Stop

    HATC60 Dual Power ATS Controller User Manual interface. Remote Communication Stop Control: disconnect the outputted genset starting signal and it can control the genset stop. Remote Communication Start Control: Output genset starting signal and it can control the genset start.
  • Page 16 HATC60 Dual Power ATS Controller User Manual Master and Spare Starting When remote start is active, switch over to the genset with high starting priority to start. During the starting process current genset fault (genset power supply delay is overtime or input port of genset...

  • Page 17: Parameter Configuration

    HATC60 Dual Power ATS Controller User Manual Start by day: it can be set to start at the same time everyday. 7.2.4 Scheduled Genset Non-Start When scheduled genset non-start function is enabled, users can set scheduled non-start time. When the scheduled time is up, controller starting signal is disconnected. Before the scheduled non-start lasting time is over starting signal is prohibited.

  • Page 18: Parameter Configuration Table

    HATC60 Dual Power ATS Controller User Manual 8.2 PARAMETER CONFIGURATION TABLE Table 16 Parameter Configuration Item Form Item Range Default Description AC Settings The check time for S1 from abnormal to S1 Available Delay (0-3600) s normal; The check time for S1 from normal to...
  • Page 19 HATC60 Dual Power ATS Controller User Manual Item Range Default Description below the set value. Under Frequency (0-1) 0: Disable ; 1: Enable Enable Lower limit value of frequency; it is Set Value (0- 200)% abnormal if the value has fallen below the set value.
  • Page 20 HATC60 Dual Power ATS Controller User Manual Item Range Default Description switch from circuit 1 to circuit 2 and there is not breaker open control ouput in the process. Genset Settings When the genset prepares to start, the Genset Start Delay...
  • Page 21 HATC60 Dual Power ATS Controller User Manual Item Range Default Description Bit1: February Bit2: March Bit3: April Bit4: May Bit5: June Bit6: July Bit7: August Bit8: September Bit9: October Bit10: November Bit11: December Schedule Date (1~31) Date of monthly starting...
  • Page 22 HATC60 Dual Power ATS Controller User Manual Item Range Default Description Bit6: Saturday Inhibit Hours (0~23) Time for scheduled non-start Inhibit Minutes (0~59) Inhibit Rest Time (0~30000) The lasting time for scheduled non-start Digital Input Settings Digital Input 1 (0~20) Forced Open 0: Close to activate;...

  • Page 23: Digital Input/Output Function Description

    HATC60 Dual Power ATS Controller User Manual Item Range Default Description 1: Remote control disabled 2: Remote adjustment disabled 3: Remote adjustment for remote control disabled 8.3 DIGITAL INPUT/OUTPUT FUNCTION DESCRIPTION 8.3.1 INPUT PORT FUNCTION Table 17 Input Port Function Description...
  • Page 24 HATC60 Dual Power ATS Controller User Manual 8.3.2 OUTPUT PORT FUNCTION Table 18 Output Port Function Description Items Description Not Used Output port is inactive. Common Alarm It includes fault alarm and warning alarm. It includes “Transition Fault” alarm, and “Over Current”...

  • Page 25: Historical Records

    HATC60 Dual Power ATS Controller User Manual Items Description in which there are two groups of gensets and power S1 is generation type. Control S2 genset starting, and it is used in the system type S2 Genset Start in which there are two groups of gensets and power S2 is generation type.

  • Page 26: Switch Operation

    HATC60 Dual Power ATS Controller User Manual Table 19 Action Event List Action Events Description Closing QS1 Record when the QS1 close outputs. Closing QS2 Record when the QS2 close outputs. Opening Record when the breaker open outputs. Genset Start Record when the genset starting signal outputs.

  • Page 27: Ats Power Supply

    HATC60 Dual Power ATS Controller User Manual Table 20 Auto Breaker Transfer Logic Power Status Breaker and S1 Master S2 Master Loading Status S1 Normal Breaker Status QS1 Close QS1 Open S2 Normal QS2 Open QS2 Close Auto Trans./Res. Loading Status...

  • Page 28: Communication Configuration And Connection

    Fig.2 ATS Power Supply Wiring Drawing 12 COMMUNICATION CONFIGURATION AND CONNECTION HATC60 Dual Power ATS controller is equipped with RS485 communication port, which allows to connect with LAN (Local Area Network) with open structure. It applies MODBUS communication protocol via softwares on PC or data colletion system. It can provide a simple and practical dual power switching management project for factories, telecom, industry and civil buildings to achieve “remote control,...

  • Page 29: Terminal Definition

    HATC60 Dual Power ATS Controller User Manual 13 TERMINAL DEFINITION Fig.3 Controller Rear Panel Drawing Table 21 Input/Output Function Description Items Description Remark S1 AC System 3P4W For single phase, only connect L1, N. voltage input S2 AC System 3P4W For single phase, only connect L1, N.
  • Page 30 HATC60 Dual Power ATS Controller User Manual Items Description Remark Negative of DC supply Ground-connected terminal of module DC positive input (8-35)V for Positive of DC supply controller power supply Volts free; Normally open output; AUX. OUTPUT 3 Programmable output 3...

  • Page 31: Typical Application Diagram

    HATC60 Dual Power ATS Controller User Manual 14 TYPICAL APPLICATION DIAGRAM Fig.4 Breaker ATyS Application Diagram Fig. 5 Breaker ATyS d Application Diagram HATC60 Dual Power ATS Controller 2019-09-03 Version1.2 Page 31 of 35...
  • Page 32 HATC60 Dual Power ATS Controller User Manual Fig. 6 Breaker ATyS S Application Diagram Fig. 7 Breaker STyS dH Application Diagram HATC60 Dual Power ATS Controller 2019-09-03 Version1.2 Page 32 of 35...
  • Page 33 HATC60 Dual Power ATS Controller User Manual Fig. 8 Breaker ATyS dM Application Diagram Fig. 9 Breaker ATyS Note 4: Above application diagrams are only examples and users shall connect the wirings according to real situations. If Breaker Open auxiliary input is not connected with wires, the controller shall set “Breaker Open Input Disabled”.

  • Page 34: Installation

    HATC60 Dual Power ATS Controller User Manual 15 INSTALLATION The controller is panel-embedded design and they are fixed by clips in installation. Fig. 10 Overall & Cutout Dimensions HATC60 Dual Power ATS Controller 2019-09-03 Version1.2 Page 34 of 35...

  • Page 35: Trouble Shooting

    HATC60 Dual Power ATS Controller User Manual 16 TROUBLE SHOOTING Table 22 Troubleshooting Symptoms Possible Solutions Check DC voltage; Controller no response with Check DC fuse; power. Check AC Power supply. Check RS485 positive and negative poles are connected correctly or not;...
