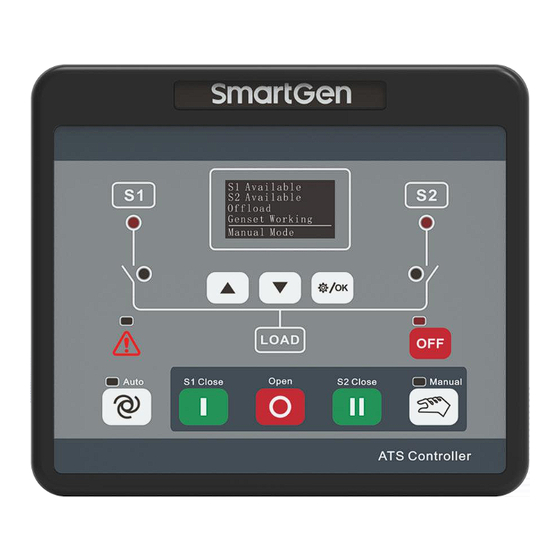

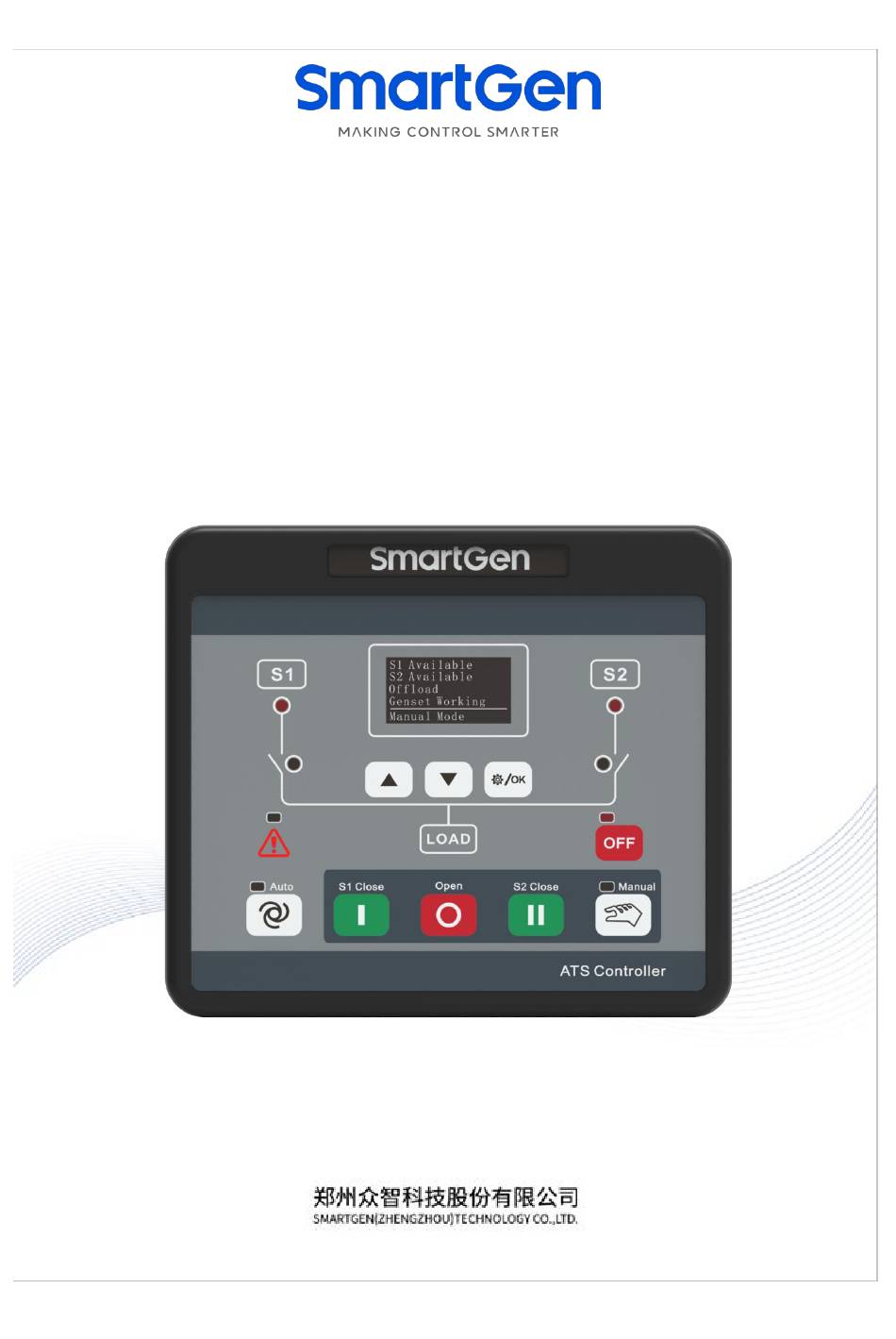

- Page 1 HAT360 SERIES (HAT361/HAT361C/HAT363/HAT363C) DUAL POWER ATS CONTROLLER USER MANUAL...
- Page 2 All rights reserved. No part of this publication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or other) without the written permission of the copyright holder. SmartGen reserves the right to change the contents of this document without prior notice. Table 1 Software Version Date...
- Page 3 Indicates a procedure or practice, which, if not strictly observed, could result in CAUTION damage or destruction of equipment. Indicates a procedure or practice, which could result in injury to personnel or loss of WARNING life if not followed correctly. HAT360 Series Dual Power ATS Controller User Manual Page 3 of 30...
-
Page 4: Table Of Contents
REMOTE CLOSE & OPEN VIA COMMUNICATION ..............22 AUTO START & STOP ........................22 CONTROLLER PORT DESCRIPTION ....................23 TYPICAL WIRING DIAGRAM ....................... 25 INSTALLATION............................ 29 FAULT FINDING ..........................30 HAT360 Series Dual Power ATS Controller User Manual Page 4 of 30... -
Page 5: Overview
OVERVIEW HAT360 series dual power ATS controller is made with the microprocessor as the core, which can precisely measure 2-way voltages, make correct judgment and control outputs for occurred voltage abnormal (over voltage, under voltage, over frequency, under frequency, loss of phase, reverse phase sequence). -
Page 6: Performance And Characteristics
Manual test is fitted, which can conduct genset start/stop; — LED can intuitively display current ATS close status, power status, manual/auto/OFF mode and alarm; — 2-way N wire isolated design. HAT360 Series Dual Power ATS Controller User Manual Page 6 of 30... -
Page 7: Specification
Apply AC2.2kV voltage between high voltage terminal and low voltage Insulation Strength terminal and the leakage current is not more than 3mA within 1min; insulation resistor: 100MΩ. Weight 0.56kg HAT360 Series Dual Power ATS Controller User Manual Page 7 of 30... -
Page 8: Operation
Illuminates in OFF mode; extinguishes in other modes. Auto Mode Indicator Illuminates in Auto mode; extinguishes in other modes. Manual Mode Indicator Illuminates in Manual mode; extinguishes in other modes. HAT360 Series Dual Power ATS Controller User Manual Page 8 of 30... -
Page 9: Key Function Description
After pressing it, load disconnects. It is active in manual mode; S2 Close After pressing it, S2 close outputs, S2 takes load. Manual Mode Press it to enter Manual mode. HAT360 Series Dual Power ATS Controller User Manual Page 9 of 30... -
Page 10: Lcd Display
S2 frequency 50.0Hz Freq S1 Phase Sequence L1 – L2 – L3 S2 Phase Sequence L1 – L2 – L3 Phase Sequence Alarm Information S1 Failed to Close HAT360 Series Dual Power ATS Controller User Manual Page 10 of 30... -
Page 11: Main Status Description
Description Start Delay Delay time before genset start. Stop Delay Delay time before genset stop. Genset Working Genset start signal outputs. Genset Standby No genset start signal outputs. HAT360 Series Dual Power ATS Controller User Manual Page 11 of 30... - Page 12 Forced Open Fault alarm is issued. Switch Trip Alarm Switch trip alarm input is active. S1 closed signal and S2 closed signal are active simultaneously, fault Simultaneous Close alarm is issued after 300ms. HAT360 Series Dual Power ATS Controller User Manual Page 12 of 30...
-
Page 13: Main Menu
NOTE: Password is needed for entering configuration, and default password is “01234”; Operators can change the password to prevent others changing controller configurations randomly. Please remember clearly after the change, or it is forgotten, please contact our company personnel. HAT360 Series Dual Power ATS Controller User Manual Page 13 of 30... -
Page 14: Parameter Setting
(0-200)% Rated Frequency 50.0Hz (10.0-75.0)Hz Overfrequency 0: Disable (0-1) Enable 1: Enable Threshold 110% (0-200)% Return Value 104% (0-200)% Underfrequency 0: Disable (0-1) Enable 1: Enable Threshold (0-200)% HAT360 Series Dual Power ATS Controller User Manual Page 14 of 30... - Page 15 0: Close to Activate Active Type (0-1) 1: Open to Activate Aux. Output Setting Active Type (0-1) Input 1 Setting (0-49) Details see table 16 Module Setting Module Address (1-254) HAT360 Series Dual Power ATS Controller User Manual Page 15 of 30...
-
Page 16: Digital Input Function Description
Reserved S1 Close Key Same as S1 close/open key, control S1 close/open. S2 Close Key Same as S2 close/open key, control S2 close/open. Alarm Reset Reset current alarms. HAT360 Series Dual Power ATS Controller User Manual Page 16 of 30... -
Page 17: Digital Output Function Description
Output in genset start delay. Genset Stop Delay Output in genset stop delay. Reserved Output when forced open (fire) input signal is active and Fire Linkage ATS is opened. HAT360 Series Dual Power ATS Controller User Manual Page 17 of 30... - Page 18 S2 Undervoltage S2 Overfrequency S2 power status S2 Underfrequency S2 Loss of Phase S2 Reverse Phase Sequence Transferring Output in transferring. Simultaneous Close Fault Output in simultaneous close fault. HAT360 Series Dual Power ATS Controller User Manual Page 18 of 30...
-
Page 19: Running
Gen Start Signal Disconnect S1 Abnormal S1 Abnormal Delay Gen Start Signal Output S1 Open S2 Close S2 Normal S2 Normal Delay S2 Close S1 Open Fig.3 Auto Transfer/Restore Flowchart HAT360 Series Dual Power ATS Controller User Manual Page 19 of 30... -
Page 20: Auto Transfer Non-Restore (Mutual Backup Active)
S2 Normal S2 Normal Delay S2 Close S1 Open S1 Normal S1 Normal Delay S2 Closed S2 Abnormal S2 Abnormal Delay Fig.4 Auto Transfer Non-restore (Mutual Backup Active) Flowchart HAT360 Series Dual Power ATS Controller User Manual Page 20 of 30... -
Page 21: Auto Transfer Non-Restore (Mutual Backup Inactive)
NOTE: Master power (S1) close needs to be realized by key operation in manual mode, otherwise, ATS only switch between open and backup power (S2) in auto mode. HAT360 Series Dual Power ATS Controller User Manual Page 21 of 30... -
Page 22: Genset Start & Stop Operation
Remote Start Off-load: Genset start outputs, when mains power is Ok, MB closes; when it is inactive, disconnect genset start output signal. ─ Gen Start Mains NG When mains power is abnormal, genset start outputs; when generating is Ok, gen closes. HAT360 Series Dual Power ATS Controller User Manual Page 22 of 30... -
Page 23: Controller Port Description
10 CONTROLLER PORT DESCRIPTION Fig.6 HAT361C Panel Fig.7 HAT363C Panel HAT360 Series Dual Power ATS Controller User Manual Page 23 of 30... - Page 24 120Ω resistor inside the controller B(-) RS485 communication A(+) port Common port AUX.INPUT Aux. input Connect GND of input common port AUX.OUTPUT Aux. output Capacity: 10A 250VAC HAT360 Series Dual Power ATS Controller User Manual Page 24 of 30...
-
Page 25: Typical Wiring Diagram
11 TYPICAL WIRING DIAGRAM Fig.8 SGQ-N/T Application Diagram Table 20 Related Settings Partial Parameter Setting ATS Type Setting No breaking Suitable controller model: HAT363 HAT360 Series Dual Power ATS Controller User Manual Page 25 of 30... - Page 26 Fig.9 ATyS Application Diagram Table 20 Related Settings Partial Parameter Setting ATS Type Setting One breaking Suitable controller model: HAT363 HAT360 Series Dual Power ATS Controller User Manual Page 26 of 30...
- Page 27 Fig.10 PHETENG Application Diagram Table 21 Related Setting Partial Parameter Setting ATS Type Setting Two breakings Suitable controller model: HAT363 HAT360 Series Dual Power ATS Controller User Manual Page 27 of 30...
- Page 28 Fig.11 Motor Type Application Diagram Table 22 Related Setting Partial Parameter Setting ATS Type Setting One breaking AUX.INPUT Forced open input Suitable controller model: HAT361/HAT363 HAT360 Series Dual Power ATS Controller User Manual Page 28 of 30...
-
Page 29: Installation
12 INSTALLATION The controller is designed by panel installation method, and is fixed by clips for installation. Unit: mm Fig.12 Overall Dimensions and Cutout Fig.13 Clip Installation HAT360 Series Dual Power ATS Controller User Manual Page 29 of 30... -
Page 30: Fault Finding
Check system type settings; Genset Start Control Abnormal Check output function settings and output type; Check start/stop function settings of all items. Parameter Setting Disable Check whether in OFF mode. _________________________________ HAT360 Series Dual Power ATS Controller User Manual Page 30 of 30...
